Westinghouse WSFS1009BK User manual

10” 2 in 1 Stand and Floor Fan

Ventilateur à pied et pour plancher 10'' 2-en-1

Instruction Manual / Manuel d’instructions

WSFS1009BK

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 1 5/12/2019 18:25:18

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 2 5/12/2019 18:25:18

CONTENT

SAFETY INFORMATION

IMPORTANT SAFEGUARDS....................................................................... 4

POLARIZED PLUG......................................................................................... 5

HOW TO USE

DESCRIPTION.................................................................................................. 6

OPERATING INSTRUCTIONS..................................................................... 7

CLEANING AND CARE ........................................................................ 8

MAINTENANCE ..................................................................................... 9

DISPOSAL............................................................................................... 9

INFORMATION AND SERVICE........................................................... 10

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 3 5/12/2019 18:25:18

SAFETY INFORMATION

Read this instruction manual carefully before using the appliance

and keep it for future reference.

1. Use this fan only as described in this manual. Using the fan for

other purposes may cause a fire, hazards or an electric shock.

2. This product is intended for household use. It is designed for

indoor, non-commercial, non-industrial and general domestic

use in cooling rooms and is not intended for use in windows.

Do not use the product outdoors or for any other purpose.

3. To prevent the risk of electrical shock, always use the fan on a

dry, level surface. Do not place the fan near windows, immerse

the unit, plug or cord in water, or spray with liquids.

4. Close supervision must be provided when the appliance is used

by or near children.

5. Unplug the unit from the mains outlet when left unattended or

not in use, when moving the fan from one location to another,

and before cleaning.

6. Never submerge the unit in water.

7. Do not operate the unit in the presence of explosive and/or

flammable fumes.

8. Do not place the unit or any parts near open flames or next to

cooking or other heating appliances.

9. Never insert fingers or any other objects through the fan

guards. Never drop or insert objects into any opening of the

product.

10. Never plug the unit in with wet hands or a wet cord.

IMPORTANT SAFEGUARDS

DANGER

DANGER – Immediate hazards

which WILL result in severe

personal injury or death

WARNING

WARNING – Hazards or unsafe

practices which COULD result in

severe personal injury or death

WARNING

When using electrical appliances, basic safety precautions

should always be followed, including the following

CAUTION

CAUTION – Hazards or unsafe

practices which COULD result in

minor personal injury

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 4 5/12/2019 18:25:18

SAFETY INFORMATION

11. Do not operate the unit with a damaged cord or plug. If the

cord or plug is damaged, discard the fan or return it to an

authorized service facility for examination and/or repair.

12. Avoid contact with moving fan parts.

13. To disconnect the fan from the power supply, grip the plug and

pull it from the outlet. Do not pull on the cord.

14. Do not operate if the fan housing has been removed or

damaged.

15. To prolong the lifespan of the product, do not use the fan

continuously for 24 hours a day.

16. WARNING: To reduce the risk of an electric shock or injury, do

not use the fan near windows.

17. WARNING: To reduce the risk of a fire or electrical hazards, do

not use this fan with a solid state speed control device.

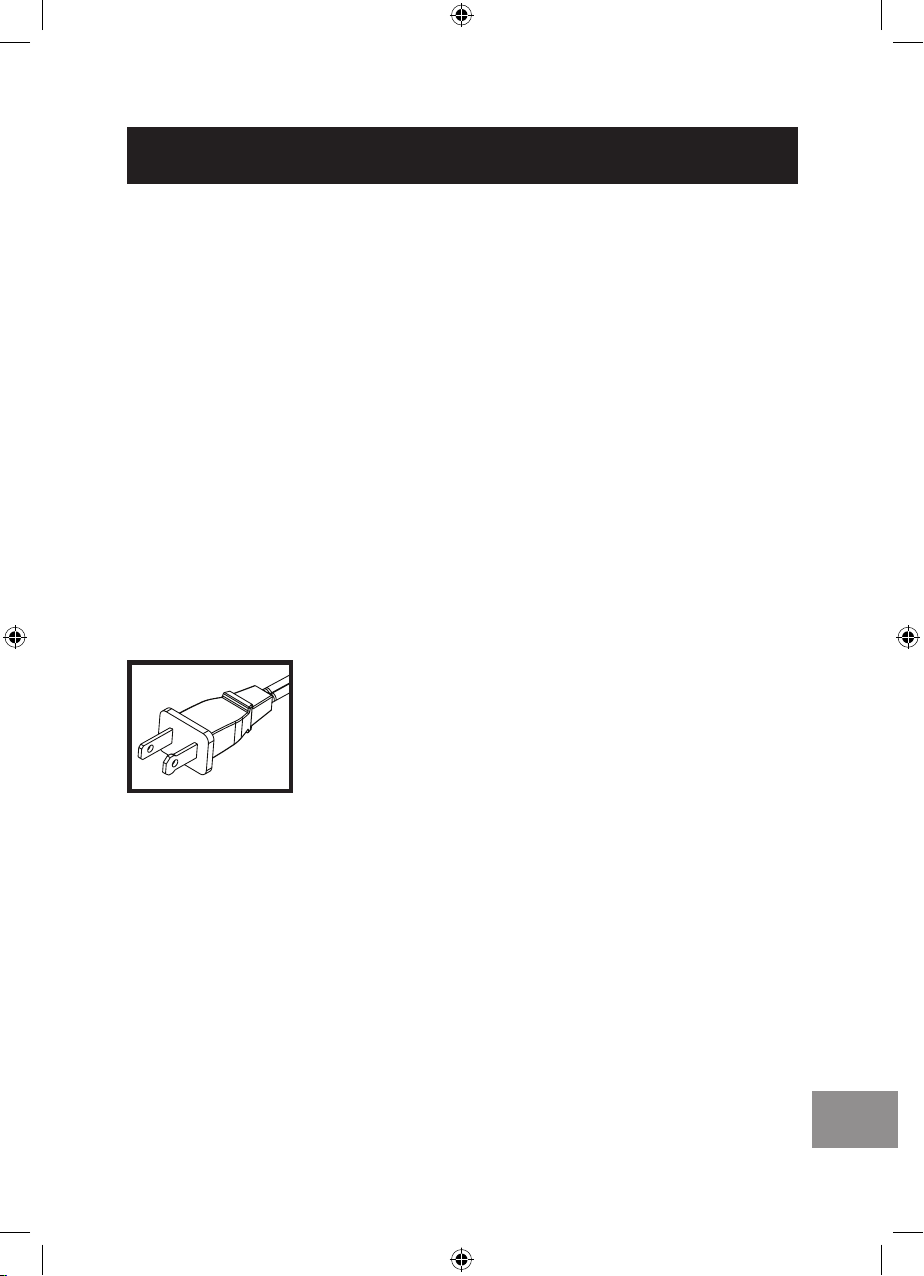

POLARIZED PLUG

This appliance has a polarized plug (one blade

is wider than the other). To reduce the risk of

electric shock, this plug is intended to fit in a

polarized outlet only one way. If the plug does

not fit fully in the outlet, reverse the plug, if it

still does not fit, contact a qualified electrician.

Do not modify the plug in any way.

DO NOTE ATTEMPT TO MODIFY THIS PLUG OR DEFEAT

THIS SAFETY FEATURE IN ANY WAY.

RETAIN THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 5 5/12/2019 18:25:18

DESCRIPTION

NO: NAME QTY

1 Fan head 1

2 Screw 1

3 Inner tube 1

4 Height adjustment knob 1

5 Outer tube 1

6 Cover ring 1

7 Screw 4

8 Base 1

9 Connection plate 1

HOW TO USE

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 6 5/12/2019 18:25:18

STAND FAN INSTRUCTIONS

1. Attach the outer tube (5) to the base (8) with the 4 screws (7)

as shown.

2. Loosen the height adjustment knob (4) on the outer tube and

extend the inner tube to the desired height.

3. Slide the cover ring (6) down the outer tube to rest on top of

the base.

Caution: The knob must be fully tightened before assembling

the fan head to the inner tube.

4. Secure the fan head (1) to the inner tube (3) with 1 screw (2).

FLOOR FAN INSTRUCTIONS

5. Attach the plastic connection plate (9) to the base (8) with the

4 screws (7) as shown.

6. Secure the fan head (1) to the connection plate (9) with 1 screw

(2).

OPERATING INSTRUCTIONS

WARNING: Do not use this product near windows, as this may

cause an electric shock or result in personal injury and/or damage

to property.

1. Place the fan on a dry, level surface.

2. Make sure the rotary switch is in the “0” (OFF) position. Plug

the unit into a 120 V/AC, 60 Hz mains outlet.

3. Adjust the fan head vertically to the desired angle.

4. To turn on the unit, turn the rotary switch to position “1” (LOW),

“2” (MEDIUM) or “3” (HIGH).

5. To stop the unit, turn the rotary switch to the “0” (OFF)

position, and then unplug the unit from the mains outlet.

6. Unplug the product from the mains outlet when it is not in use

or is left unattended.

HOW TO USE

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 7 5/12/2019 18:25:19

CLEANING AND CARE

WARNING: To avoid the risk of electric shock, always make sure

the product is unplugged from the mains outlet before cleaning

or servicing

1. The product should be cleaned and inspected on a regular

basis. Make sure the fan blade is clean at all times to prevent

damage and fading.

The fan can be cleaned in two ways:

a) Vacuum the fan blades or use a can of compressed air, or

b) Remove the front guard by removing the 6 screws securing

the grille to the fan (use a screwdriver with a magnetic tip).

2. To clean the front guard, turn counterclockwise to loosen the

screw and pull off the guard. To replace the front guard, align

the shaft with the inside groove on the guard and push inwards.

Screw the fastener on clockwise to tighten.

3. Take the guard off and wipe it with a cloth or use a can of

compressed air. Make sure the front guard is completely dry

before securing it back onto the fan.

4. Wipe the fan blades (do not remove) with a damp cloth dipped

in a light solution of water and mild detergent.

5. Make sure that water does not get into the motor while

cleaning.

6. The blade and rear guard (non-removable) must be completely

dry when the guard in place.

7. Do not use any chemical cleaners (e.g. acid or alcohol) to clean

the fan.

NOTE: This fan is not intended to be disassembled in order to

clean the internal parts (e.g. blade or motor). Disassembly may

damage the product. Never use liquids or abrasive cleaners to

clean the product.

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 8 5/12/2019 18:25:19

MAINTENANCE

WARNING: Do not attempt to open any part of the motor

housing, as this may cause an electric shock. This product has

been lubricated at the factory and does not require further

lubrication. Additional lubrication of electric motor parts could

create a re hazard.

1. The product must be placed in its original packaging and

stored in a room with low humidity.

2. Make sure the product is completely dry before use.

Note: If you experience a problem, please return the fan to the

retailer. Do not attempt to open the motor housing yourself, as

doing so may cause damage to the fan or personal injury.

DISPOSAL

Proper disposal of this product.

This symbol indicates that this appliance may not be treated

as household waste. Instead, it should be taken to the

appropriate collection point for recycling electrical and

electronic equipment.

Please use the return or collections services available in your

community or contact the retailer where you purchased this

product.

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 9 5/12/2019 18:25:19

INFORMATION AND SERVICE

If you have questions or concerns about your product, please visit

our website: www.westinghousehomeware.com, or contact our

overseas offices/agents.

In line with our policy of continuous product development,

we reserve the right to change the product, packaging and

documentation specifications without prior notice.

Model: WSFS1009BK

120VAC 60 Hz 72W

WSFS1009BK_2 in 1 High Velocity 10 Stand Floor Fan_2L.indd 10 5/12/2019 18:25:19
