Westermo SD-300 Series User manual

Industrial Ethernet

3-port Switch

INSTALLATION MANUAL

66 2-2200

www.westermo.com

SD-300

Series

©Westermo Teleindustri AB • 2003 • REV.A

Galvanic

Isolation Transient

Protection Balanced

Transmission CE

Approved

AUDIN

8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20

Web : http: www.audin.fr - Email : [email protected]

26642-2200

Contents

1. Description .............................................................................................................................................................. 3

2. Safety ...............................................................................................................................................................................

3. Approvals ...................................................................................................................................................................

3.1 Declaration of Conformity ....................................................................................................................... 5

. Specification ........................................................................................................................................................... 6

5. Maintenance ........................................................................................................................................................... 7

6. Installation ................................................................................................................................................................ 7

6.1 Mounting / Removal ....................................................................................................................................... 7

6.2 Connections ......................................................................................................................................................... 8

6.3 DIP Switch Settings .......................................................................................................................... 10–11

6. LED indicators ................................................................................................................................................ 12

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

36642-2200

1. Description

The SD-300 is a serie of Industrial Ethernet 3-port switches.

Several variations are available ranging from a version with three RJ-45 TX (copper) ports

to versions having two FX (fibre) and one TX port.

All TX ports support auto-negotiation, but DIP-switches also allow speed and duplex

configuration of any individual TX port.

The SD-300 series has been designed to meet high industrial specifications, providing

very high dependability in harsh environmental conditions.

Features:

• Flexible mix of TX (copper) and FX (fibre) interfaces

• TX chassies individually isolated

• Wide DC Power Range 2–48 VDC

• LED indicators for Speed, Duplex, Link and Traffic.

• 35 mm DIN rail mounting

• On request

– Extended temperature

– 90–240 VAC, 0–240 VDC (HV-supply)

– LC, MTRJ or ST fibre interface

– Single Mode (SM) fibre

Example of applications are:

• 3-port switch

• Fibre repeater, with service port

• Fibre to copper converter

• Ethernet isolator, for STP network

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

6642-2200

2. Safety

General:

Before using this unit, read this manual completely and gather all information on

the unit. Make sure that you understand it fully. Check that your application does

not exceed the safe operating specifications for this unit.

Before installation, maintenance or modification work:

Prevent damage to internal electronics from electrostatic discharges (ESD)

by discharging your body to a grounding point (e.g. use of wrist strap).

Prevent access to hazardous voltages by disconnecting the unit from AC/DC

mains supply and all other electrical connections.

Installation:

This unit is constructed for professional system use. It should be located in a

restricted access area, such as locked cabinet which can only be accessed by

service personnel.

Sound installation practice, as defined by applicable local codes or regulations,

shall be followed in every instance in which such practice is applicable.

This unit is defined as class III equipment and shall be separated from hazardous

voltage by double or reinforced insulation.

All interfaces must only be connected to SELV or TNV- circuits.

3. Approvals

Conformity with the Directive 89/336/EEC (Electromagnetic compatibility)

has been assessed by application of standards EN 6 000-6-2 (industrial immunity)

and EN 6 000-6-3 (residental emission).

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

56642-2200

3.1 Declaration of Conformity

Westermo Teleindustri AB

Declaration of conformity

.nr/

Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office

S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna

Sweden Int+46 16428000 Int+46 16428001

The manufacturer Westermo Teleindustri AB

SE-640 40 Stora Sundby, Sweden

herewith declares that the product(s)

Type of product Model Art no Installation manual

DIN-rail ethernet 3-port switch SD-3xx 3642-00xx 6642-2200

is in conformity with the following EC directive(s).

No Title

89/336/EEG Electromagnetic Compatibility (EMC-directive)

73/23/EEG Low Voltage Directive (LVD)

References of standards applied for this EC declaration of conformity.

No Title Issue

EN 61000-6-2 Immunity for industrial environments 2 (2001)

EN 61000-6-3 Emission standard for residential, commercial and

light industrial environments

1 (2001)

EN 60950 Safety of information technology equipment 6 (2000)

The last two digits of the year in which the CE marking was affixed: 03

Hans Levin

Technical Manager

9th July 2003

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

66642-2200

. Specification

SD-330 SD-32 -MM-SC2 SD-3 2-2MM-SC2

Rated voltage 2–48 VDC, polarity independent

Operating voltage 9.6 – 57.6 VDC

Rated current @ 0 VDC power input

250 mA 600 mA 800 mA

Rated frequency DC

Connection Screw terminal

Connector size 0.2 – 2.5 mm2(AWG 24- 2)

Power interface

Ethernet TX Interface

Electrical specification IEEE std 802.3. 2000 Edition

Data rate 0 Mbit/s or 00 Mbit/s, manual or auto

Duplex Full or half, manual or auto

Connection RJ-45, shielded

Circuit type TNV-

Transmission range 00 m

Ethernet FX Interface

Optical specification IEEE std 802.3. 2000 Edition

Data rate 00 Mbit/s

Duplex Full

Connection SC

Transmission range 2 km

Mechanics

Dimension (W x H x D) 55 x 00 x 28 mm

Weight <0.35 kg

Mounting DIN-rail

Degree of protection IP 20 (IEC 529)

Insulation between Interface

Power Interface to all other Interfaces 4.2 kVDC, 3 kV RMS @ 50 Hz and 60s duration

TX signal Interface to all other 2. kVDC, .5 kV RMS @ 50 Hz and 60s duration

TX chassie Interface to all other .5 kVDC, kV RMS @ 50 Hz and 60s duration

Climatic environment

Temperature, operating +5 to +55°C

Temperature,

storage and transportation –25 to +70°C

Relative humidity, operating 5 to 95% (non-condensing)

Relative humidity,

storage and transportation 5 to 95% (condensation allowed outside packaging)

Configuration

Auto configured (auto-negotiation) or manually setting of speed and duplex of individual

TX port, by DIP-switches.

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

Min

10 mm 25 mm

25 mm

76642-2200

5. Maintenance

No maintenance is required, as long as the unit is used as intended within the specified

conditions.

6. Installation

6.1 Mounting /Removal

Before mounting or removing the unit:

Prevent damage to internal electronics from electrostatic discharges (ESD)

by discharging your body to a grounding point (e.g. use of wrist strap).

Prevent access to hazardous voltages by disconnecting the unit from AC/DC

mains supply and all other electrical connections.

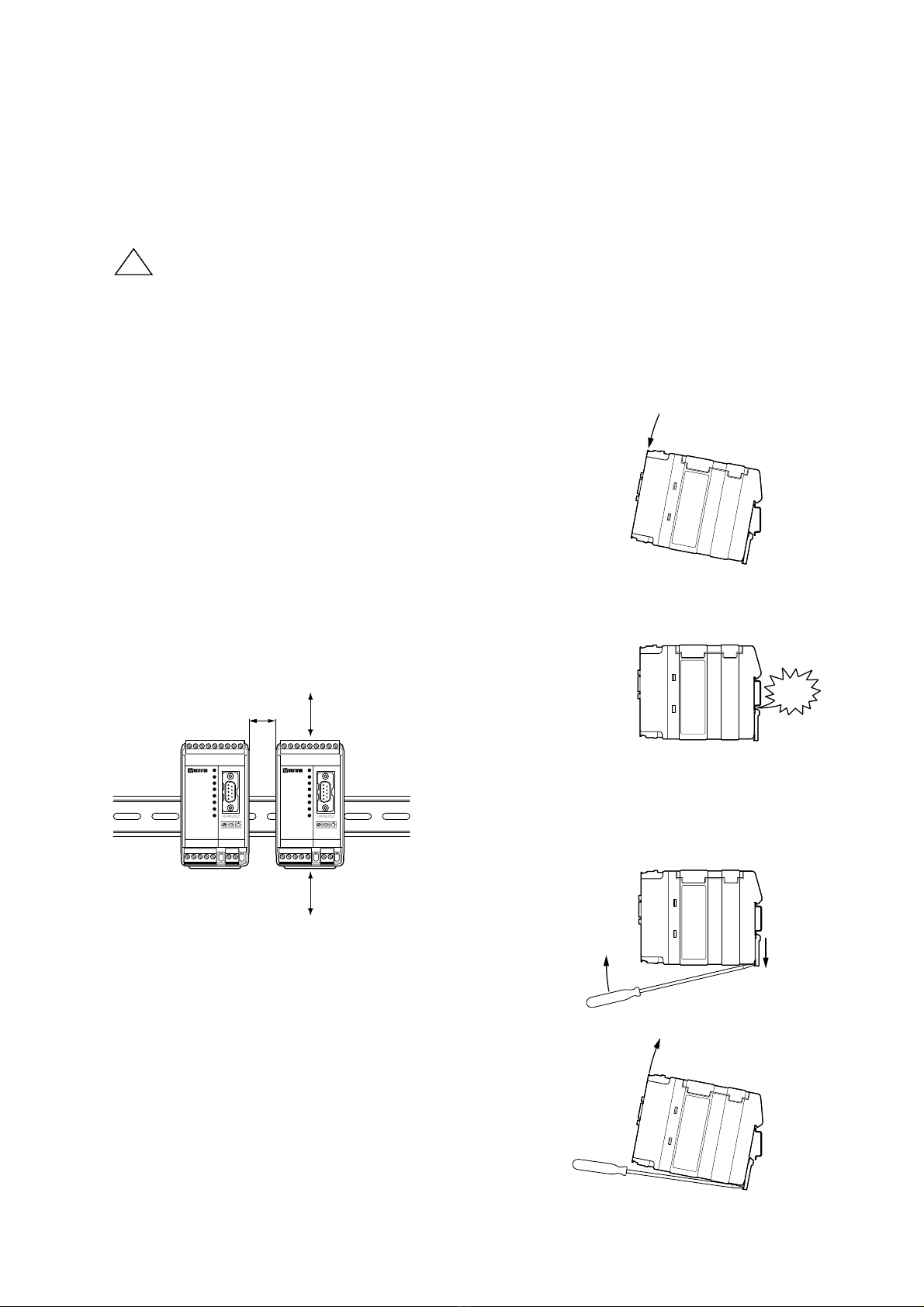

Mounting

This unit should be mounted on 35 mm DIN-rail which is

horizontally mounted on a wall or cabinet backplate.

This unit uses convection cooling.To avoid obstructing the air

flow around the unit, use the following spacing rules. Minimum

spacing 25 mm ( .0 inch) above/below and 0 mm (0.4 inches)

left/right the unit.

Snap on mounting, see figure.

Removal

Press down the black support at the back of the unit

using a screwdriver, see figure.

CLICK!

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

86642-2200

6.2 Connections

Power screw terminal

Network

Fibre connection

Network

RJ-45 connection

Available models:

… SD-330 00Base-TX: 3ports

… SD-32 00Base-TX: 2ports 00Base-FX: port

… SD-3 2 00Base-TX: port 00Base-FX: 2ports

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

96642-2200

6.2.1 Power

2–48 VDC must be connected to the unit.

The power input is polarity independent, even if ± marked.

6.2.3 FX (Optional)

Ethernet FX connection.

300 nm multimode fiber tranceiver with SC-connector.

The dust protection plug shall be mounted when no fibre is connected.

6.2.2 TX

Ethernet TX connection (RJ-45 connector), Media Dependent Interface-Crossover.

Contact Signal Name Direction* Description/Remark

RD+ In Received Data

2 RD– In Received Data

3 TD+ Out Transmitted Data

4 Terminated

5 Terminated

6 TD– Out Transmitted Data

7 Terminated

8 Terminated

Chassie HF-connected

* Direction relative SD-300.

CAT 5 cable is recommended.

Unshielded (UTP) or shielded (STP) connector might be used.

–+

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]

10 6642-2200

6.3 DIP-switch settings

DIP-switches are accessible under the lid on top of the unit. DIP-switches are used to

configure the modem.

Warning!

Prevent damage to internal electronics from electrostatic discharges (ESD)

by discharging your body to a grounding point (e.g. use of wrist strap),

before the lid on top of the modem is removed.

Warning! Do not open connected equipment.

Prevent access to hazardous voltages by disconnecting the unit from AC/DC

mains supply and all other electrical connections.

AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles

Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : [email protected]
