WELLTECH SIPPBX 6200GS - V3.1 UPGRADE PROCEDURE User manual

SIPPBX 6200S/GS/N V3.1 Upgrade

Procedure

Prior to start the upgrade procedure, please make sure the latest 3.0 firmware is

installed correctly. Please do the upgrade in local area network and make sure the

SIPPBX 6200S/GS/N will not be restarted during the upgrade. Otherwise, SIPPBX 6200S

GS/N might not boot correctly after upgrade.

Setp1. Backup old configuration for unexpected upgrade result or

downgrade

Crate backup directory:

cd C:\

mkdir 6200bak

cd 6200bak

mkdir dbfile

mkdir binfile

mkdir cdr

FTP Backup Command:

ftp xxx.xxx.xxx.xxx

prompt off

binary

cd d:\

lcd c:\6200bak

cd d:\ap\binfile

lcd c:\6200bak\binfile

mget *

cd d:\ap\dbfile

lcd d:\6200bak\dbfile

mget *

cd d:\ap\cdr

lcd c:\6200bak\cdr

mget *

(Backup Example)

Microsoft Windows XP [Version 5.1.2600]

C:\>ftp 192.168.19.52

Connected to 192.168.19.52.

220 Connected to FTPD

User (192.168.19.52:(none)): root

331 Password required for root.

Password:

230 User root logged in.

ftp> prompt off

Interactive mode Off .

ftp> binary

200 Type is set to I.

ftp> cd d:

250 CWD command successful.

ftp> lcd c:\6200bak

Local directory now C:\6200bak.

ftp> get wgos.sdi

200 PORT command successful.

150 Opening BINARY mode data connection for wgos.sdi (230279680 bytes).

226 [Bytes: 230279680][Time: 218.39 s][Speed: 1029.72 K/s]

ftp: 230279680 bytes received in 218.39Seconds 1054.44Kbytes/sec.

ftp> cd d:\ap\binfile

250 CWD command successful.

ftp> lcd c:\6200bak\binfile

Local directory now C:\6200bak\binfile.

ftp> mget *

200 Type is set to I.

200 PORT command successful.

150 Opening BINARY mode data connection for ACD.bin (36 bytes).

226 [Bytes: 36][Time: 0.01 s][Speed: 3.52 K/s]

ftp: 36 bytes received in 0.00Seconds 36000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for dbserver.bin (2918511 bytes).

226 [Bytes: 2918511][Time: 2.73 s][Speed: 1042.47 K/s]

ftp: 2918511 bytes received in 2.73Seconds 1067.49Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for OSAdmin.bin (1630534 bytes).

226 [Bytes: 1630534][Time: 1.56 s][Speed: 1018.76 K/s]

ftp: 1630534 bytes received in 1.56Seconds 1043.88Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SiPBX.bin (5409391 bytes).

226 [Bytes: 5409391][Time: 5.11 s][Speed: 1033.98 K/s]

ftp: 5409391 bytes received in 5.11Seconds 1058.80Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for TTS00.zip (1567787 bytes).

226 [Bytes: 1567787][Time: 1.45 s][Speed: 1053.71 K/s]

ftp: 1567787 bytes received in 1.47Seconds 1067.25Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for TTS01.zip (1704642 bytes).

226 [Bytes: 1704642][Time: 1.59 s][Speed: 1044.35 K/s]

ftp: 1704642 bytes received in 1.59Seconds 1069.41Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for TTS02.zip (2384528 bytes).

226 [Bytes: 2384528][Time: 2.23 s][Speed: 1041.90 K/s]

ftp: 2384528 bytes received in 2.23Seconds 1067.38Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for wwwroot.bin (8579756 bytes).

226 [Bytes: 8579756][Time: 8.06 s][Speed: 1039.28 K/s]

ftp: 8579756 bytes received in 8.06Seconds 1064.09Kbytes/sec.

ftp> cd d:\ap\dbfile

250 CWD command successful.

ftp> lcd c:\6200bak\dbfile

Local directory now C:\6200bak\dbfile.

ftp> mget *

200 Type is set to I.

200 PORT command successful.

150 Opening BINARY mode data connection for aaaclient.ini (1010 bytes).

226 [Bytes: 1010][Time: 0.01 s][Speed: 98.63 K/s]

ftp: 1010 bytes received in 0.00Seconds 1010000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for ACDTeller.ini (30 bytes).

226 [Bytes: 30][Time: 0.01 s][Speed: 2.93 K/s]

ftp: 30 bytes received in 0.00Seconds 30000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for add2snmp.cfg (0 bytes).

226 [Bytes: 0][Time: 0.01 s][Speed: 0.00 K/s]

200 PORT command successful.

150 Opening BINARY mode data connection for Broadcasting.ini (143 bytes).

226 [Bytes: 143][Time: 0.01 s][Speed: 13.96 K/s]

ftp: 143 bytes received in 0.00Seconds 143000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for CDRMgr.ini (2384 bytes).

226 [Bytes: 2384][Time: 0.01 s][Speed: 232.81 K/s]

ftp: 2384 bytes received in 0.00Seconds 2384000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for ConfSipSet.ini (4226 bytes).

226 [Bytes: 4226][Time: 0.01 s][Speed: 412.70 K/s]

ftp: 4226 bytes received in 0.00Seconds 4226000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for DBSQL.log (5166 bytes).

226 [Bytes: 5166][Time: 0.01 s][Speed: 504.49 K/s]

ftp: 5166 bytes received in 0.00Seconds 5166000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for Deliver.ini (178 bytes).

226 [Bytes: 178][Time: 0.01 s][Speed: 17.38 K/s]

ftp: 178 bytes received in 0.00Seconds 178000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for devAcl.ini (26 bytes).

226 [Bytes: 26][Time: 0.01 s][Speed: 2.54 K/s]

ftp: 26 bytes received in 0.00Seconds 26000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for ENHANCE.GDB (1089536 bytes).

226 [Bytes: 1089536][Time: 1.06 s][Speed: 1001.88 K/s]

ftp: 1089536 bytes received in 1.06Seconds 1024.96Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for ENHANCE_V3.GDB (856064 bytes).

226 [Bytes: 856064][Time: 0.80 s][Speed: 1050.25 K/s]

ftp: 856064 bytes received in 0.80Seconds 1074.11Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for HA.ini (92 bytes).

226 [Bytes: 92][Time: 0.01 s][Speed: 8.98 K/s]

ftp: 92 bytes received in 0.00Seconds 92000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for IPMBoardSet.ini (513 bytes).

226 [Bytes: 513][Time: 0.01 s][Speed: 50.10 K/s]

ftp: 513 bytes received in 0.00Seconds 513000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for License.ini (405 bytes).

226 [Bytes: 405][Time: 0.01 s][Speed: 39.55 K/s]

ftp: 405 bytes received in 0.00Seconds 405000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for Message.txt (20488 bytes).

226 [Bytes: 20488][Time: 0.02 s][Speed: 1250.49 K/s]

ftp: 20488 bytes received in 0.02Seconds 1280.50Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for Monitor.txt (24 bytes).

226 [Bytes: 24][Time: 0.01 s][Speed: 2.34 K/s]

ftp: 24 bytes received in 0.00Seconds 24000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for MWI.ini (172 bytes).

226 [Bytes: 172][Time: 0.01 s][Speed: 16.80 K/s]

ftp: 172 bytes received in 0.00Seconds 172000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for NATProxy.ini (357 bytes).

226 [Bytes: 357][Time: 0.01 s][Speed: 34.86 K/s]

ftp: 357 bytes received in 0.00Seconds 357000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for ntpreg.reg (890 bytes).

226 [Bytes: 890][Time: 0.01 s][Speed: 86.91 K/s]

ftp: 890 bytes received in 0.00Seconds 890000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for proxyserver.ini (366 bytes).

226 [Bytes: 366][Time: 0.01 s][Speed: 35.74 K/s]

ftp: 366 bytes received in 0.00Seconds 366000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for RoutingTable.txt (135 bytes).

226 [Bytes: 135][Time: 0.01 s][Speed: 13.18 K/s]

ftp: 135 bytes received in 0.00Seconds 135000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SaveSubscStatus.ini (269 bytes).

226 [Bytes: 269][Time: 0.01 s][Speed: 26.27 K/s]

ftp: 269 bytes received in 0.00Seconds 269000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for service.ini (35 bytes).

226 [Bytes: 35][Time: 0.01 s][Speed: 3.42 K/s]

ftp: 35 bytes received in 0.00Seconds 35000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SetRoute.bat (250 bytes).

226 [Bytes: 250][Time: 0.01 s][Speed: 24.41 K/s]

ftp: 250 bytes received in 0.00Seconds 250000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SiPBXLogo.gif (4545 bytes).

226 [Bytes: 4545][Time: 0.01 s][Speed: 443.85 K/s]

ftp: 4545 bytes received in 0.00Seconds 4545000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for sippbx.ini (536 bytes).

226 [Bytes: 536][Time: 0.01 s][Speed: 52.34 K/s]

ftp: 536 bytes received in 0.00Seconds 536000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SIPPBX_Lang.ini (67 bytes).

226 [Bytes: 67][Time: 0.01 s][Speed: 6.54 K/s]

ftp: 67 bytes received in 0.00Seconds 67000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SIPPD.bak (1576960 bytes).

226 [Bytes: 1576960][Time: 1.56 s][Speed: 985.92 K/s]

ftp: 1576960 bytes received in 1.56Seconds 1008.93Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SIPPD.ini (4010 bytes).

226 [Bytes: 4010][Time: 0.01 s][Speed: 391.60 K/s]

ftp: 4010 bytes received in 0.00Seconds 4010000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SIPPD.mdb (1769472 bytes).

226 [Bytes: 1769472][Time: 1.66 s][Speed: 1043.48 K/s]

ftp: 1769472 bytes received in 1.66Seconds 1068.52Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for sslkey (1386 bytes).

226 [Bytes: 1386][Time: 0.01 s][Speed: 135.35 K/s]

ftp: 1386 bytes received in 0.00Seconds 1386000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SysLog.ini (1082 bytes).

226 [Bytes: 1082][Time: 0.01 s][Speed: 105.66 K/s]

ftp: 1082 bytes received in 0.00Seconds 1082000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for System.ini (247 bytes).

226 [Bytes: 247][Time: 0.01 s][Speed: 24.12 K/s]

ftp: 247 bytes received in 0.00Seconds 247000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for Trust_IP.ini (23 bytes).

226 [Bytes: 23][Time: 0.01 s][Speed: 2.25 K/s]

ftp: 23 bytes received in 0.00Seconds 23000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for updatelog.GDB (753664 bytes).

226 [Bytes: 753664][Time: 0.70 s][Speed: 1045.45 K/s]

ftp: 753664 bytes received in 0.70Seconds 1072.07Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for updatelog.mdb (585728 bytes).

226 [Bytes: 585728][Time: 0.55 s][Speed: 1045.70 K/s]

ftp: 585728 bytes received in 0.55Seconds 1070.80Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for UPDATELOG_V3.GDB (679936 bytes).

226 [Bytes: 679936][Time: 0.63 s][Speed: 1062.40 K/s]

ftp: 679936 bytes received in 0.64Seconds 1062.40Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for User.ini (158 bytes).

226 [Bytes: 158][Time: 0.01 s][Speed: 15.43 K/s]

ftp: 158 bytes received in 0.00Seconds 158000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for vlan.cfg (3032 bytes).

226 [Bytes: 3032][Time: 0.01 s][Speed: 296.09 K/s]

ftp: 3032 bytes received in 0.00Seconds 3032000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for VMSNotify.ini (1888 bytes).

226 [Bytes: 1888][Time: 0.01 s][Speed: 184.38 K/s]

ftp: 1888 bytes received in 0.00Seconds 1888000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for VMSSet.ini (62 bytes).

226 [Bytes: 62][Time: 0.01 s][Speed: 6.05 K/s]

ftp: 62 bytes received in 0.00Seconds 62000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for Weekday.ini (79 bytes).

226 [Bytes: 79][Time: 0.01 s][Speed: 7.71 K/s]

ftp: 79 bytes received in 0.00Seconds 79000.00Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for WGOS.ini (735 bytes).

226 [Bytes: 735][Time: 0.01 s][Speed: 71.78 K/s]

ftp: 735 bytes received in 0.00Seconds 735000.00Kbytes/sec.

ftp> cd d:\ap\cdr

250 CWD command successful.

ftp> lcd c:\6200bak\cdr

Local directory now C:\6200bak\cdr.

ftp> mget *

200 Type is set to I.

200 PORT command successful.

150 Opening BINARY mode data connection for Rept20090422.log (78 bytes).

226 [Bytes: 78][Time: 0.01 s][Speed: 7.62 K/s]

ftp: 78 bytes received in 0.00Seconds 78000.00Kbytes/sec.

ftp> bye

Step 2: Unzip Release 3.0 Firmware

Unzip 6200s_v310.zip (or 6200gs_v310.zip, 6200n_v310.zip) to

- osadmin.bin

- sipbx.bin

- wwwroot.bin

Step 3: Upgrade Release 3.0 Firmware

Microsoft Windows XP [Version 5.1.2600]

C:\>cd 6200_v3.1

C:\6200_v3.0>ftp 192.168.19.52

Connected to 192.168.19.17.

220 Connected to FTPD

User (192.168.19.17:(none)): root

331 Password required for root.

Password:

230 User root logged in.

ftp> cd d:\ap\binfile

250 CWD command successful.

ftp> lcd

Local directory now C:\6200_v3.0.

ftp> bin

200 Type is set to I.

ftp> prompt off

Interactive mode Off .

ftp> mput *

150 Opening BINARY mode data connection for OSAdmin.bin.

226 [Bytes: 1629288][Time: 1.72 s][Speed: 926.14 K/s]

ftp: 1629288 bytes sent in 1.67Seconds 974.45Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for SiPBX.bin.

226 [Bytes: 5040312][Time: 5.77 s][Speed: 853.66 K/s]

ftp: 5040312 bytes sent in 5.70Seconds 883.80Kbytes/sec.

200 PORT command successful.

150 Opening BINARY mode data connection for wwwroot.bin.

226 [Bytes: 8561496][Time: 8.95 s][Speed: 933.86 K/s]

ftp: 8561496 bytes sent in 8.94Seconds 957.98Kbytes/sec.

ftp> bye

Step 4. Import “Service Setting” Call Flow

1. Download ss_patch.zip (service setting call flow and new voice file)

2. Unzip ss_patch.zip to

- Voice folder

- servicesetting.clf

- ca_auth_pin.clf

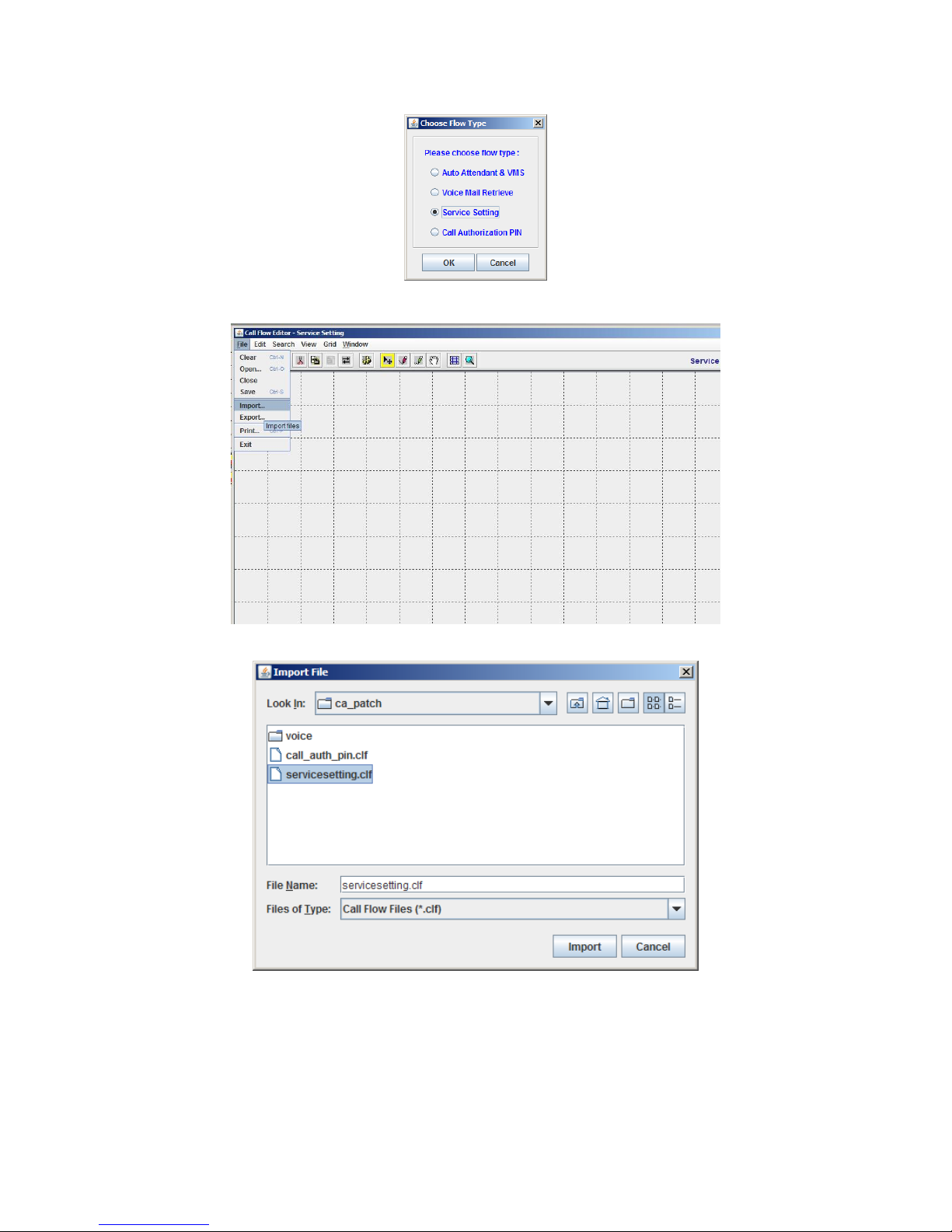

3. Import Service Setting Call flow

(Enhance Service > Call Flow Editor > Service Setting)

Import “servicesetting.clf” Call Flow (download from Welltech technical support)

Import and Save Service setting call

3. Import Call Auth PIN Call flow

(Enhance Service > Call Flow Editor > Call Authorization PIN)

This manual suits for next models

Other WELLTECH Software manuals

WELLTECH

WELLTECH WEBCALL User manual

Popular Software manuals by other brands

COMPRO

COMPRO COMPROFM manual

Muratec

Muratec OFFICEBRIDGE ONLINE user guide

Oracle

Oracle Contact Center Anywhere 8.1 installation guide

Adobe

Adobe 65007312 - Photoshop Lightroom Programmer's guide

Avaya

Avaya NULL One-X for RIM Blackberry user guide

HP ProLiant BL420c user guide

PS Audio

PS Audio PowerPlay Programming manual

Brady

Brady LOCKOUT PRO 3.0 Administrator's guide

Avaya

Avaya Interaction Center user guide

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Guide book

Novell

Novell GROUPWISE 8 - INTERNET AGENT manual

Oracle

Oracle Application 9i Configuration guide

Acer

Acer RDM user guide

Canon

Canon Vixia HF21 instruction manual

Canon

Canon ZR950 instruction manual

Samsung

Samsung Auto Backup user manual

Polycom

Polycom Vortex EF2201 Application note

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c user manual
