Weller ColdHeat Pro User manual
The content and copyrights of the attached
material are the property of its owner.
Distributed by:
www.Jameco.com ✦ 1-800-831-4242
Incorrect:
Work piece makes contact
with only one half of tip.
Correct:
Work piece makes contact
with both halves of tip.
© Hyperion Innovations Inc, 2005
“ColdHeat” and “Powered by ColdHeat” are
trademarks of Hyperion Innovations Inc.
PRO SOLDERING TOOL
Soldering Technique
1
Use a light touch
2
Use the correct angle
3
Use short bursts of heat
This tool is intended for short bursts of heat.
Do not dwell on a single joint for a long duration
A feather touch will create better joints
and prolong tip life
The technique for soldering with
the Pro tool is slightly different than
for other irons. Please review this
guide, the instruction manual and
coldheat.com for information.
Quick Start
Guide
© Cooper Industries, Inc., 2005
“Weller” and “Cooper Hand Tools”
are trademarks of Cooper Industries, Inc.
Solid Blue Line: Cut
Dotted Red Line: Fold
Dieline Markings
DIELINE MARKINGS ARE FOR REFERENCE ONLY.
NOT TO BE INCLUDED IN FINAL PRODUCT.
Please see the back panel for technique tips

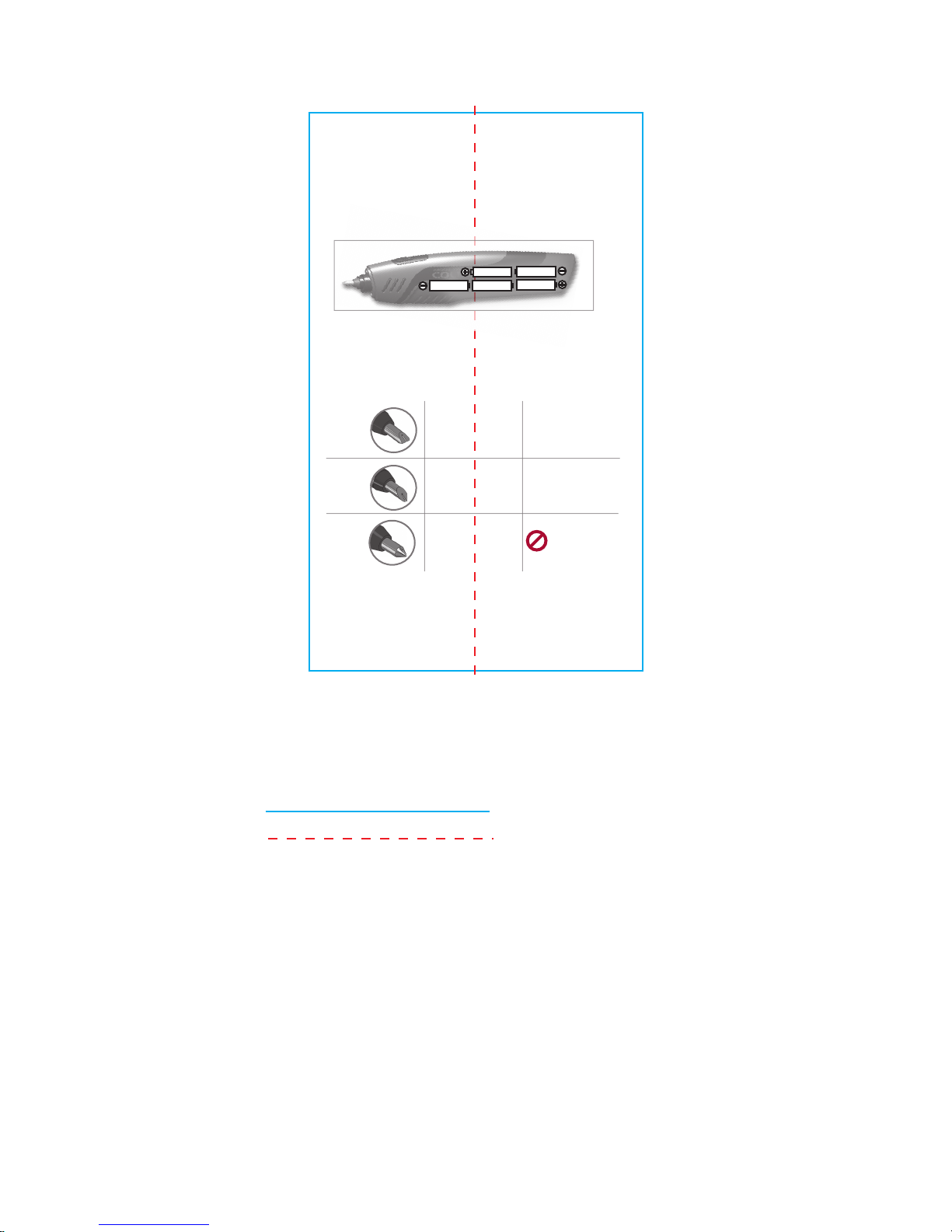

3Select tip and power setting
Getting Ready to Solder
CAUTION: COOL DOWN CAN BE AS LONG AS SEVERAL MINUTES.
USE CARE BEFORE TOUCHING OR CHANGING TIPS.
2Insert batteries
1Review checklist
- Five (5) AA alkaline batteries
- Split-TipTM
- Solder--for best results, use solder approx 1mm (0.040”) in dia.
USE REPLACEABLE AA ALKALINE BATTERIES
RECHARGEABLE BATTERIES ARE NOT RECOMMENDED.
Low Power (I) High Power (II)
12-18 gauge wire,
or other large mass
projects
18-24 gauge wire
or equivalent mass
Conical
Tip
Bevel
Tip
Chisel
Tip
Not
recommended
12-18 gauge wire
or equivalent mass
18-24 gauge wire
or equivalent mass
18-24 gauge wire
or equivalent, for
small projects or
tight spaces
Solid Blue Line: Cut
Dotted Red Line: Fold
Dieline Markings
DIELINE MARKINGS ARE FOR REFERENCE ONLY.
NOT TO BE INCLUDED IN FINAL PRODUCT.
