Weider Pro XT20 WEBE09101 User manual

Model No. WEBE09101

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal (under seat)

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are

committed to providing complete

customer satisfaction. If you

have questions, or find that there

are missing or damaged parts, we

will guarantee you complete

satisfaction through direct

assistance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-877-992-5999

Mon.–Fri., 6 a.m.–6 p.m. MST

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WEIDER is a registered trademark of ICON IP, Inc.

• Misuse of this product may result in serious

injury.

• Read user’s manual and follow all warnings

and operating instructions prior to use.

• Do not allow children on or around machine.

• Replace label if damaged, illegible, or removed.

WARNING

The decal shown here has been

placed on the weight bench. If

the decal is missing or illegible,

please call our Customer

Service Department toll-free at

1-877-992-5999, Monday

through Friday, 6 a.m. until

6 p.m. Mountain Time, to order

a free replacement decal. Apply

the decal in the location shown.

1. Read all instructions in this manual before

using the weight bench. Use the weight

bench only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

3. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

4. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench to

protect the floor.

5. Keep hands and feet away from moving parts.

6. Keep children under the age of 12 and pets

away from the weight bench at all times.

7. Inspect and tighten all parts each time the

weight bench is used. Replace any worn

parts immediately.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. T

he weight bench is designed to support a

maximum of 560 pounds, including a maxi-

mum user weight of 250 pounds and a maxi-

mum of 310 pounds of weights. Do not place

more than 150 pounds on the leg lever.

10.

Keep the weight bench indoors, away from

moisture and dust. Do not put the weight

bench in a garage or covered patio, or near

water.

11. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

IMPORTANT PRECAUTIONS

Weight Tube

Curl Pad

Backrest

Backrest Knob

Wheel

Leg Lever

Seat

Thank you for selecting the versatile WEIDER®PRO

XT20 weight bench. The weight bench is designed to

be used with your weight set (not included) to help you

develop every major muscle group of the body.

Whether your goal is a shapely figure, dramatic

increase in muscle size and strength, or a healthier

cardiovascular system, the weight bench will help you

achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, please call our Customer Service

Department toll-free at 1-877-992-5999, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is WEBE09101. The

serial number can be found on a decal attached to the

weight bench (see the front cover of this manual).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

10mm Spacer (20)

M10 x 65mm Bolt (23)

M8 Nylon Locknut (9)

M8 x 58mm Bolt (16)

M6 Washer (30)

M10 x 180mm Bolt (22)

M8 Flat Washer (13)

M10 Washer (6)

M10 x 22mm Bolt (7) M6 x 16mm Screw (3)

M10 Nylon Locknut (11)

M6 x 64mm Screw (4)

M10 x 45mm Bolt (38)

M10 x 68mm Bolt (39)

M10 x 58mm Carriage Bolt (8)

Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST on page 14. Note: Some small parts may have

been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.

PART IDENTIFICATION CHART

1. Press a 50mm Square Inner Cap (1) into the indi-

cated end of the Front Leg (19). Insert a 50mm

Thick Inner Cap (35) into the bottom of the Front

Leg.

Attach the Front Leg (19) to the Bench Frame (5)

using two M10 x 65mm Bolts (23), two M10

Washers (6), and two M10 Nylon Locknuts (11).

2. Press a 51mm x 76mm Outer Cap (2) onto each

end of the Stabilizer (24). Attach the Stabilizer to

the Bench Frame (5) using two M10 x 58mm

Carriage Bolts (8) and two M10 Nylon Locknuts

(11).

135

ASSEMBLY

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

•For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

Everything in this manual is designed to ensure

that the weight bench can be assembled suc-

cessfully by anyone. Most people find that by

setting aside plenty of time, assembly will go

smoothly.

5. Lubricate an M10 x 180mm Bolt (22). Attach the

Backrest Frame (27) to the Bench Frame (5) using

the Bolt, two M10 Washers (6), and an M10 Nylon

Locknut (11). Slide the Backrest Bracket (34) into

the indicated slot in the Bench Frame. Do not over-

tighten the Nylon Locknut; the Backrest must

be able to pivot freely.

To adjust the position of the Backrest (15), pull the

Backrest Knob (29) outward and move the Backrest

up or down. Slowly release the Backrest Knob,

making sure that the pin on the Backrest Knob is

inserted through one of the holes in the Backrest

Bracket (34).

3. Press four 25mm x 51mm Inner Caps (28) into the

ends of the Backrest Frame (27). Attach the

Backrest Bracket (34) to the Backrest Frame using

two M10 x 22mm Bolts (7) and two M10 Nylon

Locknuts (11).

28 7

6. Attach the Seat (14) to the Bench Frame (5) with

four M6 x 16mm Screws (3). Make sure that the

Seat is turned as shown.

4. Attach the Backrest (15) to the Backrest Frame (27)

with four M6 x 64mm Screws (4) and four M6

Washers (30). Make sure that the Backrest is ori-

ented as shown. 15

Wide

End

Wide

End

Lubricate

7. Press three 45mm Square Inner Caps (17) into the

Leg Lever (18). Press a 25mm Round Inner Cap

(33) into the indicated end of the Weight Tube (21).

Attach the Weight Tube (21) to the Leg Lever (18)

with an M8 x 58mm Bolt (16), two M8 Flat Washers

(13), a 10mm Spacer (20), and an M8 Nylon

Locknut (9). Press an Angled Outer Cap (31) onto

the back end of the Weight Tube.

717

33 17

9. Press two 3/4” Round Inner Caps (12) into each of

the three Pad Tubes (25). Slide the Pad Tubes into

the indicated holes in the Front Leg (19) and the

Leg Lever (18).

Slide two Foam Pads (10) onto each Pad Tube (25).

10. Attach the Curl Pad (26) to the Curl Post (32) with

two M6 x 16mm Screws (3). Insert the Curl Post

into the Front Leg (19) and secure it with the Curl

Post Knob (36).

8. Lubricate an M10 x 68mm Bolt (39). Attach the Leg

Lever (18) to the Front Leg (19) with the Bolt and

an M10 Nylon Locknut (11). Do not overtighten

the Nylon Locknut; the Leg Lever must be able

to pivot freely.

11. Make sure all parts are properly tightened

before you use the weight bench. The use of all

remaining parts will be explained in

ADJUSTMENTS, starting on page 9.

This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 11 for impor-

tant information on how to get the most benefit from your exercise program. Also, refer to the accompanying

exercise guide to see the correct form for each exercise.

Inspect and tighten all parts each time the weight bench is used. Replace any worn parts immediately. The

weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

REMOVING THE FOAM PADS

For some exercises, the indicated Foam Pads (10) and

Pad Tube (25) should be removed from the Front Leg

(19). To do this, slide one of the Foam Pads off the Pad

Tube, and then remove the Pad Tube.

10 25

ATTACHING THE CURL PAD

For some exercises, the Curl Pad (26) must be

attached to the weight bench.

Insert the Curl Post (32) into the indicated hole in the

Front Leg (19). Align the holes in the Front Leg and the

Curl Post. Secure the Curl Post with the Curl Post Knob

(36). Make sure that you fully tighten the Curl Post

Knob.

WARNING: When the Curl Pad (26) is

not in use, store it away from the bench so it will

not interfere with other exercises.

ATTACHING WEIGHTS TO THE LEG LEVER

To use the Leg Lever (18), slide the desired amount of

weight (not included) onto the Weight Tube (21).

To use Olympic weights, slide the Weight Adapter (40)

onto the Weight Tube (21). Insert the Weight Adapter

Pin (42) into the Weight Tube.

41 42

WARNING: Do not place more than

150 pounds on the Weight Tube (21).

ADJUSTMENTS

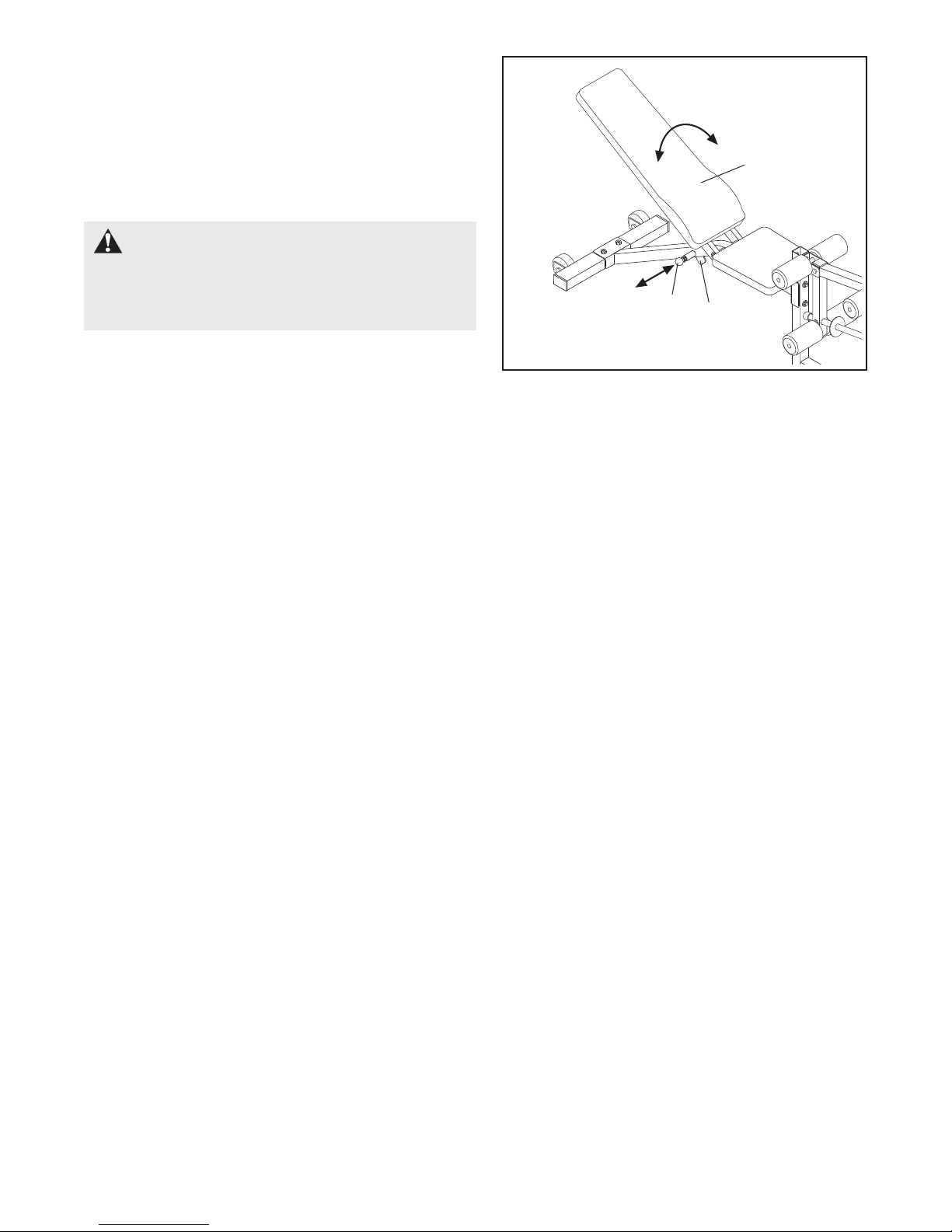

ADJUSTING THE BACKREST

The Backrest (15) can be adjusted to any of five posi-

tions. To adjust the Backrest, pull the Backrest Knob

(29) outward and move the Backrest up or down.

Slowly release the Backrest Knob, making sure the pin

on the Backrest Knob is inserted through one of the

holes in the Backrest Bracket (34).

WARNING: Make sure the Backrest

Knob (29) is securely inserted into one of the

holes in the Backrest Bracket (34) before putting

any weight on the Backrest (15).

This manual suits for next models

Table of contents

Other Weider Home Gym manuals

Weider

Weider 305/pro Workout Weight Bench User manual

Weider

Weider D136 User manual

Weider

Weider Victory SM12 User manual

Weider

Weider Medallion 12 In 1 Bench User manual

Weider

Weider PRO 270 L User manual

Weider

Weider Pro 225 User manual

Weider

Weider Home Gym Flex Ez1 User manual

Weider

Weider Pro 240 User manual

Weider

Weider 831.159360 User manual

Weider

Weider WESY81080 User manual

Weider

Weider 9000 Bench User manual

Weider

Weider Body Works User manual

Weider

Weider Pro 330 Bench User manual

Weider

Weider 214 Bench Operating and maintenance manual

Weider

Weider WESY8510C4 User manual

Weider

Weider 831.159010 User manual

Weider

Weider 4990 I Operating and maintenance manual

Weider

Weider Wedier Pro 9635 User manual

Weider

Weider 240 Tc Bench Operating and maintenance manual

Weider

Weider WB-341 User manual

Weider

Weider PLATINUM WESY78744 User manual

Weider

Weider WEBE05930 User manual

Weider

Weider 831.150280 User manual

Weider

Weider WESY78732 User manual

Popular Home Gym manuals by other brands

Horizon Fitness

Horizon Fitness OXFORD 6 manual

Energetics

Energetics Multi Trainer 5.1 owner's manual

Matrix

Matrix MG-PL Series Service manual

Reebok

Reebok Tbr2i Manuale d'istruzioni

Pure Fitness

Pure Fitness 8526HE owner's manual

Bowflex

Bowflex Sport 001-6961 Assembly instructions

NordicTrack

NordicTrack E8200 Competition Bench Bedienungsanleitung

Body Solid

Body Solid GHYP-345 owner's manual

Evo

Evo TAHOE 5105 user manual

cardiobull

cardiobull RA17 manual

ParaBody

ParaBody 40 Assembly instructions

JLL

JLL Ventus Pro Air Power instruction manual

Trojan

Trojan Colorado 370 user manual

Octane Fitness

Octane Fitness xRide xR650 Operation manual

Precor

Precor Discovery Series owner's manual

Insportline

Insportline RW600 user manual

Stamina

Stamina 55-1532 owner's manual

Tunturi

Tunturi R25 owner's manual
