Weed Eater VS2000BV User manual

545103465

4/22/09

Replaces

545103465 - 3/27/09 Page:

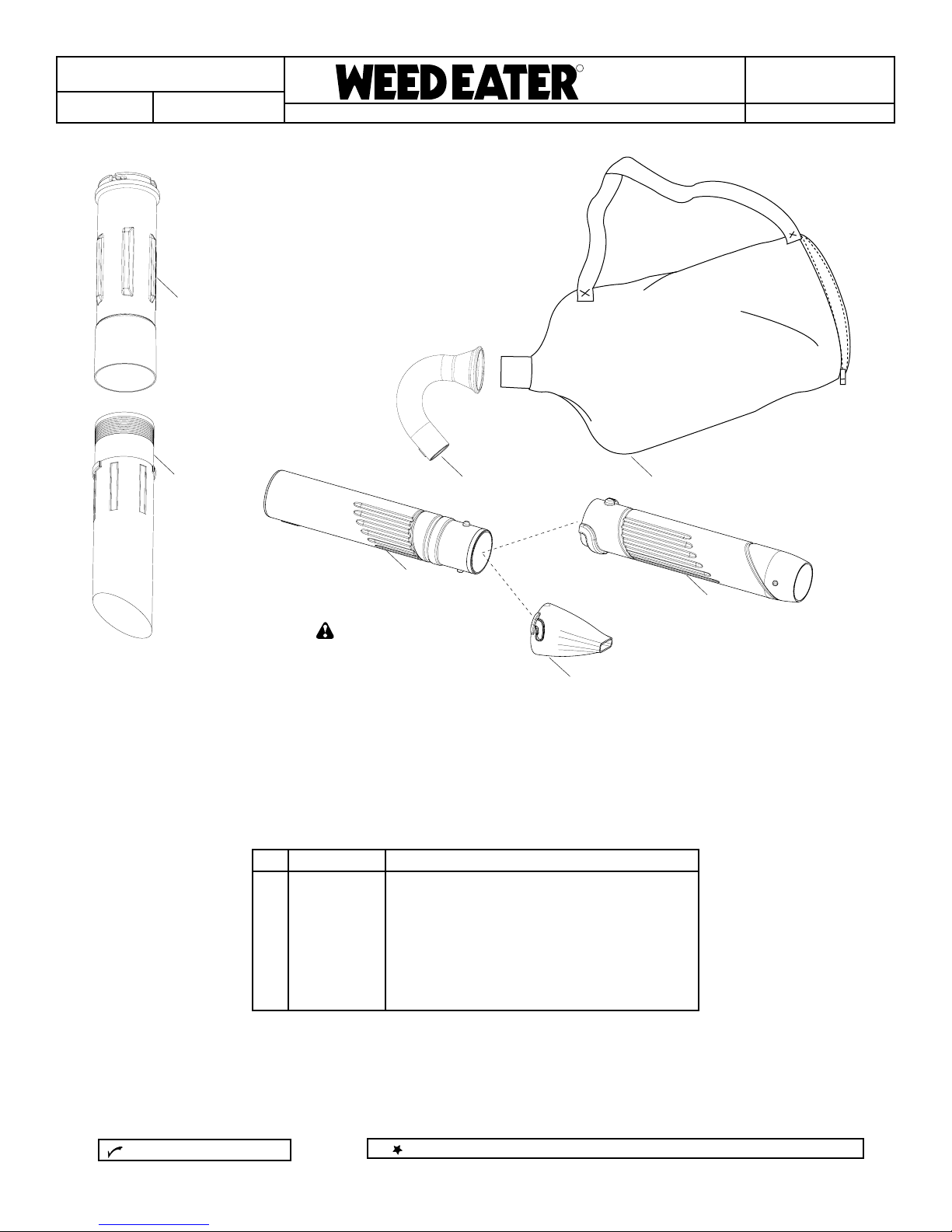

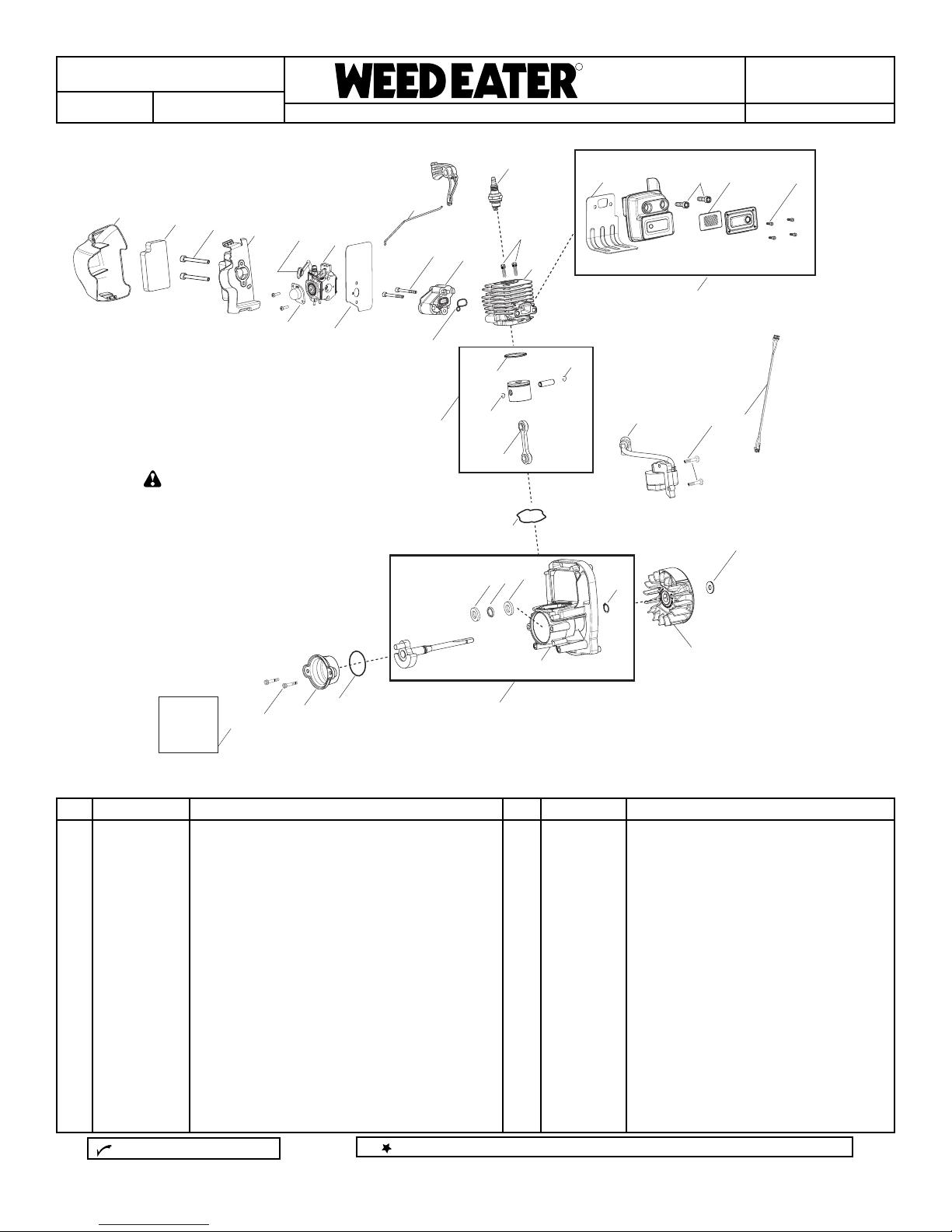

PARTS LIST VS2000BV

Parts List No.

Date

MODEL

NOTE : Illustration may differ from actual model due to design changes.

1. 530015814 Screw

2. 545135806 Assy - Engine Cover

3. 530015880 Screw

4. 545134001 Shield - Baffle

5. 545099101 Baffle

6. 530016391 Screw

7. 545081852 Kit - Starter Pulley

8. 530042086 Spring - Starter

9. 545107101 Tube - Starter Rope

10. 530054834 Handle - starter

11. 545081833 Kit - Rope

12. 545081830 Kit - Switch (momentary) (Incl. 13)

13. 545128201 Protector - Switch

14. 545099001 Bearing

15. 530626605 Nut

16. 545113801 Trigger - Throttle

17. 545134101 Assy - Scroll LH (Incl. 19,20)

18. 530015814 Screw

19. 545100801 Door- Vac

20. 545115601 Spring - Vac Door

21. 545144501 Knob - Blower

22. 530016406 Screw - Handle Vac

23. 530092322 Washer - Lock

24. 545109901 Washer - Impeller

25. 545113601 Assy-Impeller

26. 545113701 Spacer - Flywheel

27. 530015197 Nut

28. 530015810 Screw

29. 545161601 Assy-Scroll Assy. RH (Incl. 14)

30. 545101201 Handle - Vac

31. 545100401 Assy - Fuel Tank (Incl. 32,33,34,35)

32. 530095646 Assy - Fuel Pickup

33. 530069247 Kit - Fuel Line (carb/purge)

34. 530069216 Kit - Fuel Line (tank/purge)

35. 530057973 Assy - Fuel Cap w/retainer

36. 530016445 Screw - Fuel Tank Retainer

545146904 Manual

527290301 Decal - Warning

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by Qualified Service

Personnel.

Ref. Part No. Description Ref. Part No. Description

Not Shown

= New Part Number For This IPL

= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

31 30

228

27 20 19

35 32

12 13

545103465

4/22/09

Replaces

545103465 - 3/27/09 Page:

PARTS LIST VS2000BV

Parts List No.

Date

MODEL

NOTE : Illustration may differ from actual model due to design changes.

1. 545090001 Assy - Muffler (Incl. 2,3,4,5)

2. 530015241 Screw

3. 545081845 Kit - Spark Screen

4. 530058982 Bolt

5. 545081832 Gasket-Muffler (gasket kit)

6. 545115301 Cylinder

7. 530015953 Bolt

8. 952030249 Spark Plug (RCJ-6Y)

9. 545084901 Adapter - Carb.

10. 530016441 Screw

11. 545115501 Linkage - Throttle

12. 545081831 Kit - Carb. Assy (WT847) (Incl. 13,18)

13. 545157101 Lever- Choke (Yellow)

14. 545112601 Base - Airbox

15. 530016429 Screw

16. 545116801 Filter

17. 545112702 Cover - Air Box Filter

18. 530035497 Bulb - Purge (walbro 188-16)

19. 545081832 Gasket (Carb / Adapter) (gasket kit)

20. 545081832 O-Ring (Adapter / Cylinder) (gasket kit)

21. 545081864 Kit - Piston / Connecting Rod (Incl. 22,23,24)

22. 530012472 Ring - Piston

23. 530015162 Retainer - Wrist Pin

24. 545081865 Kit - Assy. Connecting Rod

25. 545158001 Module - Ignition

26. 530016357 Screw

27. 545127601 Assy - Wire Harness

28. 545081832 O-Ring (Cyl/Crankcase) (gasket kit)

29. 530015828 Washer

30. 530054115 Assy - Flywheel

31. 530015941 Retainer - Crankshaft

32. 530055728 Bearing - Outer

33. 530019264 Seal

34. 530032125 Bearing - Inner

35. 530012582 Assy - Crankcase (Incl. 32,33,34)

36. 545102102 Assy - Crankcase & Crankshaft (Incl. 31,35)

37. 545081832 O-Ring (Rear Plug) (gasket kit)

38. 530057954 Assy - Rear Plug (Incl. 37)

39. 530016386 Screw

40. 545081832 Kit - Gasket (Incl. 5,19,20,28,37)

Ref. Part No. Description Ref. Part No. Description

= New Part Number For This IPL

= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

18 19

17 16 15

10 9

532

26 27

21 23

34 33 32

38 37

GASKET

KIT

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by Qualified Service

Personnel.

545103465

4/22/09

Replaces

545103465 - 3/27/09 Page:

PARTS LIST VS2000BV

Parts List No.

Date

MODEL

NOTE : Illustration may differ from actual model due to design changes.

= New Part Number For This IPL

1. 545099401 Tube - Upper Vac

2. 530095589 Tube - Lower Vac

3. 545116601 Tube - J

4. 530095564 Assy - Vac Bag

5. 545100501 Tube - Upper Blower

6. 545100601 Tube - Lower Blower

7. 545151201 Nozzle - High Speed

= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

Ref. Part No. Description

234

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by Qualified Service

Personnel.
