WE-EF PSY424 LED User manual

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Bollard

PSY414 LED

PSY424 LED

PTY414 LED

PTY424 LED

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Installation tools

Mounting hardware used on this product

includes fasteners with hexalobular socket

heads (ISO 10664). Installation requires the

use of matching tools.

IP66, IK10, Class I, ta = 40°C

Weight kg

for PSY414 13.3

for PSY424 16.1

for PTY414 13.3

for PTY424 19.0

Accessories:

Planted root – Galvanised steel. kg

ESV2 for PSY414/424 300-9115 3.8

ESV2 for PTY414/424 300-9115 3.8

ESV2

Bollard

PSY414

PSY424

PTY414

PTY424

190180

304

800

100

ø 14.5

180

260180

440

1000

100

ø 14.5

180

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

The installation on site must comply with local and/or

national health and safety regulations.

Installation Procedure

It is recommended to incorporate the optional planted root to ensure maximum stability.

1) Switch off mains electrical supply.

4) Lift tabs H and remove terminal box cover C

as shown.

2) Remove sleeve A from post B.

 3XOOFDEOHWKURXJKFHQWUHKROHDQGVFUHZƃDQJH

plate E with M12 bolts/nuts to ground. Ensure

proper orientation of terminal box. An optional

planted root is available.

Note: Planted root installation instruction is

available in additional document.

6) Pull cable D (and second cable for through wir-

ing, if required) through membrane spout(s) F

and terminate in terminal block G. Lock cable(s)

with strain relief(s).

7) Return terminal box cover C and push until

tabs H engage with pins.

5) Check that rating shown on luminaire label

conforms with mains electrical supply.

(example)

PSY424 220-240V/50-60 Hz

114-XXXX SOE XXXXXXX

LED 4000K 18W item no. XXX

08/18 IP66

8) Place sleeve A over post B with sticker I

pointing up as shown.

10) Remove countersunk screws J from head K with

Torx 25 tool (supplied by WE-EF).

9) Engage sleeve ALQWRƃDQJHSODWHE

(good and bad engagement).

12) Place head K over sleeve A and check for

alignment.

ƃXVK

11) Hold head K under arm. Grab socket L, connect

and tighten with plug M.

13) Tighten recessed screws N gradually in

alternating sequence (6 Nm) with Torx 30 tool

(supplied by WE-EF).

14) Return countersunk screws J into head and

tighten.

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

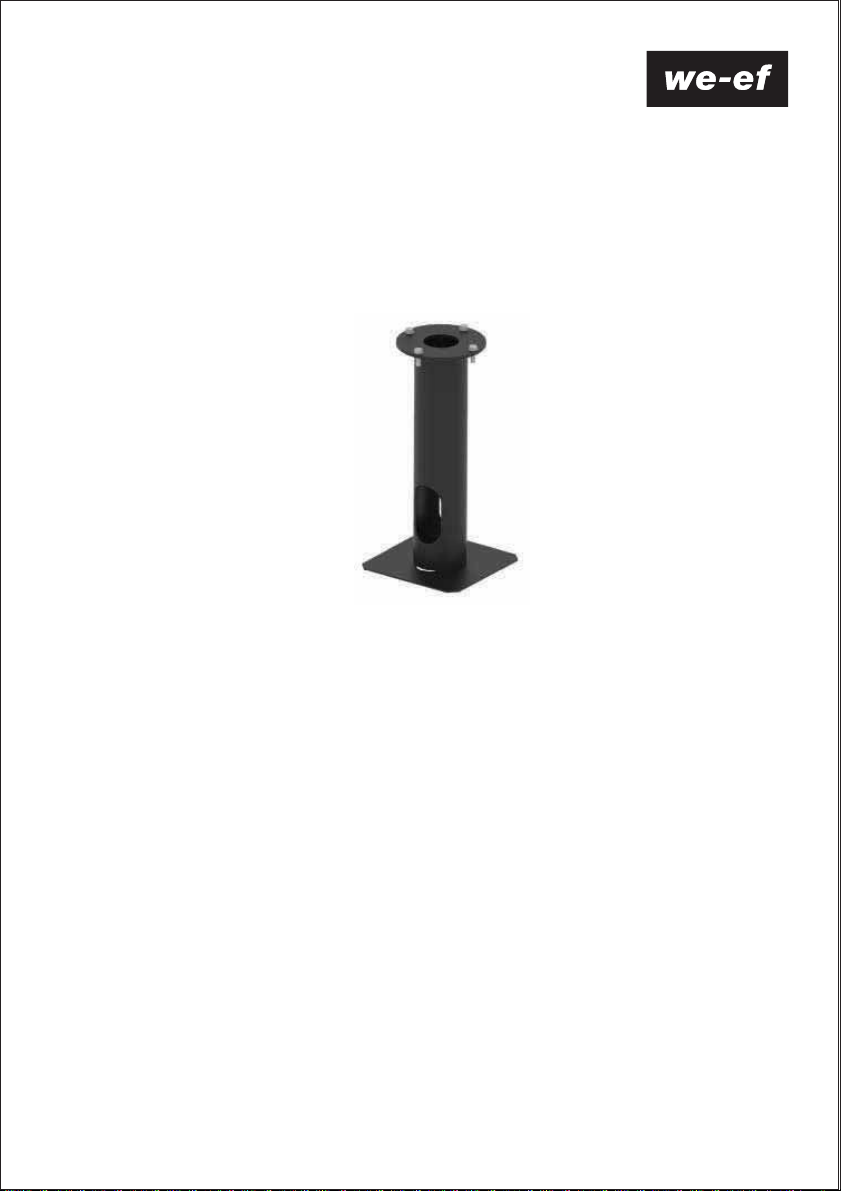

Planted Root

ESV4

ESV2
