WE-EF ESC100 LED Series User manual

Safety Notice

The manufacturer is discharged from liability when damage

is caused by improper use or installation.

If any luminaire and/or accessory is subsequently modi-

fied, the persons responsible for the modification shall be

considered as manufacturer.

ESC100 LED_060521 / 006-1339

Technical specifications are subject to change.

we-ef.com

WE-EF LIGHTING USA

Tel +1 724 742 0030

[email protected]

WE-EF LIGHTING

Installation and

Maintenance Instructions for

Inground Uplights

ESC100 LED Series

120-

277 V

ø 12.01

6.30

12.40

ESC140

ø 9.84

5.12

10.43

ESC130

12.40

16.5

10.43

14.7

ESC140 + BET

ESC130 + BET

14.7

10.83

16.5

12.80

5.75

ø 0.394 (max.)

ø 0.472-0.748 (max.)

BET13-II - 185-0322 BET14-II - 185-0323

Installation Accessories

Installation Blockouts lb

185-0322 BET13-II-270/375 max. 75W 0.77

185-0323 BET14-II-325/430 max.100W 0.91

Installation Accessories

Sealable junction box

185-1624 SJB130 0.18 lb

Inground Uplight with Installation Blockout

IP67, IK07

Light source

ESC100 ................12 LED 18W / 24 LED 24W*

* Nominal power, for latest data refer to

www.we-ef.com

Class I

ø0.315 –0.335 in

3 x 16 AWG

Installation

The luminaire should be installed and maintained by a

suitably qualified person in compliance with the latest

construction and electrical regulations and relevant

legislation.

The luminaire should not get covered partly or complete.

Dirt on the lens has to get removed.

Do not open the luminaire in humid conditions or during

rain. This will result in condensation forming inside the

luminaire.

In case of questions please contact our technical hot-

line at +1 724 742 0030 (Monday - Friday from 08:00

until 16:00 hours).

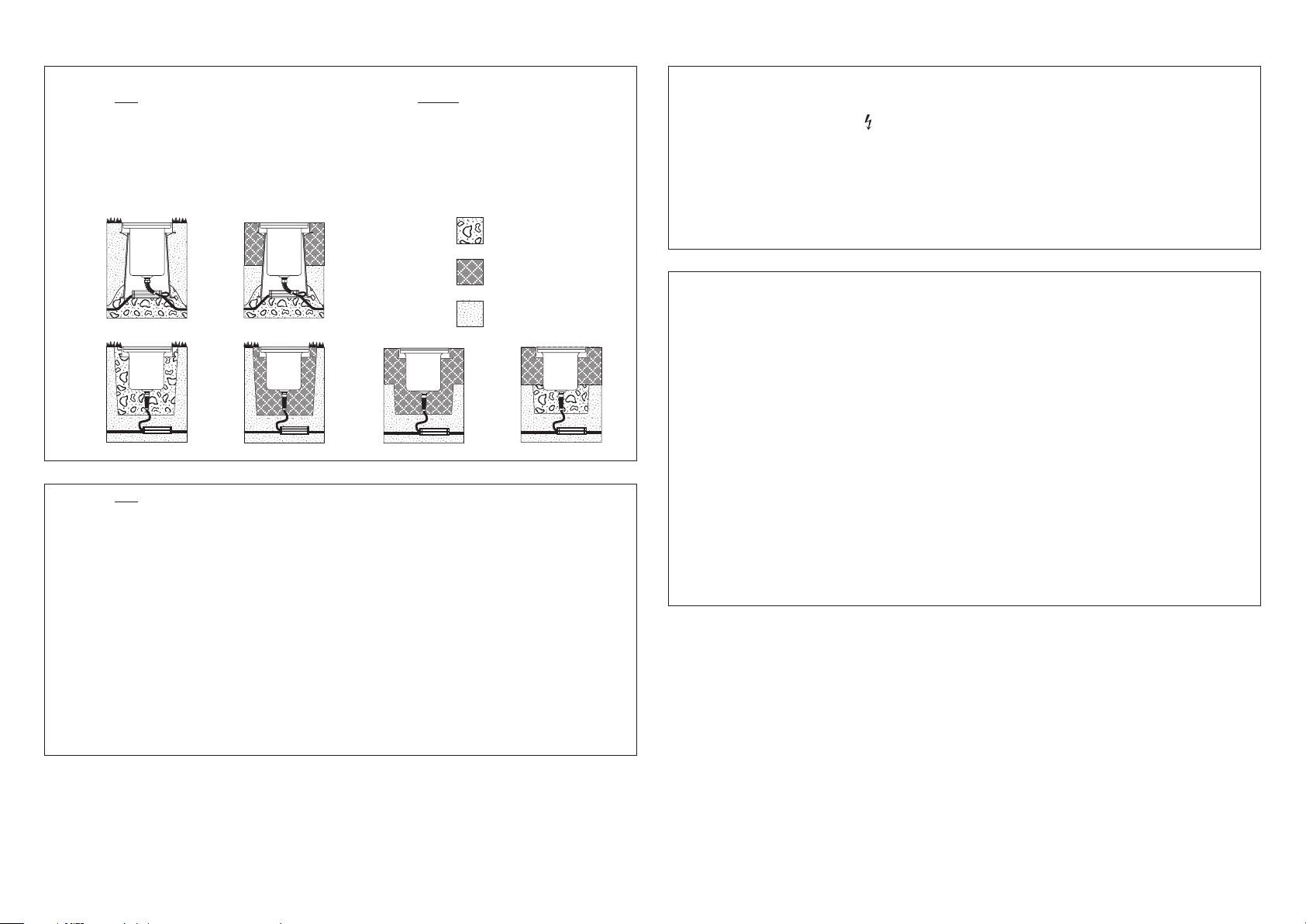

Installation Methods

Installation with BET

Ensure that proper drainage is provided for the shown

installation methods.

1) In landscaped areas (soil with gravel base), pic. 1

2) In paved areas (concrete with gravel base), pic. 2

pic. 1 pic. 2

pic. 3 pic. 4 pic. 5 pic. 6

gravel (drainage)

concrete

soil

Phase Two

(Electrical connection, aiming)

4) Switch off mains electrical supply.

5) Check that rating shown on luminaire label conforms

with the mains electrical supply. Observe the maxi-

mum permissible wattage in connection with BET

installation blockouts (refer to table “Installation

Accessories”).

6) Loosen screws Kand remove cover B. Remove

cover Gand lens/gasket assembly H/I by removing

the six countersunk screws J.

Installation without BET

3) In landscaped areas (soil with gravel), pic. 3

4) In landscaped areas (soil with concrete and graval

base), pic. 4

5) In paved areas (concrete), pic. 5

6) In paved areas (concrete with gravel base) see pic. 6

Installation with Blockout BET

Phase One

(During earth or masonry works)

1) Put the mounting ring Eon to the installation

blockout Oin that way, that the connector L lock

into position on the blind rivets S.

2) A suitable recess to be provided to accomodate

installation blockout/mounting ring assembly E/O.

Proceed as follows:

a) Set in position together with supply cable(s) P.

b) Luminaire mounting ring Eto be flush with surface

F(if the floor will be tiled or paved afterwards

leave an appropriate gap).

c) Point arrow Rtowards the object (wall, tree,

column ...) to be illuminated.

3) During ongoing earth and/or masonry works, ensure

that installation blockout/mounting ring assembly

E/O is not damaged and maintains its original

shape. If necessary use a cover plate.

7) Remove the chassis M from the luminaire housing N.

8) Ensure that all surfaces are clean and dry. Then

remove gel bag from aluminium envelope. Place

bag inside the bottom of the luminaire N.

9) Remove the two screws Qfrom mounting ring E.

Open the packaging of the desiccant bag. Place

the bag in the lower part of the luminaire housing.

10) Connect wires of luminaire cable Aand mains

supply cable Pin sealable junction box C(e.g.

WE-EF product no. 185-1624) and/or provided

UL410-D wire nuts. Seal junction box properly.

11) Insert the housing into the blockout. Fix mounting

ring Eto luminaire by inserting two stainless screws

Qand tightening them equally.

12) Assemble in reverse order.

13) Set lens/gasket assembly H/I, cover Gand the six

countersunk screws Jin position as described.

Then, while taking all necessary precautions to

ensure safety:

a) Leave the screws untightened and ignite the lumin-

aire for approx. 30 minutes to allow any moisture

to evaporate.

b) Begin tightening the countersunk screws Jin steps

in a criss-cross pattern, until all six screws are pro-

perly seated and secured. Repeat tightening proce-

dure, again in a criss-cross pattern, for another two

rounds with a torque of 9 Nm.

14) Set luminaire in position while observing to avoid

stress on junction box C, cable Aand cable gland D.

15) Reposition cover Band tighten screws K.
