Wasserstein Wall Plate User manual

Wall Plate

USER MANUAL

• We recommend that you use a magnetic screwdriver.

• Make sure the arrow on the Wall Plate is facing up.

In the Box

Pre-Installation

Google Nest Doorbell (Wired, 2nd Gen)

Compatibility:

1 x wall plate

2 x mount screws

+ wall anchors

Page 1

1. Turn off the power of your doorbell at the electrical panel.

Note: Always consult a professional electrician before working

with electrical wires.

2. If a doorbell was previously installed on your wall, take it down

and disconnect the wires.

3. Align the doorbell backplate with the wall plate.

Installation

Page 2

Page 3

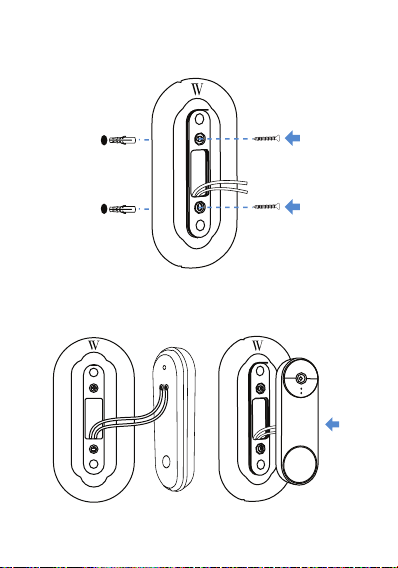

4. Feed the wires through the cutout as shown below. Mount

the wall plate along with the backplate to the wall using the

screws and wall anchors provided (the drill bit size is 1/8 in).

5. Connect the wires to the doorbell. Then, attach the doorbell

to the wall plate as shown.

Page 4

6. Secure the doorbell with the screw that came with your

doorbell. Turn on the power and check the App to make

sure the doorbell have been installed properly.

Installation with the Doorbell Wedge

1. Repeat Step 1 - 2 from the last section.

Page 5

2. Feed the wires through the cutout as shown below.

3. Attach and screw in the doorbell backplate onto the doorbell

wedge together with the wall plate.

Page 6

4. Connect the wires to the doorbell. Then, attach the doorbell

to the wall plate as shown.

5. Secure the doorbell with the screw that came with your

doorbell. Turn on the power and check the App to make

sure the doorbell have been installed properly.

Google Nest Doorbell is not included.

Google Nest is a trademark of Google LLC.

Wasserstein is not afﬁliated with Google LLC.

Wasserstein is a trademark of Dropcases Ltd.

Scan the QR code below or email us at:

[email protected]

Get More Support

This product has been certiﬁed by Wasserstein to meet Google’s compatibility

standards. Google is not responsible for the operation of this product or its

compliance with any applicable safety or other requirements.

Learn more at g.co/madeforgoogle.

Google’s “made for” badge, Google Nest Cam, and related

marks are trademarks of Google LLC.

Placa de Pared

MANUAL DEL USUARIO

• Te recomendamos que utilices un destornillador magnético.

• Asegúrate de que la ﬂecha de la placa de pared esté hacia

arriba.

Contenido de la Caja

Preinstalación

Timbre Google Nest (cableado, 2nd generación)

Compatibilidad:

1 x placa de pared

2 x tornillos d e montaje

+ anclajes de pared

Página 1
