BB300

BB300 SERIES

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES

DE LAS LICUADORAS DE LA SERIE BB300

DIRECTIVES D’UTILISATION

DES MÉLANGEURS DE LA SÉRIE BB300

For your safety and continued enjoyment of this product,

always read the instruction book carefully before using.

Para su seguridad y para disfrutar plenamente de este producto,

siempre lea las instrucciones cuidadosamente antes de usarlo.

An que cet appareil vous procure en toute sécurité beaucoup

de satisfaction, lire attentivement le mode d’emploi avant de l’utiliser.

BB320 BB340

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions

should always be taken, including the following:

1. READ ALL INSTRUCTIONS.

2. Unplug from outlet when not in use, before putting

on or taking off parts, and before cleaning.

3. To protect against electrical hazards, do not immerse

the blender base in water or other liquids.

4. This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

5. Children should be supervised to ensure that they

do not play with the appliance.

6. Avoid contact with moving parts.

7. Do not operate any appliance with a damaged cord or

plug or after the appliance malfunctions or is dropped

or damaged in any manner. Return appliance to the

nearest authorized service facility for examination,

repair or electrical or mechanical adjustment.

8. The use of attachments not recommended by the

appliance manufacturer may cause hazards.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter,

where it can inadvertently be pulled on or tripped over,

or touch hot surfaces, which could damage the cord.

11. Keep hands and utensils out of container while

blending to prevent the possibility of severe personal

injury and/or damage to the blender. A rubber scraper

may be used, but must be used only when the blender

is not running.

12. Blades are SHARP. Handle carefully.

13. Never place cutting assembly or cutting blades on base

without container properly attached.

14. Always operate blender with cover in place.

15. Always operate blender with jar pad in place.

16. CAUTION:This blender is not intended for use with hot

liquids or ingredients.

17. Do not ll above MAX FILL line for blending.

18. Not for waterjet cleaning.

19. Ensure the jar coupler and motor coupler are aligned

and engaged before operating. If unable to engage,

remove jar and shake contents, then try again.

20. The jar coupler and motor coupler may be hot after

running; do not touch.

21. Replace jar pad if worn.

22. Always use HIGH speed for crushing ice.

23. If the jar overows during blending, there is too much

liquid/ingredients in the jar. Stop blending, remove

enough liquid/ingredients to below MAX FILL line, and

continue blending. Do not operate if overowing.

24. DO NOT use carbonated liquids in the blender jar or

any blending container. Using carbonated liquids in

the blender jar or any blending container may result in

injury.

25. DO NOT blend oil or oil-based products, such as

peanut butter, for more than 5 minutes.

26. Never remove blender jar from base unit until the blade

and coupling have completely stopped.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

• For your protection, Waring®Commercial Blenders are

equipped with a 3-conductor cord set.

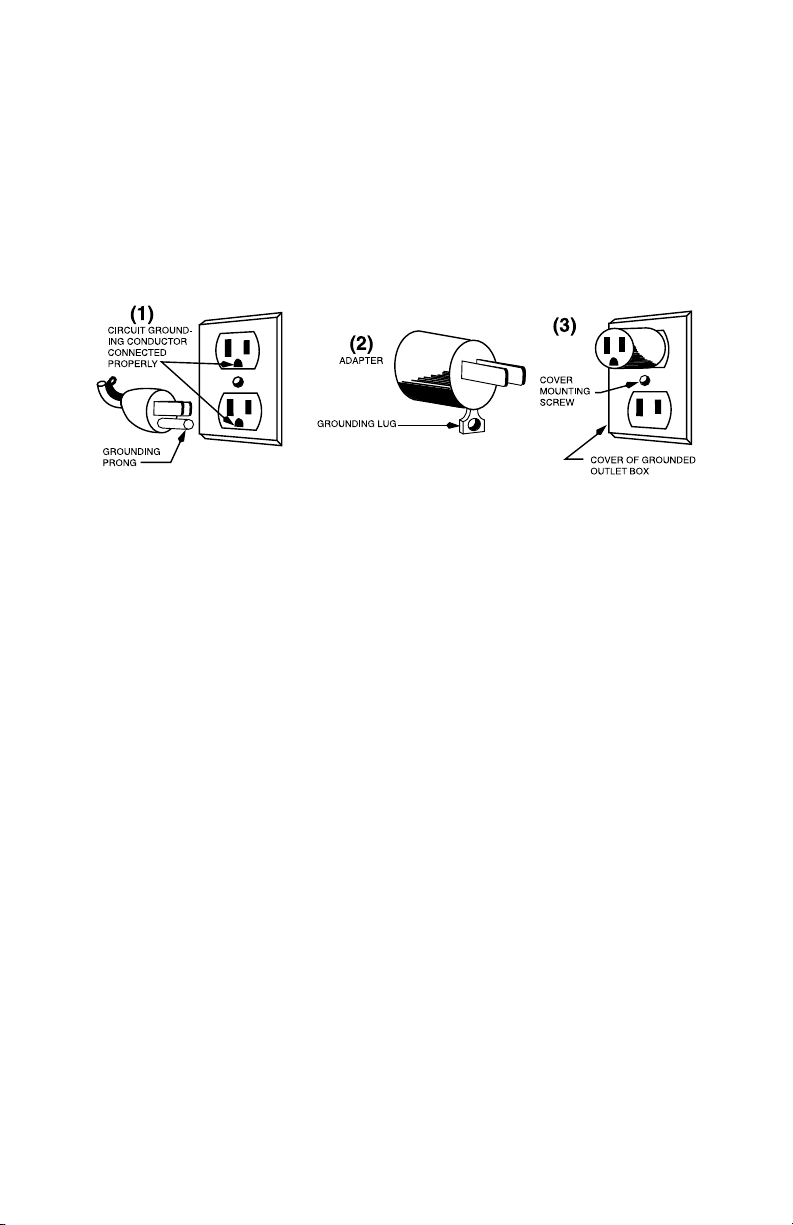

• 120 volt units are supplied with a molded 3-prong,

grounding-type plug and should be used in combination

with a properly connected, grounding-type outlet, as

shown in Figure 1.

If a grounding-type outlet is not available, an adapter, shown

in Figure 2, may be obtained to enable a 2-slot wall outlet to

be used with a 3-prong plug.

Referring to Figure 3, the adapter must be grounded by

attaching its grounding lug under the screw of the outlet

cover plate.

CAUTION: Before using an adapter, it must be determined

that the outlet cover plate screw is properly grounded. If in

doubt, consult a licensed electrician.

Never use an adapter unless you are sure it is properly

grounded.

NOTE: Use of an adapter is not permitted in Canada.

BEFORE FIRST USE

Follow the cleaning and sanitizing instructions on page 8

before rst use and if you have not used your blender for a

period of time. Thoroughly dry the container before placing it

on the base.

BB300 OPERATION

1. With the switch in the OFF

position, place container

on blender base. Be sure

container is fully seated and

that drive coupling is properly

engaged. Plug blender cord

into outlet.

2. Put ingredients into jar and cover it. Do not ll above

MAX FILL line.

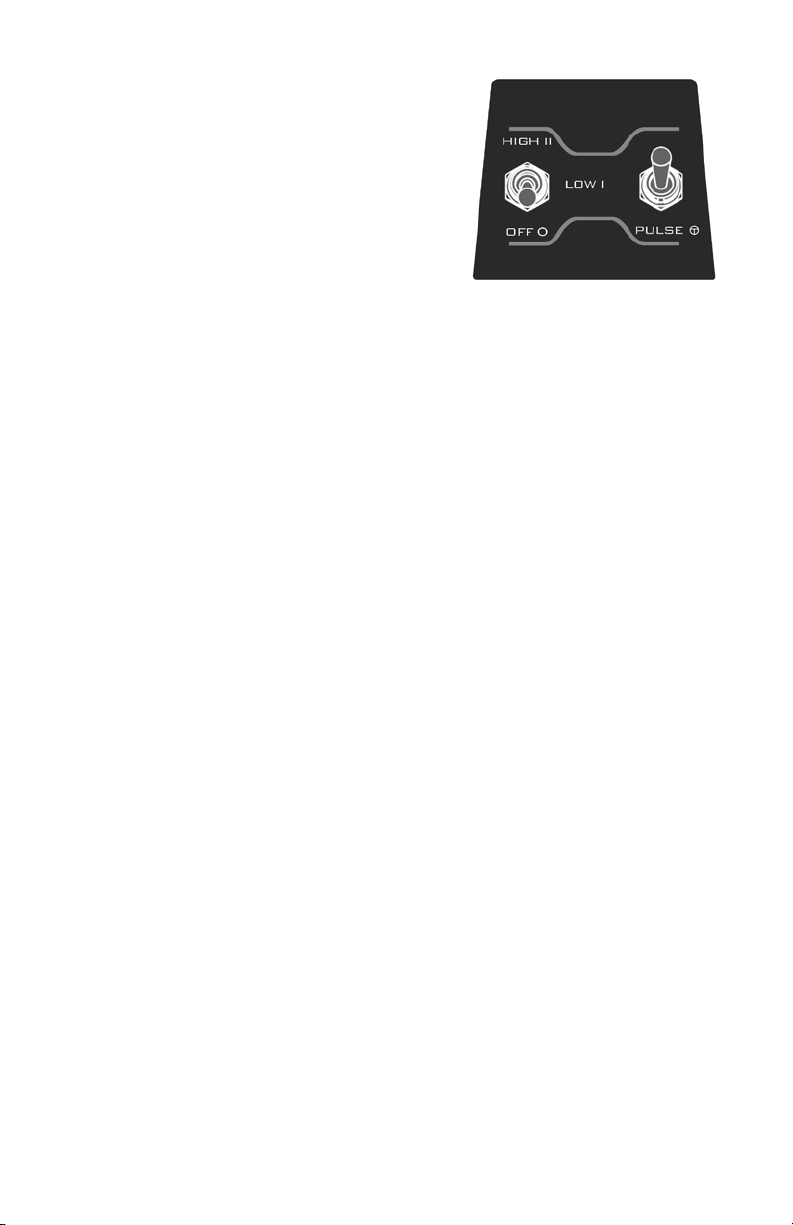

3. This blender has 2 speed settings: HIGH and LOW.

Press toggle switch to desired position. To crush ice,

always use HIGH speed setting.

4. When nished blending, set toggle switch to OFF

position.

5. This blender is equipped with a PULSE option. Hold

toggle switch in down position to engage PULSE

function. Unit will run on HIGH speed until the toggle

switch is released.

NOTE: This blender utilizes a Slow Start™feature. When

beginning HIGH or LOW operation, the unit will start in a

lower speed for 1 second and then switch to the full selected

speed. PULSE utilizes a .5-second Slow Start™. This allows

for a more even blending of ingredients in jar.

6. Allow motor to come to a complete stop before

removing container from blender base. Never place

the container on the motor base or remove it from

the motor base while motor is running.

7. Always hold container with one hand when starting and

while blending. Never operate without jar lid.

8. Wash and dry container after each use. See Cleaning

and Sanitizing Instructions.

9. Unplug to turn off all power to blender.

BB320 OPERATION

Follow steps 1–2 from BB300

instructions.

3. This blender is equipped

with an electronic membrane

keypad. The keypad has

HIGH, LOW, STOP, PULSE

and ON/OFF buttons. Always

use HIGH speed for crushing ice.

4. Press ON/OFF button; the blue LED light will turn on.

5. For continuous operation, press either the LOW or

HIGH button. When nished blending, press STOP. For

momentary operation, press the PULSE button; motor

will run on HIGH speed until the button is released.

NOTE: This blender utilizes a Slow Start™feature. When

beginning HIGH or LOW operation, the unit will start in a

lower speed for 1 second and then switch to the full selected

speed. PULSE utilizes a .5-second Slow Start™. This allows

for a more even blending of ingredients in jar.

6. Allow motor to come to a complete stop before

removing jar from blender base. Never place the

jar on the motor base or remove it from the motor

base while motor is running.

7. Always hold jar with one hand when starting and while

blending. Never operate without jar lid.

8. Wash and dry jar after each use. See Cleaning and

Sanitizing Instructions.

9. Unplug to turn off all power to blender.

BB340 OPERATION

Follow steps 1–2 from BB300 instructions.

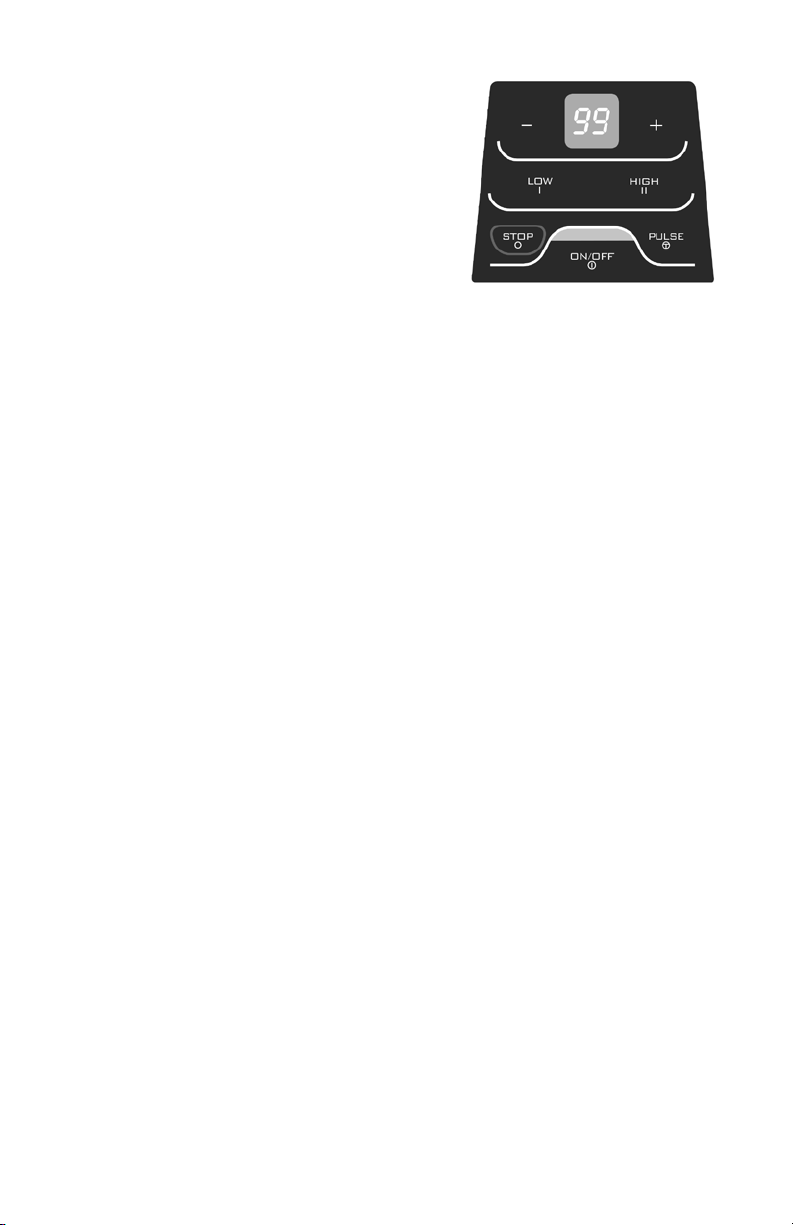

3. This blender is equipped with an electronic membrane

keypad. The keypad has HIGH, LOW, STOP, PULSE

and ON/OFF buttons, as well as a 99-second

countdown timer with + and

– buttons. Always use HIGH

speed for crushing ice. The

blender can operate in two

modes: timer mode and

continuous mode.

4. For timer mode, press the ON/

OFF button. Press the + or –

button to set the desired time.

The electronic timer will indicate runtime in 1-second

intervals up to a maximum of 99 seconds. After the

desired time is set, press HIGH or LOW to start the

blender. The timer will count down to 0 in 1-second

intervals and blender will shut off. Pressing the PULSE

button or the STOP button will override the timer and

the blender will stop regardless of time left on timer.

5. If the STOP button is pressed, the timer function will

turn off and the unit will return to continuous mode. To

reactivate timer, press + or – button. When using the

electronic timer again, the initial time will be the last

time set. NOTE: If unit has been unplugged, the timer

will default back to 5 seconds.

6. For continuous operation, press either the LOW or

HIGH button when timer is not lit. If the timer is lit and

you want to use continuous mode, press the STOP

button and proceed. When nished blending, press

STOP. For momentary operation, press the PULSE

button. Motor will run on HIGH speed until the button is

released. Blue LED light will blink while in operation.

NOTE: This blender utilizes a Slow Start™feature. When

beginning HIGH or LOW operation, the unit will start in a

lower speed for 1 second and then switch to the full selected

speed. PULSE utilizes a .5-second Slow Start™. This allows

for a more even blending of ingredients in jar.

7. Allow motor to come to a complete stop before

removing container from blender base. Never place

the container on the motor base or remove it from

the motor base while motor is running.

8. Always hold jar with one hand when starting and while

blending. Never operate without jar lid.

9. Wash and dry jar after each use. See Cleaning and

Sanitizing Instructions.

10. Unplug to turn off all power to blender.

RESETTING THERMAL PROTECTION

• Your blender is equipped with a manual reset switch to

protect the motor from overheating.

• If your blender stops running under heavy use, press the

ON/OFF button and unplug the power cord. Empty the

blender jar of all its contents and allow approximately

5 to10 minutes for the motor to cool down.

• Plug the power cord back into the outlet and continue

blending.

• If your blender does not function properly following this

procedure, discontinue use and contact a certied Waring

Customer Service Center.

CLEANING AND SANITIZING INSTRUCTIONS

THE JAR MUST BE CLEANED AND DRIED AFTER EACH

USE OF THE BLENDER ACCORDING TO THE FOLLOWING

INSTRUCTIONS.

FAILURE TO DO SO MAY ALLOW RESIDUE OF

PROCESSED MATERIAL TO COLLECT ON THE INTERNAL

SEALS OF THE BLADE ASSEMBLY, RENDERING THEM

INEFFECTIVE.

• Wash, rinse, sanitize and dry jar prior to initial use and

whenever it will not be used again within a period of

1 hour.

• Wash and rinse container after each use.

• Clean and sanitize motor base prior to initial use and after

each use.

• Washing solutions based on non-sudsing detergents and

chlorine-based sanitizing solutions having a minimum

chlorine concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or

their equivalents, may be used.

• In repetitive batch-processing applications, frequent

cleaning of the jar will prolong the life of the blade

assembly. In no case should actual running time between

cleanings exceed one-half hour.

• Do not use jar to store processed foods or beverages.

TO WASH AND RINSE JAR

1. REMOVE JAR FROM MOTOR BASE. Remove lid.

Rinse jar interior and lid under running water. Add

washing solution to jar. Scrub and ush out the jar

interior to dislodge and remove as much food residue

as possible. Empty jar.

2. Wipe down exterior of jar with a soft cloth or sponge

dampened with washing solution. Wash lid and lid

insert in fresh washing solution. Fill jar one-quarter full

with fresh washing solution, cover (with lid only), place

on motor base and run on HIGH speed for two (2)

minutes. Empty jar.

3. Repeat step (2) using clean rinse water in place of

washing solution.

SOLUTION PRODUCT DILUTION IN

WATER

TEMPERATURE

Washing Diversey Wyandotte

Diversol®BX/A or CX/A

4 Tablespoons/Gallon Hot 115˚F ( 46˚C )

Rinsing Plain Water Warm 95˚F (35˚C)

Sanitizing Clorox® Institutional

Bleach

1 Tablespoon/Gallon Cold 50˚F–70˚F

(10˚C–21˚C)

IMPORTANT

NOTE: IN ORDER TO MINIMIZE POSSIBILITY OF

SCALDING, TEMPERATURE OF WASHING SOLUTION

AND RINSE WATER MUST NOT EXCEED 115˚F (46˚C),

AND QUANTITY USED MUST NOT EXCEED ONE-

QUARTER JAR FULL.

TO SANITIZE AND DRY CONTAINER

1. Wipe down exterior of jar with a soft cloth

or sponge dampened with sanitizing solution.

2. Fill jar with sanitizing solution, cover, place on motor

base, and run on HIGH speed for one (1) minute. Empty

jar. Dislodge any residual moisture from blade assembly

by placing empty jar on motor base and running on

HIGH speed for two (2) seconds.

3. Sanitize lid and lid insert by immersing in sanitizing

solution for two (2) minutes.

4. Do not rinse jar, lid, or lid insert after sanitizing

is completed. Allow parts to air-dry.

TO CLEAN AND SANITIZE MOTOR BASE

1. UNPLUG POWER CORD. Wipe down exterior surfaces

of motor base with soft cloths or sponges dampened

with washing solution, rinse water, and sanitizing

solution. Prevent liquid from running into motor base

by wringing all excess moisture from cloths or sponges

before using them.

DO NOT IMMERSE MOTOR BASE IN WASHING SOLUTION,

RINSE WATER OR SANITIZING SOLUTION.

2. Allow motor base to air-dry before using.

Other manuals for BB300

This manual suits for next models

Table of contents

Languages:

Other Waring Blender manuals

Waring

Waring BOLT WSB38X User manual

Waring

Waring MBB-521 User manual

Waring

Waring 4 Litre Blender User manual

Waring

Waring Mx series User manual

Waring

Waring LB10 User manual

Waring

Waring PRO MX1000R User manual

Waring

Waring CB15 SERIES User manual

Waring

Waring QUIK STIK PLUS WSB40 User manual

Waring

Waring PRO MEGAMIX HPB300 User manual

Waring

Waring BIG STIX WSB50 User manual

Waring

Waring Ellipse MXE2000 User manual

Waring

Waring Torq 2.0 TBB175S6 User manual

Waring

Waring MMB Series User manual

Waring

Waring PRO MX1000R User manual

Waring

Waring Quik Stik WSB33 User manual

Waring

Waring MX1000XTXP User manual

Waring

Waring PRO MEGAMIX HPB300 Quick guide

Waring

Waring BB185SK User manual

Waring

Waring WSB Series User manual

Waring

Waring Torq 2.0 TBB160 User manual

Waring

Waring 700G User manual

Waring

Waring Blender User manual

Waring

Waring Commercial Blender User manual

Waring

Waring BB185 User manual

Popular Blender manuals by other brands

ROTOR

ROTOR 1125.201 instruction manual

Braun

Braun Multiquick 5 Vario series User instructions

ARENDO

ARENDO MIRA 305424 user manual

CHEF-BUILT

CHEF-BUILT CCB-3500 instruction manual

Viconte

Viconte VC-4406 instruction manual

Oster

Oster BLSTAB-CB0 user manual

HOFFEN

HOFFEN MC-3005 instruction manual

Black & Decker

Black & Decker BLC18750DM user guide

Sunbeam

Sunbeam 4182 user manual

Bialetti

Bialetti FMX35 Instructions for use

Black & Decker

Black & Decker BL8000 user manual

Duronic

Duronic BL530 manual

Exquisit

Exquisit MS 3002 wes instruction manual

Lumme

Lumme LU-KP1891A user manual

Binatone

Binatone HB-735 instruction manual

Moulinex

Moulinex LM936E10 manual

Oster

Oster VERSA Performance guide

Ninja

Ninja NN210Q instructions
