Vynco VMEV Operation instructions
1
VMEV
EV Charger
User Operating Manual
VYNCO.CO.NZ
1
TABLE OF CONTENTS
Carton Contents 1
Charging Safety Precautions 2
Operating Instructions 3
Maintenance 5
Troubleshooting 6
Technical Specications 7
Servicing and Replacement Parts 9
VMEV Charger
The following parts should be inside the carton:
• VMEV Charger
• Installation Manual
• User Operating Manual
• Cover Screw Pack
If any of the parts are missing or damaged, contact
your supplier or Vynco for assistance before installing
the charger.
CARTON CONTENTS
2
402 mm 127 mm
477 mm
DIMENSIONS
Front View Side View
CHARGING SAFETY PRECAUTIONS
Familiarise yourself with these instructions and the charging instructions for the
electric vehicle before using the VMEV Charger.
• Be careful that the
charging leads are not
left anywhere where
they can get damaged,
driven over or create a
trip hazard
• Leave the charging
lead in the vehicle or
coiled up around the
charger when charging
is completed
• Always remove the
charging lead from the
vehicle rst then the
VMEV Charger
• Do not modify or alter
the VMEV Charger
or charging lead in
any way
• Do not use with
any extension or
adaptor lead
• Do not join two or more
charging leads together
• Cord extension sets
must not be used, only
use one charging lead
• Do not use if the charger
or charging lead shows
signs of damage
• Only use this charger to
charge electric vehicles
• Do not use to charge or
power any other device
• Do not open the charger
without isolating
the power
• CAUTION: Electric
shock danger.
3
To start charging your electric vehicle:
1. Check the VMEV Charger is powered. The LED should be blue.
2. Plug the charging lead into your electric vehicle.
Always plug in charging lead into the vehicle rst.
3. Plug the charging lead into the VMEV Charger.
Follow the vehicle manufacturer’s instructions to start the vehicle charging.
Some vehicles require the doors to be locked or a charging button to be pressed
before the charging will start. For most electric vehicles the charging will start
automatically after 20 seconds.
4. Check the LED display.
Check if the VMEV Charger has turned green and is ashing.
Check that the status display on the vehicle shows charging.
OPERATING INSTRUCTIONS
LED STATE CHARGER STATUS
BLUE Power Available
GREEN FLASHING Charging (Normal Operation)
RED FLASHING Fault
4
To stop charging your electric vehicle:
1. CheckthattheVMEVChargerisstillchargingorhasnishedcharging.
If LED is ashing green – vehicle is still charging. The charging can be stopped
if required.
If LED is blue – vehicle has nished charging and the battery should be at 100%.

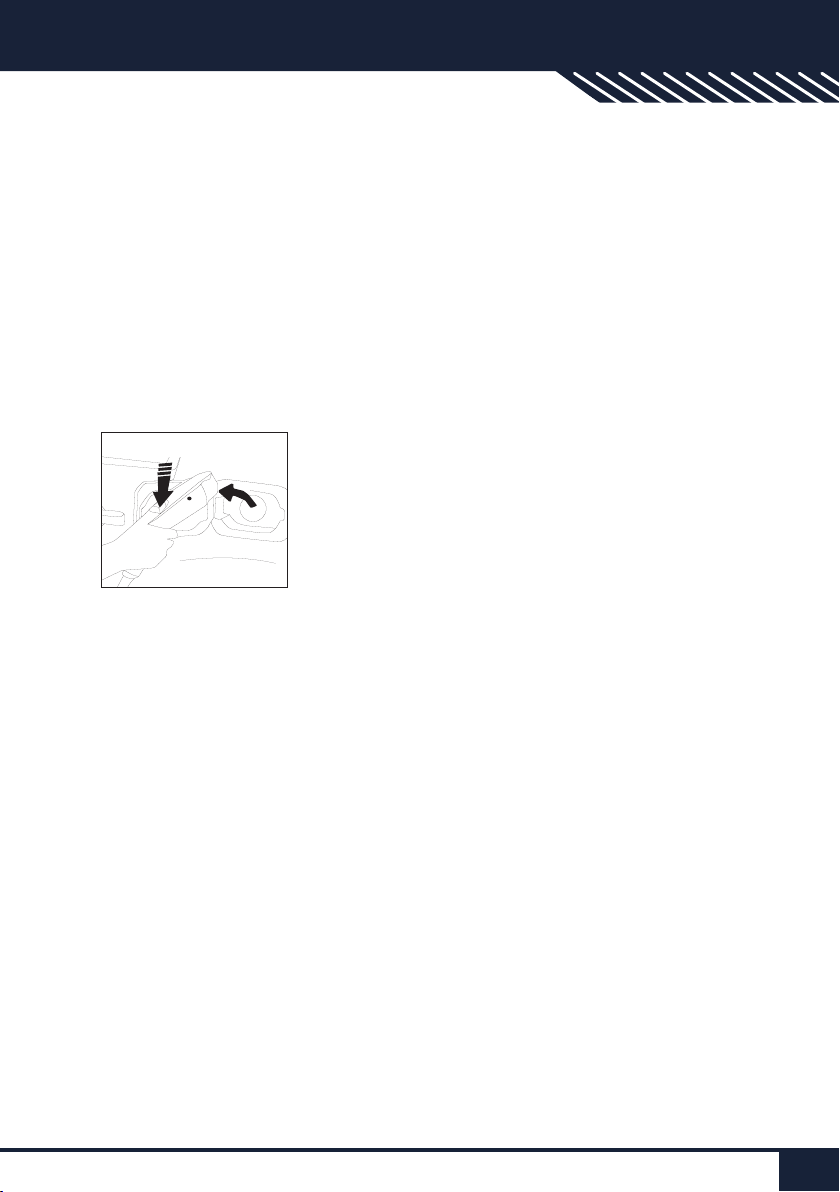

2. Remove the charging lead from the vehicle.
Follow the vehicle manufacturer’s instructions to remove the charging lead.
Some vehicles require the doors to be unlocked or a charging button to be pressed
before the lead can be unlocked and removed.
3. Remove the charging lead from the VMEV Charger.
If the plug cannot be easily removed from the VMEV Charger push the plug in rmly
and then try to remove the plug again.
4. Check that the LED status on the VMEV Charger has turned blue.
The charger is now ready to charge another vehicle. The plug must be removed from
the charger each time before you charge a vehicle. This resets the safety protocols
built into the charger.
5. Performnalchecks
Check the charging lead has been removed from the vehicle. If there is a problem or
a fault follow the steps in the trouble shooting guide in this manual.
OPERATING INSTRUCTIONS
PRESS
PRESS
5
MAINTENANCE
The VMEV electric vehicle charger has been designed to operate under normal working
conditions and usually does not require any special maintenance during its lifetime.
Vynco recommends the following checks to ensure the long-term operation of the
VMEV Charger and safety of the users.
INTERVAL MAINTENANCE ACTION
At every charge Visual check that the housing is not
damaged, cracked or broken.
If the housing is damaged, contact
your installer for a safety check
before using.
Check that the blue LED light is on. Check that the power is on to the
VMEV Charger:
- Isolator is turned on
- Check that the MCB and RCCB
at the switchboard are both on
(levers up).
Every 6 months Clean the charger with a damp cloth
(not wet) to remove any dirt, grime and
cobwebs.
Do not use cleaning agents
or solvents to clean the VMEV
Charger as these may damage
the plastic housing.
Press the test button on the RCCB at
the switchboard. The RCCB should trip
and disconnect the power to the VMEV
Charger.
Do not use the charger if the
RCCB does not trip. Contact your
installer for a safety check.
Yearly Commercial installations may require
that the VMEV Charger is tested and
tagged every 12 months.
See the Worksafe NZ EV Charging
Safety Guidelines for details or
contact your installer.
6
TROUBLESHOOTING
ERROR CAUSE SOLUTION
No LED lights
on display
No power available Check if the MCB and RCCB at the
switchboard is ON or Isolator is turned ON.
Blue Display Power available Normal operation during charging
- no action required.
Flashing Green Display Vehicle Charging Normal operation during charging
- no action required.
Flashing Red Display Faulty Charging cable or
earth fault in car/lead
Remove lead from car and charger.
Inspect cable for damage, if OK retry lead.
If LED’s return to Flashing Red, remove
lead. Try another cable to check the VMEV
Charger.
If LED’s return to Flashing Red, remove
lead, isolate VMEV Charger power at
switchboard. Leave off for 30 seconds
before re-powering and reconnecting
lead.
IfLED’sstillashingred,contactyour
supplier or Vynco for assistance.
Vehicle not charging Power not on Check LED display is on and turn power on
if required.
Plugttedincorrectly Ensure plug is pushed into VMEV Charger.
Connectortted
incorrectly
Ensure connector is pushed in to the
vehicle inlet.
Vehicle not detecting plug Alwaysplugintovehiclerstthenthe
VMEV Charger.
Vehicle charging system
not turned on
Check vehicle manual for charging
instructions – lock vehicle doors or push
charging button on vehicle.
Fault in charging cable Try another cable, check cable and plugs
for damage.
7
Electrical
Ratings
Rated Input Voltage 230 – 240V AC +- 10% - Single Phase
Frequency 50Hz
Maximum Power 7.4kW
Rated Current 32A @ 20°C maximum (permanent connection)
Standby Power <6W
VMEV
Electrical
Protection
RDC-DD Protection tted.
(Residual Direct Current
Detecting Device)
Type A RCCB is required to be
tted at the switchboard.
RDC-DD tted internally
6mA DC complying with IEC 62955.
Additional Internal Protection Under/over voltage, short circuit, under/over
temperature, phase protection
Equipment Protection Class Class 1
TECHNICAL SPECIFICATIONS
TROUBLESHOOTING
ERROR CAUSE SOLUTION
Charging cable cannot
be removed from
charger or vehicle
Interlocks in vehicle and
charger are engaged
Turn vehicle charging button off or unlock
vehicle if required.
Alwaysunplugvehiclerstthencharger.
Charging takes a while
to start
Charger checking the
safety systems before
charging. This check can
take 20 secs
Normal operation.
Charging will start after 20 secs when
safety checks are complete.
Charging won’t start
after a previous use
VMEV Charger not
detecting the lead
and vehicle
Unplug the lead from the charger and
plug in again to reset. Always plug in
vehiclerstthencharger.
8
Compliance Electrical Standards IEC 61851-1:2017,
IEC 61851-23 (Mode 3)
IEC 62955:2018 (RDC-DD)
Supplier Declaration of
Conformity (SDoC)
Available from VYNCO.CO.NZ
Operational
Ratings
Activation method Plug in and charging starts
automatically after 20 seconds
LED Status Indication Blue – Power Available
Green Flashing – Charging
Red Flashing – Fault
Charging Method Mode 3 - Plug in and charging starts.
TECHNICAL SPECIFICATIONS
Environmental
Ratings
Suitable For Use Indoors only.
Restricted access location.
Protection Rating IP41
Working Temperature Range -30°C to +55°C
Working Humidity 5% to 95% without condensation
Maximum Elevation <2000 metres
Average Mean Time Before
Failure (MTBF)
100,000 operations
Overall Dimensions (L x W x D) 477mm x 402mm x 127mm
Installation Flush wall mount
Weight < 6.4kgs
9
SERVICING
The VMEV Electric Vehicle Charger does not contain any user serviceable parts.
If your charger stops working or has broken parts contact your installer or Vynco
for assistance.
REPLACEMENT PARTS
Only Vynco supplied replacement parts can be used to repair the VMEV Electric
Vehicle Charger. Contact your installer or Vynco for assistance.
WARRANTY
The VMEV is covered by the standard 3 year Vynco Warranty - proof of purchase is
required.
Please contact Vynco for details of returns procedure.
All contents and diagrams contained in this manual are copyrighted and are not to be
reproduced in any form without written permission of Vynco Industries Ltd.
