Vult Vorg User manual
VORG
build guide
VORG BUILD GUIDE
Thank you very much for acquiring the Vorg DIY kit. This
guide will walk you through the whole assembly process.
Before you start we recommend you to read the guide,
specially the Notes that some of the steps have.
Since this is an SMD kit, you need to be very careful when
you solder the components. Especially some of the small IC
components since you can create bridges and not see them
with a naked eye. Using a magnifying glass or a microscope
is highly advisable.
VORG BUILD GUIDE
Remember that by purchasing a DIY kit you are responsible
if your build fails. We cannot provide repair services for
failed builds. The main reason is that, depending on the
extent of the damage, the total cost you’ll end up paying
would be higher than buying the assembled module in the
rst place.
We want you to succeed. For that reason we tried to make
this guide as detailed as possible. We also provide you the
components organized to minimize the risk of mixing them
up.
Disclaimer
VORG BUILD GUIDE
This guide contains one page for each different component
you are gonna place. The components are organized
starting from the lower values. For example, 1kΩ resistors
are placed before the 2kΩ resistors.
At every step we have highlighted with RED the locations
where you need to place the components. The locations
marked with GREY are where you should have already
placed a component in a previous step.
How to use this guide
Place a
component
here
You should
have placed a
component here
at a previous step
VORG BUILD GUIDE
We hope you enjoy building your own Vorg and if you like it
share your results in social media.
Leonardo, Radost and Andrey
VORG BUILD GUIDE
ASSEMBLING THE MAIN BOARD
VORG BUILD GUIDE
Component: Resistor
Value: 220Ω
Quantity: 4
Designators: R15, R14, R17, R16
VORG BUILD GUIDE
Component: Resistor
Value: 1kΩ
Designators: R11, R26, R27
Quantity: 3
VORG BUILD GUIDE
Component: Resistor
Value: 1.8kΩ
Designators: R19, R4
Quantity: 2
VORG BUILD GUIDE

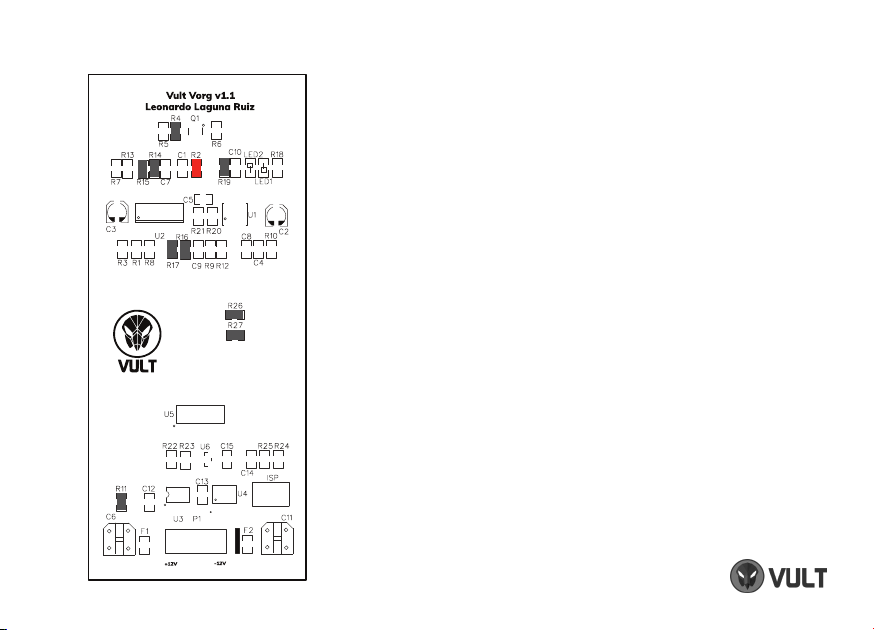

Component: Resistor
Value: 4.7kΩ
Designators: R2
Quantity: 1
