Voscom VOS-4FOM-SCCT/R Series User manual

VOS-4FOM-SCCT/R series

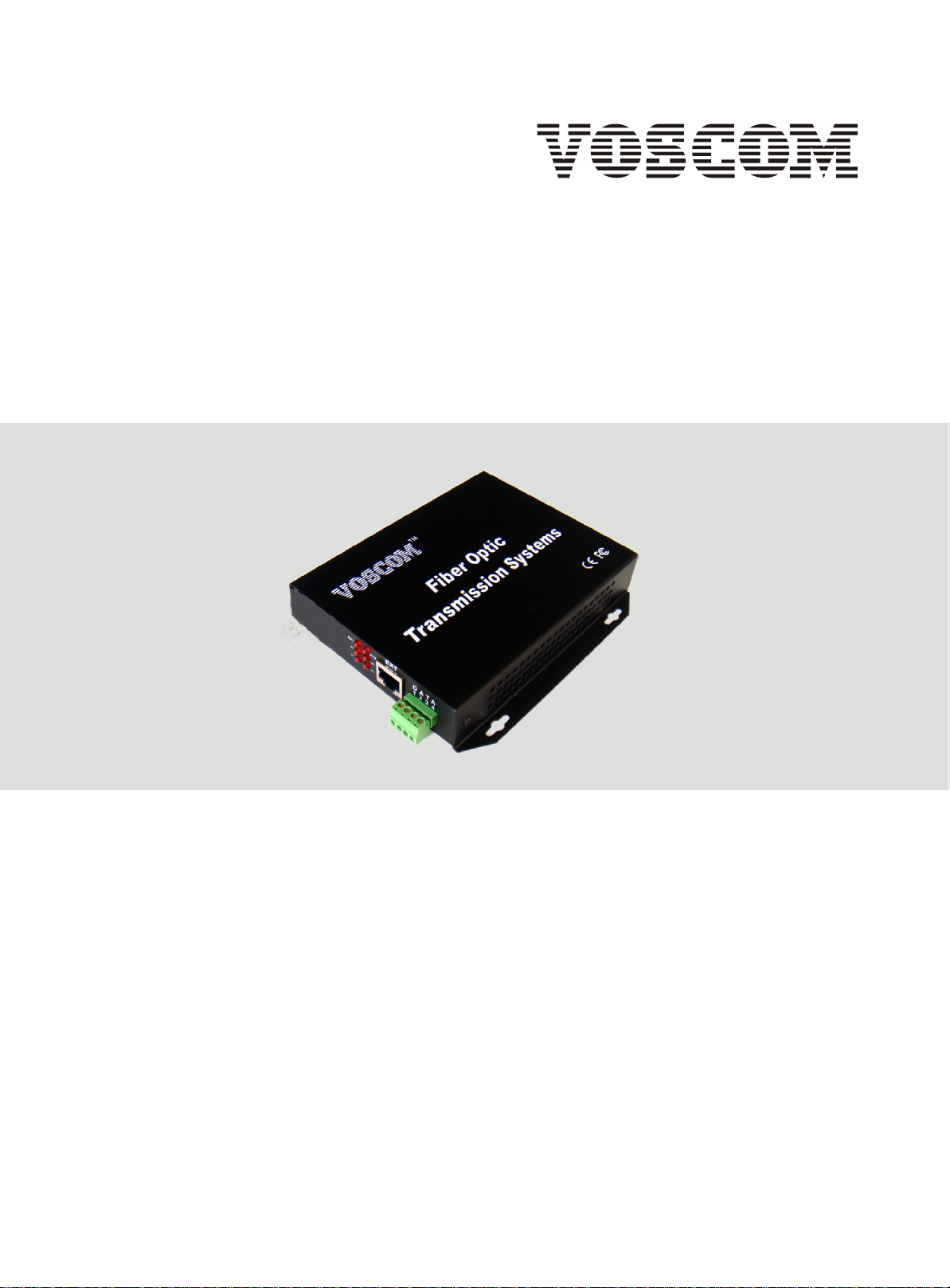

4-Channel Simplex Contact Closure Transmission

Installation Manual

Fiber Optic Transmission Systems

VOSCOM TECHNOLOGIES CO.,LIMITED

WWW.VOSCOM.COM

Important Safety Instructions EN_1

1. Readthese instructions. Keep these instructions. Heed allwarnings. Follow all instructions.

5. Donot use this apparatus near water. Cleanonly with dry cloth.

7. Donot block any ventilation openings. Install in accordance with the manufacturers

instructions.

8. Donot install near any heat sources such as radiators, heatregisters, stoves,or other

apparatus (includingamplifiers) that produce heat.

9. Donot defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has twoblades withone wider than the other. Agrounding type plug has two blades and a third

grounding prong. The wideblade or the third prong are provided for your safety. Ifthe provided

plug doesnot fitinto your outlet consult an electrician for replacement of the obsolete outlet.

10. Protectthe power cord from being walked on or pinched particularly at plugs,convenience

receptacles, andthe points where they exit from the apparatus.

13. Referall servicingto qualifiedservice personnel. Servicing is required when the apparatus

has beendamaged in any way, suchas power-supply cord or plug is damaged, liquid has been

spilled or objects havefallen into the apparatus,the apparatushas been exposed to rain or

moisture, doesnot operatenormally,or has been dropped.

14. Apparatusshall not be exposed to dripping or splashing and that no objects filled with liquids,

such asvases shall be placed on the apparatus.

15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatusto rain or

moisture.

16. Installation should be done only by qualified personnel and conform to all local codes.

20. CAUTION: These servicing instructions arefor useby qualified service personnel only.To

reduce therisk of electric shock do not perform any servicing other than that contained in the

operating instructionsunless youare qualifiedto do so.

Website:www.voscom.com

Product Overview En_2

The can transmission4-Channel

simplex over singlemodeor multimode

optical cable.

Stand-alone orrack-mount. The cards can be inserted

into our 14 slots,19inch 4U or 6U rack-mountable

card cage (VOS-CH04 or VOS-CH06).

VOS-4FOM-SCCT/R

contact closure

System Diagram:

Model Number

Transmitter Receiver Fiber Mode Wavelengths Optical

Power

Budget

Maximum

Transmission

Distance

Multi-Mode 1310nmVOS-4FOM-SCCMRVOS-4FOM-SCCMT

•The OpticalPower Budgetdata fitMulit-mode(62.5/125 m),Single-Mode(9/125 m).

•When using50/125 m multimode fiber, subtract3 dBfrom the optical power budget.

•Optical transmissiondistance is limited to optical loss of thefiber and any additional loss introduced by connectors,

splices andpatch panels.

•Maximum transmissiondistance is also limited by fiber bandwidth.

•Power adapteris manufactured by thirdparty and is supplied with fitted screw-terminal outputcables.Power

adapter included(for standalone) US, European, UK or Australian powerplug.

•Please feelfree to consult factory for anyspecial requirement and customization

Note:

16dB 2km

Single-Mode

VOS-4FOM-SCCSRVOS-4FOM-SCCST 12dB 20km

Models and Optical Power Budget:

•Dry Contact Closure or TTL data overone fiber

•Multi-mode Fiber Support for Distances up to 2.0 km

•Single-Mode Fiber Support for Distances up to 100 km

•No EMI or RFI and noground loops

•Stand alone or rack-mount

Features:

Note: More detailspecification please find inthe datasheetor our website: www.voscom.com

Contact Closure

1310nm

Fiber optic Cable

VOS-4FOM-SCCT

Transmitter VOS-4FOM-SCCR

Receiver

4 x SimplexContact Closure

Dry CC orTTL Data

4 x SimplexContact Closure

Dry CC orTTL Data

VOS-4FOM-SCCST-4

VOS-4FOM-SCCST-6

VOS-4FOM-SCCSR-4

VOS-4FOM-SCCSR-6

Single-Mode

1310nm

18dB

25dB

40km

60km

Fiber OpticConnector, FC/PC or ST/PC

Stand-alone Power supply Connector, DC5V2A Input.

Terminal Block Connector, contactclosure input (Transmitter) /output (Receiver).

Panel & Cable Connection En_3

Installation Instructions:

NOTE1: Digital fiber optic transmitterand receivershould be used in pairs, one is Transmitter

(LED is red), theother is Receiver (LED is green).

DC5V

1 2 3 4

DATA

POWER

OPTIC

EXT

FRONT PANEL

REAR PANEL

EXT2

FTX

EXT1

C+ C- D+ D-

None

A+ A- B+ B-

None

Website:www.voscom.com

Panel & Cable Connection En_4

Website:www.voscom.com

8 Pin Terminal Block

A+

A-

B+

B-

C+

C-

D+

D-

Connect CC-3

Connect CC-2

Connect CC-1

Connect CC-2

Connect CC-3

Connect CC-4

C+ C- D+ D-A+ A- B+ B-

Receiver: 4-Channel Simplex Contact ClosureConnection (Output)

Transmitter: 4-Channel Simplex Contact Closure Connection (Input)

Input

Installation Instructions:

NOTE1: Digital fiber optic transmitterand receivershould be used in pairs, one is Transmitter

(LED is red), theother is Receiver (LED is green).

8 Pin Terminal Block

A+

A-

B+

B-

C+

C-

D+

D-

Connect CC-3

Connect CC-2

Connect CC-1

Connect CC-2

Connect CC-3

Connect CC-4

C+ C- D+ D-A+ A- B+ B-

Output

Input

Output

Stand-alone Installation En_5

The transmitter and receiver canbe mounted into a rack orcan

be used as astand-alone module. As a stand-alone module, the unit can be placed on a desktop or

can bemounted toa wall.

VOS-4FOM-SCCT VOS-4FOM-SCCR

NOTE: Before mounting the transmitterand receiver, please

ensure that there is adequate space at both ends forviewing the front-panel LEDsand for making

the variousrear-panel cableconnections.

VOS-4FOM-SCCT VOS-4FOM-SCCR

Website:www.voscom.comWebsite:www.voscom.com

Stand-alone Mounting Size: 142mm x 107mm x 25mm

Rack-mount Installation En_6

Installation Instructions

Typical Configurations:

1:Install the video card into a standard 19inch rack, usinguser-supplied rack-mounting

hardware. Becareful to not damage exposed objects on the back of the card cage unit.

2:If asecondary earth ground connectionis needed, a grounded wire with a ground lug can be

attached to the rackusing the protruding screw provided on the right side of the chassis.

3:If desired, blank panels may beinstalled to cover unused slots. A single blank panel coversa

single slot opening.

4:Each fiber optic plug-in module is equipped with a POWER LED indicator that illuminates

when power is applied to the rack unit.

5:Fiber optic plug-in modules(video cards) can be installed into anyof theavailable 14slots

of thecard cage. Most modules require onlya single slot width, but others, such as the 8-Ch

video Series, require two slot widths.

VOS-CH04:

19 inch4U,14 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.

Support oneslide-in power supply AC100V~AC240V

VOS-CH06:

19 inch6U,16 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.

Support two slide-in power supply AC100V~AC240V, one for redundancy.

Website:www.voscom.com

The transmitter/ receiver canbe installed into our rack mount

chassis, VOS-CH04or VOS-CH06, which can be mounted into an industry-standard 19-inch

equipment rack.

VOS-4FOM-SCCT VOS-4FOM-SCCR

Troubleshooting En_7

Indicator Status Meaning Possible Cause Corrective Action

Power LED

Light Power isbeing applied

to the module. --- No actionrequired.

Not Light Power isnot being

applied to the module.

Check powerconnection.

If moduleis rackmounted,

reseat moduleor power

supply asnecessary.

Power connectionis

faulty.

Power supplyhas failed. Replace powersupply.

Loss ofpower occurs due

to trippedcircuit

breaker(s), blownfuse(s),

or faultyelectrical

service.

Check circuit breaker(s),

fuse(s), orelectrical

service asnecessary.

LED indicators on thefront-panel of the transmitter/receiverallow youto monitor signal status,

laser status,data activity, contact closure activation, and operatingpower. Table A~D provide

information aboutthe front-panelindicators and associated troubleshooting guidelines.

Table A: Power Links

Indicator Status Meaning Possible Cause Corrective Action

Video LED(VIDEO 1,VIDEO 2....)

Light Incoming video signal

is present on thechannel. --- No actionrequired.

Not Light

on Transmitter Incoming video signal

is not present on the

channel.

Check power connection

to the video source.

Video source is not

powered on.

Video source is not

connected to the

transmitter.

Check BNC connections.

Coaxial cable is

defective. Replace cable.

Table B: Video Links

Not Light

on Receiver Incoming video signal

is not present on the

channel.

Optical signal is not

being receivedfrom the

transmitter. Optic Fault

LED is also not light.

Refer tothe Optic Fault

LED section in this table.

Video source is not

powered on. Check power connection

to the video source.

Video source is not

connected to the

transmitter.

Check BNC connections.

Coaxial cable connected

to the transmitter is

defective.

Replace cable.

Website:www.voscom.com

Troubleshooting En_8

Indicator Status Meaning Possible Cause Corrective Action

Data(RS485/RS232/RS422) LED

Flashing

Data is being transmitted

onto the fiber by the data

port or is being received

from thefiber by the

data port.

--- No actionrequired.

Table C: Data Links

Indicator Status Meaning Possible Cause Corrective Action

Optic LED

Light The optical signal is being

received andlaser is

operatingproperly.

--- No actionrequired.

Not Light

Table B: Optic Links

Not Light

Data isnot being

transmitted ontothe

fiber bythe data port or

is notbeing received

from thefiber by the

data port.

Data isnot present on

the channel. No actionrequired.

Data connectionis faulty. Check dataconnections.

Data communication

cable isdefective. Replace cable.

The optical signal is

not beingreceived.

Remote fibermodule is

not poweredon. Check power connections.

Replace powersupply if

necessary.

Fiber optic cable is not

connected. Check fiberoptic

connections.

Fiber optic cable

connectors aredirty or

are damaged.

Clean, polish, or replace

fiber opticcable

connectors asnecessary.

Fiber optic cable is

defective. Replace cable.

A problemexists with

the optical power

budget.

Verify thatlosses in fiber

optic cable do not exceed

the optical power budget

specification of the fiber

optic link. If the losses do

exceed theoptical power

budget, contactProduct

Support.

Website:www.voscom.com

Return & Warranty Policy En_9

Warranty Introduction

All VOSCOM manufactured productsare warrantedto be free from defects in manufacturing and

materials forthe warranty term of 3 years. VOSCOM will repair or replace any equipmentor parts

proved tobe defectiveduring the term of the warranty.

VOSCOM shall not beobligated to replace or repair equipment that has been damaged by fire,

war, acts of God, or similar causes, or equipment that has been serviced by unauthorized

personnel, altered,improperly installed or abused.

This Returnand Warranty Policy Statement applies to VOSCOM equipment purchased directly

from VOSCOMTechnology Co.,Ltd. If you did not acquire the VOSCOM equipment directly, return

the equipmentto the place of purchase.

Returning VOSCOM products

Before youcan return any product to VOSCOM, you mustobtain a Return Material Authorization

(RMA). Thisapplies to all product returns, including warranty repair/replacements, nonwarranty

repairs, advancereplacements, and credit returns.

To obtain an RMA, (Download from www.voscom.com), and please complete the RMA asmuch

detail aspossible, thensend the RMA to our customer service support:

FAX: +86-571-87389390

E-mail: [email protected]

Customer Servicewill provide you with an RMA number andan RMA acknowledgment form that

confirms yourrequest.

Once youhave theRMA, repackage the product appropriately and attach the RMA

acknowledgement formon the outside of the package. Then send the product to the return

location givenby the customer service center.

All productsmust be returned freight prepaid within 30 days of obtaining an RMA. We reserve

the rightto cancel the RMA after 30 days. If you fail to returnthe product within the 30 days,

please contactCustomer Service to get a new RMA.

We will not accept unauthorized returns or freight collection returns; we will return these to

you atyour expense.

If areturned product contains parts that are no longer available orrepairable, wewill contact

you todiscuss resolution and return of the material.

Website:www.voscom.com

This manual suits for next models

Table of contents

Other Voscom Microphone System manuals

Voscom

Voscom VOS-16010FDT/R Series User manual

Voscom

Voscom VOS-0100FT/R Series User manual

Voscom

Voscom VOS-4410FFDT/R Series User manual

Voscom

Voscom VOS-20101FDET Series User manual

Voscom

Voscom VOS-1DH3G-ADT/R Series User manual

Voscom

Voscom VOS-1FOM-D422T Series User manual

Voscom

Voscom VOS-2010FBT Series User manual

Voscom

Voscom VOS-160101FDET Series User manual

Voscom

Voscom VOS-24000FT Series User manual

Voscom

Voscom VOS-8800FFT Series User manual

Voscom

Voscom VOS-2FOM-D422T Series User manual

Voscom

Voscom VOS-0800DT Series User manual

Voscom

Voscom VOS-48000FT/R Series User manual

Voscom

Voscom VOS-1100FDT Series User manual

Voscom

Voscom VOS-4020FDT/R Series User manual

Voscom

Voscom VOS-2000FT Series User manual

Voscom

Voscom VOS-11101FDDET Series User manual

Voscom

Voscom VOS-4FOM-D422T Series User manual

Popular Microphone System manuals by other brands

Paso

Paso R824 quick start guide

Naxa

Naxa NAM-982 instruction manual

Motorola

Motorola PMNN4461 user guide

Xvive

Xvive U3 user manual

Tekon

Tekon DUOS installation guide

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 user manual

Devine

Devine WMD-IE user manual

LG LF-D7150 owner's manual

GE S768DAV user manual

LD U305 HBH 2 user manual

Chainway

Chainway URA8 user manual

ORATOR

ORATOR D860TD instruction manual

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 quick guide

Alpha Technologies

Alpha Technologies RBMS Installation & operation manual

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 user manual

Shure

Shure UA844 user guide

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM operating instructions

Pyle

Pyle PDWM5000 user manual
