vonado P134 User manual
P134 75955 Hogwarts Express LED Lighting Set
The following are the installation instructions for this package. If you encounter any
difficulties, please refer to the online troubleshooting guide To ensure a smooth
installation, please read the installation steps carefully
Package includes:
·7x 15cm white lamp pellets
·2x 30cm white lamp pellets
·3x white light bar
·1x flame lamp module
·3x 6 sockets
·1x 5cm cable
·3x 15cm cable
·1x 30cm cable
·1x AA battery box
·1x round button battery box
Extra pieces
Note:
Place wires on the surface or under the building blocks.
The wire can be place between the building blocks or under the block, but they should
be placed between the studs correctly.
Insert the connectors to the ports.
Be careful when you are operating, there’s only one correct way to insert, make sure the
expansion board is upward, find the soldered “=” sign on the left of the port. When you
are inserting, the side which the wires can be seen should be faced to the “=” sign and if
you feel hard to insert, please stop, and don’t force it, for that may result in bent pins
inside the port or overheating of the expansion board.
At this point, use the tweezers to straighten the bent pins.
When installing dot lights, make sure they are correctly placed (Yellow LED package is
exposed). You can put they either on the top of the studs or between studs.
Connecting cable connectors to Strip Lights
Take extra care when inserting connectors to ports on the Strip Lights. Connectors
can be inserted only one way. With the Strip Light facing up, ensure the side of the
connector with the wires exposed is facing down. If a plug won’t fit easily into a port
connector, don’t force it. Doing so will damage the plug and the connector.
Finally, please pay attention to the positive and negative terminals of the battery when
installing the battery case.
Let's start!
1. ) Start with the lighting of the railway station. First remove the train, then remove the
bridge and the lighting as shown.
2. )Split the lighting as shown in the figure, take a 30cm white lamp pellet, and pass its
plug end through the transparent yellow building block as shown in the figure until the
light-emitting side of the lamp pellet is facing upwards and is located inside the
building block. Replace the black building block to fix it Live the lamp pellets.
Take another 30cm white lamp pellet, repeat this step, and install it to another lamp.

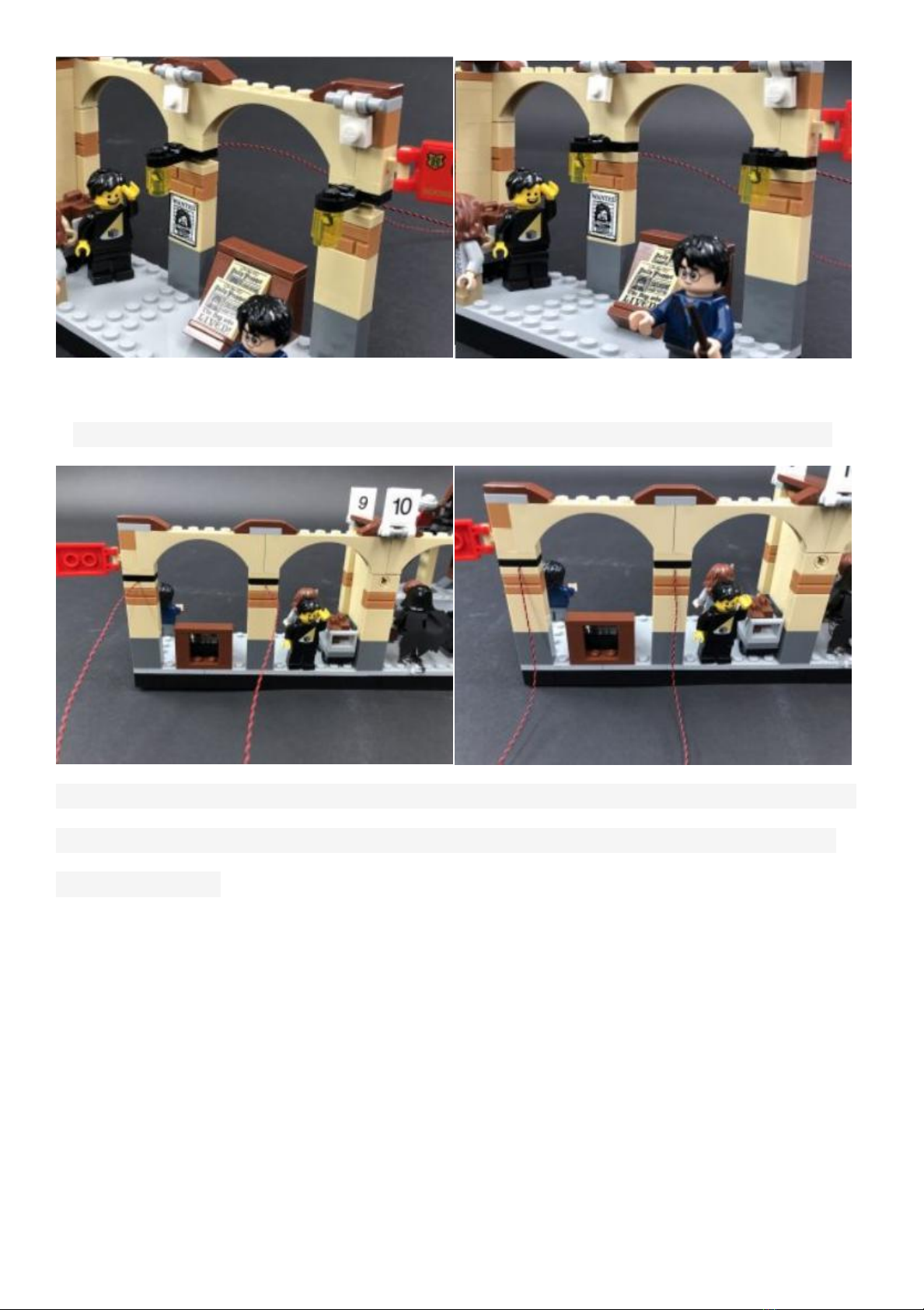

2.) Remove the upper part of the wall, pass the lighting connection line through the gap,
and install the lighting back to its original position. Make sure that the connecting wire
is placed between the studs, as shown in the figure:
After installing the lighting, install the wall back.
3.) Go to the back of this part, and place the light chip connection line down the wall
Fix the connecting wire under the block as shown in the figure. First, remove the block
as shown in the figure, place the connecting wire between the lower studs, and then
reinstall the block
