Volvo S 90 User manual

QUICK GUIDE

An asterisk (*) indicates optional equipment.

Some of the illustrations shown in this quick guide are generic and are intended as

examples only.

VÄLKOMMEN!

This Quick Guide describes a selection of the features and functions in your Volvo. More detailed owner’s information is available digitally in

the vehicle, in an app and on-line.

THE VEHICLE’S CENTER DISPLAY

The owner’s manual is available in digital form in the center display and

can be accessed from Top view.

MOBILE APP

The owner’s manual is available as an app (Volvo Manual) for

smartphones and tablets. The app also contains instructional films for

certain features.

VOLVO’S SUPPORT SITE

Volvo’s support site (support.volvocars.com) contains manuals and

instructional films but also provides additional information regarding

owning and operating your Volvo.

PRINTED INFORMATION

A printed owner’s manual supplement is provided in the vehicle’s glove

compartment, which contains information about fuses, specifications and

a summary of other useful information. A printed owner’s manual can also

be ordered at any time.

01. GETTING TO KNOW YOUR VEHICLE

This section helps you familiarize yourself with some of the basic features in your Volvo and includes information about e.g.,

remote keys, the vehicle’s three displays, how to start and switch off the engine. It also tells you how to adjust the seats and make

climate system settings.

02. DRIVING AND DRIVER SUPPORT

This section includes information about drive modes and other driver support functions such as Cruise Control, Park Assist Pilot

(PAP)*, Blind Spot Information (BLIS)* and City Safety.

03. INSTRUMENTS AND CONTROLS

This section explains e.g., lighting controls, wipers, how to operate the trip computer, setting the date and time, creating a driver

profile and how to use voice control commands.

04. INTERNET CONNECTIONS, INFOTAINMENT AND SUPPORT

Your Volvo can connect to the Internet to give you access to information, entertainment and support. This section provides instruc-

tions for e.g., pairing and connecting a cell phone to your Volvo, connecting to the Internet and using apps.

05. SUPPLEMENTARY TEXTS

This section contains important information such as warnings, cautions and notes that the driver should be familiar with.

CONTENTS

BUTTONS ON THE REMOTE KEY

Press briefly to lock the doors and trunk and arm the alarm.

Press briefly to unlock the doors and trunk and disarm the

alarm.

Press briefly to unlock and disarm the alarm for the trunk

lid only. Press and hold to open or close the power trunk

release*.

“Panic” alarm: Press and hold for at least 3 seconds or press

twice within 3 seconds to sound the horn and flash the turn

signals. After approx. 5 seconds, press the same button to

turn off the function (it will deactivate automatically after

approx. 3 minutes).

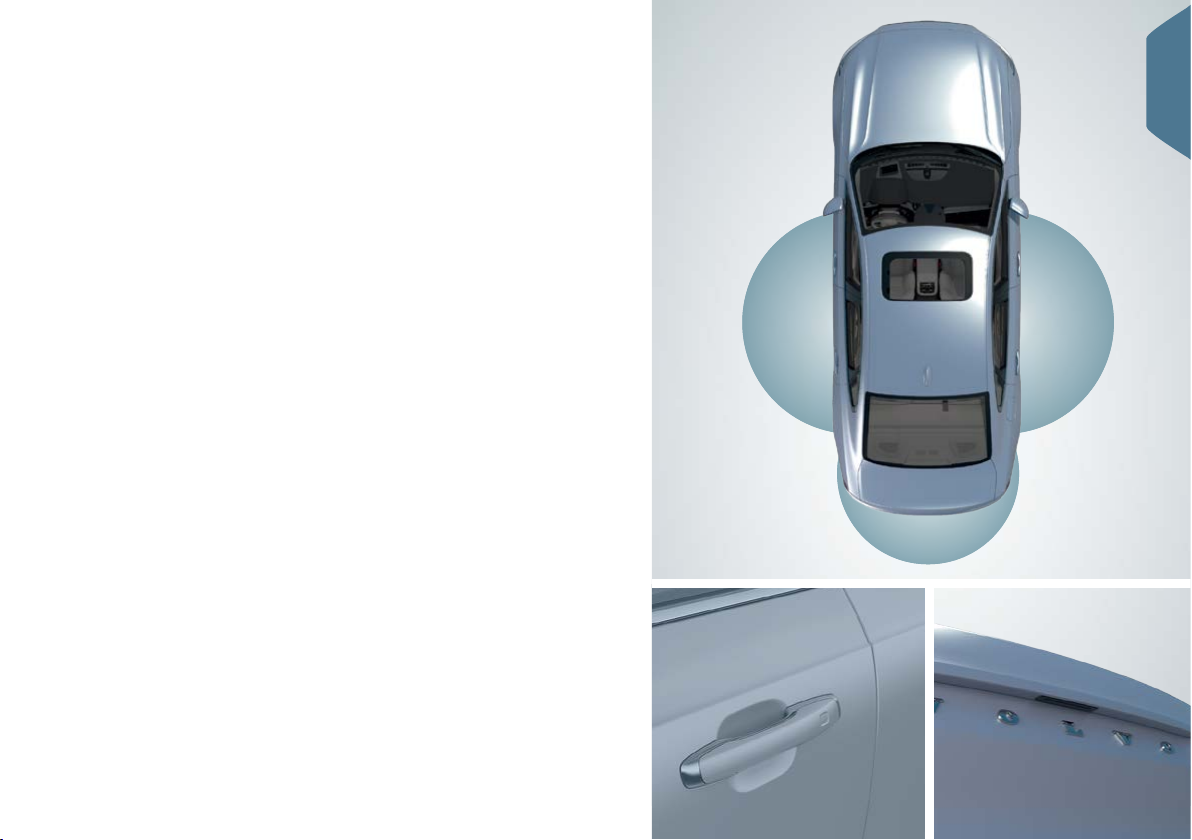

KEYLESS LOCKING/UNLOCKING*

You only need to have a remote key in your possession to lock or

unlock the vehicle. The remote key has to be within a radius of approx.

5 ft. (1.5 meters) from a door handle or approx. 3 ft. (1 meter) from the

trunk (see the illustration).

Unlocking and disarming the alarm

1. Grasp one of the door handles or press the rubber-covered button

next to the trunk opening control (avoid doing both at the same

time). Unlocking is complete when the turn signals flash twice and

the alarm indicator in the windshield goes out.

2. Open the door or trunk in the normal way.

Locking and arming the alarm

1. Close all of the doors. The trunk can be open if the vehicle is locked

using one of the door handles.

2. Press the marked surface on the outside rear section of a door

handle or press the lock button on the lower edge of the trunk

before it is closed (avoid doing both at the same time). Locking is

complete when the turn signals flash once and the alarm indicator

on the dashboard begins to flash.

To close windows or the panoramic roof* when locking the vehicle,

hold the pressure sensitive surface on the outside of a door handle

until the window(s)/panoramic roof have closed completely. The

windows/panoramic roof will stop if the button is released before

they are fully closed.

POWER FRONT SEAT*

Adjust backrest tilt by pressing the control forward/rearward.

Settings for the massage function*, side bolsters, lumbar support and

extending the seat cushion are linked to the multifunction control*.

1. Activate seat adjustment by turning the control up or down. The seat

adjustment view will open in the center display.

2. Select a seat adjustment setting in the center display by turning the

multifunction control up or down.

3. Adjust a setting by pressing the multifunction control’s upper/lower/

front/rear section.

Certain settings can also be made by tapping them on the center

display.

Raise/lower the seat by moving the rear section of the control up or

down. Move the seat forward/rearward by moving the control forward/

rearward.

Raise/lower the front edge of the seat cushion by moving the front

section of the control up or down.

Adjust lumbar support by pressing the upper/lower/front/rear section

of the control.

The memory function buttons are on one or both of the front doors.

Storing settings

1. Adjust the seats, mirrors and head-up display* to the desired

positions.

2. Press the M button and release it. The indicator light in the button

will illuminate.

3. Press buttons 1or 2 within 3 seconds to store the settings. When

they have been stored in the button selected, an audible signal will

sound and the indicator light in the M button will go out.

Accessing a stored setting

With the door open: Press and release one of the memory buttons.

With the door closed: Press and hold one of the memory buttons

until the stored positions are reached.

FRONT SEAT MEMORY FUNCTION 01

FOLDING DOWN THE REAR SEAT BACKRESTS*

When folding down the backrests/head restraints, be sure that they

do not come in contact the front seat backrests. It may be necessary

to move the front seats before the rear seat backrests can be folded

down.

Folding down the backrest

The vehicle must be stationary and one of the rear doors must be open

before a backrest section can be folded down.

1. Press down the center head restrain manually.

2. Press and hold a button (located on the driver’s side of the rear

parcel shelf) for the respective sections of the backrest.

3. The backrest lock will release and the head restraint will fold down

automatically*.

4. Manually fold the backrest down to the horizontal position.

Folding up the backrest

1. Fold up the backrest until it locks in the upright position. Be sure it

is securely locked in position.

2. Manually return the head restraint to the upright position.

3. Adjust the height of the center head restraint if necessary.

INTERIOR AIR QUALITY SYSTEM (IAQS*)

IAQS is part of the Clean Zone Interior Package* and is a fully auto-

matic system that filters passenger compartment air to help remove

gases, particles and other contaminents.

1. Tap Settings in the center display’s Top view.

2. Tap Climate.

3. Select Air quality sensor to activate/deactivate this function.

ADJUSTING THE STEERING WHEEL

The steering wheel can be adjusted up/down/fore/aft.

1. Push down the lever under the steering wheel to release it.

2. Adjust the steering wheel to the desired position.

3. Pull back the lever to lock the steering wheel in position.

STARTING AND SWITCHING OFF THE ENGINE

Switch on the igintion or start the engine using the start knob located

behind the gear selector. The remote key only has to be in the front

section of the passenger compartment.

If the vehicle is equipped with the optional Passive Entry system, the

remote key can be anywhere in the vehicle.

Start

1. The gear selector must be in the P or N position.

2. Press the brake pedal.

3. Turn the start knob toward START and release it.

Switch off

1. Put the gear selector in position P.

2. Turn the start knob toward STOP and release it.
