Volvo VCC-129387 User manual

Instruction No

Version

Part. No.

9172729

1.0

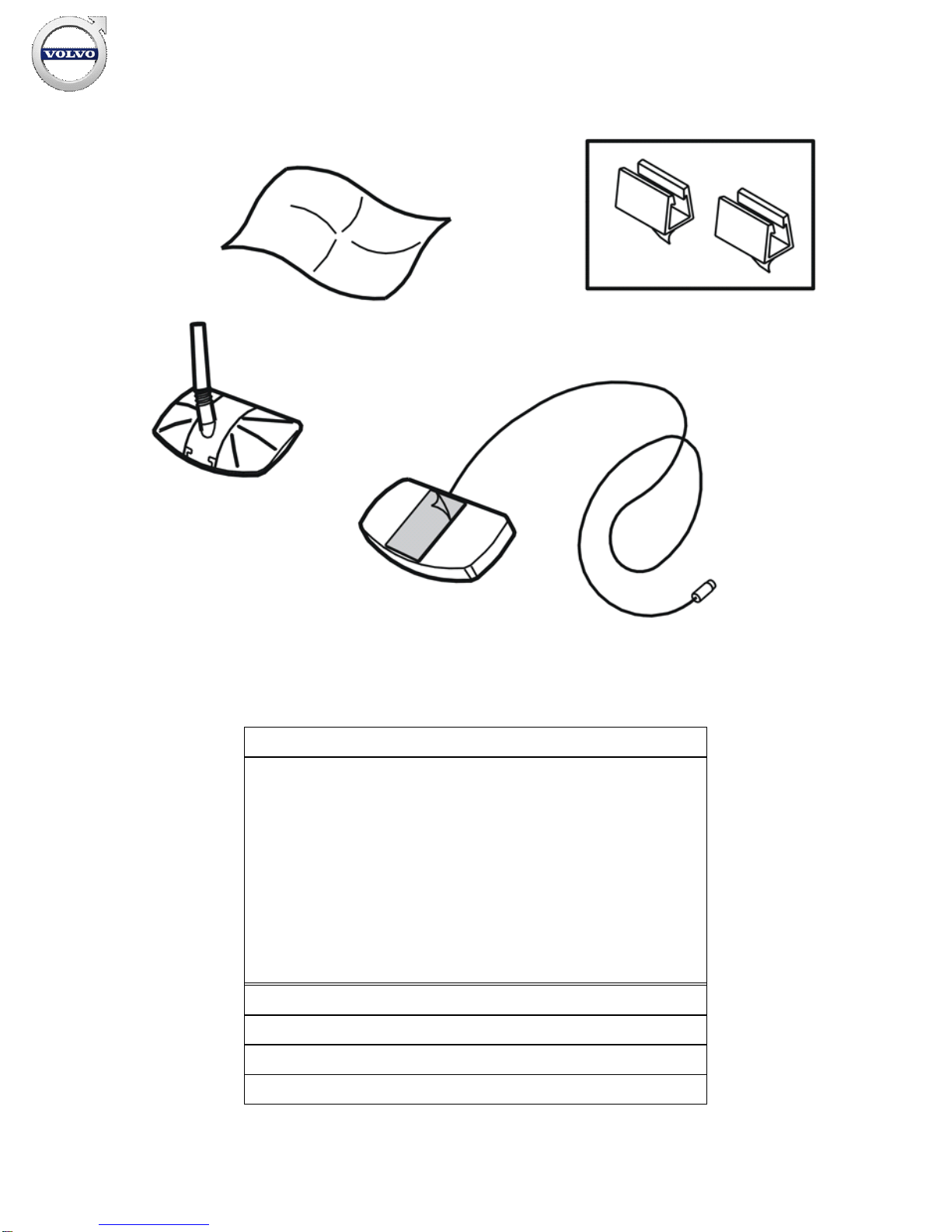

Glass mounted GSM combined antenna

A3902546

Instruction No

Version

Part. No.

9172729

1.0

Glass mounted GSM combined antenna

A3902546

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 1 / 17

MA Reacção

Tem comentários a fazer sobre esta publicação? Contacte o concessionário mais próximo. Agradecemos a sua colaboração!

A3902569

Publicação n#: MA 9172729, Publicação: 2000

-06

Observações:.......................................................................................................

............................................................................................................................

.............................................................................................................................

De:.......................................................................................................................

Morada:.............................................................................................................

N# telefone:....................................................................................................

Telefax:...............................................................................................................

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 2 / 17

INTRODUCTION

Read through all of the instructions before starting installation.

Notifications and warning texts are for your safety and to

minimise the risk of something breaking during installation.

Ensure that all tools stated in the instructions are available

before starting installation.

Certain steps in the instructions are only presented in the form

of images. Explanatory text is also given for more complicated

steps.

In the event of any problems with the instructions or the

accessory, contact your local Volvo dealer.

Note!

When installing the antenna the window must remain at a

temperature of at least +10°C.

Note!

When installing on the rear windscreen, the antenna must not

be installed on the heating loops in the windscreen.

However, the antenna is not affected by the area of the

windscreen shaded black.

Note!

Points 1

-7 apply to the S60, V70 (00-)

and the S80

Points 8

-14 apply to the S40 and V40

Points 15

-21 apply to other models from model year -00 and

earlier, and to the C70.

Applies to the S60, V70 (00-) and the S80

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 3 / 17

M3903209

M3903027

Applies to the S60, V70 (00-) and the S80

Positioning the antenna

Illustration A applies to the S60 and the S80

In the upper right corner of the rear windshield as illustrated.

Illustration B applies to the V70 (00-)

At the top rear of the left-hand rear side window as illustrated.

A3902551

Install the antenna on the external base module.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 4 / 17

M3903261

M3903028

Installing the external base module

Illustration A applies to the S60 and the S80

Illustration B applies to the V70 (00-)

Check the position (see the illustration). Ensure that the antenna

does not come into contact with the window mouldings. Ensure

that the antenna can be removed from the external base module

when washing the car etc.

Carefully clean the surface of the glass. Use the cleaning cloth

supplied. Wipe dry using a rag. For optimum adhesion, warm the

glass. Use a hairdryer for example.

M3903379

Remove the backing from the external base module. Secure the

external base module on the windscreen. Press hard on points

1, 2, 3, 4 and 5, in order, for 3-4 seconds

Ensure that the tape is sealed around the external base module.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 5 / 17

A3902556

Installing the internal base module

Templates are provided to facilitate installation of the internal

base module. The templates are necessary because the black

shading on the windscreen may conceal the external base

module.

Cut

-out the two templates found at the start of the instructions

Align one template on the installed external base module. Secure

it using tape

Carefully clean the interior surface of the glass. Use the cleaning

cloth supplied. Wipe dry using a rag

Install the second template on the interior, edge to edge with the

external template.

The internal and external base modules must be positioned

directly opposite each other.

Install the internal module in the cut

-out of the second template.

Install the internal module base in the same way as the external

module base

Remove the templates.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 6 / 17

A3902560

M3903026

Routing the antenna cable

The clips in the kit are used to secure the antenna cable, to the

windscreen frame for example.

Illustration A applies to the S60 and the S80

Route the cable via the C post and down inside the side cushion

for the backrest to the cable duct on the floor, then along the

wiring under the dashboard to the telephone.

Illustration B applies to the V70 (00-)

Route the cable inside the D post panel down to and along the

left rear wheel well, behind the left side cushion, along the sills

and up the dashboard to the telephone.

Warning!

Ensure that the cable is not routed over the inflatable curtain.

Note!

Route the cable far enough down the bottom edge of the rear

windscreen so that the cable is clear of the gas generator for

the inflatable curtain.

Align the antenna so that it is vertical to the ground.

Applies to S40 and V40

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 7 / 17

M3903209

G3903899

Applies to S40 and V40

Positioning the antenna

Illustration A applies to the S40

In the top right hand corner of the rear windscreen.

Illustration B applies to the V40

At the top rear of the left-hand rear side window.

A3902551

Install the antenna on the external base module.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 8 / 17

10A

M3903261

10B

G3903900

Installing the external base module

Illustration A applies to the S40

Illustration B applies to the V40

Check the position (see the illustration). Ensure that the antenna

does not come into contact with the window mouldings. Ensure

that the antenna can be removed from the external base module

when washing the car etc.

Carefully clean the surface of the glass. Use the cleaning cloth

supplied. Wipe dry using a rag. For optimum adhesion, warm the

glass. Use a hairdryer for example.

M3903379

Remove the backing from the external base module. Secure the

external base module on the windscreen. Press hard on points

1, 2, 3, 4 and 5, in order, for 3-4 seconds

Ensure that the tape is sealed around the external base module.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 9 / 17

A3902556

Installing the internal base module

Templates are provided to facilitate installation of the internal

base module. The templates are necessary because the black

shading on the windscreen may conceal the external base

module.

Cut

-out the two templates found at the start of the instructions

Align one template on the installed external base module. Secure

it using tape

Carefully clean the interior surface of the glass. Use the cleaning

cloth supplied. Wipe dry using a rag

Install the second template on the interior, edge to edge with the

external template.

The internal and external base modules must be positioned

directly opposite each other.

Install the internal module in the cut

-out of the second template.

Install the internal module base in the same way as the external

module base

Remove the templates.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Glass mounted GSM combined antenna

9172729

V1.0

Page 10 / 17
