VOGELS MA 4040 Series User manual

MA 4040 Series

Full Installation Guide

Everything you need to get your TV safely on the wall, in no time

Before you start

…we just wanted to say thanks for choosing Vogel’s. Smart choice.

And you’re already making another smart choice – reading the manual! Keep reading to learn all

about safe, efficient installation, and how to use your new mount.

Stay safe

Warning

Always read these safety instructions carefully before installing and using this product.

Following these instructions is strictly required. Incorrect mounting and/or installation could

put you, your TV, and your family at substantial risk.

MA 4040 Series - English 1

Don’t dare risk it… Read all

lVogel’s recommends that the mounting and/or installation of this product should be carried

out by a suitably qualified expert.

lVogel’s cannot be held responsible for any injury and/or damage caused by incorrect

installation.

lPlease consult the manual for your TV and ensure that the weight and size of the TV is within

the maximum weight and size limits specified for this product, and that the TV mounting bolts

used are of a suitable length and diameter. Note that not all the TV mounting accessories

provided are required for the installation of any one TV.

lThe wall mounting accessories provided are exclusively intended for installation on walls

made of solid brick, solid concrete or solid wood columns.

lAny material covering the wall must not exceed 3 mm/ 0.12 inch.

lFor mounting on walls made of other materials, such as hollow bricks, wood panels or

plasterboard, please consult your installer and/or specialist supplier.

lClean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean

the product.

lOnly qualified, certified personnel may repair the product. Use only original spare parts. The

use of other parts will result in voiding the warranty, and could lead to injuries.

lAlterations to the product and technical modifications are not permitted. This will void the

warranty, and could lead to injuries.

lAlways store the product in a dry and safe place with a temperature between -10°C to +50°C.

lHandle and transport the product with care.

lRepack the product when transporting or not using it for a longer period of time.

lLifting your TV is a two-person job. Don’t be bold!

MA 4040 Series - English 2

What’s in your box?

lSomething missing? Make sure your packaging has everything in place:

A. Wall mount

B. Strips

C. Instructions

D. Bolts for fastening strips on TV

lM6 bolts

lM8 bolts

E. Spacers

F. Washers

G. Fischer© Plugs (fischer© DuoPower)

H. Bolts

MA 4040 Series - English 3

Got your tools ready?

lDon’t start without all the necessary tools:

lCrosshead screwdriver or crosshead attachment for electric screwdriver

lDrilling machine with screwdriver function

lNo.10 wrench

lFor walls with wooden studs: 3mm or 1/32” wood drill

lFor walls with wooden studs: Stud finder

lFor concrete/brick walls: 8mm or 5/16” concrete / brick drill

lNo. 10 socket wrench or socket attachment

lPencil

lSpirit level or spirit level app

MA 4040 Series - English 4

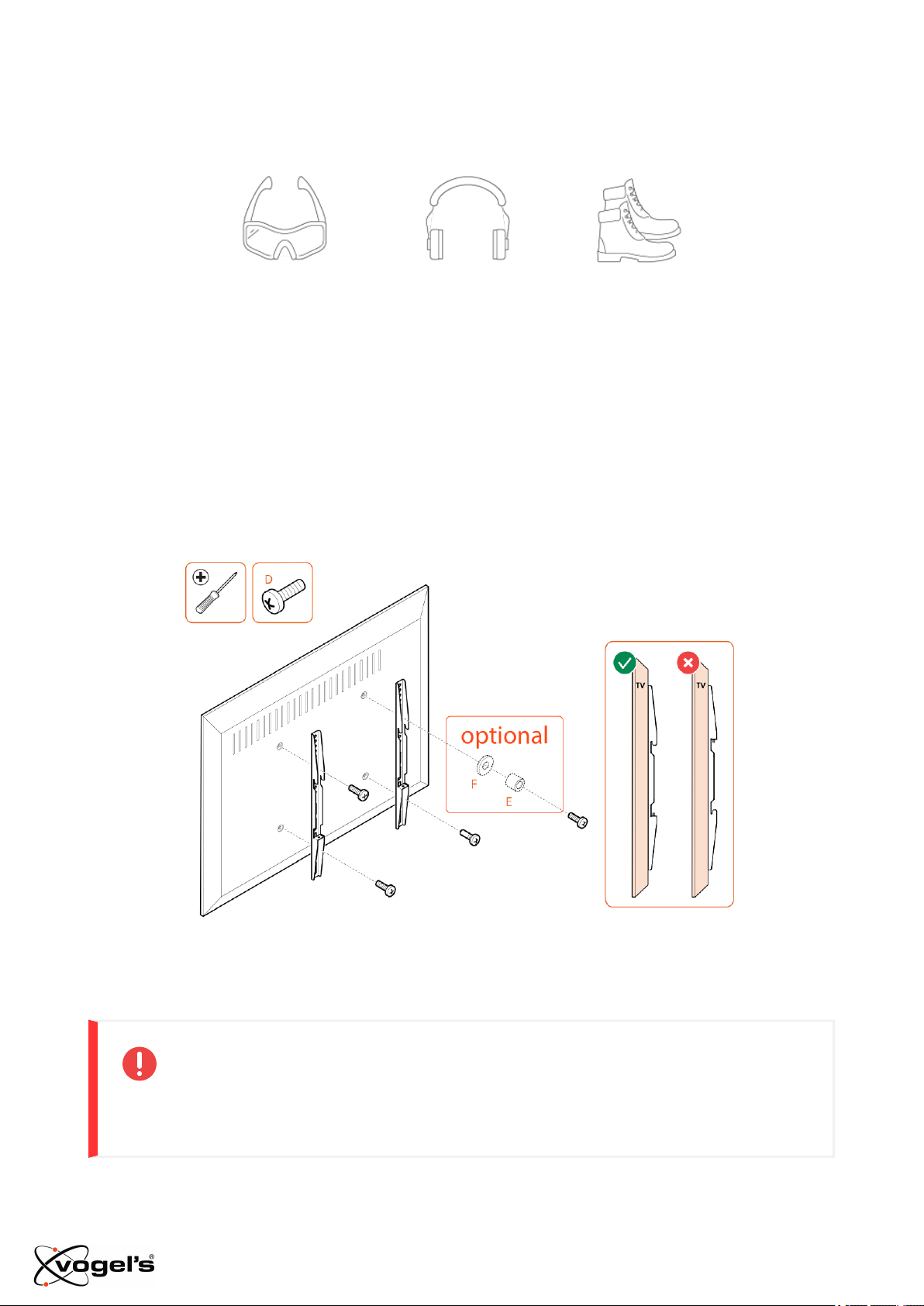

Take care of your safety

lWho cares about looking cool? Always wear personal protective equipment:

lEye protection

lEar protection

lSafety shoes

Ready… set… get installing!

Step 1: Attach the strips to the TV

1. Carefully put the TV on a clean surface without obstacles.

Make sure the strips are positioned correctly, the screw on the strip should be lower on the

TV.

MA 4040 Series - English 5

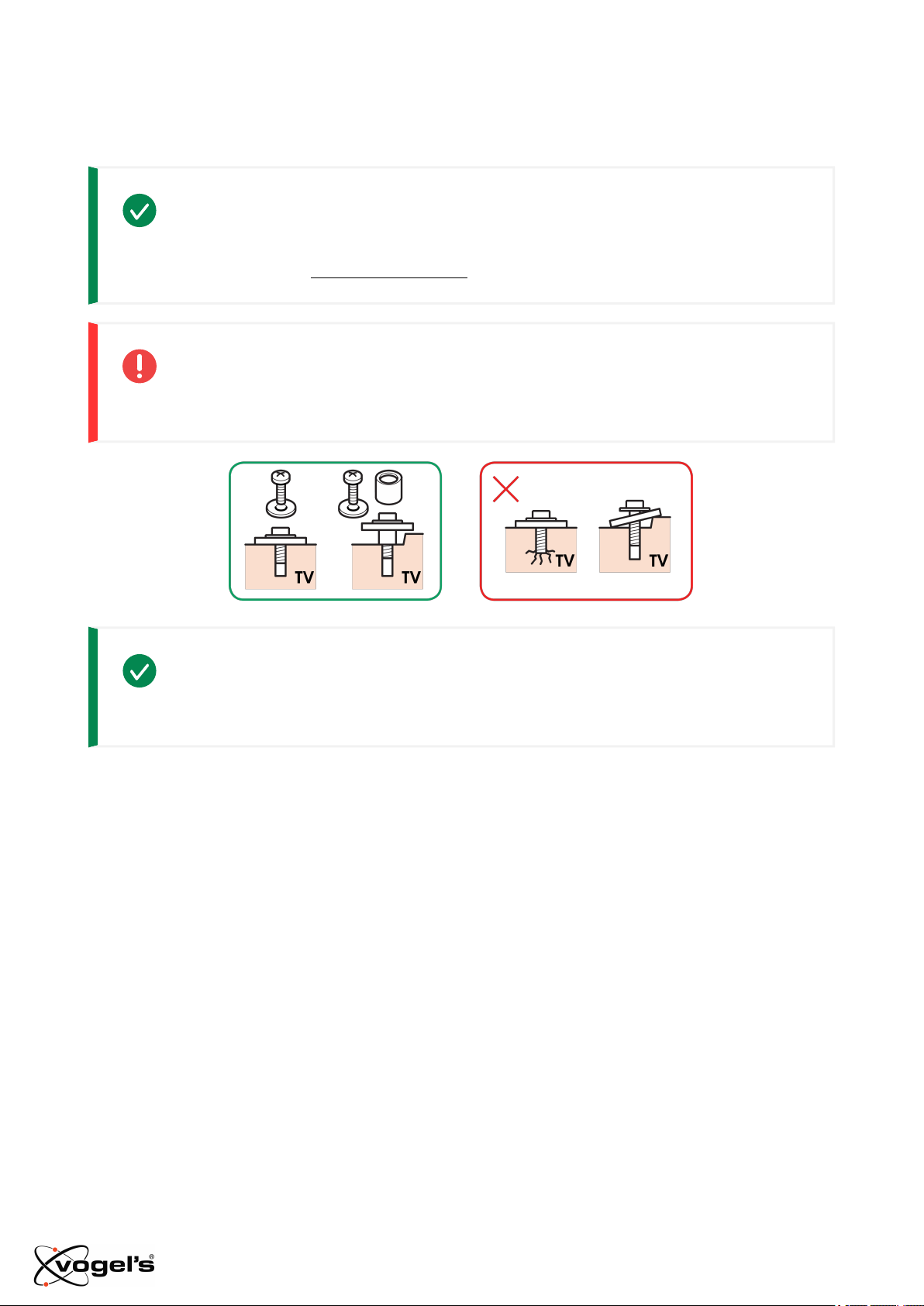

2. Screw the strips Ⓑ on to the TV using the bolts for fastening strips on TV Ⓓ.

Use washers Ⓕ and spacers Ⓔ to adjust for any high areas on the back of the TV.

Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer

Care are waiting to help: vogels.com/contact

Make sure bolts and spacers are positioned correctly.

Refer to the user manual of your TV for the correct mounting material.

MA 4040 Series - English 6

Step 2: Attach the wall mount to the wall

How well do you know your walls? What they’re made of matters more than you think…

Concrete / Brick wall

1. Find the top of the wall mount Ⓐ. Make sure the top of the wall mount Ⓐ can tilt forward

when mounted to the wall.

2. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when

seated.

3. Hold the wall mount Ⓐ against the wall and mark the location of the 4 holes.

Use a spirit level to level the wall mount.

MA 4040 Series - English 7

4. Mark the drill at the length of the bolts Ⓗ.

5. Drill until the thread of the bolts Ⓗ completely fits in the holes.

Do not use the wall mount as a drill guide.

Up for some smooth sailing? Pre-drill the holes with a 5mm concrete/brick drill.

6. Attach the wall mount Ⓐ to the wall with the bolts Ⓗ, washers Ⓕ, and plugs Ⓖ.

MA 4040 Series - English 8

Lubricate the bolts for easy screwing in.

Wooden wall with studs

1. Find the top of the wall mount Ⓐ. Make sure the top of the wall mount Ⓐ can tilt forward

when mounted to the wall.

2. Don’t just guess! Always use a stud finder to determine the position of studs.

3. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when

seated.

MA 4040 Series - English 9

4. Hold the wall mount Ⓐ against the wall and mark the location of the 4 holes. Use a spirit level

to level the wall mount.

5. Mark the drill at the right length.

6. Now for the fun part… drilling the holes.

Do not use the wall mount as a drill guide.

7. Attach the wall mount Ⓐ to the wall with the bolts Ⓗ and washers Ⓕ.

Lubricate the bolts for easy screwing in.

Other wall type / I don’t know my wall type

If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or

plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier

or the Vogel’s Consumer Care team at www.vogels.com/contact.

MA 4040 Series - English 10
