Vogel FALKE User manual
User manual for the FALKE device
from VOGEL, the latest device for
detecting and distinguishing
between different metals.
FALKE
www.vogeldetectors.com
User Manual
Metal and Water Finder
ماﺪﺨﺘﺳﻻا ﻞﻴﻟد ةءاﺮﻗ
. ﺚﺤﺒﻟا أﺪﺑ ﻞﺒﻗ ﺪﻴﺟ
Page 1
Index
Technical Specications
Important Notes
Assembly
Getting Started
Main Unit Setup and Start Working
Calibration/Automatic Calibration
Page 1
Page 2
Page 3
Page 8
Page 10
Page 11
Page 16
Searching setup
Page 15
Searching Modes
Page 18
Manual Calibration
Page 17
Accurate identication
Page 23
Notes
Page 29
Main Unit
Page 9
Introduction
Page 5
Why Falke
Page 6
Contents
Page 7
Treasure Mode
Page 20
Graph Mode
Page 19
Coins Mode
Page 22
Depth Mode
Page 27

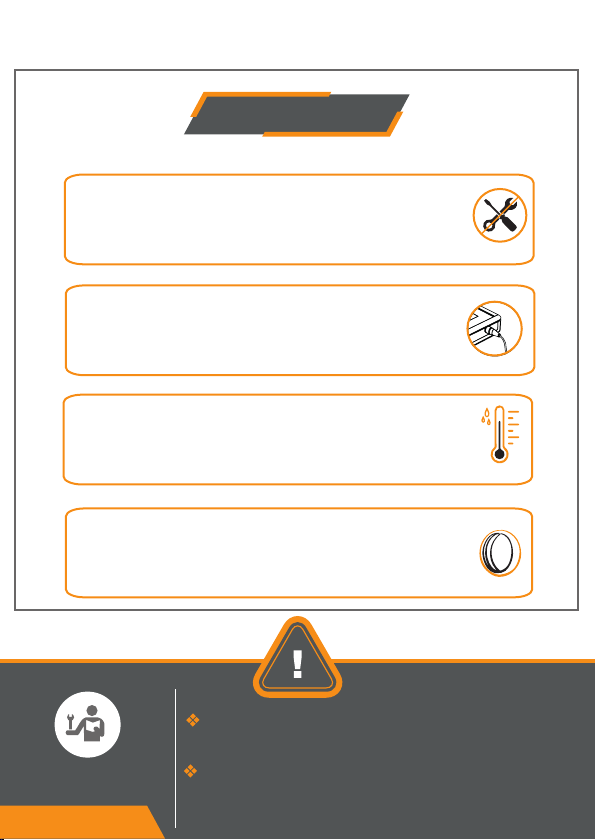

The user strips himself of metal, such as rings watch, or a metal belt
Do not store the device in a place with high temperatures and
humidity.
Page 2
The user should practice on how to use the device before setting off
for detection and search operations.
The user should practice how to use the device before setting off for
detection and search operations.
The device must be connected to the searching coil during
operation
In the case of tampering with the device, the device will lose its
security.
IMPORTANT NOTES
Page 3
search for:
Searching for metals, gold and blanks.
searching system:
Very low frequency VLF system
Operator
mikrocontroller
Operating system
A system for measuring and processing levels of the electromagnetic eld
formed around the target and the receiver through the reception coil in the
search coil, analyzing these results and showing them through sound alerts
and color graphic indicators on the screen.
Sound alert YES
Three cells Li-ion 3.7 V, 3000 mA Power output 8.4 V
working hours 10 hours
Power
Charger 12 volts 2 amps / charging time 2 hours
Display 5 inch color TFT screen.
TECHNICAL SPECIFICATIONS
Page 4
Operating temperature:
From -15 °C to 60 °C
storage temperature:
From -15 °C to 40 °C
Humidity :
Bag dimensions:
It can be stored and operated at an average air humidity of
5% to 75%.
weight:
Dimensions:
17 x 21 x 5 cm
66x51x26 cm
8 Kg
Page 5
: ﺔﺑﻮﻃﺮﻟا
ًُ
FALKE is the best device of what was produced by the German company VÖGEL and the
latest in metal detector technology. This device is characterized by dierent systems and
multiple search options in order to reach the most accurate results in the search for targets.
FALKE device through its unique search systems and various analysis algorithms saves the
work of the prospectors and shortens the eort and time spent during dicult excavations.
It is also characterized by advanced search settings that allow ignoring unwanted targets
during the search, which facilitates the work of prospectors
FALKE device is equipped with four dierent search modes. Each system has its own unique
features to show search results on screen through interactive graphical interfaces and alerts
- Graph Mode
- Treasures Mode
- Coins Mode
- Depth mode
The device allows the user to adjust the search settings to suit the search requirements
Desensitization to iron
Increase or decrease the sensitivity in proportion to the electromagnetic nature of the soil
Manual and automatic calibration
INTRODUCTION
Dear customer, we appreciate your trust in us and your acceptance of a new and unique
experience in the world of metal detectors by owning one of our products.
The Falke device has a number of features and characteristics, including:
- The special design of the (DoubleD) search coil to avoid magnetic anomalies caused by
metallic minerals.
- The ability to isolate mineral and rocky soils, ie canceling magnetic noise without aecting
sensitivity, thus giving greater eectiveness and a more accurate allergic eld during the
research.
- Complete the search task without interruption due to the unique advantage in the
number of continuous working hours, which
Up to ten hours straight.
Fast Charging: The Falke takes only 2 hours to fully charge.
- High-resolution color interactive interfaces to give the search process a lively character.
Page 6
WHY FALKE...?
16 |
Page 7
CONTENTS
warranty card
Main Unit
Device Bag
Handel
User Manual Charger Hedphone
search coil 33 cm
search coil 45 cm
Designed according to standard
parameters to give a wide
sensitivity range
Designed according to standard
standards to sense pieces of small
sizes
6
ASSEMBLY
12
3
1- We open the handle locks to
calibrate the length of the
handle.
2- Lengthening or shortening
both arms of the carrying
handle in proportion to the
user.
3- When determining the
appropriate length for each of
the forearms, we close the
locks to give them movement.
4- Putting rubber protection to
prevent friction between the
handle and the search disk.
5- Place the contact head of the
handle in the place designated for
it in the search coil.
6- Inserting the fixing shaft into
the channel designated for fixing
the handle to the search coil.
7- Turn the locking nut clockwise.
8- Align the coil plug and insert it
into the socket on the side of the
main unit.
9- Slightly tighten the retaining
ring clockwise to secure the cable.
4
98
57
6
Page 8
HANDEL SETUP
CONNECT THE HANDEL WITH SEARCHING COIL
CONNECT THE JACK WITH THE DEVICE
Page 9
4
39
25
8
7

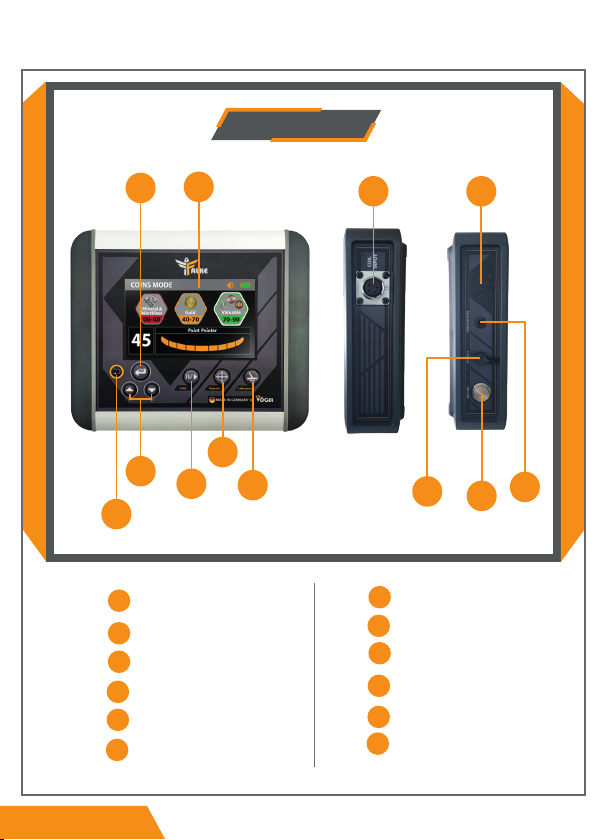

MAIN UNIT
10 12
1
611
ًا
ً
1
ًً
2
ً
1 25 ً
3
ضر EQUINOX Series
Power button ON/OFF
1
2
3
Move buttons
7
OK button
5
9
TFT display
Hold button
Back button
Charger socket
4
Calibration button
8
Pinpoint button
5
6
searching coil socket
10
Hedphone socket
11
speaker
12
