Vizio XVT3D424SV User manual

XVT3D424SV / XVT3D474SV / XVT3D554SV

QUICK START GUIDE

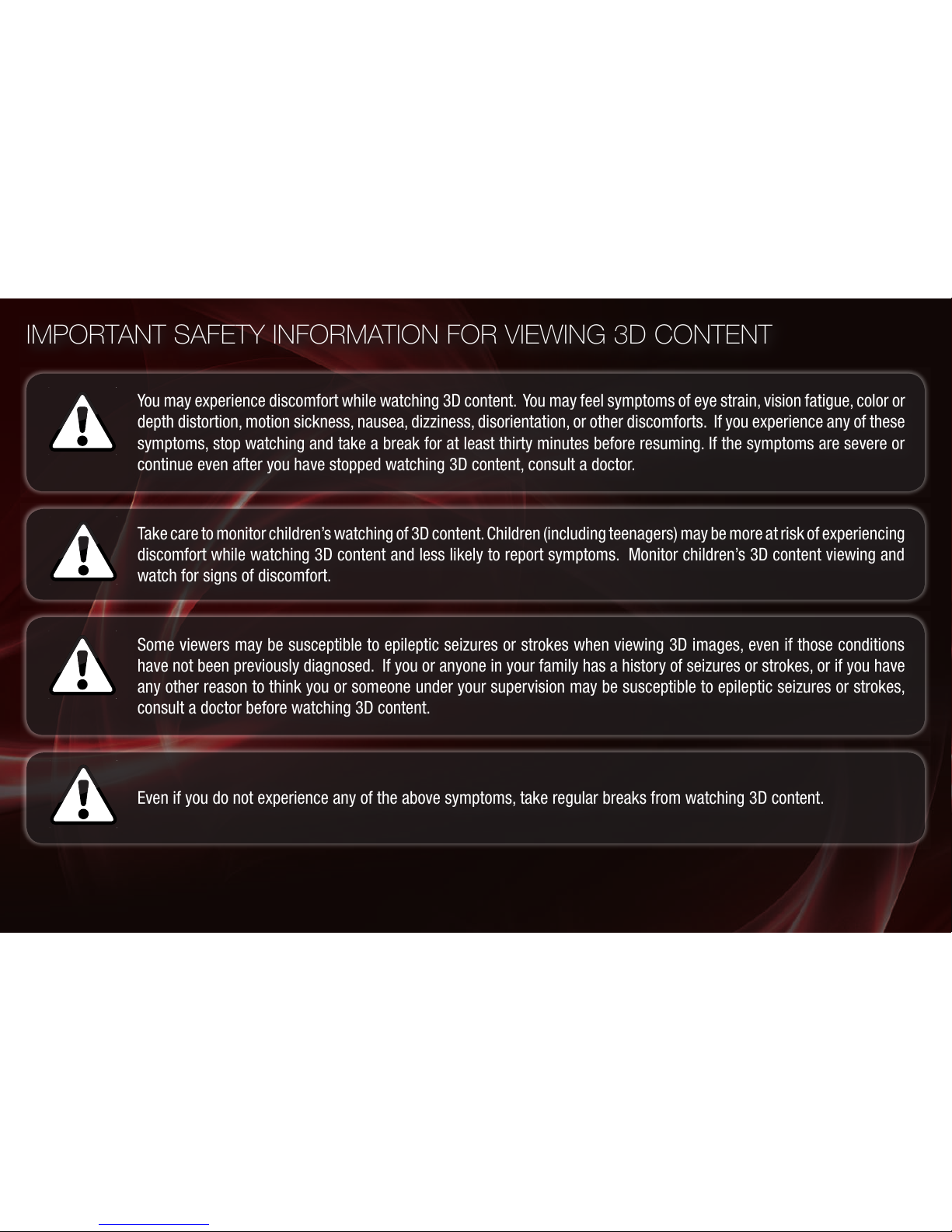

IMPORTANT SAFETY INFORMATION FOR VIEWING 3D CONTENT

You may experience discomfort while watching 3D content. You may feel symptoms of eye strain, vision fatigue, color or

depth distortion, motion sickness, nausea, dizziness, disorientation, or other discomforts. If you experience any of these

symptoms, stop watching and take a break for at least thirty minutes before resuming. If the symptoms are severe or

continue even after you have stopped watching 3D content, consult a doctor.

Take care to monitor children’s watching of 3D content.Children (including teenagers) may be more at risk of experiencing

discomfort while watching 3D content and less likely to report symptoms. Monitor children’s 3D content viewing and

watch for signs of discomfort.

Some viewers may be susceptible to epileptic seizures or strokes when viewing 3D images, even if those conditions

have not been previously diagnosed. If you or anyone in your family has a history of seizures or strokes, or if you have

any other reason to think you or someone under your supervision may be susceptible to epileptic seizures or strokes,

consult a doctor before watching 3D content.

Even if you do not experience any of the above symptoms, take regular breaks from watching 3D content.

Immerse yourself in a vivid, high-deﬁnition, 3D world with

VIZIO Full HD 3D Glasses. When combined with your VIZIO

3D HDTV, these Full HD 3D glasses make your 3D movies

and games come to life!

t Active Shutter Technology with 1080p Full HD

performance

t High contrast 3D and wide viewing angle

t 24 hours of battery life

t USB cable recharges from included adapter, TV, Blu-ray

player, or notebook PC

Visit www.VIZIO.com to purchase online.

COMPLETE YOUR 3D EXPERIENCE

USING THE BLUETOOTH®REMOTE CONTROL

Device Power/Standby: Turn external device on or off.

Input: Change input device.

A/V Controls: Control external device.

List: Display list of available channels.

Exit: Close on-screen menu.

OK: Select highlighted menu option.

Back: Go to previous menu screen.

VIA: Start VIZIO Internet Apps.

Volume Up/Down: Increase or decrease volume.

Mute: Turn sound off or on.

3D: Activate 3D content.

Power/Standby: Turn the TV on or off.

Info: Display program information and time.

Menu: Display on-screen menu.

Arrow: Navigate on-screen menu or episode guide.

Guide: Display episode guide.

VIA Shortcuts: Control VIZIO Internet Apps (see diagram).

Channel Up/Down: Change channel up or down.

Last: Return to previous channel.

Number Pad: Enter a channel.

QUERTY Keypad: Enter letters and numbers.

PACKAGE CONTENTS

VIZIO 3DTV with Stand Bluetooth®Remote

Control with Batteries

Power Cord Cleaning Cloth User Guide and

Quick Start Guide

Safety Cable

XVT3D424SV / XVT3D474SV / XVT3D554SV

QUICK START GUIDE

XVT3D424SV / XVT3D474SV / XVT3D554SV

QUICK START GUIDE

Device Power/Standby

Input

A/V Controls

List

Exit

Back

VIA

Volume Up/Down

Mute

Number Pad

Last

Channel Up/Down

VIA Shortcuts

Guide

Arrow

Info

Power/Standby

QUERTY KeypadArrow

Move/Delete App from VIA Dock

Change Screen Size

(when VIA Sidebar is open)

View Settings for Active App

Exit App/Exit VIA Dock

VIA Shortcuts

INSTALLING YOUR TV

Ensure the TV is off.

Place the TV screen-down on a clean, ﬂat surface. To prevent

scratches or damage to the screen, place the TV on a soft

surface, such as carpet, rug, or blanket.

Though your TV has a stand included, it can also be mounted on a

wall.

VIZIO recommends the XMT1200 Ultra Slim Tilt Universal Wall

Mount. This easy-to-install wall mount supports 37” to 60” HDTVs

up to 120 pounds and features:

tA built-in bubble level and is less than 2” thin

tTilts up to 15° downward – perfect for mounting above eye level

tIncludes $10,000 insurance and 1-year warranty

Visit www.VIZIO.com to purchase online. Some models already have the base attached. If your TV

already has the base attached, proceed to Step 3.

Slide the stand into the slot on the back of the TV, making sure

the arrow on the base points toward the front of the TV.

Securely tighten the wing screw in the center of the base plate.

Move the TV with attached stand into an upright position and

place on a ﬂat, level, and stable surface.

To prevent the TV from falling over, attach one end of the

included safety cable to the wall behind the TV. Attach the other

end to one of the wall-mounting holes on the back of the TV.

BEFORE THE FIRST-TIME SETUP

Connect the power cord to the back of the 3D HDTV.

Plug the power cord into an electrical outlet.

To get the best high-resolution picture and sound on your new

3D HDTV, connect your devices with an HDMI cable.

To make the best HDMI connection, use VIZIO XCH408D1

Premium High-Speed Flat HDMI Cables. VIZIO HDMI cables

are manufactured to produce the best picture on VIZIO 3D

HDTVs and feature:

t3D ready - Bring true 3D gaming and titles to your 3D HDTV

t1080p and for full HD video and future Ultra-HD video

tGreat ﬂexibility for thin wall mounts

tStays securely connected at sharp angles

tLimited lifetime warranty

Visit www.VIZIO.com to purchase online.

2 3

Connect your HDMI devices. These include Blu-ray™ players,

game consoles, and cable TV boxes.

For each device, connect one end of an HDMI cable to the

device, and connect the other end of the HDMI cable to an

available HDMI port on your HDTV.

Ensure the cables are securely connected.

Remove the battery cover by pressing gently on the arrow and

sliding away from the remote.

Correctly insert the batteries. The +and -symbols on the

batteries must correspond to the +and -symbols inside the

battery compartment.

Replace the battery cover by gently sliding it back into place.

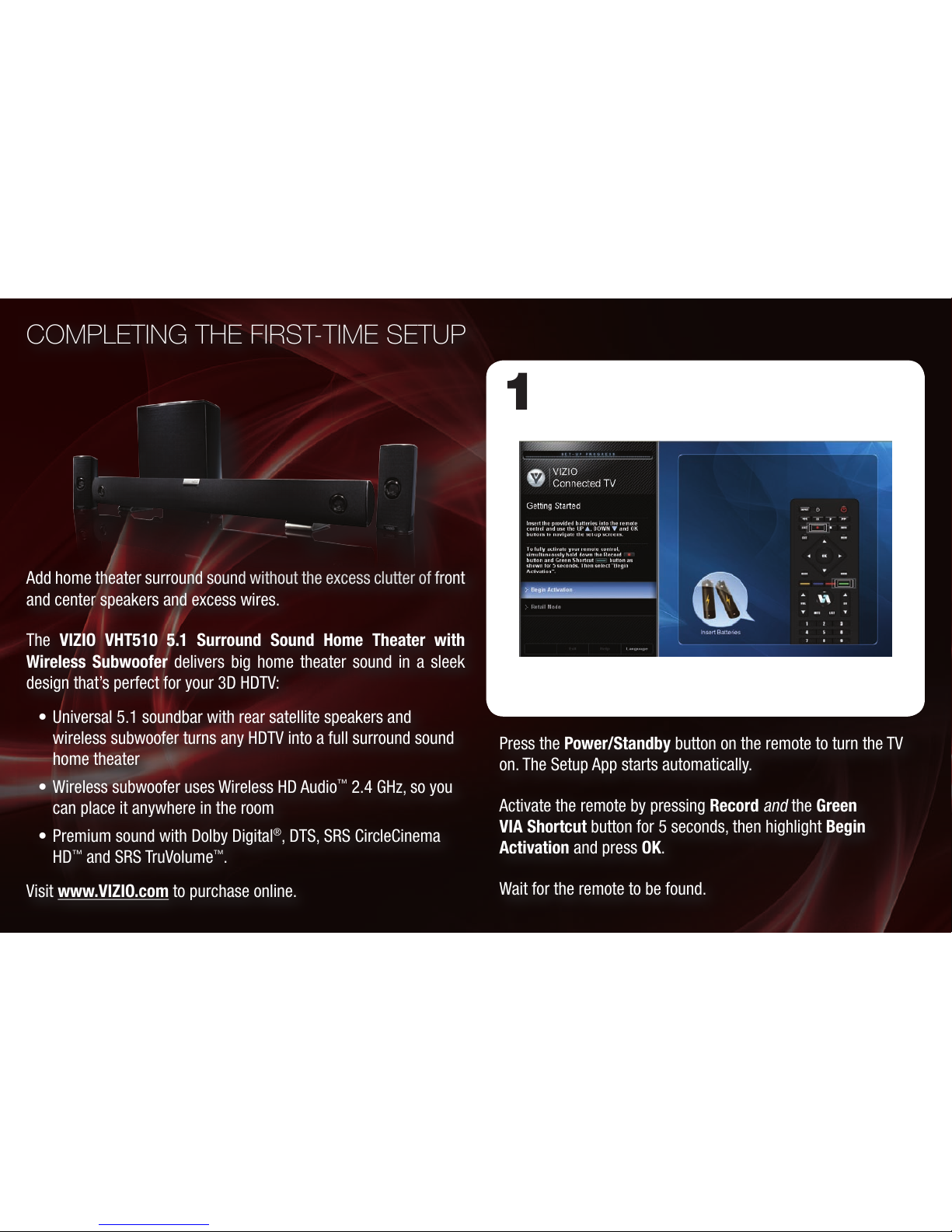

COMPLETING THE FIRST-TIME SETUP

Add home theater surround sound without the excess clutter of front

and center speakers and excess wires.

The VIZIO VHT510 5.1 Surround Sound Home Theater with

Wireless Subwoofer delivers big home theater sound in a sleek

design that’s perfect for your 3D HDTV:

tUniversal 5.1 soundbar with rear satellite speakers and

wireless subwoofer turns any HDTV into a full surround sound

home theater

tWireless subwoofer uses Wireless HD Audio™2.4 GHz, so you

can place it anywhere in the room

tPremium sound with Dolby Digital®, DTS, SRS CircleCinema

HD™and SRS TruVolume™.

Visit www.VIZIO.com to purchase online.

Press the Power/Standby button on the remote to turn the TV

on. The Setup App starts automatically.

Activate the remote by pressing Record

and

the Green

VIA Shortcut button for 5 seconds, then highlight Begin

Activation and press OK.

Wait for the remote to be found.
