Vizio E472VL User manual
E552VL / E472VL – QUICK START GUIDE
LCD HDTV WITH VIZIO INTERNET APPS®
PACKAGE CONTENTS
1
Cleaning ClothRemote Control with
Batteries
User Manual and
Quick Start Guide
VIZIO LCD HDTV with Stand
Power CordSafety Cable
USING THE REMOTE
Power/Standby
A/V Controls
Info
Menu
Arrow
Channel
Up/Down
Last
Number Pad
Wide
Mute
Volume
Up/Down
OK
Exit
CC (Closed
Captioning)
Input
Guide
VIA Shortcuts
Back
VIA
Dash (-)
Power/Standby: Turn the TV on or off.
Input: Change the input device.
A/V Controls: Control external device (CEC-enabled devices only).
Info: Display the Info Window.
CC: Open the Closed Captioning menu.
Menu: Display the on-screen menu.
Exit: Close the on-screen menu.
Arrow: Navigate the on-screen menu and episode guide.
OK: Select highlighted menu option.
Back: Go to the previous on-screen menu options.
Guide: Display the episode guide (digital channels only).
VIA Shortcuts: Control VIZIO Internet Apps.
Volume Up/Down: Increase or decrease the loudness of the TV’s audio.
Channel Up/Down: Change the channel. With each press of the button,
the channel will increase or decrease by one.
VIA: Start VIA Internet Apps.
Mute: Turn the sound off or on. When mute is activated, the
TV’s audio is turned off.
Last: Return to the channel last viewed.
Number Pad: Use the number pad to manually enter a channel.
Dash (-): Use with number pad to manually enter a digital sub-
channel. (For example, 18-4 or 18-5.)
Wide: Switch between display modes.
INSTALLING THE BASE
1
Place the TV screen-down on a clean, flat surface. To prevent
scratches or damage to the screen, place the TV on a soft
surface, such as carpet, rug, or blanket.
2
Align the stand with the holes on the back of the TV.
3
Using a philips-head screwdriver, attach the base to the TV by
inserting and tightening the included screws.
4
Move the TV with attached stand into an upright position and
place on a flat, level, and stable surface.
Use the included security cable to fix the TV to the nearest wall.
This can help prevent the TV from falling over due to earthquake
or accidents.
FIRST-TIME SETUP
2
Connect the power cord to the back of the TV.
Plug the power cord into an electrical outlet.
1
Remove the battery cover by pressing gently on the arrow and
sliding away from the remote.
Insert the batteries. The +and -symbols on the batteries
must correspond to the +and -symbols inside the battery
compartment.
Replace the battery cover by gently sliding it back into place.

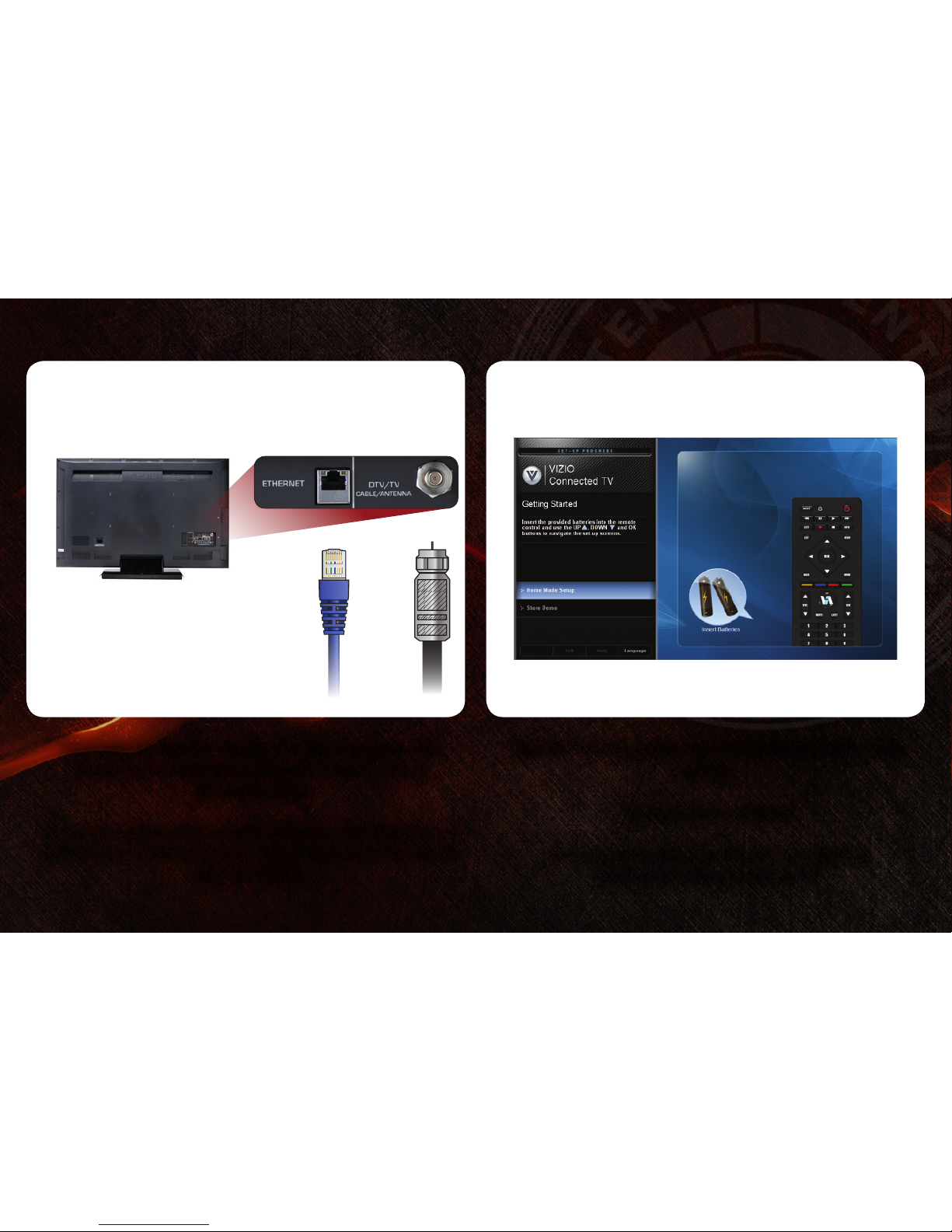

If you have an external antenna or a cable connection that
extends from a wall outlet, connect it to the TV with an
RF/Coaxial cable.
If you have a high-speed internet connection and would like to
connect the TV with an ethernet cable, connect it to the back of
the TV as shown.
4
Turn the TV on by pressing the Power/Standby button on the
remote.
The Setup App is displayed.
Use the Arrow buttons on the remote to highlight
Home Mode Setup and press OK.
3
4
Use the OK and Arrow Up/Down buttons on the remote to read
and accept the Terms of Service and Privacy Policy for Yahoo! TV
Widgets.
When you are finished, highlight Next and press OK.
5
Select the name of your wireless network from the list of
available networks and press OK.
Enter your network key using the on-screen keyboard, then
highlight Connect and press OK.
If the TV is connected to your network with
an ethernet cable, you will not see this screen.
6
Enter your First Name, Last Name, Phone Number, ZIP Code, and
E-mail Address using the on-screen keyboard.
Highlight Next and press OK.
7
Answer the on-screen questions about your TV connection using
the Arrow and OK buttons on the remote.
When you have finished the channel scan, highlight Exit to Live
TV and press OK.
The First-Time Setup is complete.
CONNECTING YOUR DEVICES
1
Ensure your device has one of the above ports.
Turn your device and the TV off.
Connect your devices using the connection chart on the next
page. This chart shows the most common connections. If you
would like to see additional connection options, see
Connecting
Your Devices
in the user manual.
HDMI
Component
Composite AV
VIZIO RECOMMENDS
To get the best high-resolution picture and sound on your new
VIZIO TV, connect your devices with an HDMI cable.
VIZIO High Speed HDMI Cables are manufactured to produce
the best picture on VIZIO TVs and feature:
•1080p and for full HD video and future Ultra-HD video
•Great flexibility for thin wall mounts
•Stays securely connected at sharp angles
•Limited lifetime warranty
Visit www.VIZIO.com to purchase online.
