Vizio XVT3D580CM User manual
VIZIO
MODELS XVT3D500CM •XVT3D580CM
QUICK START GUIDE
CINEMAWIDE™THEATER 3D™HDTV
WITH VIZIO INTERNET APPS®
PACKAGE CONTENTS
Quick Start Guide and
User Manual
Remote Control
with Batteries
VIZIO CinemaWide Theater 3D HDTV with Stand
Premium Theater 3D
Glasses (2 pairs)
Basic Theater 3D
Glasses (2 pairs)
Cleaning Cloth
R
L
VIDEO
1
2
3
4
5
ARC
DIGITAL
AUDIO
OUT
COMPOSITE [GOOD]
HDMI [BEST]
AUDIO
OUT
USB 2
USB 1
ETHERNET RGBPC
COMPONENT (BETTER) PC AUDIO DTV/TV
1

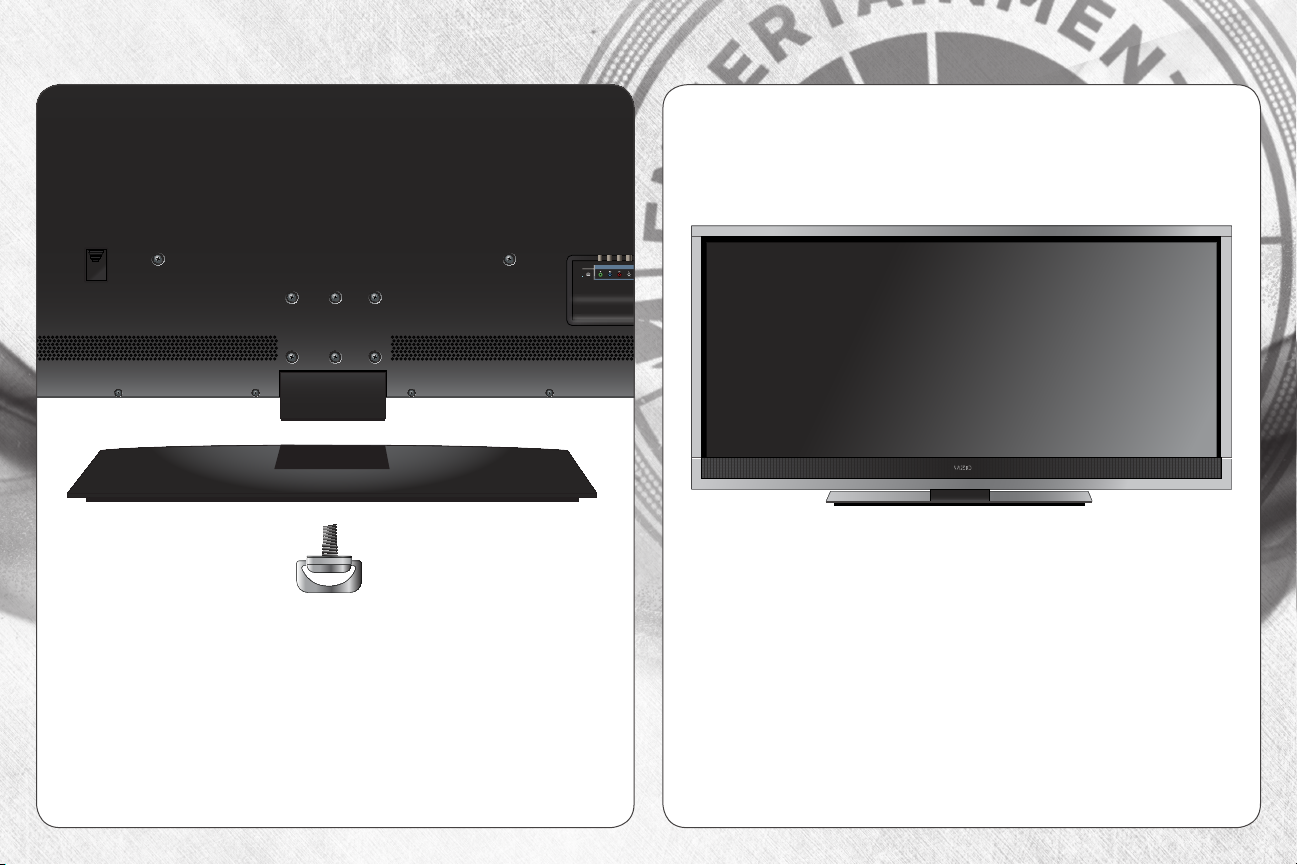

Place the TV screen-down on a clean, flat surface. To
prevent scratches or damage to the screen, place the
TV on a soft surface, such as carpet, rug, or blanket.
Tighten the six (6) thumbscrews into the base.
2
Place the TV on a stable, level surface.
INSTALLING THE BASE
x6
USING THE REMOTE
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Open the closed caption menu
A/V CONTROLS
Control USB photo slideshow and V.I.A. apps.
3D
Change the 3D mode.
NUMBER PAD
Manually enter a channel.
VOLUME UP/DOWN
Increase or decrease loudness of the TV audio.
BACK
Go to the previous on-screen menu
POWER
Turn TV on or off.
MENU
Display the on-screen menu.
INFO
Display the info window.
DASH
Use with number pad to manually
enter a digital sub-channel. (For
example, 18-4 or 18-5.)
CHANNEL UP/DOWN
Change the channel.
GUIDE
Display the info window.
LAST
Return to the channel last viewed.
MUTE
Turn the sound off or on.
V.I.A.
Open the VIZIO Internet Apps dock.
V.I.A. SHORTCUT BUTTONS
Control VIZIO Internet Apps.
SLIDE OUT REMOTE
ARROW
Navigate the on-screen menu.
SHIFT
Press and hold while pressing
another key to enter a capital letter.
ALT
Press and hold while pressing another key to
enter a blue character. For example, press A LT
and Sto enter a #character.
V.I.A. SHORTCUT BUTTONS
Control VIZIO Internet Apps
FIRST-TIME SETUP
1
Remove the battery cover by pressing gently on the
arrow and sliding away from the remote.
Insert the included batteries.
Gently slide the battery cover back into place.
2
Plug the power cord into an electrical outlet.
2
3 4
If you have an external antenna or a cable connection
that extends from a wall outlet, connect it to the TV
with an RF/Coaxial cable.
If you have a high-speed internet connection, connect
an Ethernet cable from your modem or router to the
back of the TV as shown.
Turn the TV on by pressing the Power button on the
remote.
The Setup App is displayed.
Use the Arrow buttons on the remote to highlight
Home Mode Setup and press OK.
Ethernet
Cable
Coaxial
Cable
5
Use the OK and Arrow Up/Down buttons on the
remote to read and accept the Terms of Service and
Privacy Policy for Yahoo! TV Widgets.
When you are finished, highlight Next and press OK.
6
Select the name of your wireless network from the list
of available networks and press OK.
Enter your network key using the on-screen keyboard,
then highlight Connect and press OK.
7
Enter your First Name, Last Name, Phone Number,
ZIP Code, and E-mail Address using the on-screen
keyboard.
Highlight Next and press OK.
8
Answer the on-screen questions about your TV
connection using the Arrow and OK buttons on the
remote.
When you have finished the channel scan, highlight
Exit to Live TV and press OK.
The First-Time Setup is complete.
CONNECTING YOUR DEVICESCONNECTING YOUR DEVICES
BACK OF TV
Match colored
connectors
to colored ports.
Match colored
connectors
to colored ports.
