Vixen Air VXT5200 User manual

VXT5200

INSTALLATION GUIDE

PAGE 1 of 2

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for

this product.

CONTENTS

5 Gallon Air Tank

Mounting Hardware

SAFETY INSTRUCTIONS

Install all fittings and accessories in the tank before pressurizing the tank.

Before assembly, use thread sealant on all fitting's threads, then use a wrench to tighten each part. IMPORTANT:

Do not over tighten.

Tank must be drain frequently.

We recommend always to install a drain and safety valves in the tank.

Always depressurize the tank before servicing or adding accessories.

Do not use this tank as a breathing device.

Be sure to pump nothing other than atmospheric air.

It is important to determine the maximum air pressure for any tool or attachment before using it.

Make sure your battery ground is detached before you begin the installation.

Employ equipment for eye protection during drilling operations.

Over pressuring the tank beyond the specified maximum working pressure (200 PSI) may result in death or serious

injury.

PLANNING YOUR INSTALLATION

Before beginning the installation, determine each component’s spot.

Confirm you have the proper length of airline and wire.

VXT5200

INSTALLATION GUIDE

PAGE 2 of 2

MOUNTING

Find a convenient mounting location in your vehicle for the air tank. Ensure ports are reachable before drilling

any holes.

Mark the location of holes using the mounting bracket of the air tank as a template, and then drill to size.

Using mounting hardware provided, secure the air tank. IMPORTANT: Do not mount on a flexible material.

The installation location of your tank’s accessories depends on your air system’s configuration.

BRAIDED HOSE INSTALLATION

Connect the stainless steel braided hose of your compressor to the tank’s inlet port.

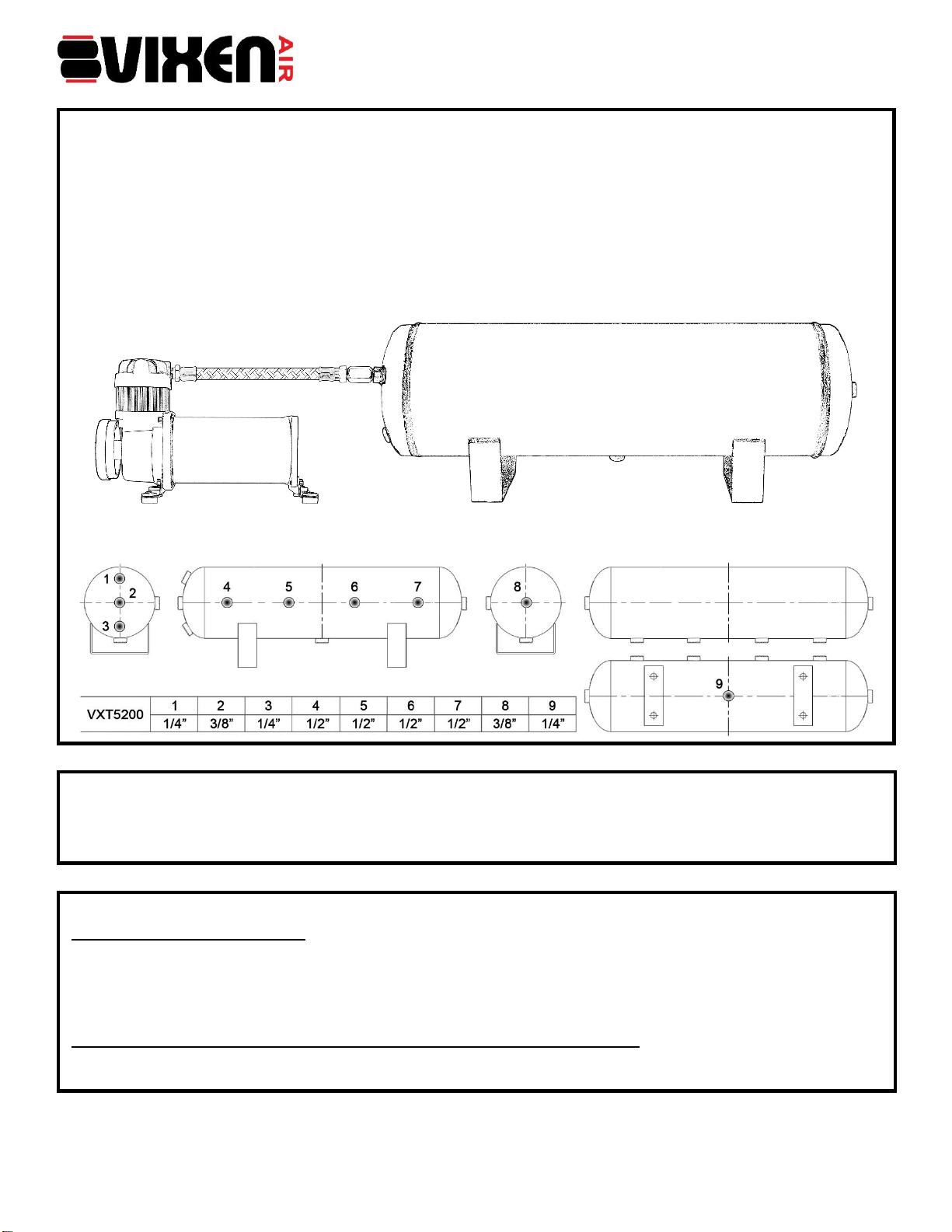

PORT LOCATIONS AND THREAD SIZE (NPT)

MAINTENANCE

Make sure that electrical and fitting connections are regularly inspected, cleaned and tightened when needed.

Make sure mounting screws are regularly tightened if needed.

Drain weekly, to avoid excessive buildup of condensation.

SOLUTIONS TO COMMON ISSUES

Issue: Loss of pressure of tank.

Solution 1: Tighten drain cock.

Solution 2: Examine air and check valves and replace if damaged or leaking.

Solution 3: Use soap and water solution on air connections and tank, and tighten connections or repair leaks where

needed.

Issue: Excessive moisture on suspension valves or safety valve (if installed).

Solution 1: Depressurize and drain the tank.

Solution 2: Relocate the compressor to a drier location.
