Vivo DESK-E144WC User manual

White & Light Wood Electric Desk

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/desk-e144bn

SKU: DESK-E144WC

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage

or injury caused by improper mounting, incorrect assembly, or inappropriate use.

WARNING!

ELECTRICAL SAFETY INSTRUCTIONS

THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC

SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY.

• DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.

• DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.

• NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR

SELLER TO REPLACE DAMAGED PARTS.

• NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE

MADE CONTACT WITH LIQUIDS.

• ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.

• OUTDOOR USE IS PROHIBITED.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

PACKAGE CONTENTS

A (x1)

Desktop

E (x2)

Foot

I (x1)

Motorized Leg

S-A (x14)

M6x11mm

Screw

T-A (x1)

2mm Allen

Wrench

T-B (x1)

5mm Allen

Wrench

S-B (x39)

M5x16mm

Screws

S-C (x8)

M6x35mm

Screws

S-D (x14)

Wooden

Dowels

M (x17)

Anti-Vibration

Pads

N (x2)

Headphone

Hook

O (x4)

Rectangle

Connector

P (x2)

Square

Connector

J (x1)

Control Panel

K (x1)

AC Adapter

L (x2)

Cable Clips

F (x2)

Sync Rod

G (x1)

Connecting

Bracket

H (x1)

Leg

B (x1)

Le Crossbar

C (x1)

Right Crossbar

D (x2)

Side Brackets

154lbs

(70kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

Phillips

Screwdriver

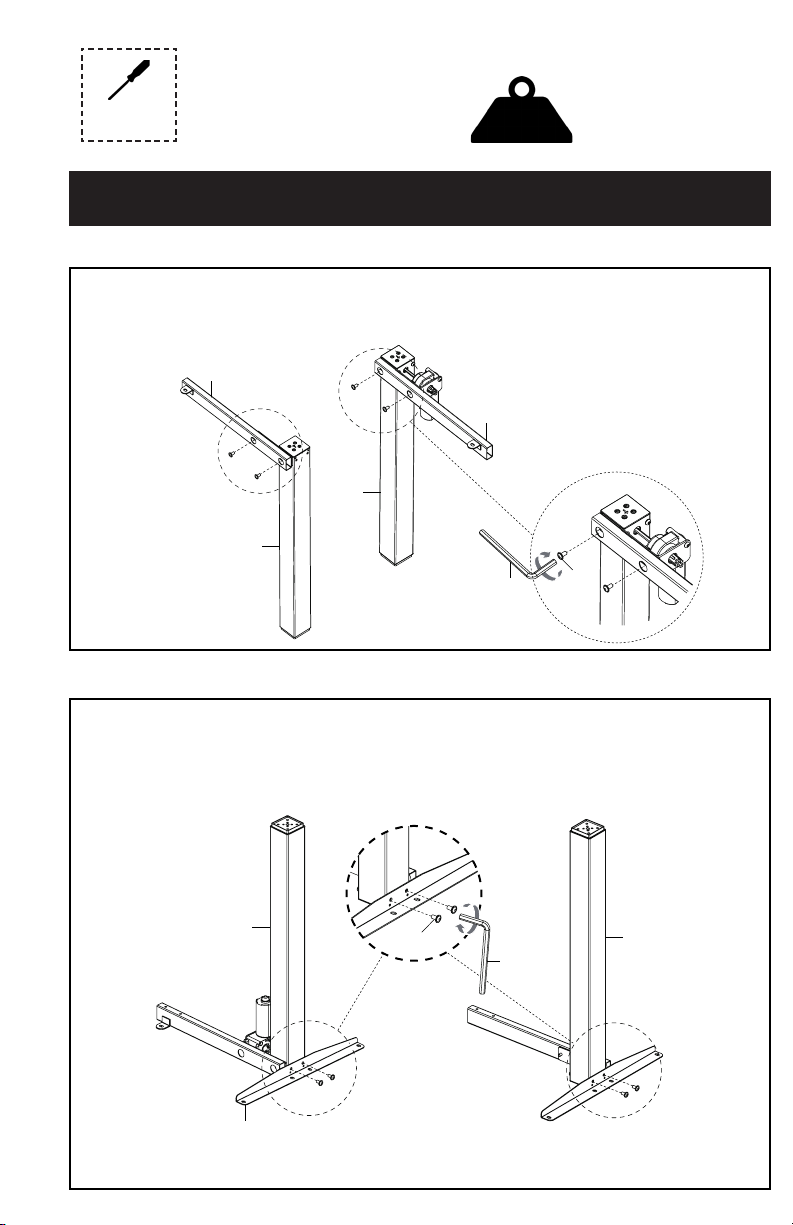

Attach Le Crossbar (B) to Leg (H) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). Connect

Right Crossbar (C) to Motorized Leg (I) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B).

T-B

S-A

T-B S-A

STEP 2

Connect Side Brackets (D) to Motorized Leg (I) and Leg (H) using M6x11mm Screws (S-A) and 5mm

Allen Wrench (T-B).

STEP 3

STEP 4

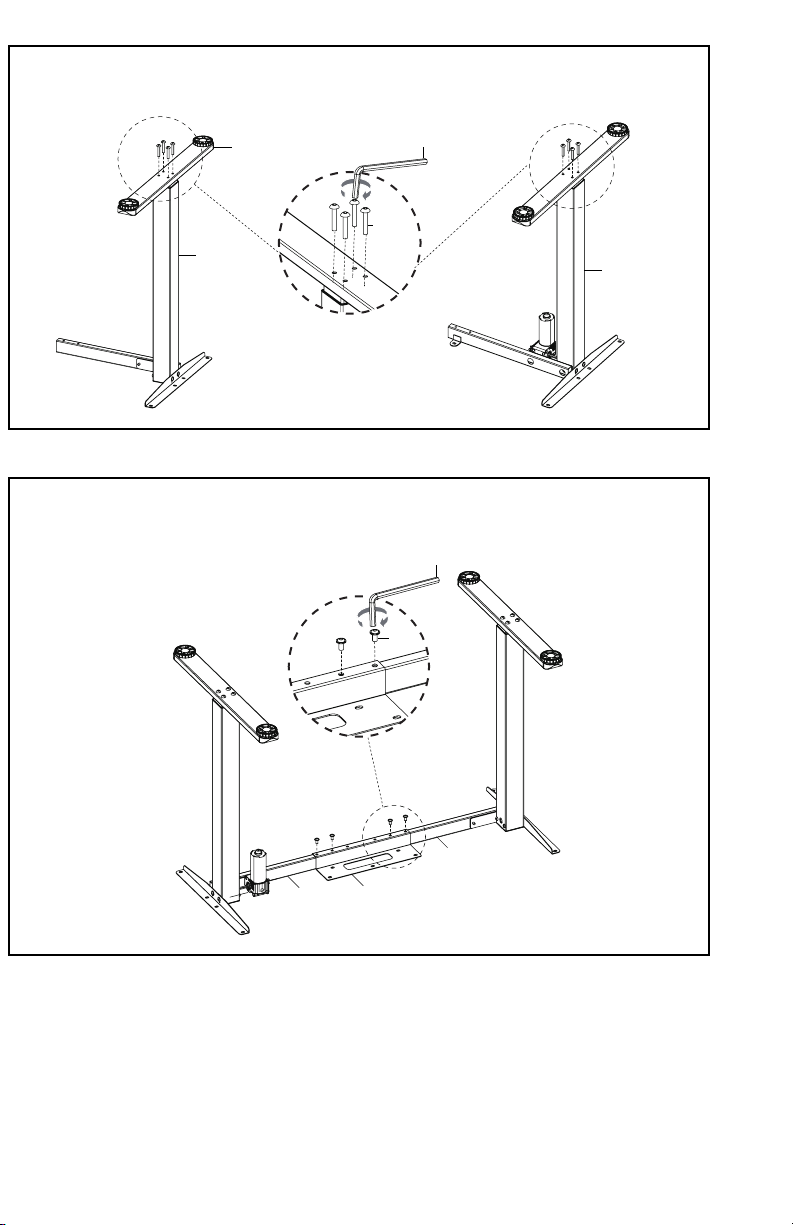

Attach Foot (E) to Leg (H) and Motorized Leg (I) using M6x35mm Screws (S-C) and 5mm Allen

Wrench (T-B).

Use Connecting Bracket (G) to join leg assemblies together by securing it over Le Crossbar (B) and

Right Crossbar (C) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B).

S-C

T-B

S-A

T-B

STEP 6

STEP 5

T-A

Loosen the knob on the Sync Rod (F) and extend the hex sha. Insert hex sha into the Leg (H),

making sure the metal retaining ring makes contact with the Leg (H). While holding the hex sha with

one hand, extend Sync Rod (F) onto the spline sha of Motorized Leg (I). Tighten Sync Rod (F) using

2mm Allen Wrench (T-A). Retighten knob. Apply Anti-Vibration Pads (M) to top of frame assembly.

S-D

Place Wooden Dowels (S-D) into pre-drilled holes in Desktop (A) pieces, then slide together to form

one desktop piece, as shown below. [Desktop pieces are labled 1 thru 4 and should be assembled as

shown below]

STEP 7

STEP 6 (Continued)

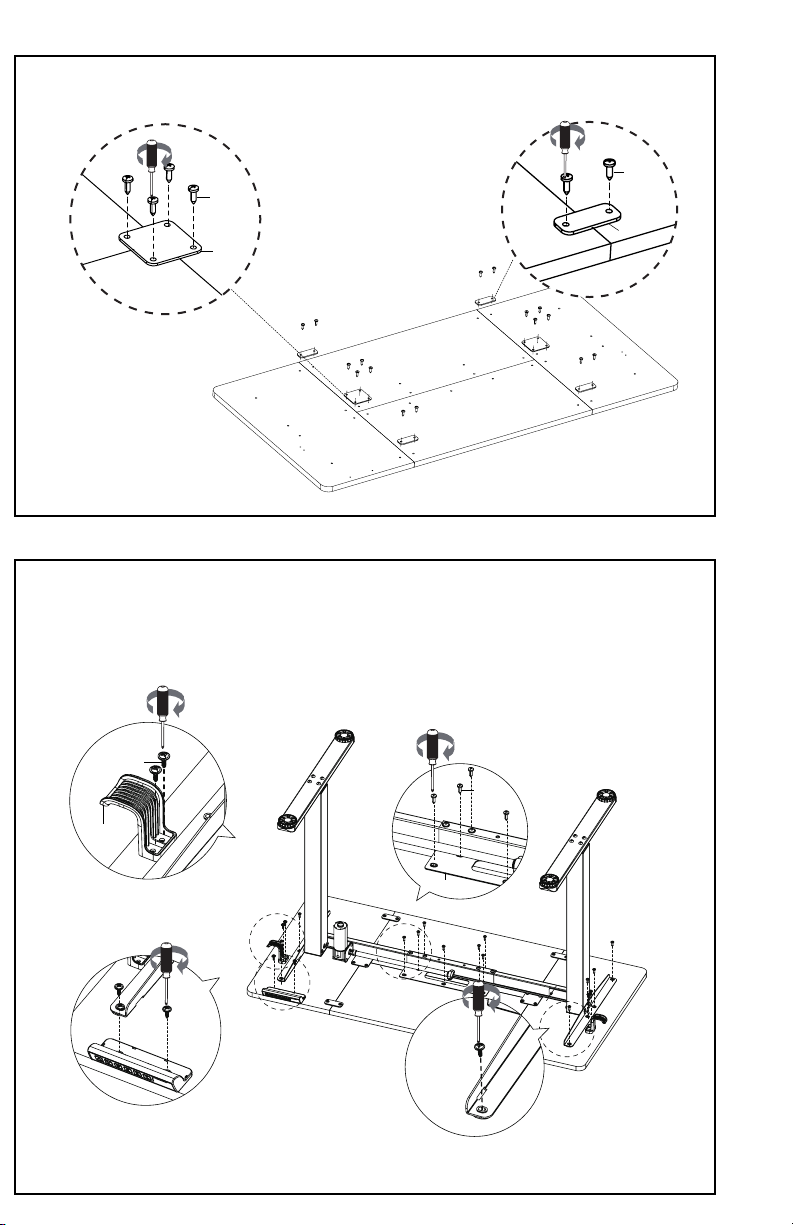

Flip frame assembly over and secure to assembled Desktop (A) using M5x16mm Screws (S-B) and

a Phillips screwdriver. Screws will be installed into Side Brackets (D) and Connecting Bracket (G).

Attach Headphone Hook (N) and Controller (J) to Desktop (A) using M6x16mm Screws (S-C)and a

Phillips screwdriver.

S-B

Secure desktop assembly using Rectangle and Square Connectors (O, P), M5x16mm Screws (S-B), and

a Phillips screwdriver.

S-B

CAUTION!

Failure to follow these instructions may result in property damage and/or personal injury.

Do not exceed desk

weight limit.

Keep area of vertical

motion free of

obstacles.

Keep weight on desk

balanced for correct

operation and longer

life of components.

Leave enough slack in

cables to allow for full

range of vertical motion.

Connect cable from Motorized Leg (I) to Control Panel (J), as shown below. Connect AC Adapter (K)

to Control Panel (J). Secure cables to Desktop (A) using Cable Clips (L).

STEP 8

LAST UPDATED: 09/06/2022

REV2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr
