Vivitar Vivicam 40 User manual

Model:

1. General Precautions ................................................... 2

2. Introduction .................................................................3

3. Functions and Features ............................................. 5

4. Image Capture.............................................................. 9

5. Installing the Driver and Utility Software................. 13

6. Transferring Images To Your Computer .................. 16

7. PC/Web Camera Functionality .................................. 17

B Version -5 Aug 2003

INDEX

1. General Precautions

Follow these guidelines when using your camera:

nKeep camera away from high temperatures, excessive

humidity, direct sunlight, dust, or excessive vibration.

nDo not use camera outdoors if it is raining or snowing.

If the lens or viewfinder become dirty, clean with a lens brush

or soft, clean cloth. Never touch the lens with your fingers.

nIf water or a foreign substance getsin the camera, turn the

camera off immediately and remove the batteries.

nDo not open the camera case or attempt your own repairs.

High-voltage internal components may create

risk of electrical

shock or fire.

Do not open the battery compartment when the camera is on.

nTransfer important images to your computer as soon as

possible to avoid losing image data.

nBe sure to replace new batteries within two (2) minutes to

avoid losing image data from SDRAM memory.

nThere is a very slight current-drain on the batteries at all

times which keeps the memory active. If you are not going to

use your camera for an extended period (i.e. a week) be sure to

download your images to your PC and also remove the

batteries to avoid possible power drain and image loss.

nWARNING:

Handling the USB cables on this product may

exp

ose you to lead, a chemical known to the State of California

to cause birth defects or other reproductive harm. Wash

hands after handling.

lntroduction

2.1 Specifications

nResolution:

Digital Camera mode: 640 x 480 (VGA), 320 x 240 (CIF)

PC Camera mode: 640 x 480. 320 x 240, 160 x 120

nRange of Focus: Standard mode: 3 feet to infinity, Macro

mode : 10 to 12 inches

n24 bit full color

nInternal Memory: 8MB SDRAM

Storage capacity: Approximately 50 VGA, or 160 CIF images,

or two minute movie (or combinations thereof)

nFile Formats: JPG for still images, AVI for movies

nFlash (Strobe): lnternal

nFlash modes: Automatic, Off

nSelf-timer: 10 seconds

nPower: Two (2) AA alkaline batteries

nComputer Interface: USB

nAutomatic Power-Off: Automatically turns po

wer off if inactive

for approximately 60 seconds.

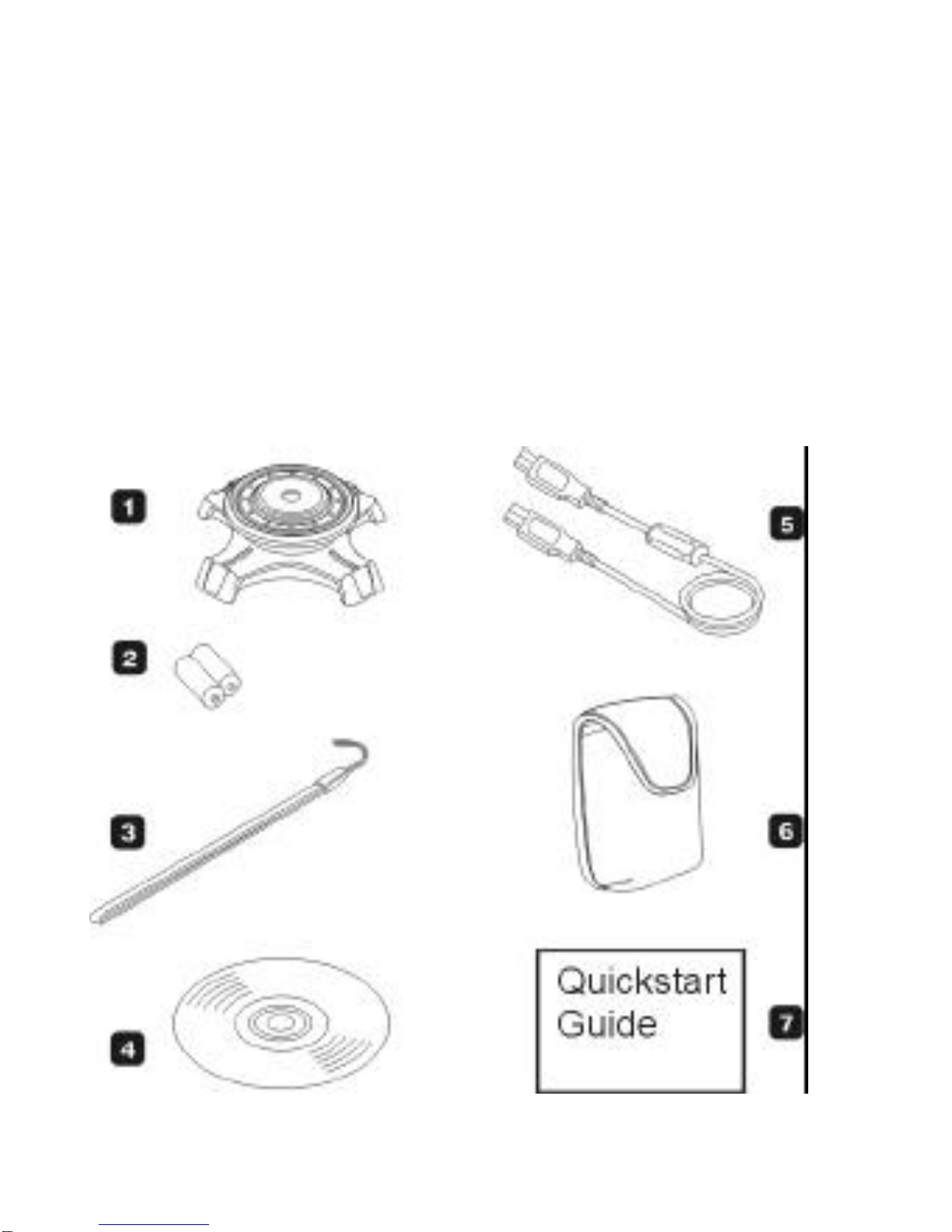

2.2 Accessories

1. Camera Cradle

2. Two AA alkaline batteries

3. Camera hand strap

4. Camera driver and utility software CD

5. USB cable

6. Camera pouch

7. User Manual/Quickstart Guide

Funct

ions and Features

3.1 General Guide

Front

Back

3.2 LCD Panel lndicator

Image Counter

n:Total number of Images you have captured

Video Capture

n: AVI video recording at 320 x 240

Still -lmage Resolution

n: 640 x 480 pixels (default setting)

n: 320 x 240 pixels

Shooting Environment

n: Outdoor 1 (Cloudy, default setting)

n: Outdoor 2 (Sunny)

n: lndoor 1 (Bright)

n: lndoor 2 (Dark)

Memory Full

n: Memory full icon

Flash Mode

n: Automatic mode

n: Flash Off (default setting, no icon display)

Delete Image(s)

n: Delete all images and movies

n: Delete the last image or movie

Self-timer

Self-timer mode

Low-Battery Warning

n: This icon will appear, blinking. Camera beeps,

indicating low battery power.

?lmportant Note about Changing Batteries:

The camera will stop shooting and power off

automatically. Please replace the batteries right away.

You must complete the battery change within two (2)

minutes to avoid the loss of your images and movies.

3.3 Camera Function Selection

nPress Mode button to select the function you desire.

The function icon on the LCD panel will blink. Press

Select button until you hear two confirmation beeps.

nFunctions appear on the LCD in the following order :

Capturing

Images

4.1 Turning Camera Power On & Off

nPower on: Press Power button,camera will beep.

nPower off: Press Power button again, camera will

beep. (Note : t

he camera will automatically turn off if inactive

for approximately 60 seconds.)

4.2 Capturing Images

nSelect focus mode (slide-switch on left of camera body)

: Normal mode (3 feet to infinity)

: Macro mode for taking close-up images at 10 to 12

inches. Note :

The Macro mode LED will light when switched

to macro mode.

nPress Shutter button to capture an image. C

amera will

beep.

nLCD Panel will indicate:

: Number of Images you have taken.

: When memory is full, the icon will blink and the

camera will beep continuously.
