Vimar ELVOX 7559 User manual

Use and Configuration Manual

TAB

7559

TAB 4.3 Due Fili Plus hands-free video entryphone

7559 Tab 4.3

General information 4

Description 4

Warnings and advice 4

Keys and status LEDs 5

Status LED 6

Operation 7

Actuations menu 7

Intercom menu 8

First power up 9

Functions 12

Answering a call from an Outdoor Station 12

Answering a call from an Indoor Station or Reception switchboard 15

Audio/video settings 17

Volume adjustment 17

Image brightness control 18

Pan/Zoom adjustment 18

Self-start (Calling an Outdoor Station) 21

Calling an Indoor Station (Intercom) 23

Calling a Reception switchboard 25

Professional firm function 28

Alert Function 32

User configurations 34

Ringtone exclusion 36

Ringtone selection 37

Ringtone volume control 37

Brightness control 38

Contrast control 38

Key tone 39

Keypad cleaning 39

Installer configuration 40

Actuations 43

Intercom 47

Assignment of main and secondary ID 52

Changing the PIN 54

Reset factory configuration 55

Enabling Professional Firm 56

System information 57

Configuration with SaveProg 58

Index

7559 Tab 4.3

Surface mounting Tab series hands-free video entryphone for Due Fili Plus system with 4.3" LCD colour display,

loudspeaker for calls, capacitive keypad for entryphone functions (unlocking, self-starting, auxiliary services, volume,

brightness and contrast controls) and intercom calls.

Can be used by hearing aid wearers.

Audio frequency function for hearing aids (Teleloop)

The video entryphone can be used by people wearing hearing aids.

For correct functioning of the hearing aid, please refer to its instruction manual.

Any metal objects or electronic equipment in the vicinity may affect the quality of the sound received by the hearing aid.

Maintenance

Clean using a soft cloth.

Do not pour water onto the appliance and do not use any type of chemical product.

Cleaning must be done with the device powered off (disconnected from the bus) or after activating the Keypad cleaning

procedure

Warnings for the user

Do not open or tamper with the appliance.

In the event of faults, contact specialized personnel.

For installation, refer to the instruction sheet in the package.

Driver for PC

The drivers are the same as for the other devices in the TAB family.

The first time a device is connected to a USB port, the PC must associate the drivers to the peripheral device even if a

TAB device has already been associated.

The Indoor Station is identified in SaveProg as ELVOX_P129A.

FW updates

SaveProg manages Art. 7559 from version 3.7.0.0 onwards.

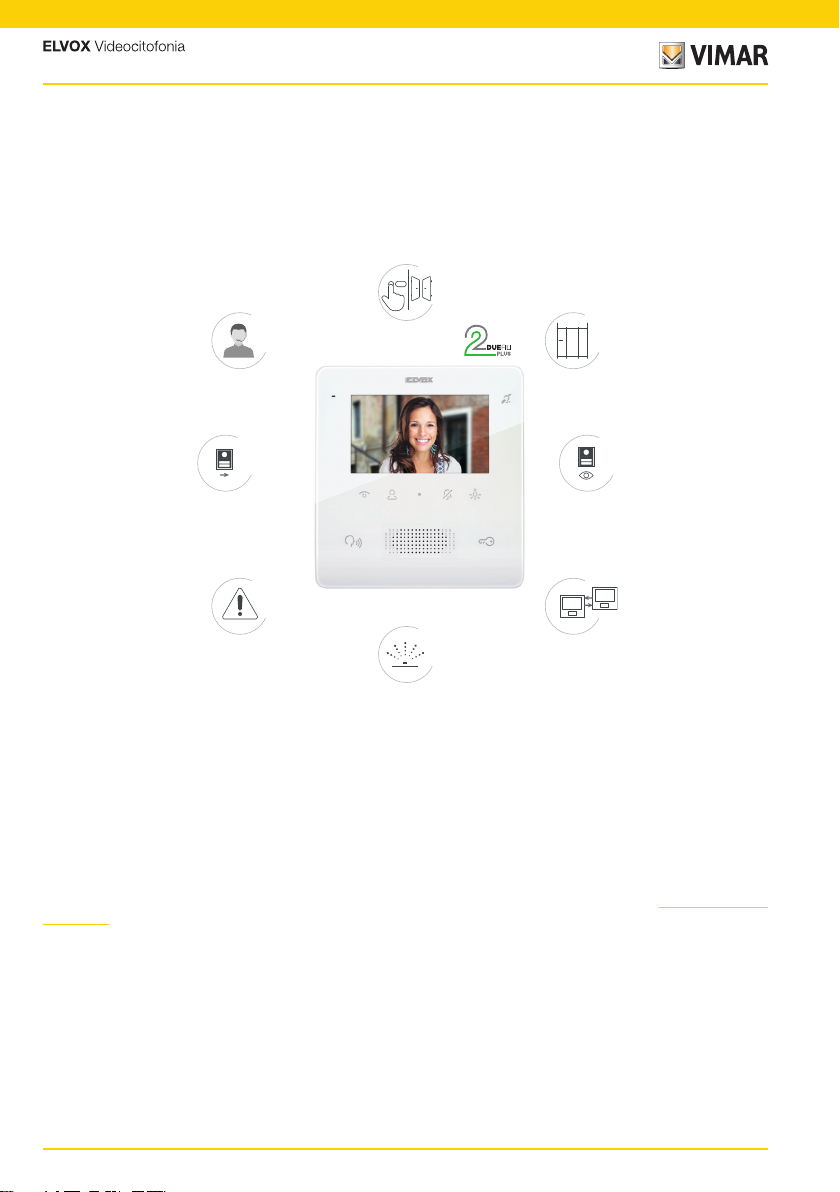

General information

Description

Warnings and advice

Professional firm

Door release

of the calling

Outdoor Station

Self-start

Call from

Outdoor

Station

Intercoms

Auxiliary

services

activation

Call to/from reception

switchboard

Alert

7559 Tab 4.3

The TAB 7559 video entryphone be operated using the touch keys described below.

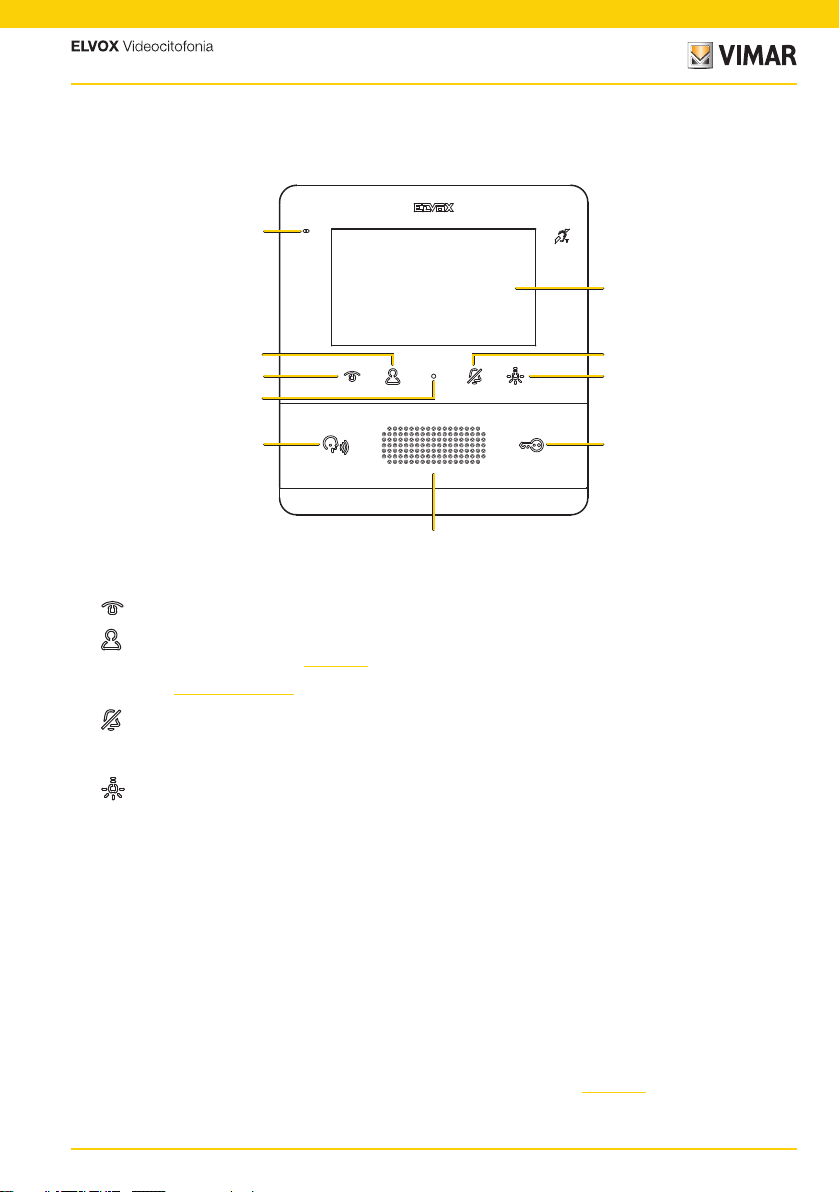

Keys and status LEDs

1. 4.3” LCD 16:9 display, resolution 480x272 pixels

2. Programmable key T1: Self-start, it activates the main Outdoor Station

3. Programmable key T2: It activates the second relay of the Due Fili Plus system (Aux 2) or, in certain conditions,

it opens the Intercoms menu (see Operation)

4. It opens the User configuration menu

5. Programmable key T3: ringtone exclusion for all calls (in stand-by, press and hold down for 2 s to deactivate/

activate the ringtone), ringtone mute (during an incoming call, press to deactivate the ringtone, the ringtone is also

simultaneously deactivated for subsequent calls).

6. Programmable key T4: It activates the first relay of the Due Fili Plus system (Aux 1) or, in certain conditions, it

opens the Actuations menu*

7. It activates the lock of the calling Outdoor Station

8. Speaker

9. Depending on the context, it activates several functions:

– When on stand-by, it calls the Reception switchboard (only if the management with reception switchboard is

active)

– It answers a call from Outdoor Station, Indoor Station or from the Reception Switchboard.

– It ends a call

– It resets the missed calls counter (press for 2 sec)

When lit, it indicates that there was a missed call from the switchboard.

The missed called indicator can be reset by pressing the related key for more than 2 sec

10. Microphone

N.B.: Programmable keys T1 –T2 –T3 –T4:

the functions to activate depend on the usage context and on the programming (see Operation).

The functions illustrated in the key are the default ones (without programming).

7559 Tab 4.3

LED DESCRIPTION

When lit, it indicates that there was a missed call from the switchboard.

The missed called indicator can be reset by pressing the related key for more than 2 sec.

When lit, it indicates the door open status

Flashing: user away (the Indoor Station rejects the call from an Outdoor Station and

consequently the call is unsuccessful).

Permanently lit: ringtone disabled (the Indoor Station does not ring for calls from an Outdoor

Station)

Some of the LEDs illustrated below only come on in certain conditions.

Keys

Status LED

The keys on the TAB 7559 use a safety system, so to avoid accidental activation, when the Indoor Station is on stand-by,

the keys must be held down for a certain amount of time.

HOLD DOWN TOHOLD DOWN TO

ACTIVATE THEACTIVATE THE

FUNCTIONS!FUNCTIONS!

7559 Tab 4.3

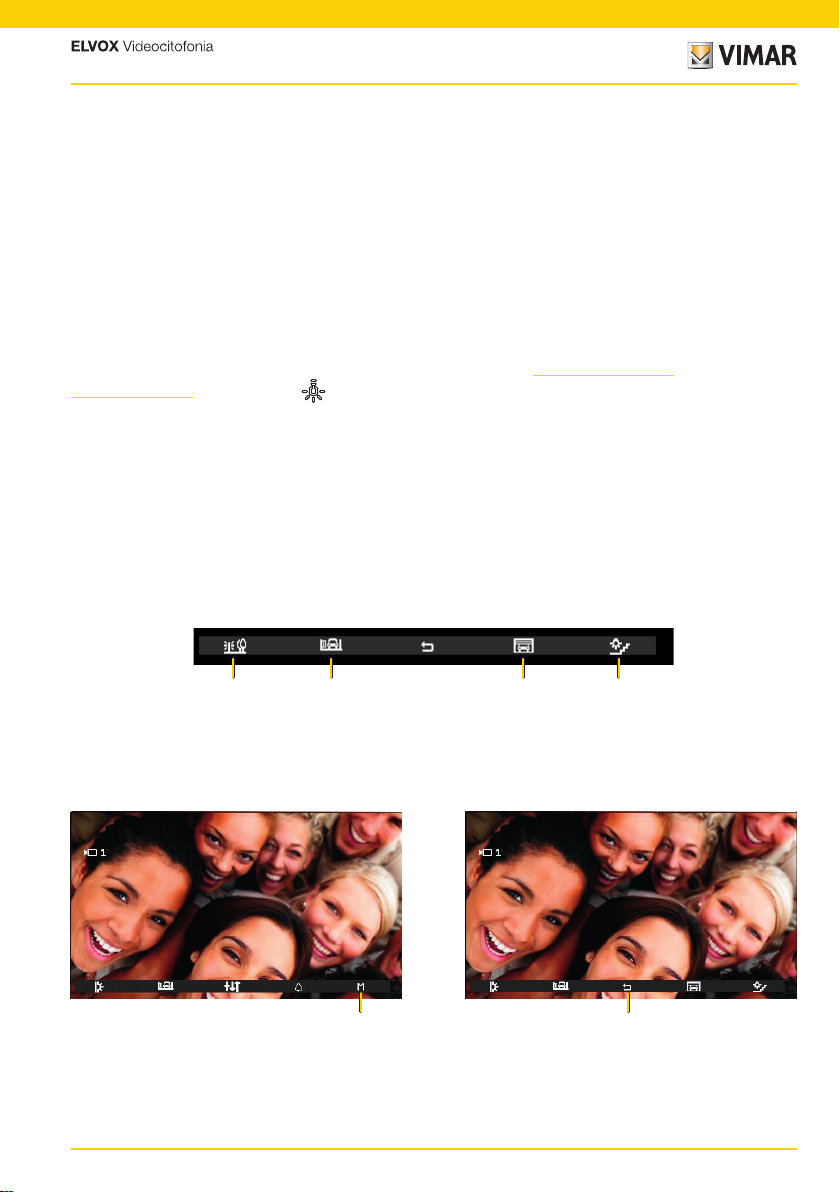

Actuations menu

Operation

The TAB 7559 Video Entryphone is designed to receive calls from Outdoor Stations, to make intercom calls with Outdoor

Stations, Indoor Stations and Reception Switchboard, to make audio/video settings as well as to activate the Alert and

Professional Firm functions

Calls can be answered using the Communication key or by opening the lock on the Outdoor Station using the Lock

key.

4 programmable keys are also available to activate other functions such as relay actuation or intercom calls.

The programmable keys have been assigned four Actuations functions by default, and there are no Intercom functions,

which will only be available after programming.

For each key, in addition to the function, you can also define the icon representing it.

Example of programming functions and customised icons

N.B.: F1/F2 are 2 controls/functions which can be sent to Outdoor Stations.

The type of function performed depends on the Outdoor Station connected.

If the installer has programmed at least 1 key in the Actuations section (see Installer configuration or using the

SaveProg software), if you press the key, the related menu is displayed, where you can select up to 4 functions,

including:

• Relay actuation

• Outdoor Station lock actuation

• Transmission of F1/F2 controls to Outdoor Stations

Garden

sprinkler

system

activation

Driveway

gate opening

Garage opening Stair lighting

The Actuations menu is also available during self-start, a call, a conversation with Outdoor Stations and Indoor Stations

and Reception Switchboards.

In these cases, a new icon appears (A) and, if you press key T4, the Actuations menu is opened.

Press (B) to return to the main communication menu

A B

7559 Tab 4.3

For each key, in addition to the function, you can also define the icon representing it.

Example of programming functions and customised icons

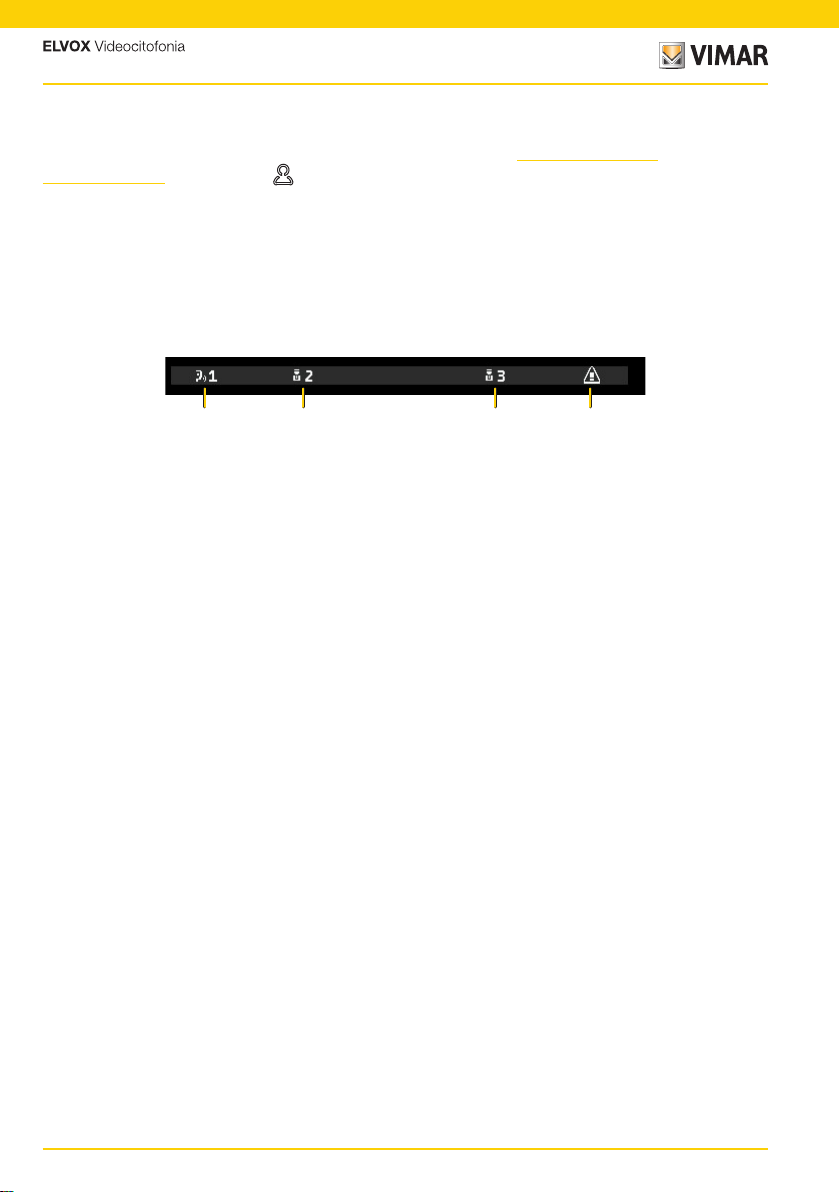

Intercom menu

If the installer has programmed at least 2 keys in the Actuations section (see Installer configuration or using the

SaveProg software), if you press the key, the related menu is displayed, where you can select up to 4 intercom

functions, including:

• Call to Indoor Station

• Call to Reception switchboard

• Alert function (sending of a notification to all Switchboards)

Call to Indoor

Station 1

Call to

Reception

switchboard 2

Call to

Reception

switchboard 3

Send Alert

7559 Tab 4.3

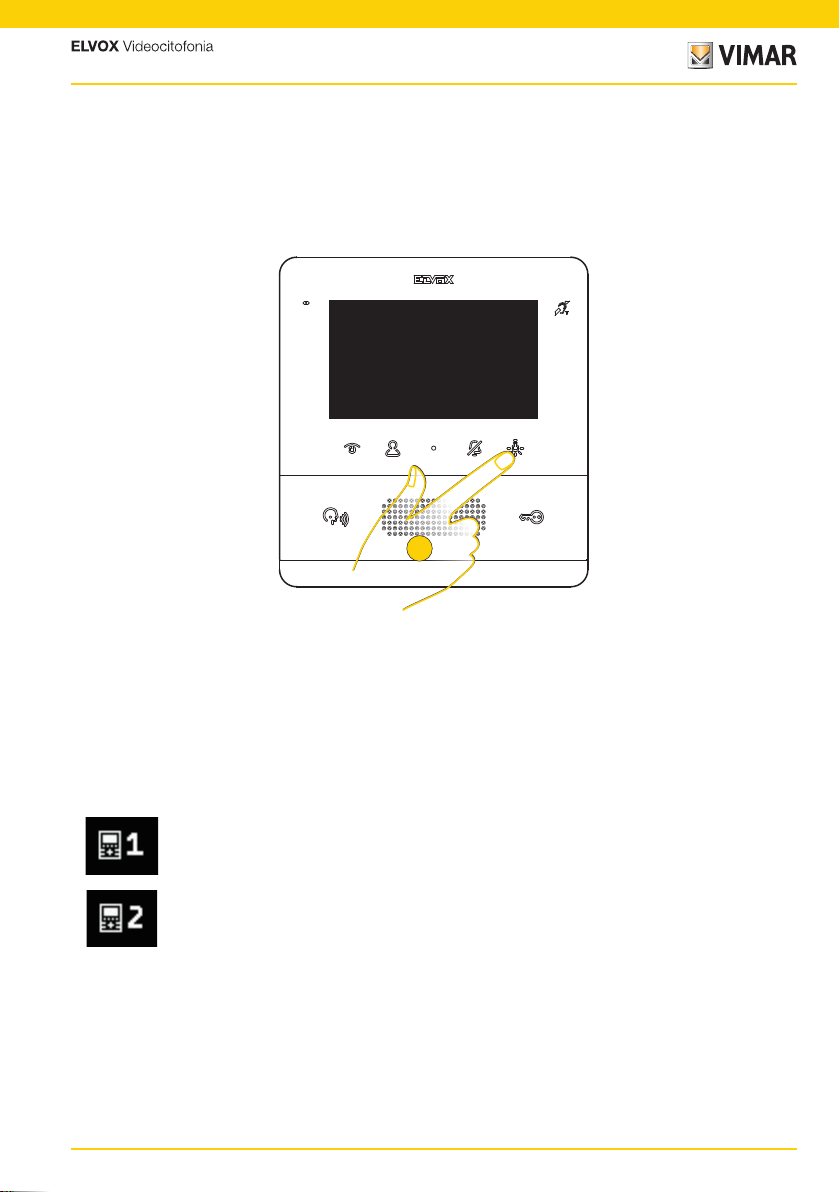

First power up

Perform the device installation (according to the assembly instructions and the installation instructions provided in the

printed instruction sheet supplied) and power it.

The TAB 7559 video entryphone by default has not been identified yet, so the first operation required is to define whether

it is main or secondary

Two icons appear:

Caution: installation must be carried out by qualified persons in compliance with the current regulations regarding the

installation of electrical equipment in the country where the products are installed;

N.B.: If no operations are performed, the display is switched off after about 10 seconds

1. Press any of the programmable keys to activate the display

Main Indoor Station: it is the single Indoor Station receiving the call, or it is the first (master) of a

group with the contemporary call from an Outdoor Station.

Secondary Indoor Station: it is the Indoor Station associated with a master Indoor Station of a group

with the contemporary call from an Outdoor Station.

7559 Tab 4.3

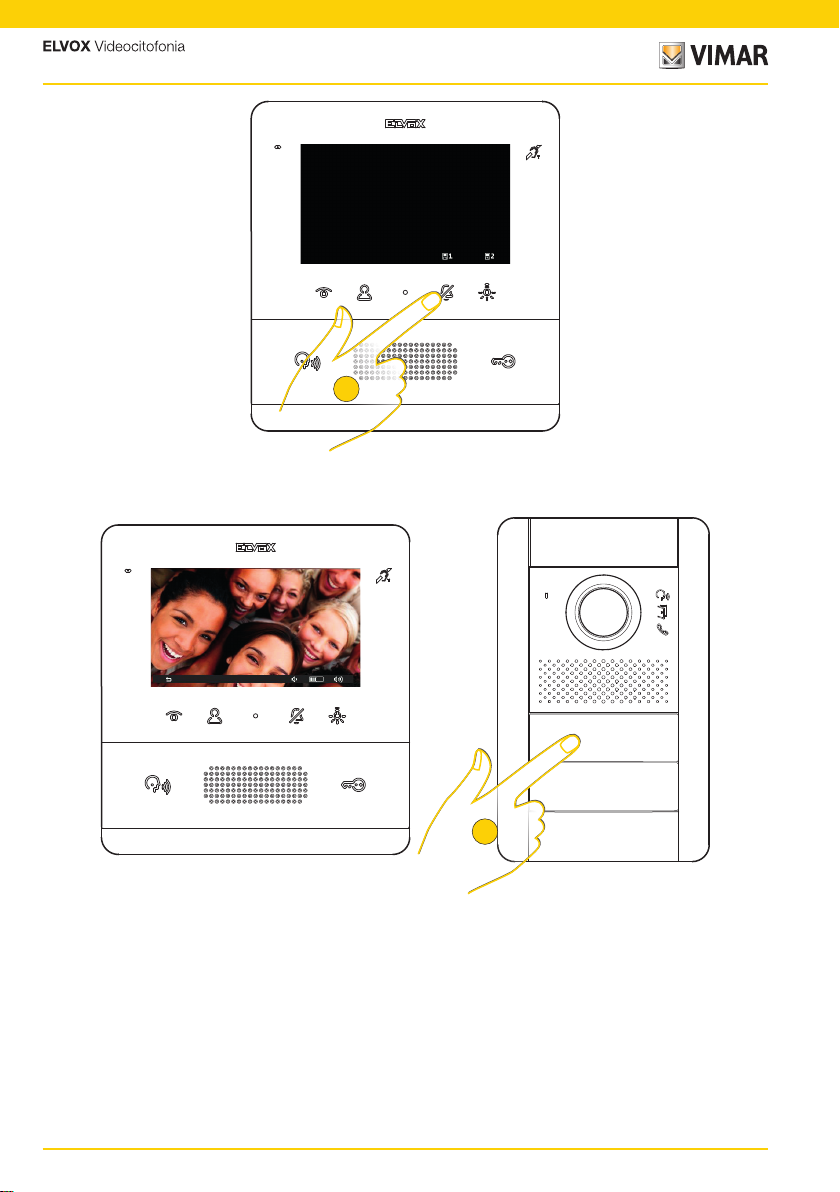

The Indoor Station starts communicating with the Outdoor Station

N.B.: this procedure applies for entrance panels with push buttons and may vary according to the Outdoor Station used.

For Outdoor Stations with a keypad and display, type in the ID code and confirm with the call key.

2. Press to select the main type

3. Press the key on the Master Outdoor Station you wish to receive the call from
