Vimar 7549 User manual

Use and Configuration Manual

TAB

7549 - 7548

Due Fili Plus TAB 4.3” video entryphone with handset

7549 - 7548 Tab 4.3

General information 4

Description 4

Warnings and advice 4

Keys and LED statuses 5

Status LED 6

Operation 7

First power up 8

Programming the primary ID identification code 8

- Simplified programming mode 8

- Standard programming mode 12

Functions 17

Answering a call from an Outdoor Station 18

Answering a call from an Indoor Station or Reception switchboard 21

Audio/video settings 23

Volume and image brightness control 23

Pan/Zoom adjustment 25

Calling an Outdoor Station (Self-start) 27

Calling an Indoor Station (Intercom) or Reception Switchboard 29

Alert function 31

User Configurations 32

Call ringtone selection (for video entryphone 7549) 33

Call ringtone selection (for video entryphone 7548) 34

Ringtone volume control 35

Ringtone exclusion 36

Device cleaning 37

Installer configuration 38

Programming the secondary ID identification code

- Simplified programming mode 40

- Standard programming mode 41

Programming keys for intercom calls

- Simplified programming mode 42

- Standard programming mode 43

Programming the self-start key for a specific Outdoor Station

- Simplified programming mode 44

- Standard programming mode 45

Programming the self-start key for a specific Outdoor Station

- Simplified programming mode 46

Programming display contrast and brightness levels (video signal) 47

Restoring the default programming of each individual key

- Simplified programming mode 48 - 49

- Standard programming mode 50

Restoring the complete default settings

- Simplified programming mode 51

- Standard programming mode 52

Alert function configuration via SaveProg 53

Advanced configuration with SaveProg software 54

Index

7549 - 7548 Tab 4.3

Surface mounting Tab video entryphone for Due Fili Plus system with 4.3” LCD colour display, handset, loudspeaker for calls,

capacitive keypad for entryphone functions (door release, self-starting, auxiliary services, volume, brightness and contrast

controls) and intercom calls.

It is possible to differentiate the call ringtones. The visual signals are for “door/gate open,” “”missed calls from a reception

switchboard”, “user away” and “ringtone exclusion”. Can be used by people wearing hearing aids.

Audio frequency function for hearing aids (Teleloop)

The video entryphone can be used by people wearing hearing aids.

For correct functioning of the hearing aid, please refer to its instruction manual.

Any metal objects or electronic equipment in the vicinity may affect the quality of the sound received by the hearing aid.

Maintenance

Clean using a soft cloth.

Do not pour water onto the appliance and do not use any type of chemical product.

Cleaning must be done with the device powered off (disconnected from the bus) or after activating the Keypad cleaning

procedure

Warnings for the user

Do not open or tamper with the appliance.

In the event of faults, contact specialized personnel.

For installation, refer to the instruction sheet in the package.

Driver for PC

The drivers are the same as for the other device in the TAB family.

The first time a device is connected to a USB port, the PC must associate the drivers to the peripheral device even if a

TAB device has already been associated.

The Indoor Station is identified in SaveProg as ELVOX_7549 or ELVOX_7548 (depending on the model).

General information

Description

Warnings and advice

Door release of

the calling outdoor

station

Outdoor Station

Self-start

Call from Outdoor

Station

Intercoms

Call to/from

Reception

switchboard

Auxiliary

services

activation

7549 - 7548 Tab 4.3

The TAB 4.3 video entryphone (7549, 7548) can be operated using the touch keys described below.

Keys and LED statuses

1. 4.3” LCD 16:9 display, resolution 480x272 pixels

2. Self-start: it activates the main outdoor station (ID 1).

3. It activates the lock of the calling Outdoor Station.

4. It activates the first relay of the Due Fili Plus system (Aux 1), stair lights function

5. It sends an F2 control to Outdoor Stations (default *); (Only for 7549)

6. It sends an F1 control to Outdoor Stations (default *); (Only for 7549)

7. Free (default *); (Only for 7549)

8. Ringtone exclusion: in stand-by, press and hold down for 2 s to deactivate/activate the ringtone. Ringtone

mute: during an incoming call,press to deactivate the ringtone. The ringtone is simultaneously also deactivated for

subsequent calls.

9. It activates the second relay (Aux 2) of the Due Fili Plus system (default *); (Only for 7549)

10. It adjusts the brightness level (see Image brightness and volume control)

11. It adjusts the ringtone volume, contrast and voice unit (see Image brightness and volume control)

*N.B.: where appropriately configured, it may activate intercom calls or auxiliary functions (see installer configuration).

856791011

N.B.: with the handset replaced, the keys send the control concurrently with the sound feedback, whilst with the handset

raised, the control is activated when the key is released.

7549 - 7548 Tab 4.3

LED DESCRIPTION

When lit permanently, it indicates the door open status, and flashes when configuration is

under way

When lit permanently, it indicates that the ringtone is muted.

Flashing in the following cases:

– it is receiving a call from an Outdoor Station or Indoor Station (different flashes);

– configuration is under way.

If configured via SaveProg:

– indication of calls received and missed from the switchboard (1 flash every 10 seconds);

– user away (1 flash every second): the Indoor Station will refuse calls from an Outdoor

Station

Possible “Alert” signalling, see Alert Function

Some of the LEDs illustrated below only come on in certain conditions.

Status LED

KEY

Flashing keySound up

Key litSound low

beep

BEEP

7549 - 7548 Tab 4.3

Operation

The TAB 4.3 video entryphone is designed to receive calls from Indoor Stations, Outdoor Stations and the Reception

switchboard.

It can also perform the self-start of the Outdoor Station, intercom calls with Indoor Stations and the Reception

switchboard.

Calls can be answered using the handset and/or by releasing the lock of the Outdoor Station using the dedicated key.

Some programmable keys are also available to activate other functions such as relay actuation or intercom calls:

- keys for video entryphone 7549.

- only key for video entryphone 7548.

7549 - 7548 Tab 4.3

First power up

Perform the device installation (according to the assembly instructions and the installation instructions provided in the

printed instruction sheet supplied) and connect it to the Due Fili Plus bus.

Caution: installation must be carried out by qualified persons in compliance with the current regulations regarding the

installation of electrical equipment in the country where the products are installed;

1. Lift the handset and bring it to your ear

Programming the primary ID identification code

(Simplified programming mode)

7549 - 7548 Tab 4.3

4. Press and hold down for 6 seconds

5. A sound is reproduced, release the key

N.B.: release the key after the first sound; prolonged pressing leads to a different programming.

6 s

beep

7549 - 7548 Tab 4.3

6. Within 30 seconds, press the push button on the Master outdoor station you wish to receive the call from.

The Indoor Station starts communicating with the Outdoor Station

The video entryphone and the Outdoor Station emit a sound to confirm the operation.

N.B.: this procedure applies for Outdoor Stations with push buttons and may vary according to the Outdoor Station

used. For Outdoor Stations with a keypad and display, type in the ID code and confirm with the call key.

N.B.: if the installation already contains an Indoor Station with the same paired identification code, the entrance panel will

emit a tone and the process must be repeated from the start in order to assign a different code

BEEP BEEP

Other manuals for 7549

This manual suits for next models

Table of contents

Other Vimar Intercom System manuals

Vimar

Vimar ELVOX 7559/E User manual

Vimar

Vimar ELVOX TAB 7549 Assembly instructions

Vimar

Vimar Elvox Petrarca 6209/D User guide

Vimar

Vimar ELVOX 40151 Assembly instructions

Vimar

Vimar Elvox 559A User manual

Vimar

Vimar Elvox 885B Assembly instructions

Vimar

Vimar Elvox Giotto 6344 Assembly instructions

Vimar

Vimar ELVOX PIXEL UP: 40415.S User guide

Vimar

Vimar ELVOX 6570 Assembly instructions

Vimar

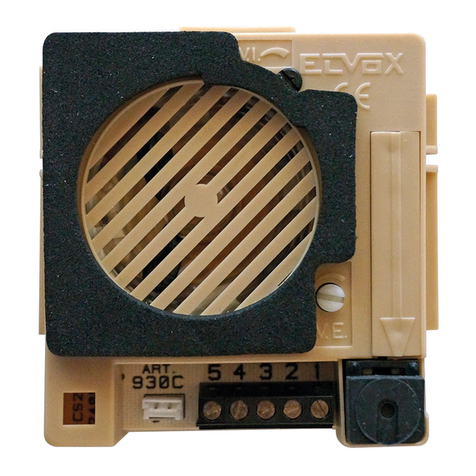

Vimar 930C User manual
