Viking VBO1811SS User manual
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
OUTDOOR—STORAGE
Base Cabinets
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
All models include
• Commercial-type construction, design,
and styling
o All cabinets are constructed
completely of heavy-duty stainless
steel
o Professional-style handle(s) match
the look of Viking outdoor
appliances
• 30”D.
• Provides essential counter and storage
space
• Heavy-duty, adjustable legs (same as
used on ranges)
• Cabinets must be installed with
locally-supplied countertop
• Optional clip-on toe kick included
VBO1811 model
• For use in general cabinet runs
• One drawer equipped with full
extension slides
• One door
VBO1830 model
• For use in general cabinet runs
• Three drawers equipped with full
extension slides
VSBO2402/3602 models
• For general use in cabinet runs
• Accommodates multiple sink sizes
(sold separately)
• Two doors may be adjusted to mount
left or right hinge
oFully-concealed hinges
VTPO1810 model
• For general use in cabinet runs
• Accommodates two trash bins
(included)
• Drawer (one) equipped with full
extension slides

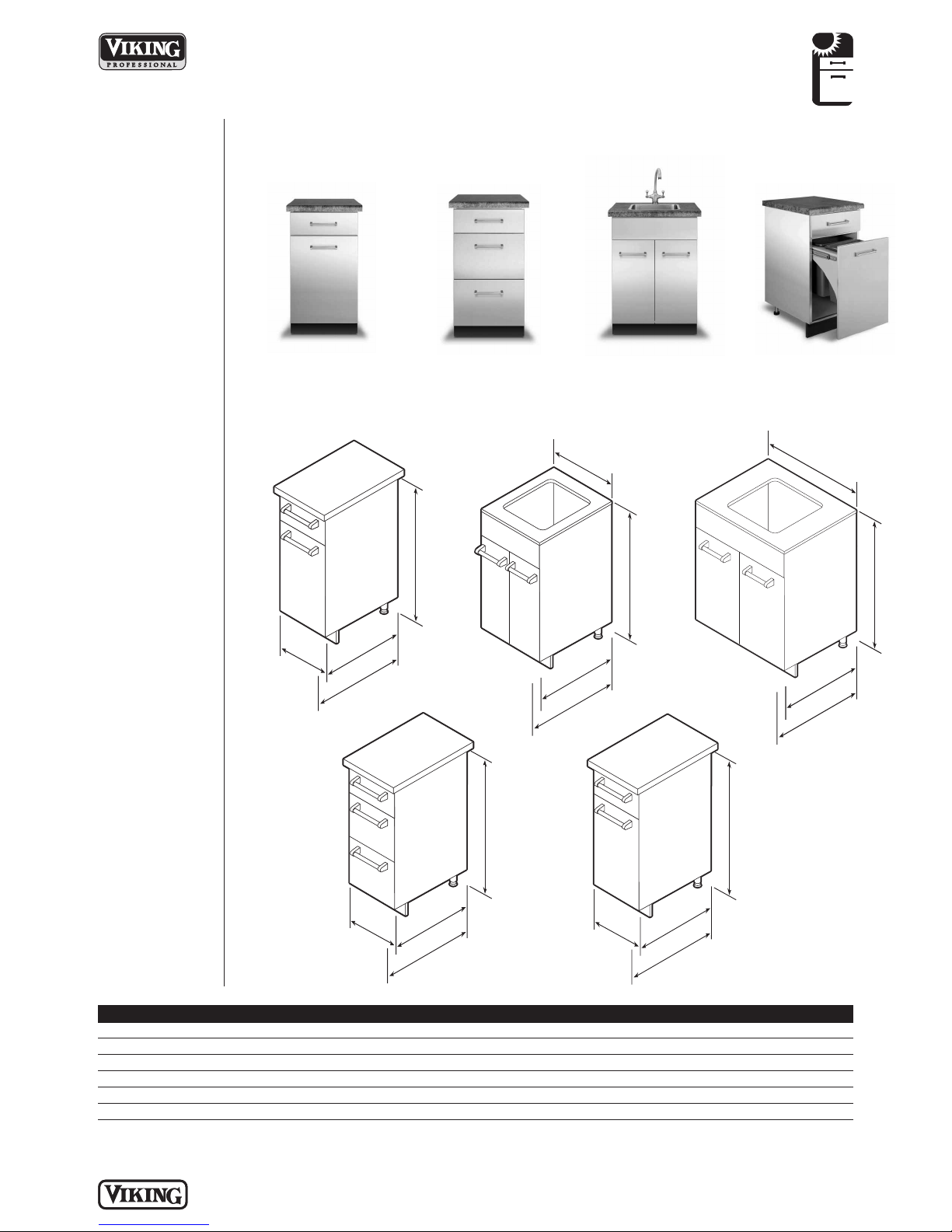

VBO1811
18”W. base cabinet
(one-drawer, one-door)
FINISH DETAILS FOR ALL MODELS
• Stainless Steel (SS)
VBO1830
18”W. base cabinet
(three-drawer)
Standard Features & Accessories
Model Options
VSBO2402/3602*
24”W./36”W.
sink cabinets
VTPO1810
18”W. trash
pullout cabinet
*Shown throughout with sink, sold separately.
18”
(45.7 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
18”
(45.7 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
OUTDOOR—STORAGE
Base Cabinets
✪ Please see
Installation Notes
and Accessories for
important
information,
including side
panels and filler
strips.
VBO1811 VBO1830 VSBO2402 VSBO3602 VTPO1810
Overall width (including doors) 18” (45.7 cm) 18” (45.7 cm) 24” (61.0 cm) 36” (91.4 cm) 18” (45.7 cm)
Overall height (from bottom) 34-1/2” (87.6 cm)
Overall depth (from rear) 29-7/8” (75.9 cm)
To end of handle brackets 31-7/8” (81.0 cm)
With drawer open 53-7/8” (136.8 cm)
Approx. ship wt. lbs. (kg) 141 (63.7) 156 (70.8) 165 (74.8) 180 (81.7) 145 (65.8)
Dimensions & Specifications
PRODUCT DIMENSIONS
18”
(45.7 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
24”
(61.0 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
VBO1811
18”W. base cabinet
(one-drawer, one-door)
VBO1830
18”W. base cabinet
(three-drawer)
VSBO2402/3602
24”W./36”W.
sink cabinets
VTPO1810
18”W. trash
pullout cabinet
36”
(91.4 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
VBO1811 VSBO2402 VSBO3602
VBO1830 VTPO1810
OUTDOOR—STORAGE
Base Cabinets
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
31-7/8”
(81.0 cm)
53-7/8”
(136.8 cm)
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
45-1/2”
(115.6 cm)
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
31-7/8”
(81.0 cm)
53-7/8”
(136.8 cm)
VBO1811
VBO1830

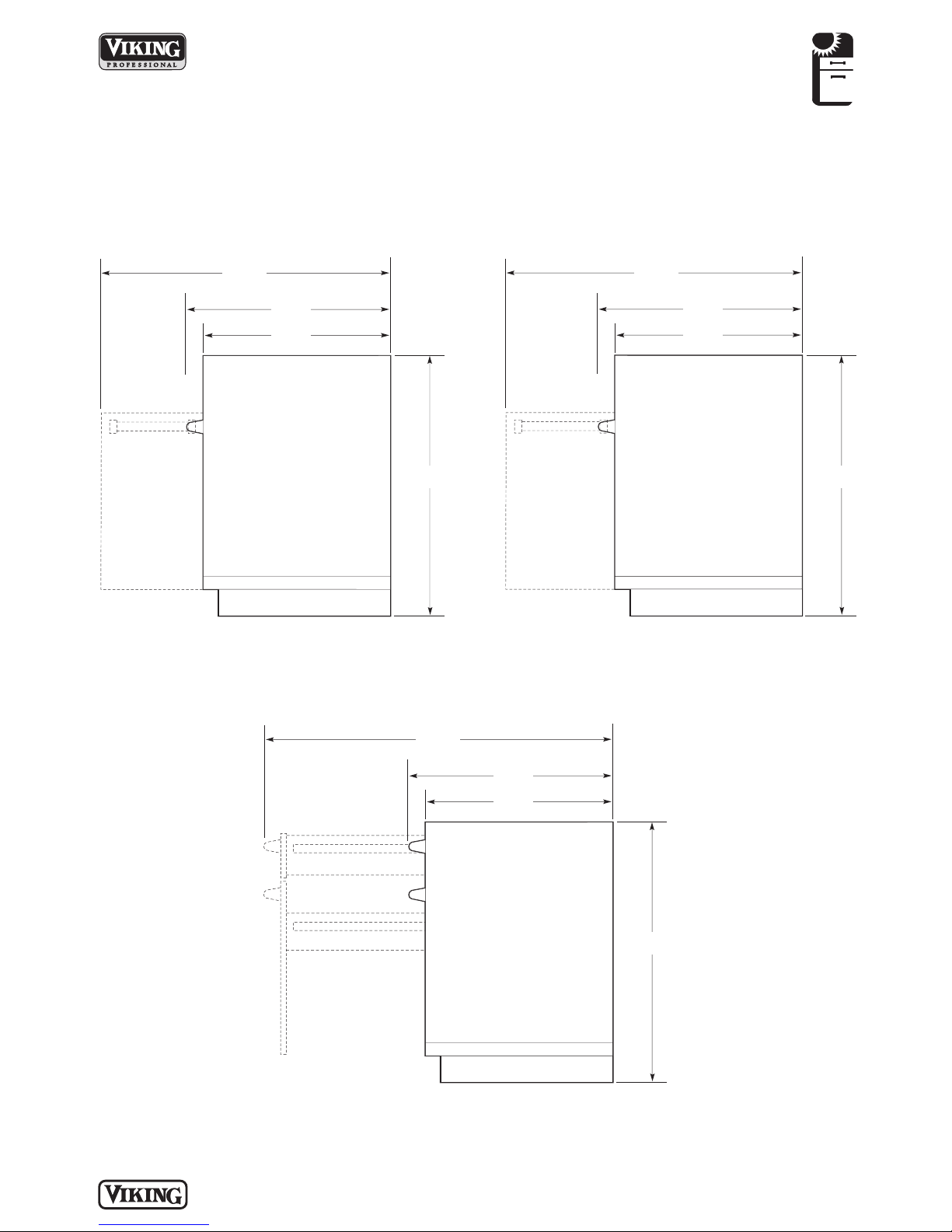

Dimensions & Specifications

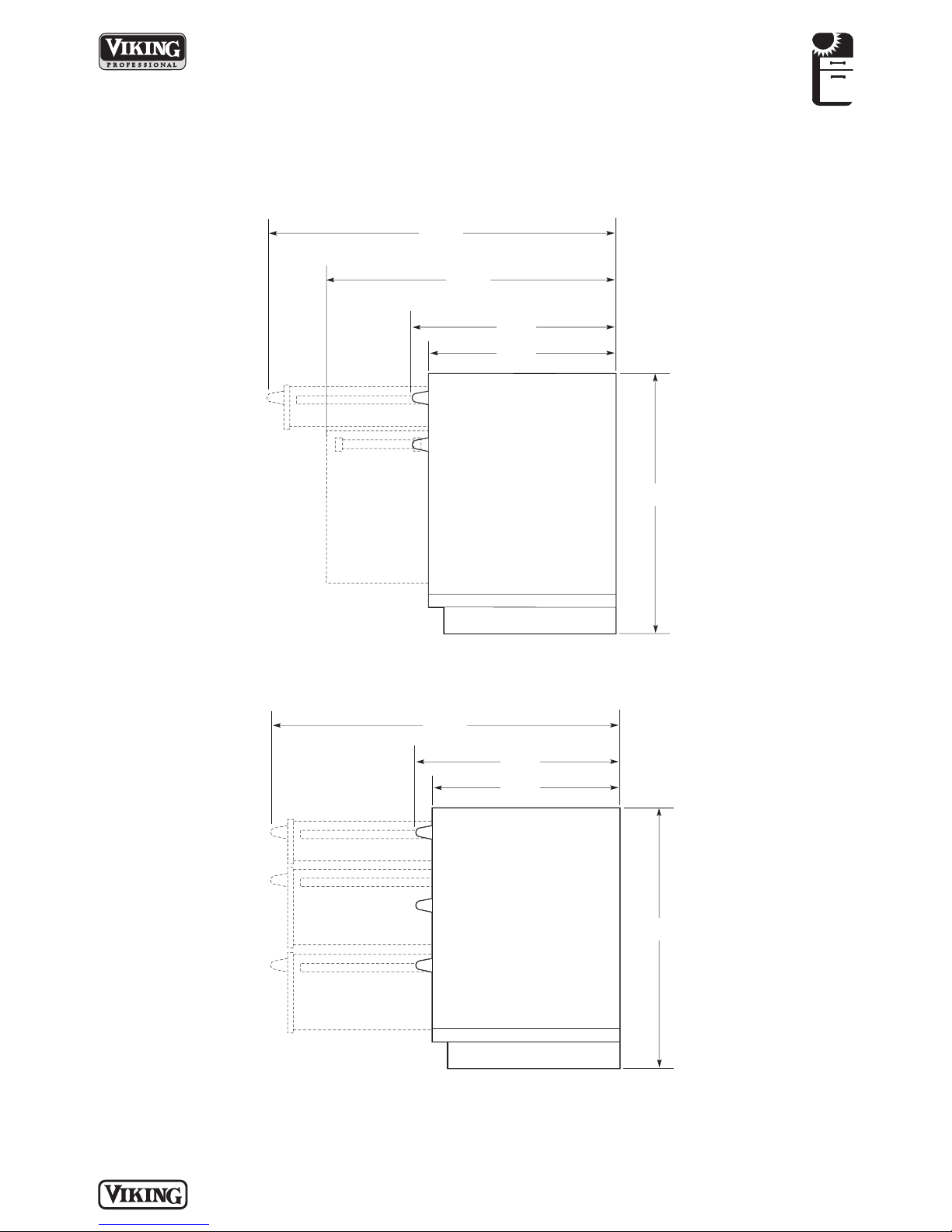

DRAWER EXTENSION & DOOR SWING
OUTDOOR—STORAGE
Base Cabinets
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Dimensions & Specifications
DRAWER EXTENSION & DOOR SWING
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
31-7/8”
(81.0 cm)
41-7/8”
(106.4 cm)
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
31-7/8”
(81.0 cm)
53-7/8”
(136.8 cm)
VSBO2402
VTPO1810
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
31-7/8”
(81.0 cm)
47-7/8”
(121.6 cm)
VSBO3602
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
OUTDOOR—STORAGE
Base Cabinets
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Side Panels
• Heavy-duty stainless steel
• Panels finish sides of base cabinets at the end of a run
• Fit flush into recessed sides of cabinets
• Optional clip-on toe-kick included
Back Panels
• Heavy-duty stainless steel
• For use in custom island installations
• Individual panels for each cabinet
• 3/4”-thick (adds to cabinet depth)
• Optional clip-on toe-kick included
Filler Strips, Pieces, & Other Corner Panel Kits
• Strips separate cabinets and create turns
o Mount sides flush with doors, NOT cabinet face
• Fit flush into recessed sides of cabinets
• VOCF90 & VOCF135 shipped with two unattached back panels
• Optional clip-on toe-kick included
WARRANTY SUMMARY*
• One-year full warranty—complete product (w/in-home repairs)
• Lifetime limited warranty—all stainless steel components (includes rust-through)
• Two-year limited warranty—door hinges/drawer slides
• Ninety-day limited warranty—cosmetic parts (glass, painted, & decorative items)
* For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
✪ Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
VSP30 30”W. x 29-3/4”H. side panel 16 (7.3)
Model Description Approx. ship wt. lbs. (kg)
VBP18 18”W. back panel (for VBO1811/1830 & VTPO1810) 12 (5.4)
VBP24 24”W. back panel (for VSBO2402) 15 (6.8)
VBP36 36”W. back panel (for VSBO3602) 23 (10.4)
Model Description Approx. ship wt. lbs. (kg)
VCF90 Corner filler piece (each side is 4”W.)—for 90° bends 5 (2.3)
VCF135 Corner filler piece (each side is 4”W.)—for 135° bends 5 (2.3)
VFLR4 General filler strip (4”W.)—for separating appliance-based cabinets 5 (2.3)
VBPFLR4 4”W. back panel (for use w/VFLR4) 5 (2.3)
VOCF90 Outer corner filler panel kit (each side is 4”W.)— 40 (18.1)
for connecting 2 back panels at 90° angle and adding countertop support
VOCF135 Outer corner filler panel kit (each side is 4”W.)— 40 (18.1)
for connecting 2 back panels at 135° angle and adding countertop support
