ViewSonic®

- User Guide

- Guide de l’utilisateur

- Guida dell’utente

- Guia do usuário

ViewSonic®

G70f

CRT Monitor

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•



Reorient or relocate the receiving antenna.

•



Increase the separation between the equipment and receiver.

•

 

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•

 

Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord

and the cables which are included with the equipment or speciﬁ ed. Also, any unauthorized

changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this device.

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numeique de la Classe B repecte toutes les exigences du Reglement sur le

materiel brouilleur du Canada.

CE Conformity for European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

User Information for all Countries

Notice: Use the cables which are included with the unit or speciﬁ ed.

Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this unit near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the

power outlet is located near the unit so that it is easily accessible.

11.

Only use attachments/accessories speciﬁ ed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,

or sold with the unit. When a cart is used, use caution when moving the cart/unit

combination to avoid injury from tip-over

13.

Unplug this unit when unused for long periods of time.

14.

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the unit has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the unit, the unit has been exposed to rain or

moisture, does not operate normally, or has been dropped.

Contents

Product Registration..............................................................2

Getting Started

Package Contents ................................................................. 3

Precautions ...........................................................................3

Quick Installation ...................................................................4

Using the Monitor

Setting the Timing Mode .......................................................5

OSD Lock Settings ................................................................7

Main Menu Controls ..............................................................8

Other Information

Specifications ......................................................................10

Troubleshooting...................................................................11

Customer Support ...............................................................12

Cleaning the Monitor ...........................................................13

Limited Warranty .................................................................14

Adjusting the Screen Image ..................................................6

ViewSonic1

G70f

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

G70f

ViewSonic 17” CRT Monitor

VCDTS22355-2

G70f/B-2_UG_ENG Rev. 1D 12-17-04

_____________________________________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life. For TCO’03 recycling information, please refer to

our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

ViewSonic 2

G70f

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

ENERGY STAR ® is a registered trademark of the U.S. Environmental Protection Agency

(EPA).

As an ENERGY STAR ® partner, ViewSonic Corporation has determined that this product

meets the ENERGY STAR ® guidelines for energy efﬁciency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product speciﬁcations without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic ® Wizard CD-ROM also provides an opportunity for you to print the registration

form, which you may mail or fax to ViewSonic.

Getting Started

Congratulations on your purchase of a ViewSonic®color monitor. Important!

Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following Microsoft

operating systems: Windows 95, Windows NT, Windows 98, Windows 2000,

Windows Me (Millennium), and Windows XP.

Package Contents

Your package includes:

• Color monitor

• DB-15 video cable

• Power cord

• ViewSonic Wizard CD-ROM

NOTE: The CD jacket contains the Quick Start Guide, and the CD includes the

User Guide PDF files and INF/ICM display optimization files. The INF file

ensures compatibility with Windows operating systems, and the ICM file (Image

Color Matching) ensures accurate on-screen colors. ViewSonic recommends that

you install both files.

Precautions

• For best viewing conditions sit at least

16” from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

ViewSonic 3

G70f

Quick Installation

1 Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2 Connect video cable

Make sure both the monitor and computer

are turned OFF.

• Connect the video cable to the computer.

Macintosh®users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic. See “Customer Support”

on page 12.

3 Turn ON monitor and computer

Turn ON the monitor, then turn ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows users may

receive a message asking them to install the

INF file.

4 Install Display Optimization files

(INF and ICM files)

(1) Insert the ViewSonic Wizard CD-ROM

into your computer’s CD-ROM drive.

NOTE: If your computer does not have a

CD-ROM drive, see “Customer Support” on

page 12.

(Continued)

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in

Windows Explorer, then double-click on

viewsonic.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate) Example:

1024 X 768 @ 75Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic color monitor.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in "For Your Records" on

page 2. (See back of monitor.)

To register your product go online to

www.viewsonic.com.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

Video cable

Power cord

AC wall

outlet

ViewSonic

G70f 4

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1024 x 768) and refresh rate (or vertical frequency;

example 85 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your monitor timing mode to:

VESA 1024 x 768 @ 85 Hz.

To set the Resolution:

1Right-click on the Windows desktop.

2Click Properties on the drop-down menu.

3Click the Settings tab.

4Move the slider pointer which displays in the Desktop area or Screen area in

the window.

NOTE: The refresh rate should already be set if you have done the CD

installation (or refer to your graphics card documentation).

ViewSonic 5

G70f

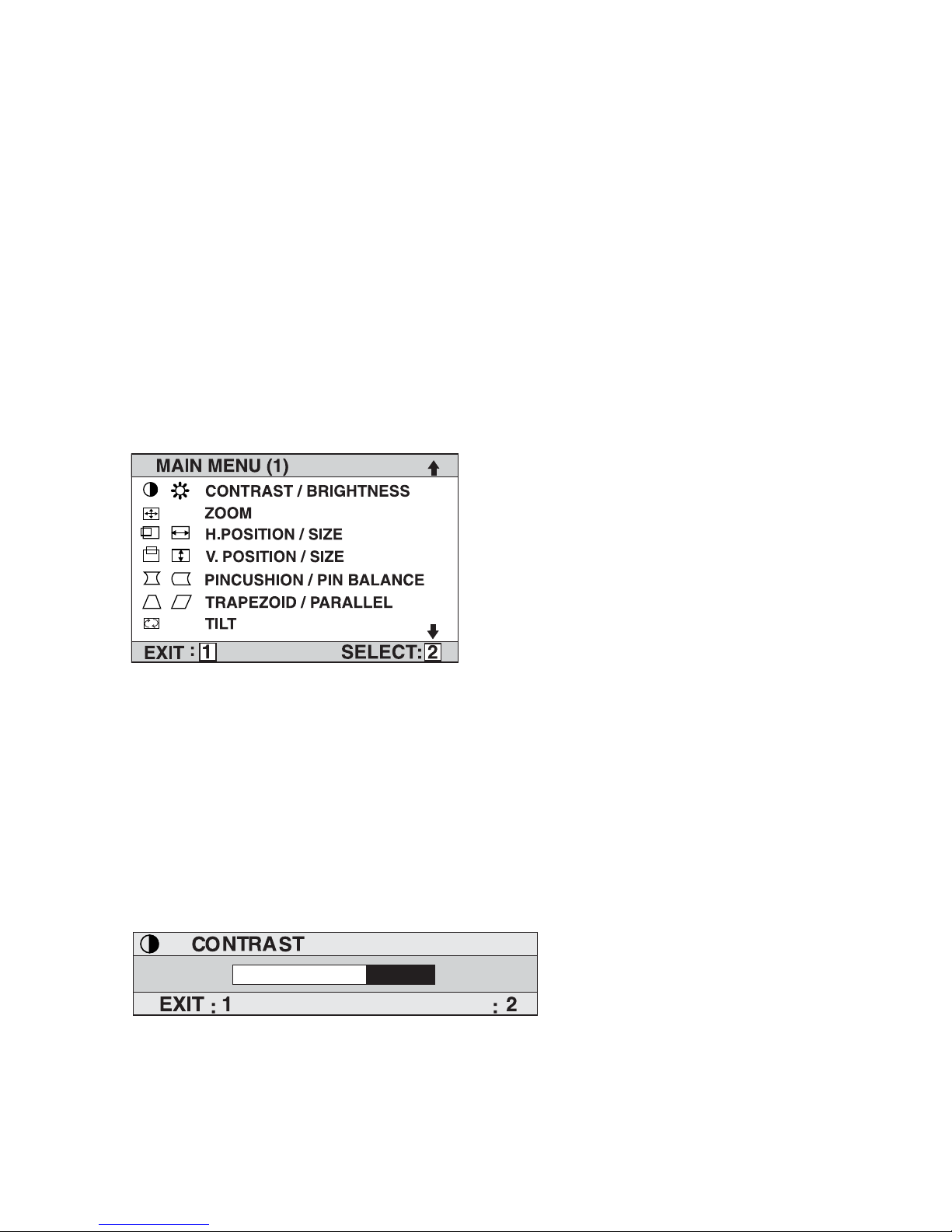

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

top of the next page and are defined in “Main Menu Controls” on page 8.

Main Menu

With OnView controls

Front Control Panel

Displays Main Menu; also saves

changes/exits Main Menu

Power Light

Power On/Off

Scroll through menu Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pairs of controls on

some control screens

options and adjust the

displayed control

Memory Recall returns adjustments to

the original factory settings if the

display is operating in a factory preset

timing mode listed in this user guide.

Exception: This control does not affect

changes made with the User Color control.

ViewSonic 6

G70f

Do the following to adjust the screen image:

1To display the Main Menu, press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor and scroll through the choices. When the

control you want is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Display control screen (sample shown in step 3 below).

Press button [2] to toggle to the next control in the pair.

3To adjust the selected control, such as CONTRAST in the sample below,

press the arrow buttons.

4To save the control setting and Exit the menu press button [1] twice.

BRIGHTNESS

OSD Lock Settings

You have the option of using the On Screen Display (OSD) locking feature,

OSD LOCK, to prevent unwanted changes to the current image settings.

•OSD Lock: Press and hold the [1] and [

▼

]

buttons on the face of the monitor

for 10 seconds. The message "OSD LOCK" will then display briefly,

indicating that the OSD image settings are now locked.

•OSD Unlock: Press and hold the [1] and [

▼

]

buttons again for 10 seconds. The

message "OSD UNLOCK" will then display briefly, indicating that the OSD

image settings are now unlocked.

ViewSonic 7

G70f

Other manuals for G70F - 17" CRT Display

This manual suits for next models

Table of contents

Other ViewSonic Monitor manuals

ViewSonic

ViewSonic VP171b/VP171s User manual

ViewSonic

ViewSonic LDP135-151 User manual

ViewSonic

ViewSonic G70m/G70mb User manual

ViewSonic

ViewSonic VG710B - 17" LCD Monitor User manual

ViewSonic

ViewSonic VG710B - 17" LCD Monitor User manual

ViewSonic

ViewSonic VG2448 User manual

ViewSonic

ViewSonic CDE5560T User manual

ViewSonic

ViewSonic E90F - 19" CRT Display User manual

ViewSonic

ViewSonic ViewPanel VG191 User manual

ViewSonic

ViewSonic VS17067 User manual

ViewSonic

ViewSonic EP1031r User manual

ViewSonic

ViewSonic VA1903H-ID1 User manual

ViewSonic

ViewSonic VX2767U-2K User manual

ViewSonic

ViewSonic VX2245wm - 22" Widescreen LCD Monitor User manual

ViewSonic

ViewSonic VS18117 User manual

ViewSonic

ViewSonic VA1703w User manual

ViewSonic

ViewSonic VA2256-mhd-H User manual

ViewSonic

ViewSonic PF790 - 19" CRT Display User manual

ViewSonic

ViewSonic TD2465 User manual

ViewSonic

ViewSonic ViewBoard IFP50 Series User manual

ViewSonic

ViewSonic VA916 - 19" LCD Monitor User manual

ViewSonic

ViewSonic VP720B - ThinEdge - 17" LCD Monitor User manual

ViewSonic

ViewSonic LDS135 Series User manual

ViewSonic

ViewSonic VX912 User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual
