ViewSonic E220 - 21" CRT Display User manual

User Guide

Bedienungsanleitung

Guía del usuario

Guia do usuário

ViewSonic E220 1

Contents

Product Registration..............................................................2

For Your Records ..................................................................2

Getting Started

Package Contents ................................................................. 3

Precautions ...........................................................................3

Quick Installation ................................................................... 4

Using the Monitor

Setting the Timing Mode .......................................................5

OSD Lock Mode ....................................................................5

Adjusting the Screen Image ..................................................6

Main Menu Controls ..............................................................8

Other Information

Specifications ......................................................................11

Troubleshooting...................................................................12

Customer Support ...............................................................13

Cleaning the Monitor ...........................................................14

Limited Warranty .................................................................15

Appendix

Safety Guidelines ................................................................16

Compliance Information ......................................................17

2 ViewSonic E220

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this mate-

rial, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes avail-

able, please register your product on the Internet at: www.viewsonic.com.The ViewSonic Wizard

CD-ROM also provides an opportunity for you to print the registration form, which you may mail

or fax to ViewSonic.

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product

properly at the end of its useful life. Your local waste disposal company may provide information

about proper disposal.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic E220

VCDTS22993-1

E220-1_UG_297

_______________

ViewSonic E220 3

Getting Started

Congratulations on your purchase of a ViewSonic E220 color monitor.

Important! Save the original box and all packing material for future shipping

needs.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased.

NOTE: The word “Windows” in this user guide refers to the following Microsoft

operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000

and Windows Me (Millennium).

Package Contents

Yo u r E 2 2 0 package includes:

• E220 monitor

• Video cable

• Power cord

• Quick Start Guide

• ViewSonic Wizard CD-ROM (including User Guide PDF file and INF/ICM

display optimization files)

NOTE: The supplied INF file ensures compatibility with Windows operating

systems, and the ICM file (Image Color Matching) ensures accurate on-screen

colors. ViewSonic®recommends that you install both files.

Precautions

• For best viewing conditions sit at least

18” from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

4 ViewSonic E220

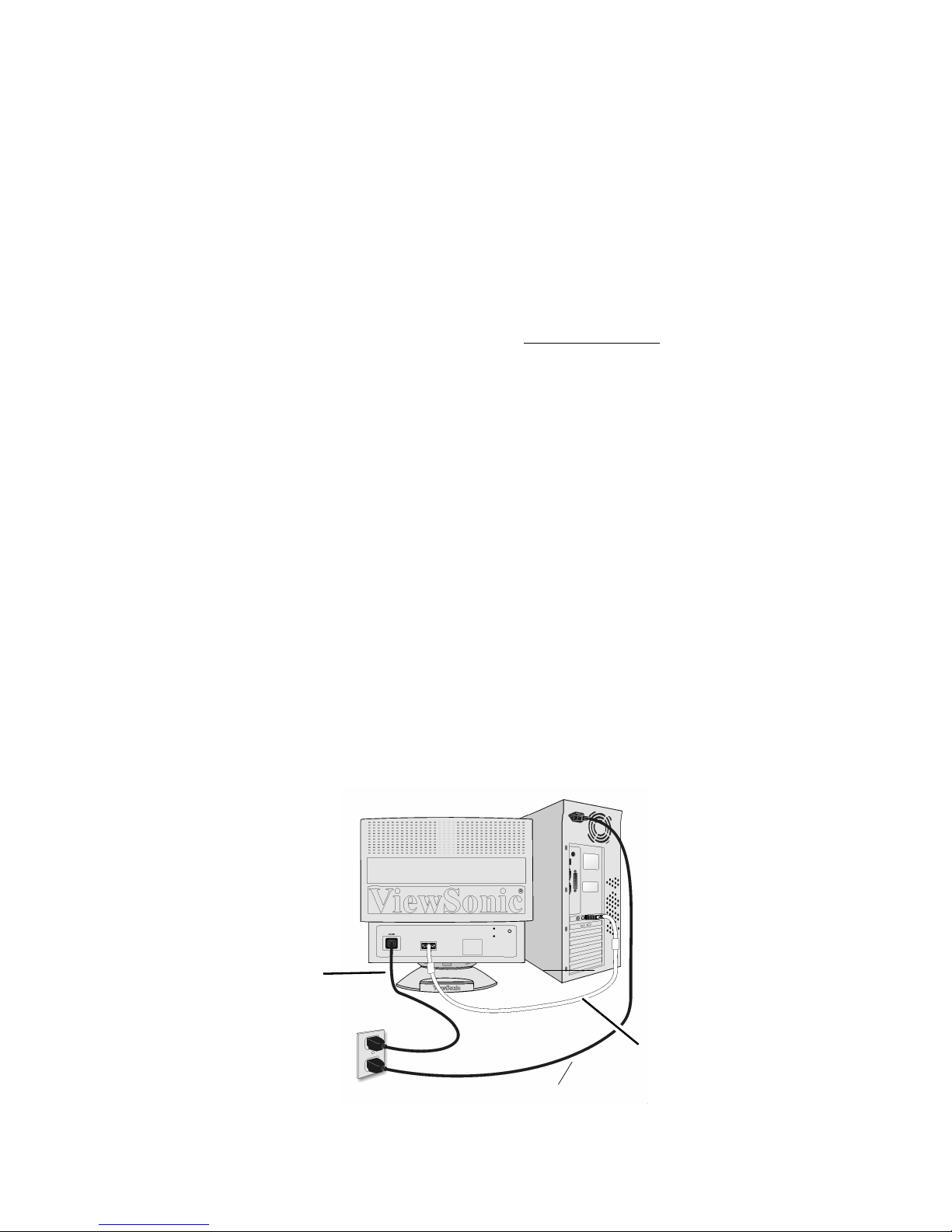

Quick Installation

1 Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2 Connect video cable

Make sure both the monitor and computer

are powered OFF.

Connect the video cable to the computer.

Macintosh®users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic. See “Customer Support”

on page 13.

3 Power-ON monitor and computer

Power-ON the monitor, then power-ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows 98 users may

receive a message asking them to install the

E220 INF file.

4 Install Display Optimization files

(INF and ICM files)

(1) Insert the ViewSonic Wizard CD-ROM

into your computer’s CD-ROM drive.

NOTE: If your computer does not have a

CD-ROM drive, see “Customer Support”on

page 13.

4 Install Display Optimization files

(Continued)

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in

Windows Explorer, then double-click on

install.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate) Example:

1024 X 768 @ 75Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete.

Installation is complete. Enjoy your new

E220 monitor.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in "For Your Records" on

page 2. (See back of monitor.)

To register your product go online to

www.viewsonic.com.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

Video cable

Power cord

AC outlet Power cable to computer

ViewSonic E220 5

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1024 x 768) and refresh rate (or vertical frequency;

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your monitor timing mode to one of the

following:

VESA 1280 x 1024 @ 85 Hz.

VESA 1600 x 1200 @ 75 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

NOTE: To minimize the adjustments required for an optimal screen image,

select a timing mode from the resolutions listed in the Specifications on page 11.

WARNING: Do NOT set the graphics card in your computer to exceed the

maximum refresh rate; doing so may result in permanent damage to your

monitor.

OSD Lock Mode

This mode locks all current control settings and prevents access to the control

menus until this mode is unlocked.

•To lock all OSD menus, press and hold both the [1] button and the



(up-

arrow) button for 10 seconds. While in this mode, when any button is pushed,

OSD Lock will display for five seconds.

•To unlock the OSD menus, press and hold both the [1] button and the



(up-

arrow) button for 10 seconds. The message OSD Unlock appears on-screen.

6 ViewSonic E220

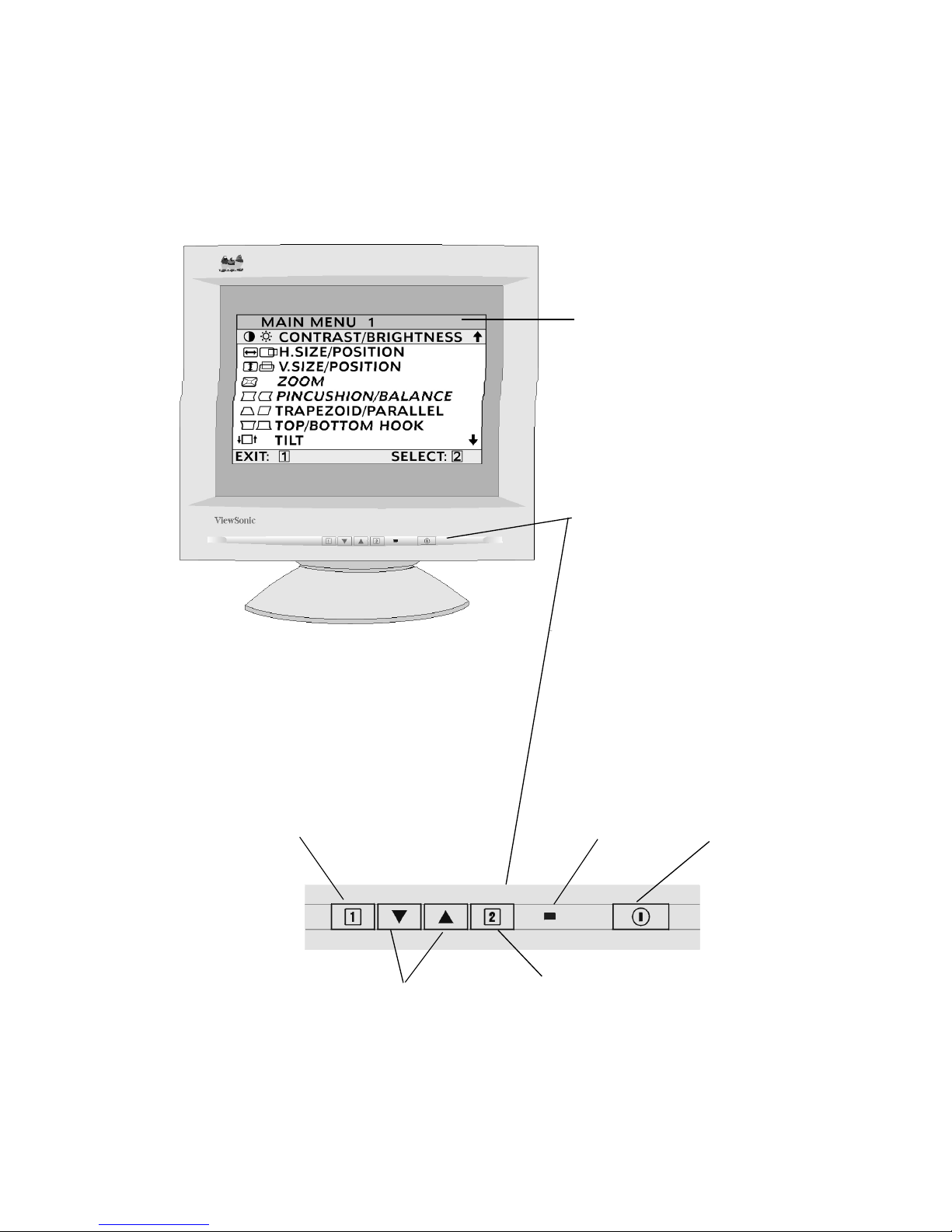

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

top of the next page and are defined in “Main Menu Controls”on page 8.

Main Menu

With OnView controls

Front Control Panel

Displays Main Menu; also saves

changes/exits Main Menu Power Light Power On/Off

Scroll through menu Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pairs of controls on

some control screens

options and adjust the

displayed control

ViewSonic E220 7

Do the following to adjust the screen image:

1To display the Main Menu, press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor (



) and scroll through the choices. When

the control you want is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Display control screen (sample shown in step 3 below).

Press button [2] to toggle to the next control in the pair.

3To adjust the selected control, such as CONTRAST in the sample below,

press the arrow buttons (



4To save the control setting and Exit the menu press button [1] twice.

8 ViewSonic E220

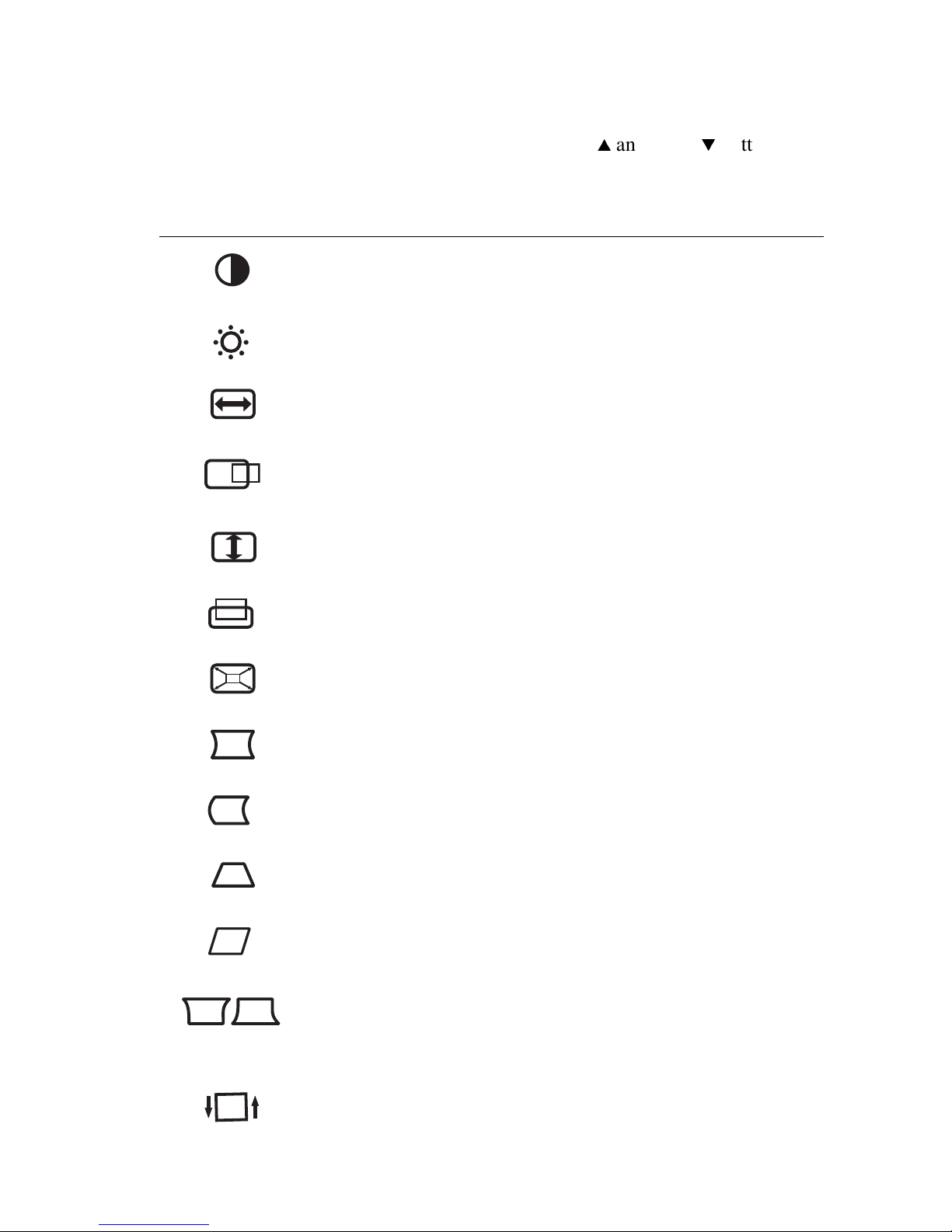

Main Menu Controls

Adjust the menu items shown below by using the up





and down



buttons.

Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Brightness adjusts the background black level of the screen

image.

Horizontal Size adjusts width of the screen image.

Horizontal Position moves the screen image left or right.

Vertical Size adjusts the height of the screen image.

Vertical Position moves the screen image up or down.

Zoom expands and contracts the entire screen image.

Pincushion curves the vertical sides of the screen image.

Pin Balance curves the vertical edges of the screen image to

the left or right.

Trapezoid adjusts the top and bottom of the screen image

until they have equal length.

Parallel slants the vertical edges of the screen image until

they are parallel.

Top Hook straightens the top corners of the screen image.

Bottom Hook straightens the bottom corners of the screen

image.

Tilt rotates the entire screen image.

ViewSonic E220 9

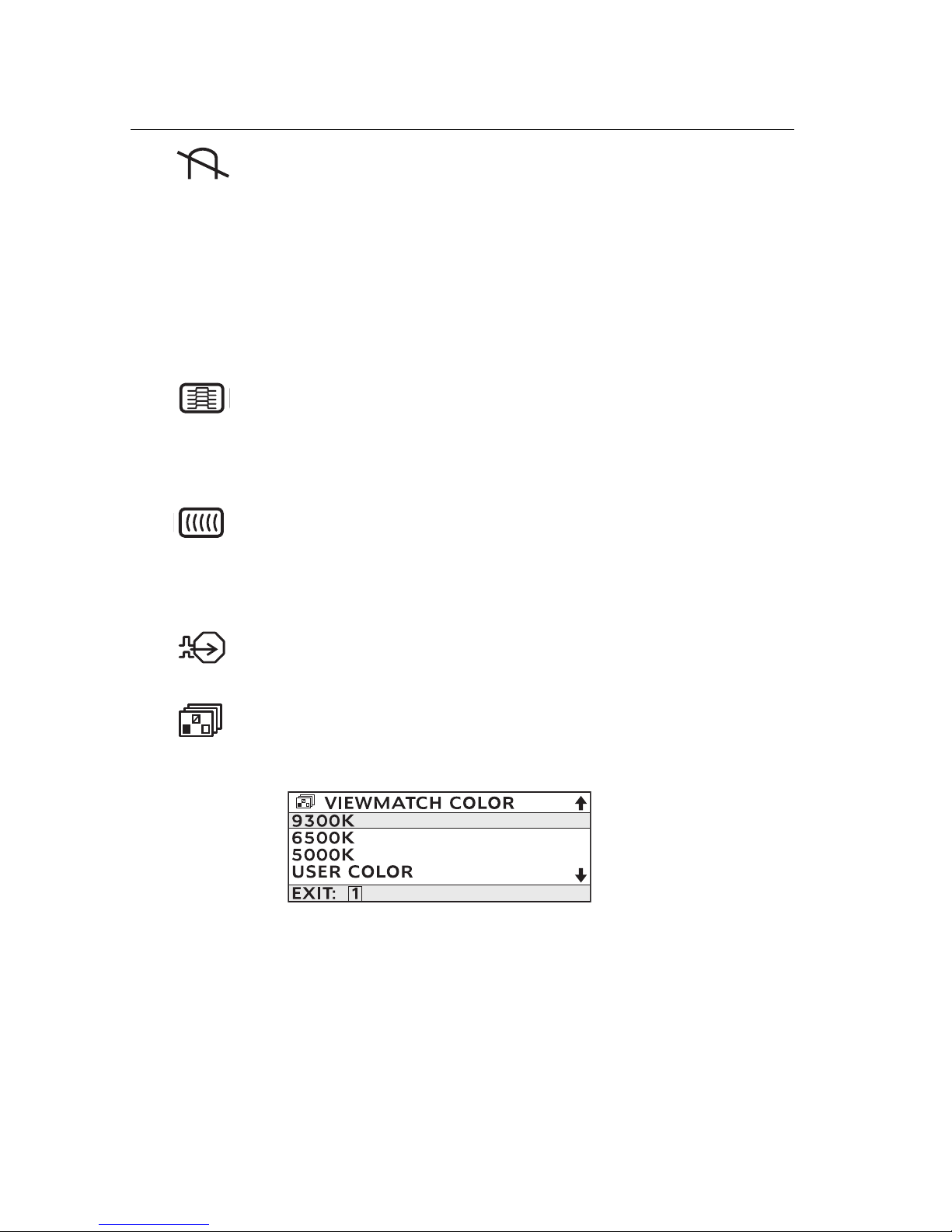

Degauss removes the build-up of magnetic fields that can

cause irregular colors to appear around the edges of screen

images. There are two ways to degauss the display:

automatically by turning the monitor on, or manually by

selecting the Degauss control from the menu.

With Degauss selected from the menu, press button [2] to

degauss the monitor manually.

Important: Do not degauss repeatedly. Doing so can be

harmful to the display. Wait at least 20 minutes (before

selecting this control again.

Horizontal Moire reduces interference patterns that appear

as ripples, waves, or unwanted background color textures.

Interference patterns of this type are most noticeable when

viewing images having closely spaced lines or finely

detailed patterns.

Vertical Moire reduces interference patterns that appear as

ripples, waves, or unwanted background color textures.

Interference patterns of this type are most noticeable when

viewing images having closely spaced lines or finely

detailed patterns.

Input Level displays the voltage level of the video signal.

NOTE: the default selection is 0.7V.

ViewMatch®Color provides several color options: several

preset color temperatures and User Color which allows you

to adjust red (R), green (G), and blue (B). The factory

setting for this product is 9300K (9300°Kelvin).

9300K — Adds blue to the screen image for cooler white

(used in most office settings with fluorescent lighting).

6500K — Adds red to the screen image for warmer white

and richer red.

5000K — Adds blue and green to the screen image for

darker color.

User Color — Individual adjustments for red, green, and

blue.

Control Explanation (Continued)

Other manuals for E220 - 21" CRT Display

Table of contents

Other ViewSonic Monitor manuals

ViewSonic

ViewSonic VX2776-2K-PRO User manual

ViewSonic

ViewSonic ViewPanel VP181 User manual

ViewSonic

ViewSonic E90FMB - 19" CRT Display User manual

ViewSonic

ViewSonic A75F User manual

ViewSonic

ViewSonic VX2260WM - 22" LCD Monitor User manual

ViewSonic

ViewSonic PerfectSound 29GA User manual

ViewSonic

ViewSonic VA2626wm - 26" LCD Monitor User manual

ViewSonic

ViewSonic VX500 - 15" LCD Monitor User manual

ViewSonic

ViewSonic VX724-1 VS10049 User manual

ViewSonic

ViewSonic VA2718-sh User manual

ViewSonic

ViewSonic LDP135-151 User manual

ViewSonic

ViewSonic VP2365WB - 23" LCD Monitor User manual

ViewSonic

ViewSonic EP2203r User manual

ViewSonic

ViewSonic VG800-2 User manual

ViewSonic

ViewSonic ViewPanel VG191 User manual

ViewSonic

ViewSonic CD4200 - 42" LCD Flat Panel Display User manual

ViewSonic

ViewSonic ViewBoard IFP50 Series User manual

ViewSonic

ViewSonic Q71B - Optiquest - 17" CRT Display User manual

ViewSonic

ViewSonic VLCDS26104-3W User manual

ViewSonic

ViewSonic VX922 - 19" LCD Monitor Quick start guide

ViewSonic

ViewSonic ViewBoard IFP4320 Series User manual

ViewSonic

ViewSonic VA930-1 VLCDS24020-1W User manual

ViewSonic

ViewSonic VE720m-1 User manual

ViewSonic

ViewSonic VG2228WM-LED User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual
