Videosec DALI-424-GC User manual
Dimensions: L48×W28×H14(mm)
Package Size: L50×W40×H30(mm)
Weight(G.W.): 32g
Interface Protocol: DALI (IEC62386)
Power Supply: DALI Bus
Current: ≤ 8mA (static)
Working Temperature: -30℃~55℃
Group Mode：0-15
Main Characteristics
Dimensions Installation Instruction
Address value=the total value of (1-4),
to get the place value when in “on” position,
otherwise will be 0.
Set group address via dip switch:
PC
Small size, easy installation.
No external power supply, simply connected to the DALI bus.
Low voltage operation, safe and reliable.
Applicable to home, oce, hotel, supermarket etc.
Ordinary reset switch can achieve DALI intelligent control.
plastic shell.
Hide this product in the switch box
DALI Group Push Switch
1
DALI-424-GC Group
2

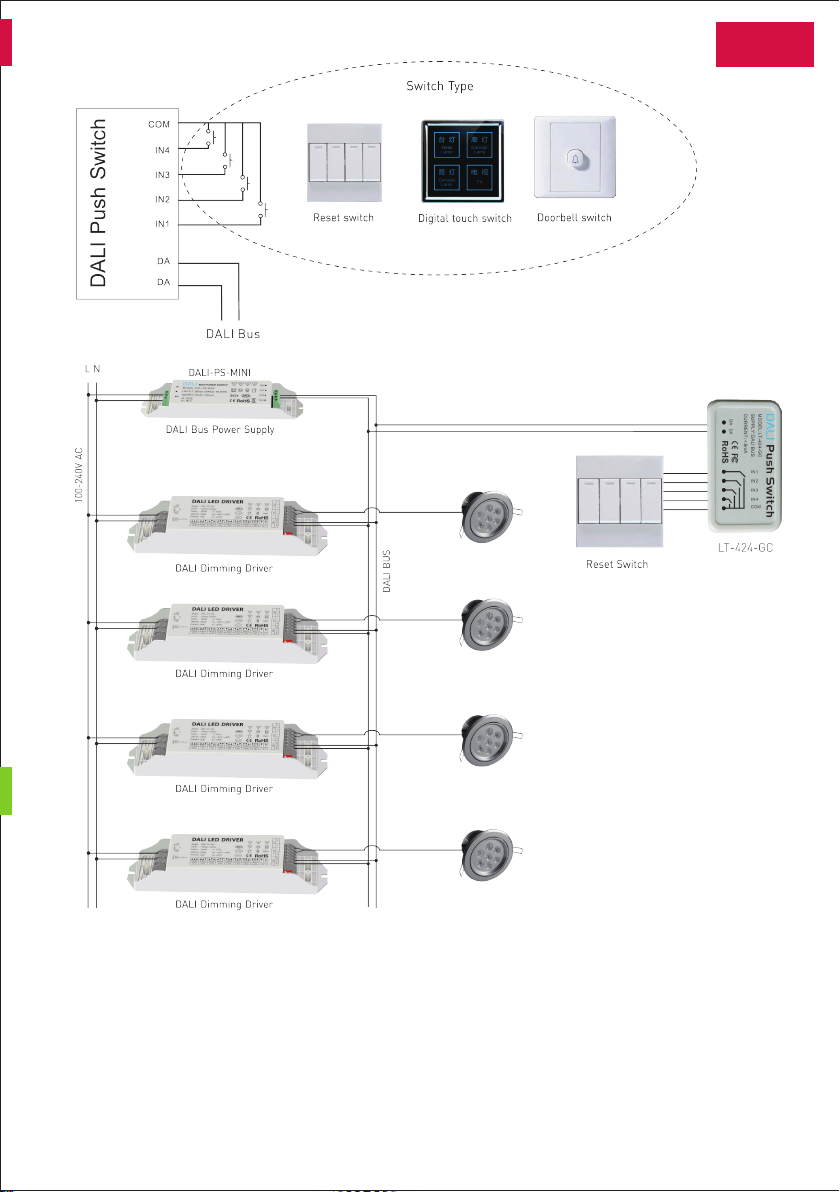

Connections
Update Time: 2015.06.15
1. Disconnect the power supply of all devices on the DALI bus before installing.
Installation:
Note: This product is only suitable for the reset switch. It can be Key 1, Key 2, Key 3 or Key 4.
If the switch failure occurs after pressing,
1. If the connection is correct;
2. Make sure to use the reset switch;
3. Check if the DALI power output is stable.
please check:
Troubleshooting:
3. Open the shell, set up the address.
2. Connect according to the above wiring diagram. DALI bus does not distinguish plus-minus polarity. Meanwhile connected
to the reset switch.
Group
Short Press: Press and release in 1 second to turn on/off.
Long Press: Press for more than 1 second for dimming, first long press is increase brightness,
release and long press again is decrease brightness.
HD
Distributor:
Euro Tech Corporation Ltd.
6724 Szeged, Hungary
Üstökös str. 12/b
