T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

ISDN Primary Rate Interface (PRI) Testing

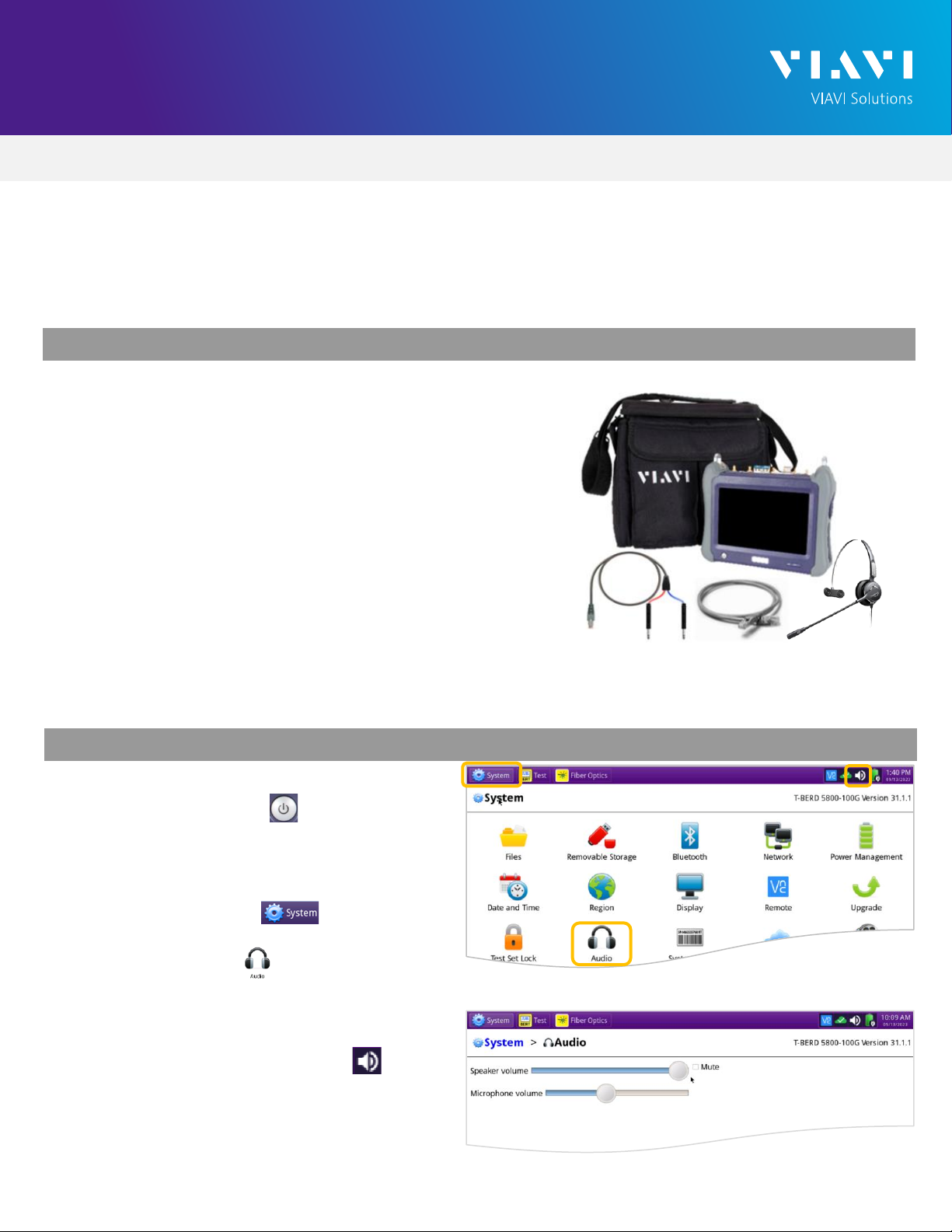

This quick card describes how to configure and run a DS1 ISDN PRI Terminate Test to

validate the provisioning and performance of an ISDN PRI trunk.

•T-BERD/MTS 5800 equipped with the following:

oTransport software release V31.2.1 or greater

oC5E1DS1 test option: E1/DS1 Electrical

oC5DUALPORT test option: Dual Port option

(required on T-BERD 5800-100G only)

•Headset (Plantronics M114, Plantronics M210c, or

BenertechA310QD recommended)

•One of the following T1 cable sets to connect the

T-BERD 5800 DS1 Port(s) to the line under test:

oTwo (2) Bantam to Bantam cables (CB-10615)

oDual Bantam to RJ-48C cable (CB-41645)

oRJ-48C Patch cable (Straight-through or

cross-over depending upon equipment under

test)

Figure 1: Equipment Requirements

CONNECT HEADSET AND CONFIGURE AUDIO SETTINGS

1. Press the Power button to turn on the

T-BERD.

2. Connect the headset to the headset jack on

the side of the T-BERD.

3. Press the System icon in the top left

corner of the screen.

4. Press the Audio icon . Set Speaker

Volume to the maximum setting and set

Microphone Volume to the center setting.

If desired, you can adjust these settings

during the test. The speaker icon

on the top bar of the T-BERD provides a

shortcut to this screen.

Figure 3: Audio Settings

Figure 2: System menu

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

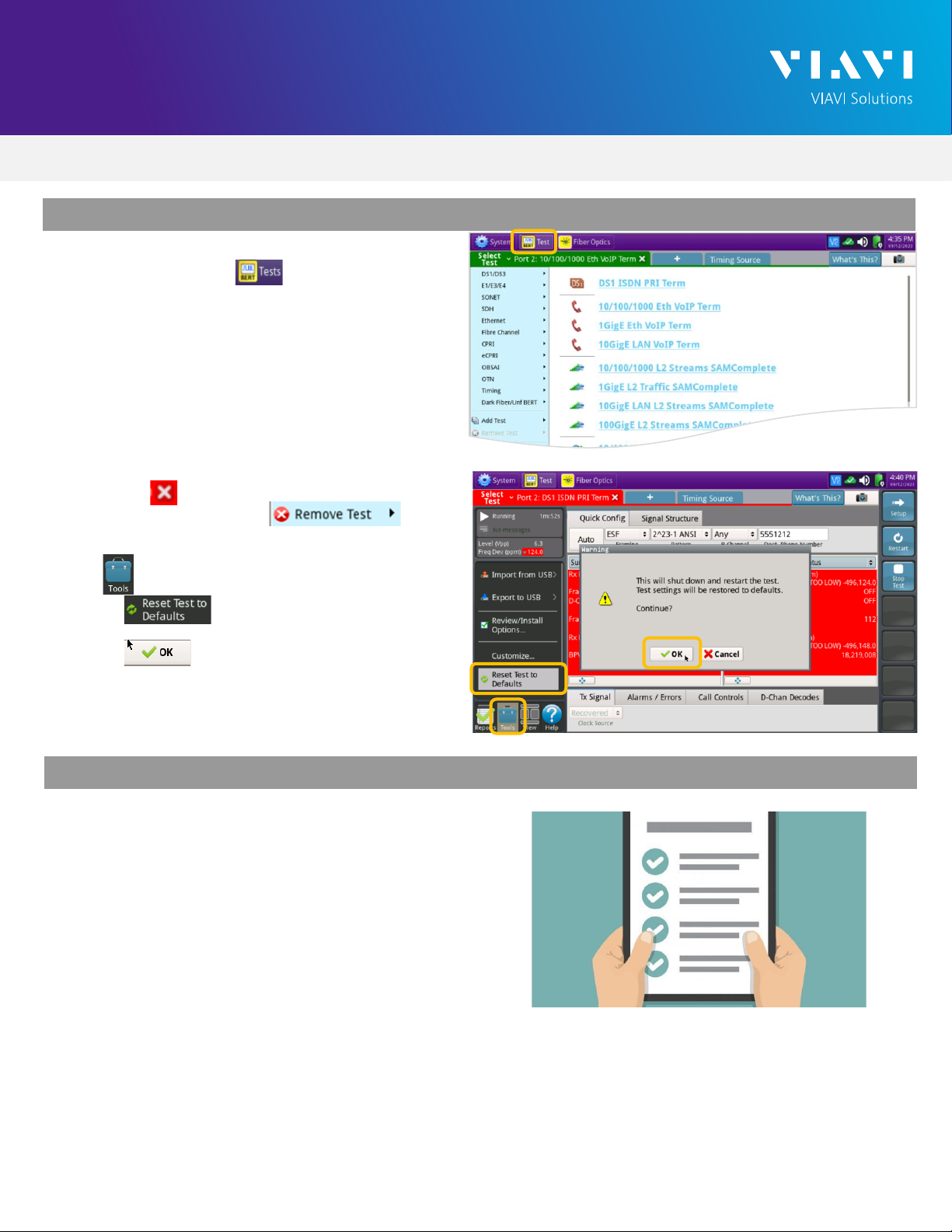

LAUNCH TEST

1. Press the Test icon at the top of the

screen to display the Launch Screen.

2. Using the Select Test menu, Quick Launch

menu, or Job Manager, launch the

DS1/DS3►DS1►DS1 ISDN PRI►

Terminate test.

►Note: If tests have been launched on both

Port 1 and Port 2, you must remove the test

on Port 1 before launching DS1 ISDN PRI.

Tap the icon next to Port 1 tabs in the

Select Test bar or tap in

the Select Test menu to remove the test.

3. Tap to open the Tools Panel and

select .

4. Press to continue.

Figure 4: Launch Screen

Figure 5: Tools Panel

CONFIGURE TEST

•The following Information is needed to

configure the test:

•T1 Line Code (B8ZS or AMI)

•T1 Framing (ESF or D4)

•ISDN Call Control (National,AT&T

5ESS, Nortel DMS 100)

• Customer’s Billing Telephone Number for

the PRI trunk

•Destination Telephone Number(s) for

outbound call testing Figure 6: Work Order

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

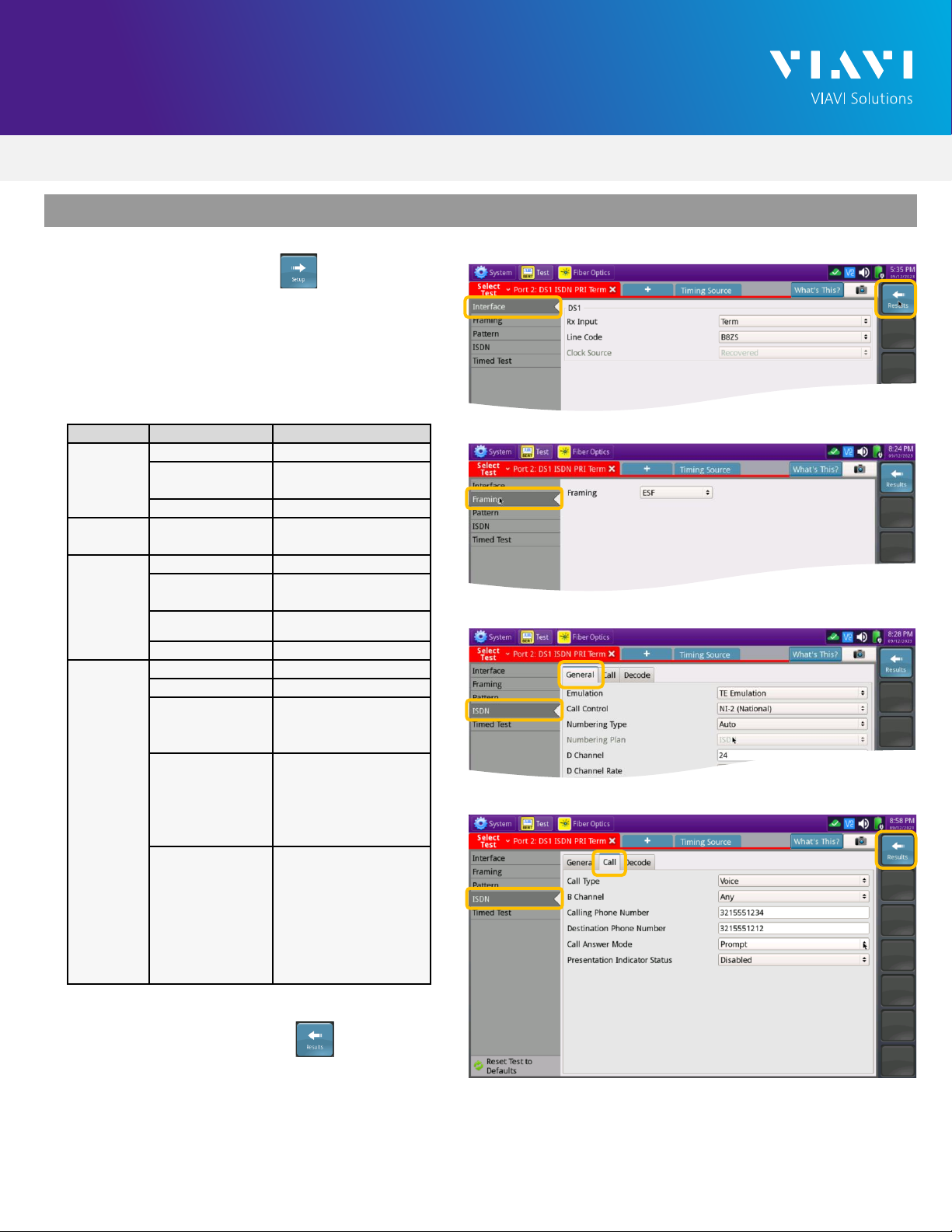

1. Press the Setup soft key on the top right

side of the screen.

2. Select the indicated folders and configure

your test as follows. Leave all other values at

default, unless specified in the work order.

3. Press the Results soft key to view the

Test Results screen.

CONFIGURE TEST

Folder

Option

Value(s)

Interface

Rx Input

Term

Line Code

If unknown,

select “B8ZS”

LBO

0 dB

Framing

If unknown,

select “ESF”

ISDN,

General

Emulation

TE Emulation

Call Control

If unknown, select

“NI

-2 (National)”

Numbering Type

Auto

D Channel

ISDN, Call

Call Type

Voice

B Channel

Any

Calling Phone

Number

Enter Billing

Telephone Number

for the PBX

Destination

Phone Number

Enter your

mobile

phone

number in the

format required for

your dialing area

(usually 10

-digit)

Call Answer

Mode

If you are turning up

new service, Select

“Prompt.” If you are

troubleshooting a

working line and want

to reject inbound

calls, select “Reject.”

Figure 7: Setup, Interface

Figure 10: Setup, ISDN/Call

Figure 8: Setup, Framing

Figure 9: Setup, ISDN/General

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

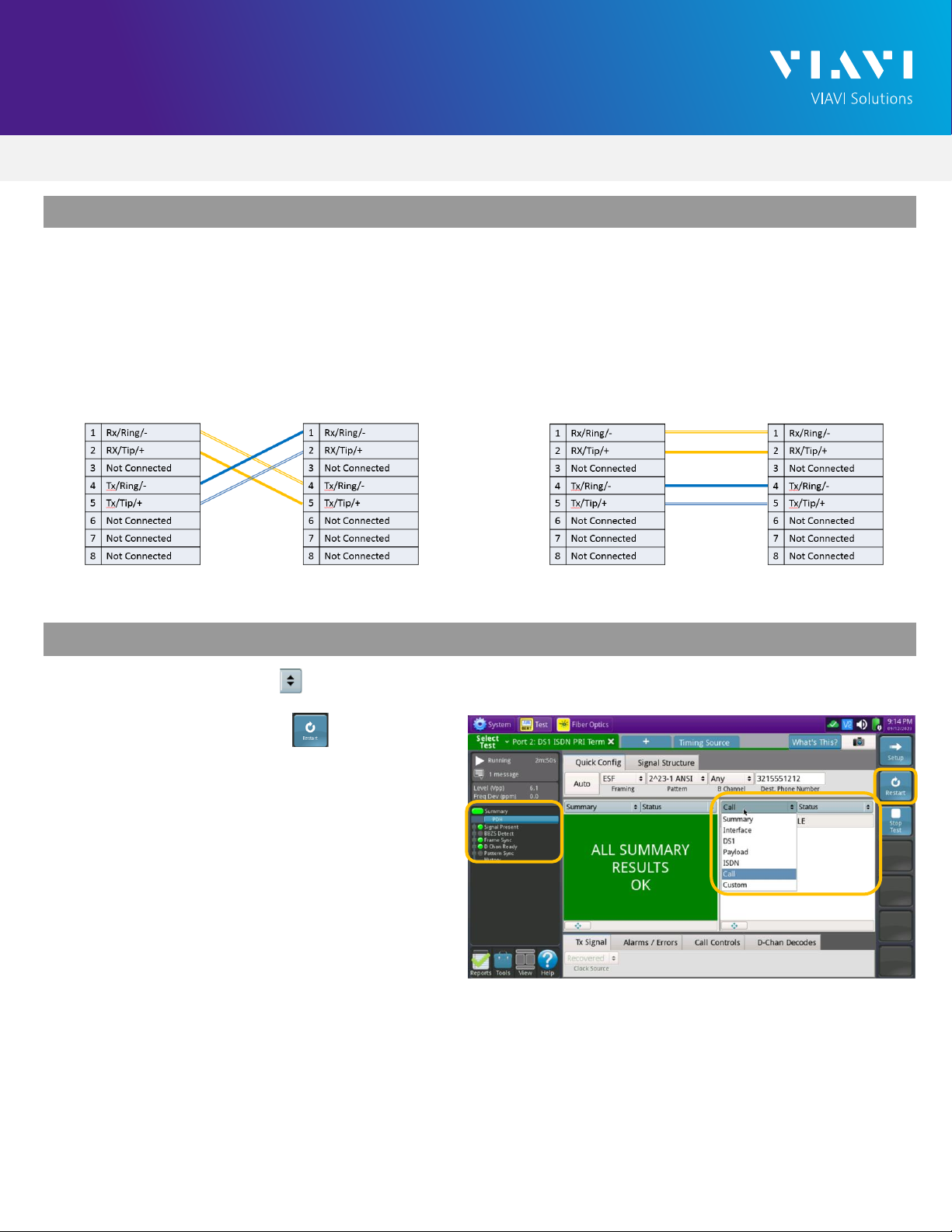

RUN TEST

1. Using drop-down menus , select

“Call/Status” for the right results display.

2. Press the Restart soft key .

3. Verify the following:

►Summary LED is green.

►Signal Present LED is green.

►Frame Sync LED is green.

►D Chan Ready LED is green

If the specified LEDs are not green, check

your cables (Tx and Rx may be reversed)

and check Setup values (page 3).

Figure 13: Results, Interface/Signal

Figure 11: RJ-48C Crossover Cable Figure 12: RJ-48C Straight Through Cable

CONNECT TO LINE UNDER TEST

•T-BERD 5811AND T-BERD 5822 mainframes have both RJ-48C and bantam ports. You may use

either port with Bantam to Bantam, Dual Bantam to RJ-48C, RJ-48C straight through, or RJ-48C

crossover cables to connect the T-BERD to the line under test.

•T-BERD 5882 and T-BERD 5800-100G mainframes have an RJ-48C port. Dual Bantam to RJ-48C,

RJ-48C straight through, or RJ-48C crossover cables may be used to connect the T-BERD to the

line under test.

•Some access devices require cross-over cables, while others require straight through cables.

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

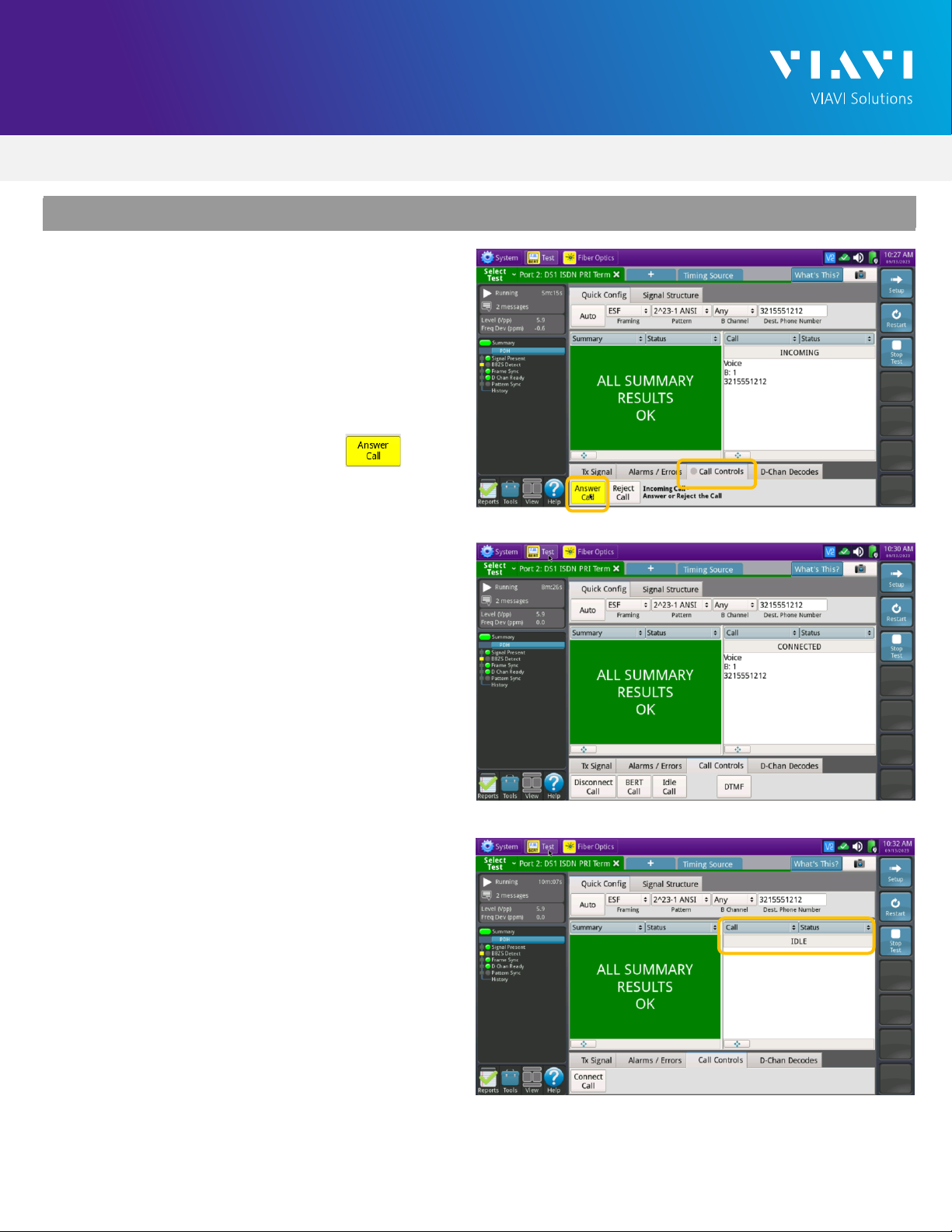

RUN TEST

1. Using your cell phone, dial the billing

telephone number (BTN) for the PBX (or dial

the temporary “test” number if the BTN has

not been ported).

2. In the T-BERD’s Actions Panel, select the

Call Controls tab. Allow the call to ring at

least 2 times. Confirm the Ring back tone is

heard on your cell phone and tap

to answer the call.

3. Put on the headset. If the headset includes

an on/off switch and volume control, turn it

on and adjust the volume to the desired

level.

4. Confirm that voice is heard, and voice quality

is acceptable on both the T-BERD’s headset

and the Cell Phone. If static is heard on your

cell phone, move the microphone boom

farther away from your mouth to avoid

overdriving the microphone.

5. Hang up the call from your cell phone. Verify

that the call status on the T-BERD changes

to IDLE.

Figure 14: Results, Incoming call

INBOUND CALL TESTING

Figure 15: Results, Connected call

Figure 16: Results, Disconnected

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

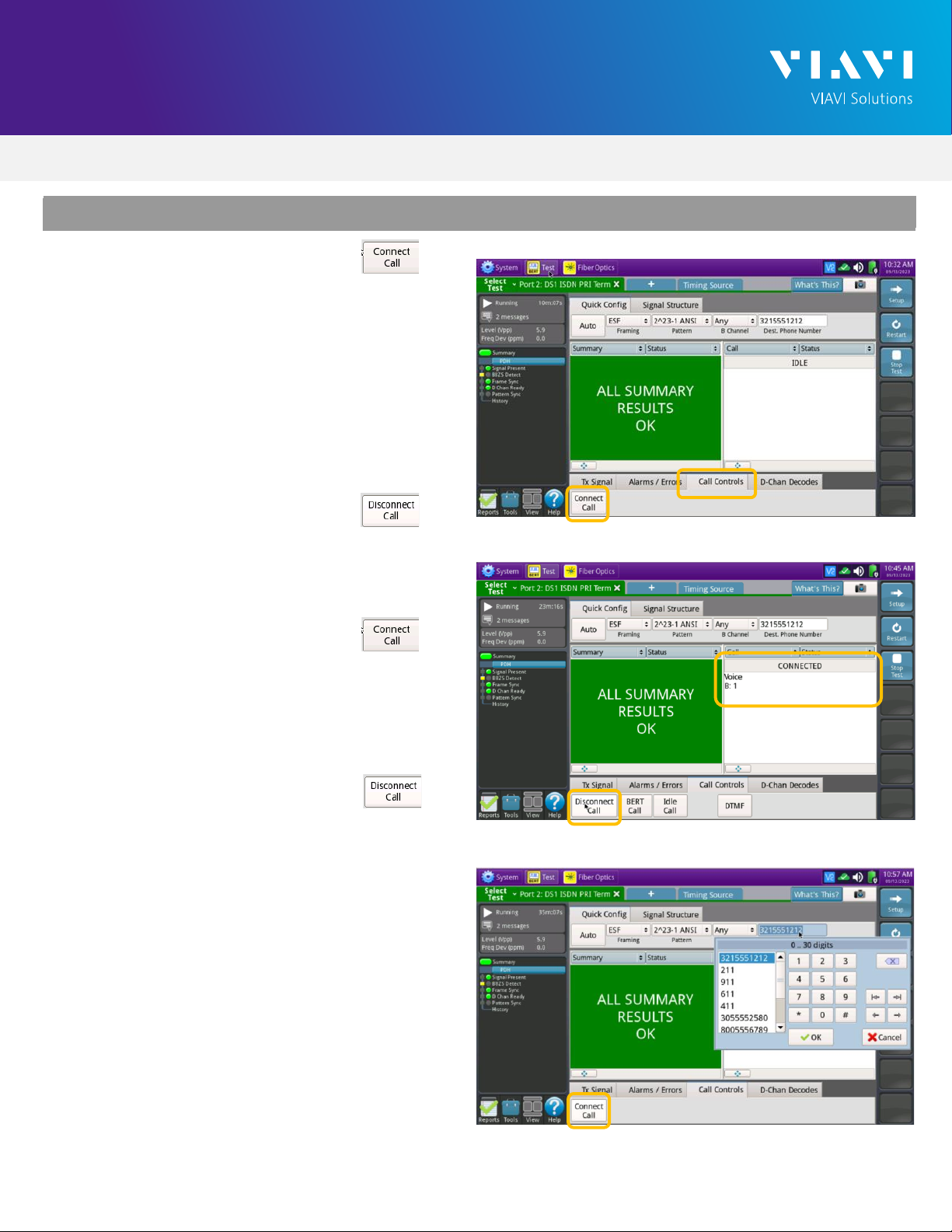

RUN TEST

1. In the T-BERD’s Actions Panel, tap .

The T-BERD will transmit a SETUP message

to initiate the call. Call status is displayed in

the right Results Group.

2. Answer the incoming call on your cell phone.

“CONNECTED” indicates that the call setup

was successful. If the call fails, a cause code

will be displayed.

3. Converse and confirm that voice quality is

acceptable on the T-BERD and the Cell Phone.

4. In the T-BERD’s Actions Panel, tap

to disconnect the call.

5. In the T-BERD’s Quick Config menu, change

“Destination Phone Number” to the next

number in the call plan.

6. In the T-BERD’s Actions Panel, tap .

The T-BERD will transmit a SETUP message

to initiate the call.

7. Converse and confirm that voice quality is

acceptable on the T-BERD and for the called

party.

8. In the T-BERD’s Actions Panel, tap

to disconnect the call.

9. Repeat steps 5 through 8 for all numbers in

the call plan. Call Plans may include:

•Toll Free numbers

•Local off-network and numbers

•Local on-network numbers

•Long Distance numbers

•International numbers

•Blocked Calls

•n11 numbers such as 411 (directory

assistance), 611 (customer service), and

911 (emergency services)

10. Troubleshooting Tip: If outbound calls fail with

cause code “Invalid Number Format”, tap the

Setup soft key and change the “Numbering

Type” setting from “Auto” to “Local” or “National.”

Figure 17: Results, Connect Call

OUTBOUND CALL TESTING

Figure 18: Results, Connected call

Figure 19: Results, Call Plan Testing

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

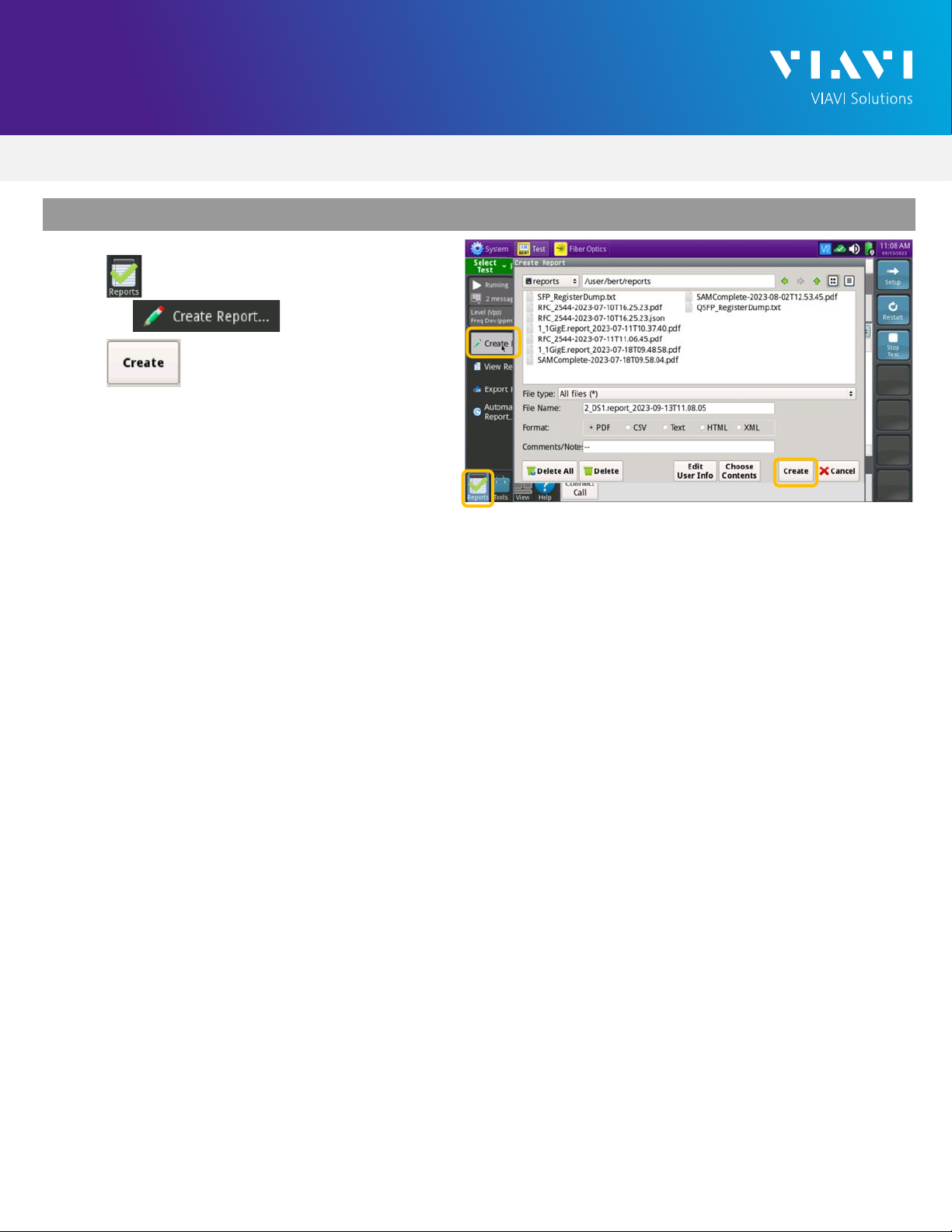

CREATE REPORT

1. Tap to open the Reports Panel and

select . .

2. Tap .

3. A report will be saved to the T-BERD 5800’s

/bert/reports folder.

Figure 20: Create Report
