Instructions for radio receivers
ATTENTION!
Radio transmission is not suitable for safety operations, such
as emergency-stop, emergency call or warning signals.
Ä
Signals are transmitted across the Europe-wide approved 868 MHz fre-
quency band. The radio transmission range largely depends on the con-
structional circumstances of the building. If other adjacent radio devices are
simultaneously sending signals, mutual interferences cannot be debared.
Such interferences can also affect individual units of a group of receivers.
Observing the following instructions will minimize these interferences:
Avoid to mount radio receivers onto or adjacent to metal surfaces.
Maintain minimum 50 cm clearance to consumer loads, such as micro-
wave ovens or TV sets.
Keep a minimum clearance of 50 cm between each mounted radio
receiver.
Keep a minimum clearance of 50 cm between a radio receiver and a
radio transmitter.
If a radio-transmitted command cannot be clearly detected, the command
execution will be suppressed by means of an integrated automatic safety
function. The command must then be issued again.
Replacing the Battery
1. Lever off the transmission group.
2. Replace the battery. Only use batteries of the type CR2032. Make sure
you insert the new battery correctly, the positive pole has to be
visible.
3. Replace the transmission group back onto the catches.
Trouble Shooting
If the radio control does not react to the radio wall switch:
Exchange the battery.
Check that the wireless connection at the installation site is not impaired between
the radio wall switch and the receiver.
Memorize the transmission code in the receiver.
Other wireless devices using the same frequency or working in direct proximity
may interfere with the device.

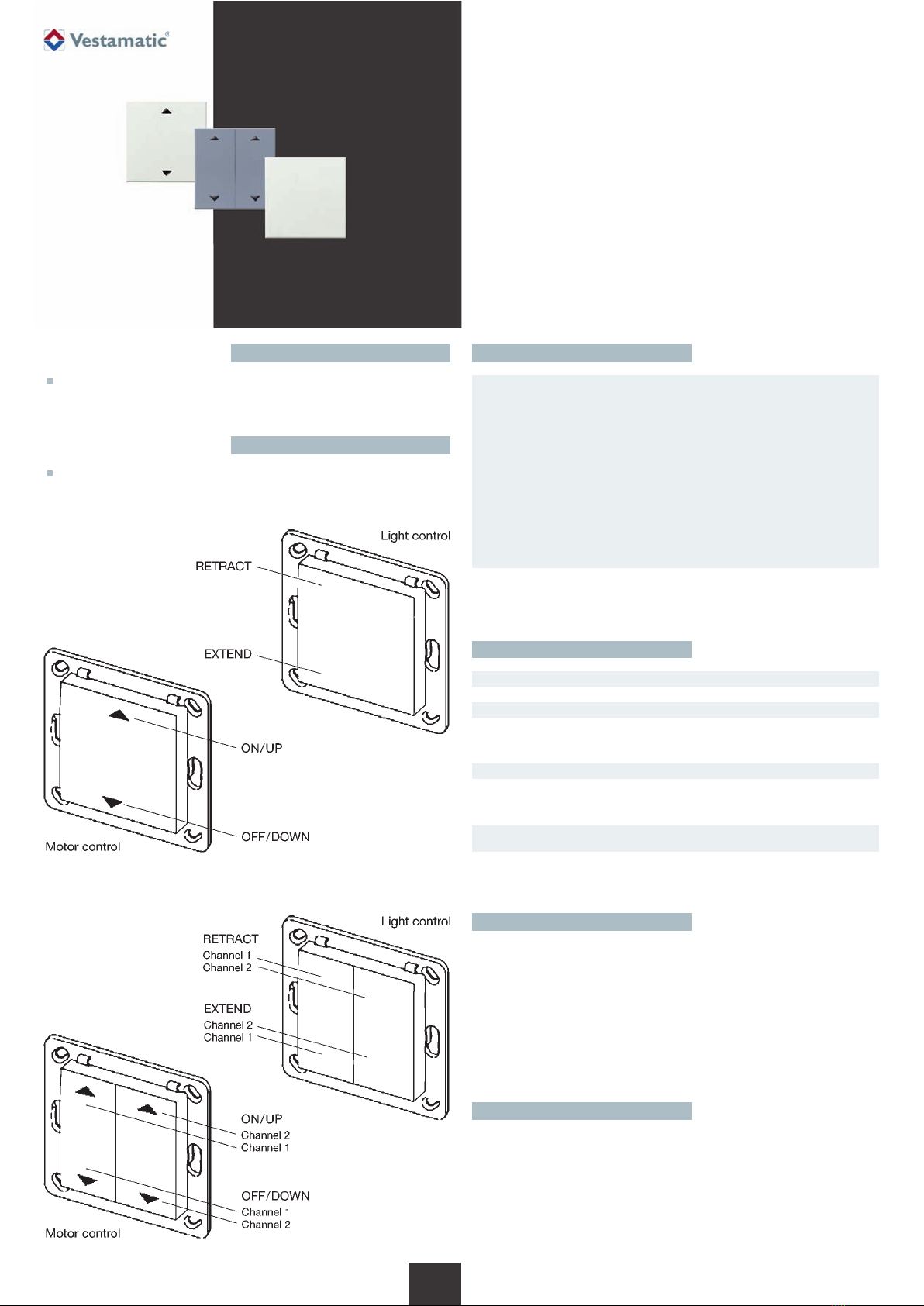

VRS Switch
Note:
The coding of the transmiter is preserved even if there is no power
supply. You do not need to memorize the code in the receivers
again after a battery change.
i

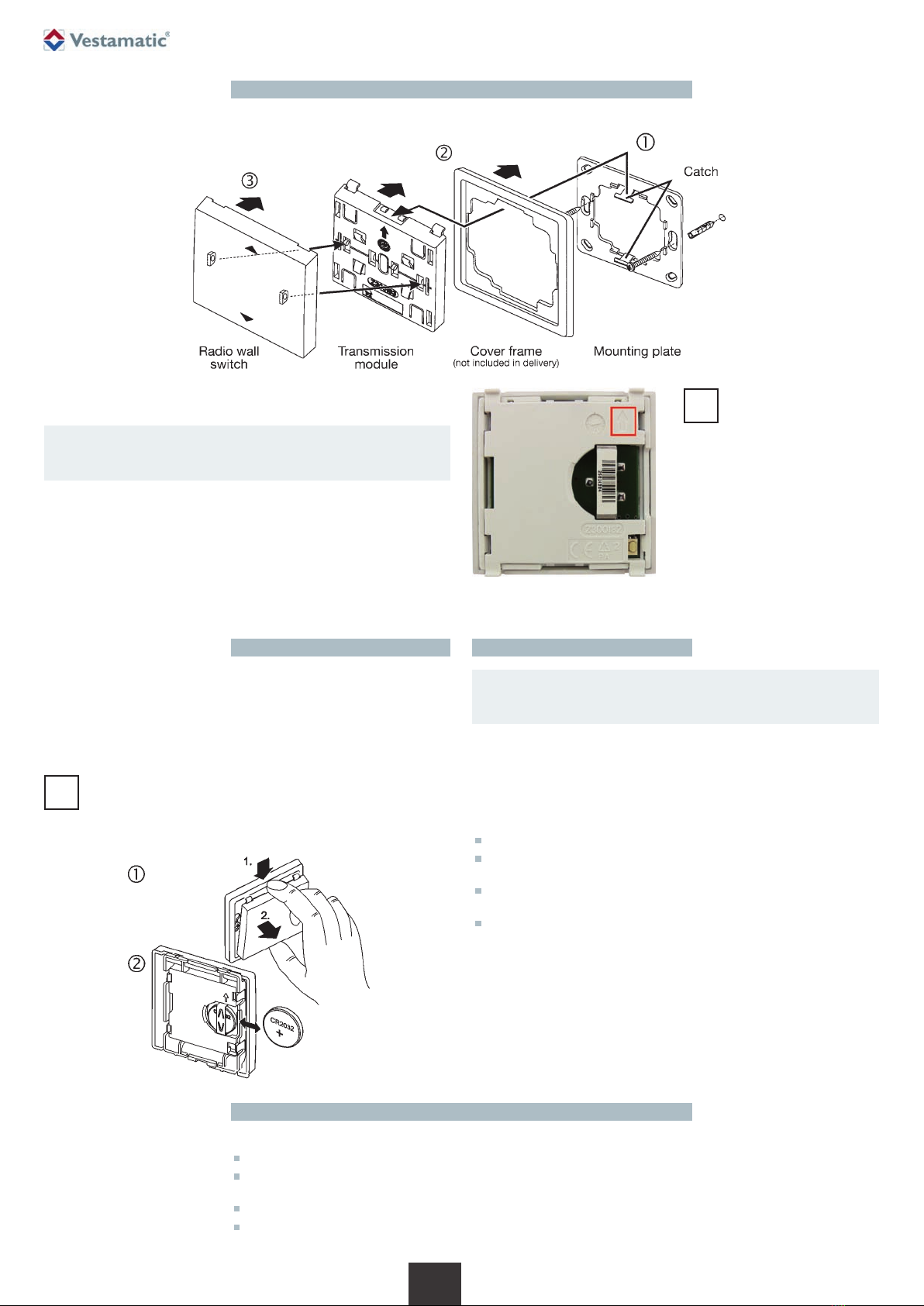

Installation / Start-up
The wall transmitter exists of the following components (incl. battery + attachment set):
1. Screw or stick the mounting plate to the installation site with the screws
and dowels or the adhesive pads.
2. Place the cover frame onto the mounting plate and snap the transmis-
sion module to the catches on top and bottom. The arrow on the trans-
mission module has to point upwards.
3. Snap the radio wall switch onto the transmission module.
4. Snap the radio wall switchonto the transmission module.Please
read the operating instructions supplied with the receivers.
CAUTION!
Please note the chapter “Instructions for radio receivers” on
the next page.
ÄInstallation note:
While installing the wall remote,
please ensure that the arrow on the
back is facing the ceiling.
