Reference
Manual
DOC. REV. 4/9/2013
VL-ENCL-5
Development
Enclosure
VL-ENCL-5 Reference Manual ii
WWW.VERSALOGIC.COM
12100 SW Tualatin Road
Tualatin, OR 97062-7341
(503) 747-2261
Fax (971) 224-4708
Contents Copyright ©2013
All Rights Reserved
Notice:
Although every effort has been made to ensure this document is error-free, VersaLogic makes no
representations or warranties with respect to this product and specifically disclaims any implied warranties
of merchantability or fitness for any particular purpose.
VersaLogic reserves the right to revise this product and associated documentation at any time without
obligation to notify anyone of such changes.
PC/104 and the PC/104 logo are trademarks of the PC/104 Consortium.
The SUMIT name and logo are trademarks of the Small Form Factor Special Interest Group.
VL-ENCL-5 Reference Manual iii
Table of Contents
Introduction...............................................................................................................................1
Description....................................................................................................................................... 1
Features............................................................................................................................... 1
Models ................................................................................................................................ 1
Technical Specifications.................................................................................................................. 2
Accessories / Options ...................................................................................................................... 2
Recommended Tools ....................................................................................................................... 2
Parts List .......................................................................................................................................... 3
Metal Parts .......................................................................................................................... 3
Hardware............................................................................................................................. 3
Front and Back Panels .............................................................................................................4
VL-ENCL-5A Front Panel............................................................................................................... 4
VL-ENCL-5B Front Panel............................................................................................................... 4
VL-ENCL-5C Front Panel............................................................................................................... 5
VL-ENCL-5D Front Panel............................................................................................................... 5
Installation.................................................................................................................................7
Procedure ......................................................................................................................................... 7
Enclosure Lid ..........................................................................................................................12
Installation ..................................................................................................................................... 12
VL-ENCL-5 Reference Manual 1
Introduction
Description
The VL-ENCL-5 provides easy access, superb protection and portable convenience for products
under development. A single board computer (SBC), EBX, EPIC or PC/104 format, installs on
top of the unit and I/O device cables attach to the front panel for making connections easier.
FEATURES
Low cost enclosure for prototype and
development use
Front connector panel for easy
accessibility
Lid accommodates up to two PC/104
boards on top of the SBC (or one
expansion board with a dual-board
computer)
Provides full access to the top of the
SBC
Properly supports SBC for repeated
insertion and removal of PC/104
expansion modules (without excess
board flex)
Protects system components during
development
Provides system portability during
development
Improves appearance of system for
demonstration purposes
Accommodates:
EBX, EPIC, PC/104, PC/104-Plus, and
SUMIT SBCs
PC/104 expansion boards
2.5” or 3.5”hard drive
ATX style power supply
5.25” CD-ROM drive
MODELS
There are four models of the VL-ENCL-5, which accommodate computers with different
interfaces and breakout boards. See KnowledgeBase article VT1630 - VL-ENCL-5 Models for
VersaLogic SBCs for information on the appropriate VL-ENCL-5 model for your computer.
Model
Front Panel Cutouts
Drive Bays
VL-ENCL5a
COM (4), USB (4), LPT/floppy, PS/2
mouse, PS/2 keyboard, audio in, audio out,
digital I/O, analog I/O, LEDs, reset button
One 3.5”/2.5” internal drive bay, one 5.25”
external access drive bay.
VL-ENCL5b
COM (4), video out, LPT, PS/2 mouse,
PS/2 keyboard, Ethernet (2), LEDs, reset
button, speaker.
One 3.5”/2.5” internal drive bay, one
external access 3.5” floppy drive bay, one
5.25” external access drive bay.
VL-ENCL5c
COM (4), video out, LPT, Ethernet, PS/2
(2) or USB (4), depending on cable used,
LEDs, reset button.
Two 3.5”/2.5” internal drive bays, one 5.25”
external access drive bay.
VL-ENCL5d
COM (2), USB (3), video out, audio in,
audio out, power, LEDs, reset button.
Two 3.5”/2.5” internal drive bays, one 5.25”
external access drive bay.
The back panel of all models includes cutouts for CompactFlash, Ethernet (2), video, USB (2),
audio in, audio out, and mic.
VL-ENCL-5 Reference Manual 2
Technical Specifications
Size:
13.12”W x 10.2”D x 4.5”H
Connector Panel:
Accommodates (depending on configuration) VGA, PS/2 keyboard and mouse, COM (4), LPT,
RJ45 (Ethernet, 2), USB (4), sound and mic jacks, reset switch, LEDs (2), speaker, 50-pin cable
exit slot, CompactFlash
Expansion Modules:
Accommodates two PC/104 boards on EBX and EPIC form factor SBCs (or one expansion board
with a dual-board computer)
Material:
Light gauge steel
Finish:
Black powder coat
Accessories / Options
The following accessories and options for the VL-ENCL-5 are available from VersaLogic:
VL-CDD-IDE1 CD-RW, DVD-ROM, Internal
VL-ENCL-3HS Handle set
VL-ENCL5LID Tilt lid for VL-ENCL-5
VL-FDD-144 3.5” floppy drive, 1.44 MB
VL-HDD-35-xx 3.5” hard drive
VL-HDW-101 Metric standoff package - PC/104
VL-HDW-105 Metric standoff package - SUMIT
VL-HDW-201 PC/104 extractor tool
VL-HDS35-320 320 GB 3.5” SATA hard drive
VL-PS200-ATX 200 watt ATX style power supply
Recommended Tools
ESD protected work area
3/16” and 7/32” hex drivers
Flathead screwdriver
Needle nose pliers
Phillips screwdriver
VL-ENCL-5 Reference Manual 3
Parts List
The enclosure includes the following hardware:
METAL PARTS
Enclosure base
Enclosure top
Front panel
Drive mounting bracket
HARDWARE
Screws for assembly of metal parts
(15) Enclosure attachment screw 4-40 x 1/4”
(2) Enclosure attachment screw 6-32 x 3/8”
Enclosure mounting feet for stability on the bench top
(4) Rubber feet
Hardware kit HDW-ENCL5 for the installation of circuit board hardware and devices
(7)
D-Sub jack screw sets for attaching connectors to front and rear
panels
(20)
M3 nuts for use with hex standoffs
(12)
Black Phillips pan head screws, 6-32 x 1/4”, for use in securing
drives and devices
(32)
Phillips pan head screws, 3mm x 6mm, for use in securing drives
and standoffs
(4)
5mm x 10mm M3 hex standoff for use in mounting EPIC paddle
board
(12)
5mm x 15.24mm M3 hex standoff (brass with black oxide) for use
in mounting SBC and paddle boards
VL-ENCL-5 Reference Manual 4
Front and Back Panels
VL-ENCL-5 models have different front panels to accommodate various VersaLogic breakout
board and connector configurations. Each front panel option is shown below.
VL-ENCL-5A Front Panel
Figure 1. VL-ENCL-5A Front Panel
VL-ENCL-5B Front Panel
Figure 2. VL-ENCL-5B Front Panel
VL-ENCL-5 Reference Manual 5

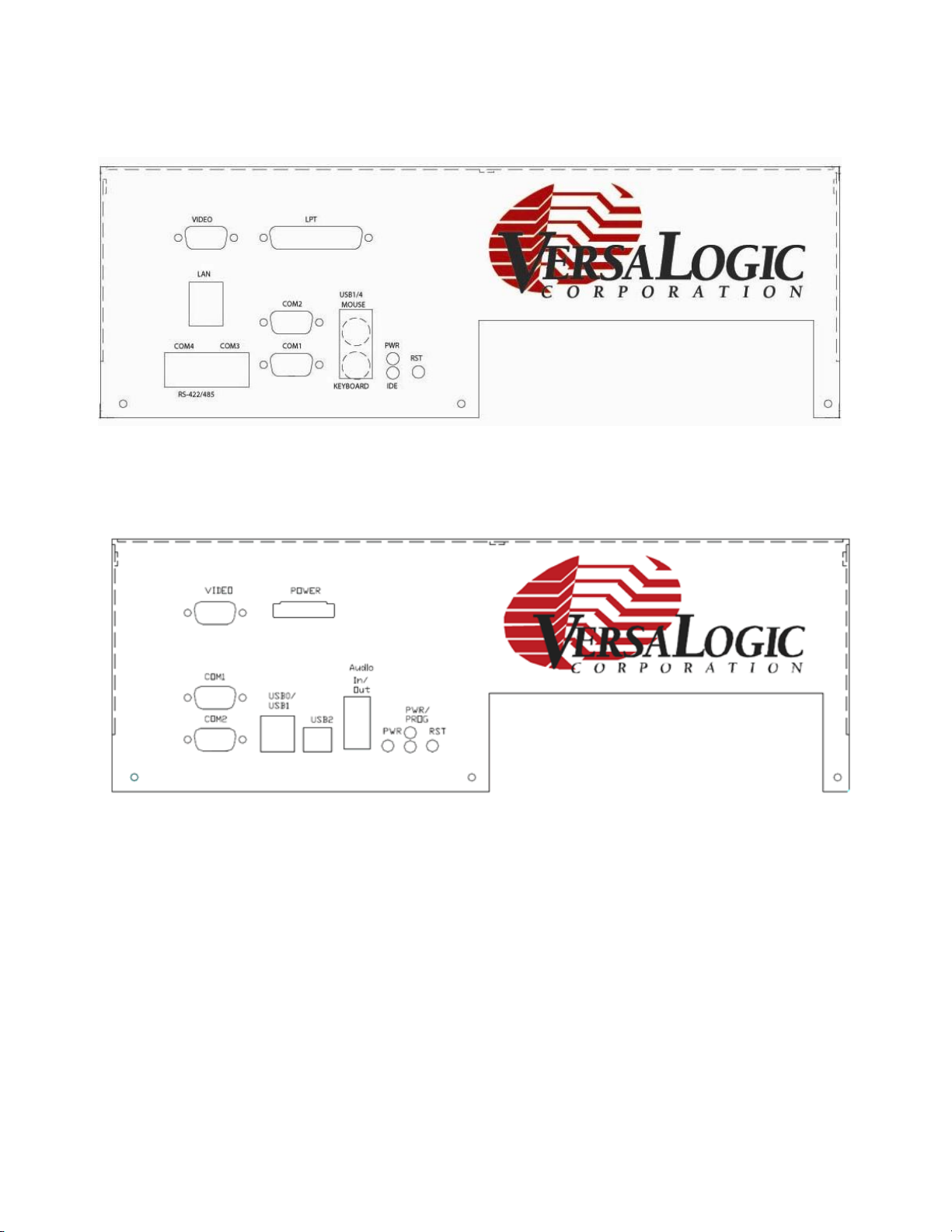

VL-ENCL-5C Front Panel
Figure 3. VL-ENCL-5C Front Panel
VL-ENCL-5D Front Panel
Figure 4. VL-ENCL-5D Front Panel
VL-ENCL-5 Reference Manual 6
Figure 5. VL-ENCL-5 Back Panel (All Models)
ETHERNET
ETHERNET
COMPACT FLASH
VIDEO
USB3
USB4
AUDIO
IN
OUT
MIC
CBL-4404
