Veris HT Series User manual

Installation Guide

Humidity

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

NOTICE

• This product is not intended for life or safety applications.

• Do not install this product in hazardous or classied locations.

• Read and understand the instructions before installing

this product.

• Turn oﬀ all power supplying equipment before working on it.

• The installer is responsible for conformance to all applicable codes.

No responsibility is assumed byVeris Industries for any consequences arising out of the

use of this material.

Product Identiﬁcation

Product Overview

The HT relay series has dual outputs to measure temperature and humidity of the air inside a room. They are

designed for use in hospital rooms, laboratories, and other spaces that require precise environmental control.

Two separate relays control the setpoints for heating and cooling when in thermostat mode or humidifying and

de-humidifying when in humidistat mode. The slide switch position determines the output type (amp or volt). To

maintain accuracy, keep vents clear of dust, debris, etc. The HT is warranted for period of ve years.

HT Series

Wall Mount with Relay Setpoints, LCD, and

Humidistat and Thermostat Control

SetpointAccuracy NIST

= Relay1 = 1%

2 = 2%

3 = 3%

5 = 5%

Temp Cal

Certiﬁcate

0 = None

1 = 1 point Cal

Validation

2 = 2 point Cal

Validation

Option

N = NIST (1 & 2% only)

X = No (2, 3, 5% only)

= CE

B = 100R Platinum, RTD

C = 1k Platinum, RTD

D = 10k T2, Thermistor

E = 2.2k, Thermistor

F = 3k, Thermistor

G = 10k CPC, Thermistor

H = 10k T3, Thermistor

I = 1k Balco (nickel-iron) RTD

J = 10k Dale,Thermistor

K = 10k w/11k shunt,Thermistor

M = 20k NTC, Thermistor

N = 1800 ohm TAC, Thermistor

Q = 1uA/C, Linitemp

R = 10k US, Thermistor

S = 10k 3A 221, Thermistor

T = 100k, Thermistor

U = 20k“D”, Thermistor

W = 10k T2 high accuracy, Thermistor

Y = 10k T3 high accuracy, Thermistor

Z = 10k E1, Thermistor

CC= 15k, Thermistor

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

Installation Guide

Humidity

HTSeries TM

Input Power 15 to 30VDC/24VAC, 100mA max.

Outputs Switch-selectable amp or volt (switch affects both temp and

humidity outputs)

If volt is selected, the conﬁguration menu allows selection

between 0-5V or 0-10V

Setpoint Relays 2 Form C (SPDT), 1A 30VDC, resistive, 30W max

RH Sensor* Digitally proﬁled thin-ﬁlm capacitive (32-bit mathematics)

U.S. Patent 5,844,138

RH Accuracy at 25°C from 10-80% RH**

(Multi-point Calibration NIST traceable)

±1% at 12-40% RH in mA output mode;

±1% at 30% RH in voltage output mode

Reset Rate†24 hours

Stability ±1% @ 20°C (68°F) annually, for two years

Hysteresis RH: 1.5% (typical)

Deadband RH: 1 to 10% in 1% increments

Temp: 1 to 10°F or 1 to 5°C in 1° increments

Linearity Included in Accuracy spec.

Operating Humidity Range 0-100% RH (non-condensing)

Temperature Coefﬁcient ± 0.1%RH/ °C above or below 25°C (typical)

Operating Temperature Range 10° to 35°C (50° to 95°F)

Temperature Accuracy ± 1.0°C ( ± 1.8°F)

Analog Output Scaling RH: 0-100% RH; Temp: 10° to 35°C (50° to 95°F) or 0° to 50°C

(32° to 122°F) menu selectable‡

Calibration Offset RH: Adjustable ±9.9% in 0.1% increments;

Temp: Adjustable ±9.9° (C or F) in 0.1° increments

Setpoint Range RH: 10-80% RH in 1% increments;

Temp: Minimum to Full Scale in 1° increments

* The HS sensing element has a 1-year warranty. The element is not a part of the 5-year product warranty.

** Accuracy is speciﬁed with 24 VDC supplied power with rising humidity.

†Reset Rate is the time required to recover to 50% RH after exposure to 90% RH for 24 hours.

‡If the 0° to 50°C (32° to 122°F) scaling range is selected, the device’s operating temperature range still applies.

One side of the transformer secondary is connected to the signal common, so an isolation transformer or

dedicated power supply may be required.

RTD/Thermistors in wall packages are not compensated for internal heating of the product.

EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper

surge protection (EN 61000-6-1:2007 speciﬁcation requirements).

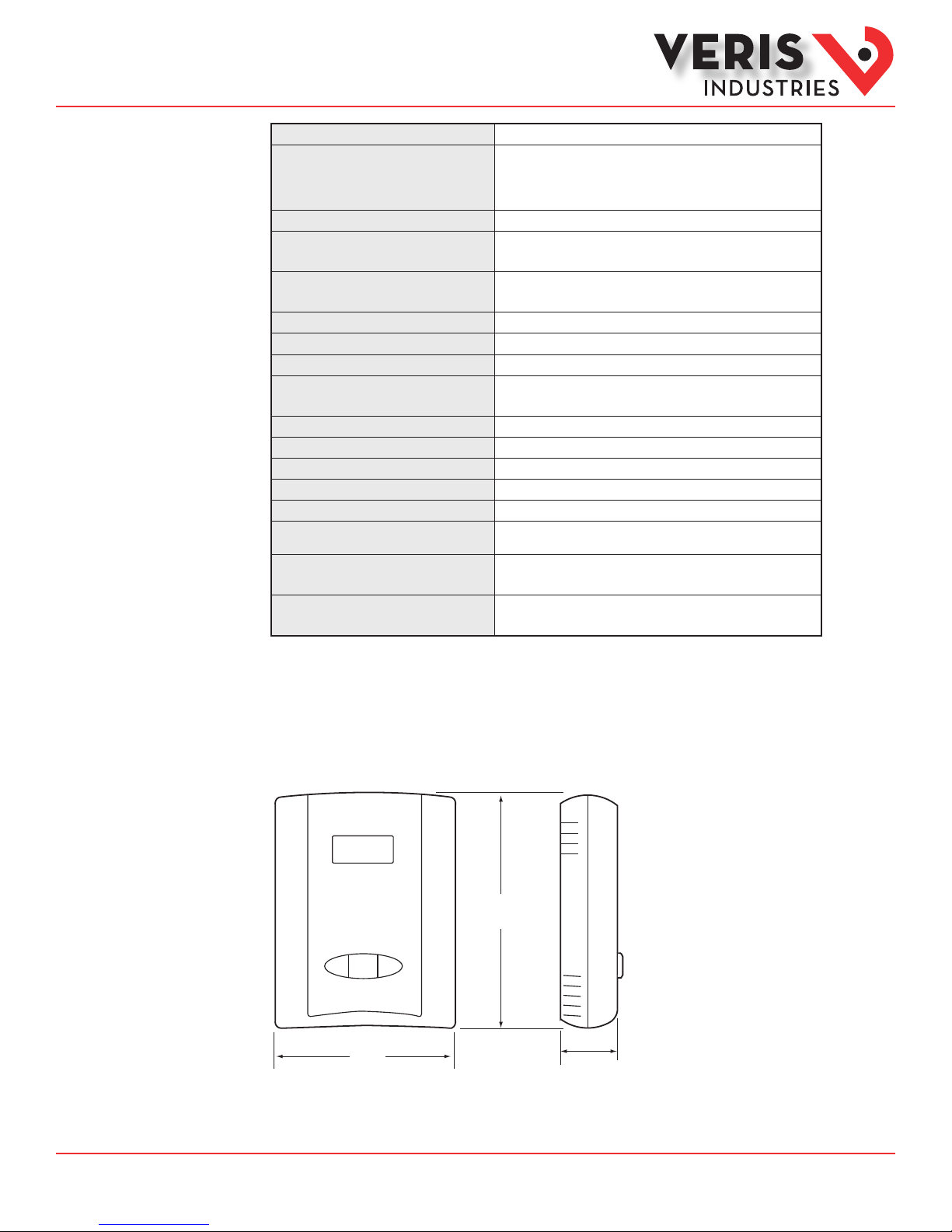

Speciﬁcations

Dimensions

1.2"

(29 mm)

3.5"

(89 mm)

4.75"

(121 mm)

- +

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

Installation Guide

Humidity

HTSeries TM

Installation

Observe precautions for handling static sensitive

devices to avoid damage to the circuitry that

is not covered under the factory warranty.

1. Locate the tab at the top of the sensor housing. Using only the minimum required force, press this tab down and pull the cover

outward from the top. Set the cover aside.

Housing, Top View

Tab

2. Remove the backplate by unfastening the sensor from the bottom of the backplate and pivoting the sensor outward.

3. Punch out wire opening in the backplate.

4. Position the backplate vertically on the wall, 4 ½ feet (1.4 m) above the oor. Locate away from windows, vents, and other

sources of draft. If possible, do not mount on an external wall, as this might cause inaccurate temperature readings.

5. Mount the backplate onto the wall using the screws provided.

Five screwholes available; use a minimum

of two for secure mounting.

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

Installation Guide

Humidity

HTSeries TM

6. Wire the backplate.

POWER SOURCE

15 to 30VDC or 24VAC

DIGITAL CONTROL

RH Input

Temp Input

Thermistor/RTD Input

Heat/Humidify Alarm

Cool/De-Humidify Alarm

Comm alarm

RH Output

GND

Heat/Hum. Alarm

Comm Alarm

Temp output

Thermistor/RTD

Cool/De-Hum. Alarm

7. Install and congure the sensor.

NOTICE

RISK OF EQUIPMENT DAMAGE

 Ensure that the output selection is correct before applying power.

Failure to follow these instructions may result in permanent

equipment damage.

SENSOR TEMP

SENSOR

YES

AMP VOLT

NO YES

RUN

CAL

TEMP

–

Minus Select Plus

RUN/CAL Jumper:

CAL Mode - allows full access to all features.

RUN Mode - allows access to relay setpoints ONLY.

RH YES/NO Jumper:

YES - allows user to change RH setpoint

NO - user can NOT change RH setpoint

TEMP YES/NO Jumper:

YES - allows user to change temp setpoint

NO - user can NOT change temp setpoint

8. When the installation is complete, replace the cover and snap it into position.

Installation (cont.)

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

Installation Guide

Humidity

HTSeries TM

1. Temperature calibration allows for a calibration oset of ±9.9° (C or F), at the user’s discretion.

2. Relative humidity allows for a calibration oset of ±9.9% RH, at the user’s discretion.

RH and temperature can be eld calibrated by moving the RUN/CAL jumper to the CAL position.

Calibration

Instructions

- +

Display screen

Scroll down

Select

Scroll up

Normal Operation

4 5 . 5 % R H

6 8 . 5 º F

NORMAL MODE

Temperature Selection

Use the (+) and (-) buttons to scroll to the Thermostat mode:

S E T P O I N T

7 0 F

Press +/- to change the setpoint value.

When the desired setpoint appears,

press the Select button to select.

The setpoint is in ˚C if Celsius units are selected.

Humidity Selection

Use the (+) and (-) buttons to scroll to the Humidistat mode:

Press +/- to change the setpoint value.

When the desired setpoint appears,

press the Select button to select.

S E T P O I N T

4 5 % R H

Operation

Instructions

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

Installation Guide

Humidity

HTSeries TM

Menu Options

O U T P U T

0 - 1 0 V

U N I T S

* º F º C

CONFIG/CAL MODE

(Enter by any keypress when

Run/Cal jumper is in CAL position)

4 5 . 5 % R H

6 8 . 5 º F

NORMAL MODE

R E L A Y S

* R H T

C A L T

+ 0 . 0 F

C A L R H

+ 0 . 0 %

T E M P S E T

+ 5 0 + 9 5

S E T P O I N T

4 5 % R H

S E T P O I N T

7 0 F

- OR -

D E A D B A N D

5 % R H

D E A D B A N D

4 F

Output Scaling

(does not aect LCD display)

Only for switch in

Volts position

Press +/- to change, press Select button to select.

Setpoint in ˚C if Celsius units are selected.

Press +/- to change, press Select button to select.

Deadband in ˚C if Celsius units are selected.

Press +/- to change, press Select button to select.

Setpoint in ˚C if Celsius units are selected.

Press +/- to change, press Select button to select.

Options are 10˚ to 35˚C (50˚ to 95˚F) or 0˚ to 50˚C (32˚ to 122˚F).

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

Other companies’ trademarks are hereby acknowledged to belong to their respective owners.

Installation Guide

Humidity

HTSeries TM

Observe precautions for handling static sensitive

devices to avoid damage to the circuitry that

is not covered under the factory warranty.

1. Disconnect power to the unit.

2. Remove the faceplate.
