Vent-Axia Solo Pro SELV Series Assembly instructions

SELV RANGE

Installation and Wiring Instructions

Stock Ref. N°

Solo Pro SVP 409163

Solo Pro SVT 409164

Solo Pro SVHTP 409165

PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.

PLEASE SAVE THESE INSTRUCTIONS.

Solo Pro

IPX7

FAN UNITS 12V 50Hz SELV (CLASS III)

CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II)

WITH 12V 50Hz SELV OUTPUT

Installation and Wiring Instructions for the Solo Pro SELV Fans and Controllers.

IMPORTANT:

READ THESE INSTRUCTIONS

BEFORE COMMENCING THE

INSTALLATION

DO NOT install this product in areas where the following may be present or occur:

•Excessive oil or a grease laden atmosphere.

•Corrosive or flammable gases, liquids or vapours.

• Ambient temperatures higher than 40°C or less than –5°C.

• Possible obstructions which would hinder the access or removal of the Fan.

SAFETY AND GUIDANCE NOTES

A. All wiring to be in accordance with the current I.E.E.

Regulations, or the appropriate standards of your country

and MUST be installed by a suitably qualified person.

B. The Fan should be provided with a local isolator switch

capable of disconnecting all poles, having a contact

separation of at least 3mm.

C. Ensure that the mains supply (Voltage, Frequency, and

Phase) complies with the rating label.

D. The Fan should only be used in conjunction with the

appropriate Vent-Axia products.

E. The fan should only be used in conjunction with fixed wiring.

F. When the Fan is used to remove air from a room containing

a fuel-burning appliance, ensure that the air replacement is

adequate for both the fan and the fuel-burning appliance.

G. The Fan should not be used where it is liable to be subject

to direct water spray for prolonged periods of time.

H. Where ducted Fans are used to handle moisture-laden air, a

condensation trap should be fitted. Horizontal ducts should

be arranged to slope slightly downwards away from the Fan.

I. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

J. Young children should be supervised to ensure that they do

not play with the appliance.

IMPORTANT:- ONLY CONNECT TOGETHER PRODUCTS FROM THE SOLO PRO

SELV RANGE SINCE THE FANS ARE SPECIALLY DESIGNED TO WORK ON 12V

AC AND ARE NOT COMPATIBLE WITH OTHER VENT-AXIA CONTROLLERS. DO

NOT CONNECT MORE THAN ONE FAN TO THE CONTROLLER.

DESCRIPTION

The Solo Pro SELV fan is an extract fan for bathrooms and toilets specifically designed

for ducted applications. Pullcord, Timer, and Humidity options are available.

ACCESSORIES (not supplied)

WALL FITTING KIT

A range of white (stock ref. 254102) or brown (stock ref. 254100) 100mm wall kits are

available for installing into most walls using telescopic liners supplied.

WINDOW FITTING KIT

A window fitting kit is available. Stock reference 11461685.

A. INSTALLATION

SITING THE CONTROLLER

1. The controller must not be installed in a shower cubicle or enclosure. It must be

sited away from direct sources of water spray and out of reach (1.5m) of a person

using a fixed bath or shower.

2. Site away from direct sources of heat. Ambient temperature range 0 to 40ºC. Do

not site in an area containing excessive levels of grease.

3. Decide where to site the controller and fan (see section siting the fan), and work

out the required cable runs.

PANEL/CEILING MOUNTING – (FIG.4.)

1. Cut a 105mm diameter hole.

2. Remove the front panel by carefully pulling it away from the fan.

3. Loosen the two self-retaining screws and remove the inner cover by carefully

pulling it away from the housing.

4. Remove the impeller by carefully pushing the retaining clips together.

5. Remove the PCB cover by loosening the two screws and pulling it out of the fan

housing.

6. Mark the screw centres through the holes in the fan back plate. Drill, plug and

screw into position. Attach ducting and back draught shutters as required for the

installation.

7. Wire the fan as described in Section B-Wiring. Adjust any settings as required

(see Section C-Setup).

8. Replace the PCB and inner covers and tighten the retaining screws.

9. After installation, ensure impeller rotates freely. Replace the front panel.

WALL MOUNTING – (FIG.4.)

1. For wall mounting cut a 117mm diameter hole through the wall and insert the wall

sleeve. Slope the sleeve slightly downwards away from the fan. Where necessary

cut to length and cement both ends into position flush with the wall faces.

2. Fix exterior grille into position with the louvres positioned downwards.

3. Remove the front panel by carefully pulling it away from the fan.

4. Loosen the two self-retaining screws and remove the inner cover by carefully

pulling it away from the housing.

5. Remove the impeller by carefully pushing the retaining clips together.

6. Remove the PCB cover by loosening the two screws and pulling it out of the fan

housing.

7. Mark the screw centres through the holes in the fan back plate. Drill, plug and

screw into position. Attach ducting and back draught shutters as required for the

installation.

8. Wire the fan as described in Section B-Wiring. Adjust any settings as required

(see Section C-Setup).

9. Replace the PCB and inner covers and tighten the retaining screws.

10. After installation, ensure impeller rotates freely. Replace the front panel.

B. WIRING.

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION /

OR MAINTENANCE.

IMPORTANT: The controller is only suitable for connection to a 220-240V 50Hz AC

single phase mains electrical supply. It is double insulated (CLASS II)

and therefore must not be earthed. It provides a 12V 50Hz AC Safety

Extra Low Voltage for the Solo Pro SELV range of fans. Note that

only one fan must be connected to the controller.

1.5mm² wire is recommended for cable runs up to 8m.

1. Select and follow the appropriate wiring diagram. (Fig. 1, 2 or 3)

2. Check all connections have been made correctly and ensure all terminal

connections and supply wires are securely fastened using cable clamp provided.

3. Ensure the impeller rotates and is free from obstructions once reassembled (Fig. 4

and 5).

C. SETUP

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION /

OR MAINTENANCE.

Timer adjustment (SVT)

BEFORE ADJUSTING THE TIMER, SWITCH OFF THE MAINS SUPPLY. TIMER

SHOULD ONLY BE ADJUSTED BEFORE OR DURING INSTALLATION.

1. Unscrew the fixing screws on the cover of the controller. The fan overrun period

can be adjusted up or down using the pot located on the internal PCB.

2. To REDUCE the operating time, use a small screwdriver to turn the pot ANTI-

CLOCKWISE.

3. To INCREASE the operating time, use a small screwdriver to turn the pot

CLOCKWISE.

4. Replace the controller cover.

TIMER ADJUSTMENT (SVHTP, FIG. 4 AND 5)

BEFORE ADJUSTING THE TIMER, SWITCH OFF THE MAINS SUPPLY. TIMER SHOULD

ONLY BE ADJUSTED BEFORE OR DURING INSTALLATION.

1. Remove the fan and PCB covers and the impeller (Fig. 4 and 5). The controller is

factory set at 15 minutes approx. The overrun period can be adjusted from 3-25

minutes by altering the pot on the control PCB.

2. To REDUCE the operating time, use a small screwdriver to turn the pot ANTI-

CLOCKWISE.

3. To INCREASE the operating time, use a small screwdriver to turn the pot

CLOCKWISE.

4. Replace the fan and PCB covers and the impeller.

HUMIDITY SET-POINT ADJUSTMENT (FIG. 4 AND 5)

BEFORE ADJUSTING THE CONTROLLER, SWITCH OFF THE MAINS SUPPLY.

HUMIDISTAT SHOULD ONLY BE ADJUSTED BEFORE OR DURING INSTALLATION.

1. Remove the fan and PCB covers and impeller. The controller is factory set to

switch on at about 70% RH. The humidity set point can be adjusted from 40-

95%RH by altering the adjuster on the control PCB.

2. To LOWER the set-point use a small screwdriver to turn the adjuster ANTI-

CLOCKWISE. This makes the controller MORE sensitive.

3. To RAISE the set-point use a small screwdriver to turn the adjuster CLOCKWISE.

This makes the controller LESS sensitive.

4. Replace the fan and PCB covers and impeller.

IMPORTANT: Upon installation it is possible that the humidity controller will make the fan run

continuously until it has acclimatised to the environment. As part of the installation process it is

important to set/adjust the humidity sensitivity to the desired position. The controller is already

factory set to switch on at about 75% R.H.

PULLCORD OPERATION

The PULLCORD will activate the fan when switched. When the PULLCORD is switched into the

off position the fan will deactivate. The SVHTP model will return to the Auto sensing mode.

D. SERVICING AND MAINTENANCE.

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE.

1. At intervals appropriate to the installation, the fan should be inspected and cleaned to

ensure there is no build-up of dirt or other deposits.

2. Carefully pull the front panel off the inner grille. (fig.4.)

3. Wipe the inlets and front face with a damp cloth until clean.

The fan has sealed for life bearings, which do not require lubrication.

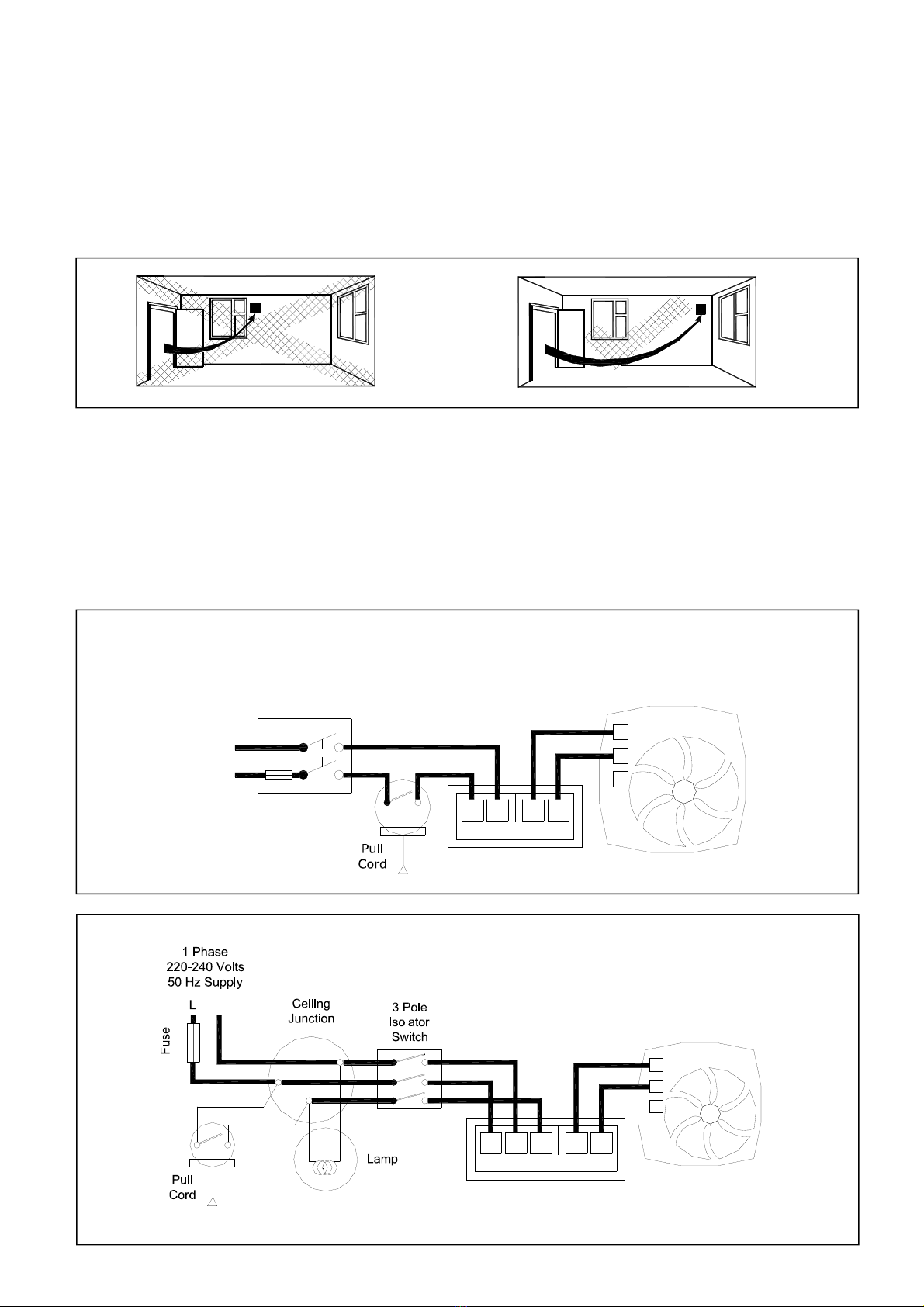

Fig.1 (Solo Pro SVP)

Fig.2 (Solo Pro SVT)

Fan

Controller

NLS

SELV Supply

(12V 50Hz)

3A(UK)

Siting

the

fan.

 

1 Phase Supply

(220-240V 50Hz).

FUSE

Switched

Fused Spur 2

Controller

Fan

SELV Supply

(12V 50Hz)

3A(UK)

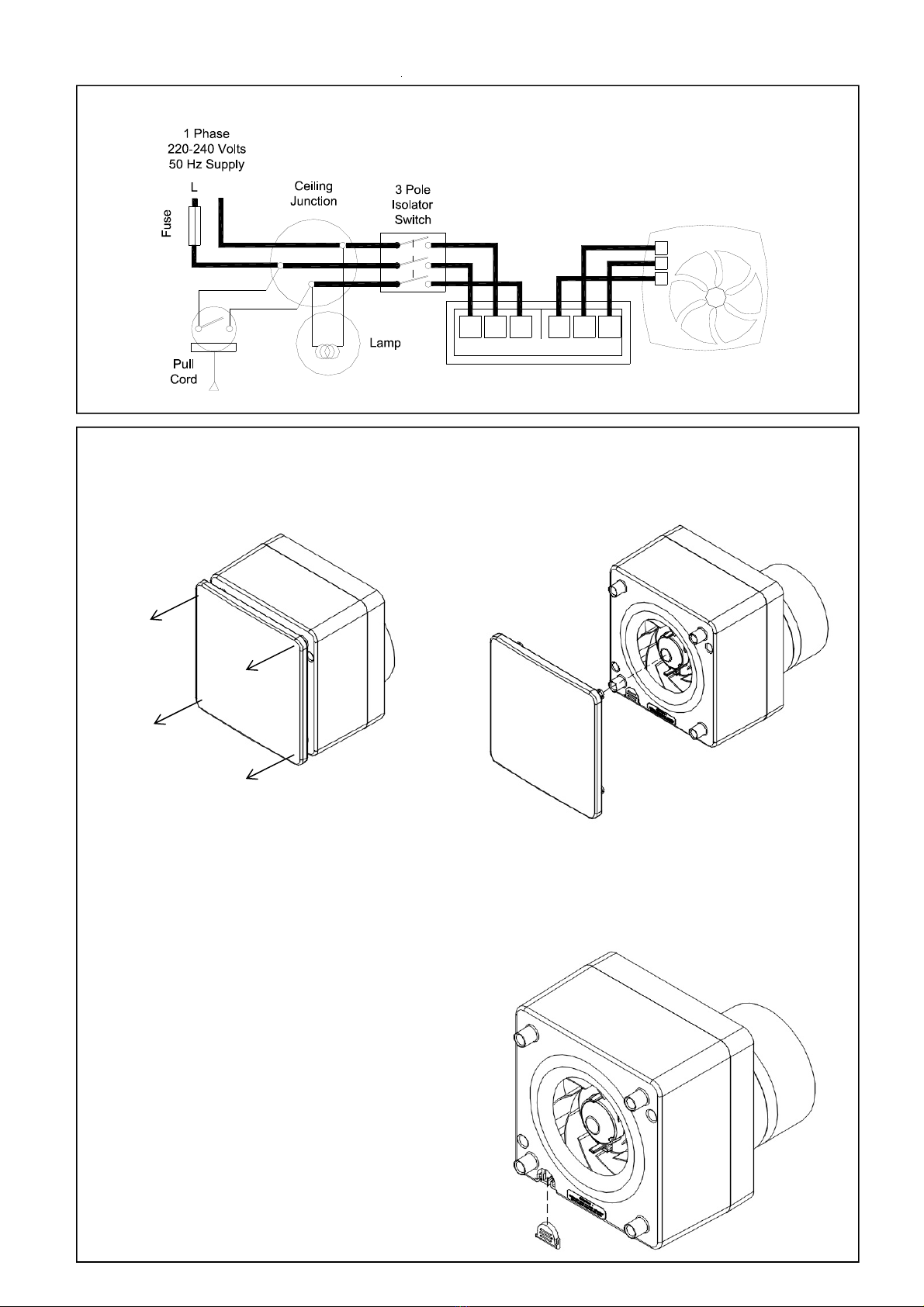

Fig.3 (Solo Pro SVHTP)

Fan

Controller

SELV Supply

(12V 50Hz)

3A(UK)

LS 0

12V

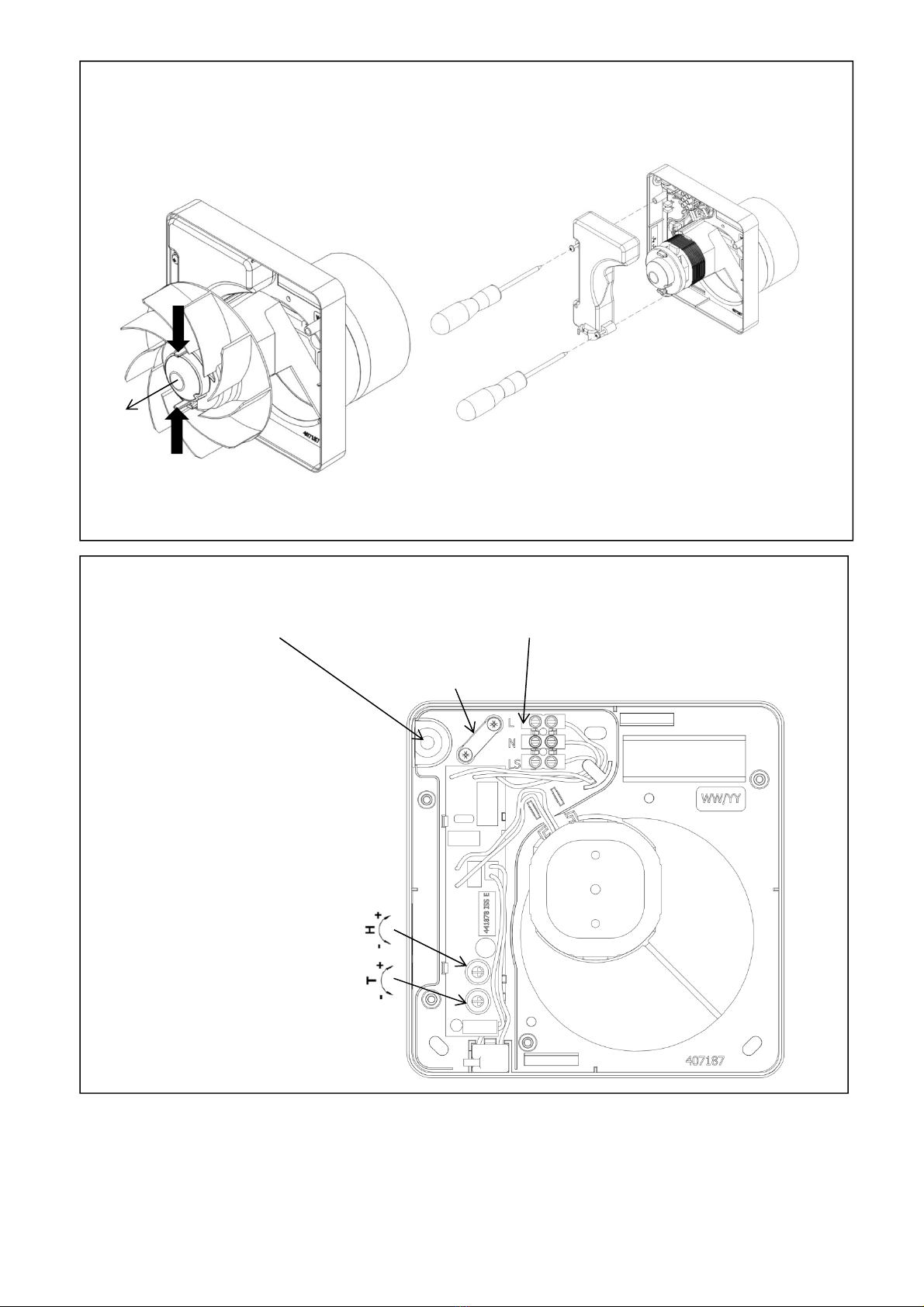

Fig.4. continued. Remove the PCB cover

4) Push clips together to release the impeller 5) Remove two screws as shown

Fig.5. Wiring and settings

Supply cable via side or rear Supply cable connections

Secure Supply cable

with Cable Clamp

Adjust Timer overrun or Humidistat

set point (model dependant) as shown.

(SVHTP)

PRODUCT FICHE

For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014)

Name: Vent‐AxiaVent‐AxiaVent‐Axia

ModelID(StockRef.):SoloProSELVSVP‐

409163

SoloProSELVSVT‐

409164

SoloProSELVSVHTP‐

409165

SECClassFFE

SECValue('Average')13.9715.7226.23

SECValue('Warm')6.327.1111.86

SECValue('Cold')27.3230.7551.31

LabelRequired?(Yes/No=Outofscope)NoNoNo

Declaredas:RVUorNRVU/UVUorBVURVU‐UVURVU‐UVURVU‐UVU

SpeedDriveon/offSingleSpeedon/offSingleSpeedon/offSingleSpeed

TypeHRS(Recuperative,Regenerative,None)NoneNoneNone

ThermalEff:[(%),NA(ifnone)]N/AN/AN/A

Max.FlowRate(m3/h)86.4086.4086.40

Max.PowerInput(W):(@Max.FlowRate)19.0019.0019.00

LWA:SoundPowerLevel(dB)47.5247.5247.52

Ref.FlowRate(m3/s)0.020.020.02

Ref.PressureDiff.(Pa)N/AN/AN/A

SPI[W/(m3/h)]0.310.310.31

ControlFactor&ControlTypology:(CTRL/Typology) 

ControlFactor;CTRL1.000.950.65

ControlTypologyManualControlClockControlLocalDemandControl

Declared:‐MaxInternal&ExternalLeakageRates(%)forBVUsor

carryover(forregenerativeheatexchangersonly),

‐&Ext.LeakageRates(%)forDuctedUVUs;

N/AN/AN/A

MixingRateofNon‐DuctedBVUsnotintendedtobeequippedwith

oneductconnectiononeithersupplyorextractairside;N/AN/AN/A

PositionanddescriptionofvisualfilterwarningforRVUsintended

forusewithfilters,includingtextpointingouttheimportanceof

regularfilterchangesforperformanceandenergyefficiencyofthe

unit

N/AN/AN/A

ForUVUs(InstructionsInstallRegulatedSupply/ExtractGrilles

Façade)InF&WInF&WInF&W

InternetAddress(forDisassemblyInstructions)www.vent‐axia.comwww.vent‐axia.comwww.vent‐axia.com

Sensitivityp.Variation@+20/‐20Pa:(forNon‐DuctedVus)N/AN/AN/A

AirTightness‐ID/OD‐(m3/h)(forNon‐DuctedVus)N/AN/AN/A

AnnualElectricityConsumption:AEC(kWh/a)4.334.112.81

AnnualHeatingSaved:AHS(kWh/a) 

AHS:Average13.9715.7226.23

AHS:Warm6.327.1111.86

AHS:Cold27.3230.7551.31

This manual suits for next models

Table of contents

Other Vent-Axia Fan manuals

Vent-Axia

Vent-Axia Lo-Carbon Sylph Series Assembly instructions

Vent-Axia

Vent-Axia 427477A Assembly instructions

Vent-Axia

Vent-Axia EUROFLOW KDF Series Assembly instructions

Vent-Axia

Vent-Axia PUREAIR SENSE User manual

Vent-Axia

Vent-Axia SDX EC Series Assembly instructions

Vent-Axia

Vent-Axia Lo-Carbon SOLO Plus SELV Assembly instructions

Vent-Axia

Vent-Axia 478075 User manual

Vent-Axia

Vent-Axia Lo-Carbon PureAir Home Series Assembly instructions

Vent-Axia

Vent-Axia Lo-Carbon SOLO Plus 427481A Assembly instructions

Vent-Axia

Vent-Axia Multihome Basic NL Assembly instructions

Vent-Axia

Vent-Axia T-Series Assembly Instructions

Vent-Axia

Vent-Axia Sentinel Kinetic B Guide

Vent-Axia

Vent-Axia 14120020 User manual

Vent-Axia

Vent-Axia Response Series Assembly instructions

Vent-Axia

Vent-Axia Centra Series Assembly instructions

Vent-Axia

Vent-Axia ACM315 Assembly instructions

Vent-Axia

Vent-Axia LuminAir Turbo Series Assembly instructions

Vent-Axia

Vent-Axia Lo-Carbon NBR dMEV C Assembly instructions

Vent-Axia

Vent-Axia T-Series Assembly Instructions

Vent-Axia

Vent-Axia INTEGRA PLUS Assembly instructions

Vent-Axia

Vent-Axia MVDC-MSH UniFlex Assembly instructions

Vent-Axia

Vent-Axia SUPRA 100 T Assembly instructions

Vent-Axia

Vent-Axia HR300RW6 User guide

Vent-Axia

Vent-Axia Lo-Carbon Silhouette Series Assembly instructions

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
