Venini VEO65SS-W User manual
User Manual for your Venini
VEO65SS-W
60 cm Multifunction Oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 19/10/12
2
3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 - 14
Dimensions and accessories 8
Coolingfan 9
Electricaldetails 9
Controlpanel 10
Oven programmer/timer display 10
Setting and using the oven programmer/timer 10 – 15
Selecting manual operation mode 10
Setting the time of day 11
Theoventimer 11
Setting the minute minder function 11
Setting the duration function 12
Setting the end cook function 13
Setting the start and end time function 14
Adjusting the audible signal 15
Selecting a cooking function and temperature 15 – 19
Before first use 15
Selecting manual operation mode 16
Selectinganovenfunction 16
Thermostatcontrolknob 17
Ovenoperatinglight 17
Cooking guidelines 17
Warnings 18
Shelflevels 19
Cleaning and maintenance 19 - 22
Replacing the oven bulb 20
Removing the oven door for cleaning 21
Removing the oven inner door glass for cleaning 22
Installation 22 - 24
Electricalconnection 22
Installing the oven into the kitchen cabinet 23
Positioning the appliance 24
Ventilation requirements 24
My appliance isn’t working correctly 25 - 27
Contact details 28
Environmental note
oThe packaging materials that Venini uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard
4
5
5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Venini.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Retailer where you
d your unit from.
eneral Information
and can
ambient temperature
scolouration at
han 4mm to the appliance, will be the
f the manufacturer
uarantee. The foregoing does not affect
your statutory rights.
may only be carried out by a qualified service
arning and safety instructions
l become hot during use
and retain heat after operation.
purchase
G
oThis appliance is designed for domestic household use
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the owner.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement o
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in the Conditions Of G
oRepairs
agent.
W
oThis appliance complies with all current safety legislation. Venini
do wish to emphasise that this compliance does not remove the
fact that the appliance surfaces wil
6
Child Safety
oVenini strongly recommend that babies and young children are
prevented from being near to the appliance and not allowed to
touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a
qualified person, strictly in accordance with the
manufacturer’s instructions.
oThe manufacturer declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
7
Specifications
Product dimensions Aperture dimensions
Height: 590 mm Height: 580 – 583 mm
Width: 595 mm Width: 560 mm
Depth: 550 mm Depth: 550 mm
Product specifications
o5 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oLED full programmer
oCooling fan
oThermostatically controlled grill
oDouble-glazed removable door
oRemovable inner door glass
Standard accessories
oEnamelled baking tray
oSafety shelf
oTrivet
8
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 15A
Max Rated Inputs: 2.30 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C screw type pygmy
Cooling fan
oA tangential cooling fan is fitted inside of these appliances, to
make the internal temperature of the oven stable and the
external surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

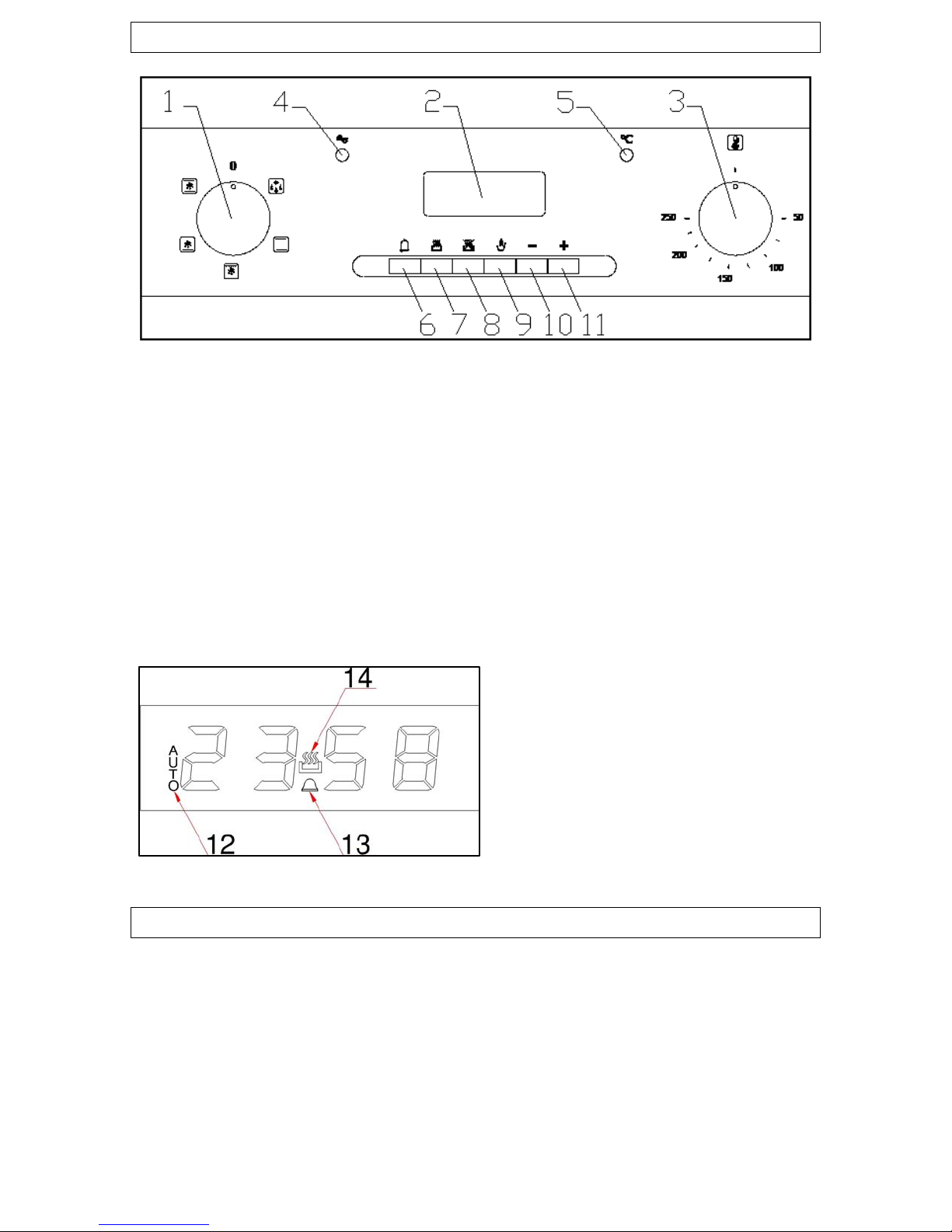

Control Panel
1) Oven function selector knob
2) LED display
3) Thermostat control knob
4) Power indicator light
5) Oven operating light
6) Timer minute minder button
7) Timer duration button
8) Timer end cook button
9) Timer manual operation button
10) Timer minus button
11) Timer plus button
Oven programmer/timer display
12) Auto function symbol
13) Minute minder symbol
14) Manual operation symbol.
Setting and using the oven programmer/timer
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the manual operation
button (9) on the control panel.
10
