USER MANUAL

DIGITAL MULTIMETER

4000 COUNTS

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that

disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as

unsorted municipal waste; it should be taken to a specialized

company for recycling. This device should be returned to your

distributor or to a local recycling service. Respect the local

environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Used Symbols

AC (Alternating Current)

DC (Direct Current)

Both AC and DC

Risk of Electric shock. A potentially hazardous voltage is

possible.

Caution: risk of danger, the manual must be consulted in all

cases where this symbol is marked.

Warning: a hazardous condition or action that may result in

injury or death

Caution: condition or action that may result in damage to the

meter or equipment under test

Double insulation (class 2-protection)

Earth

DVM9915

V. 03 –29/11/2017 4 ©Velleman nv

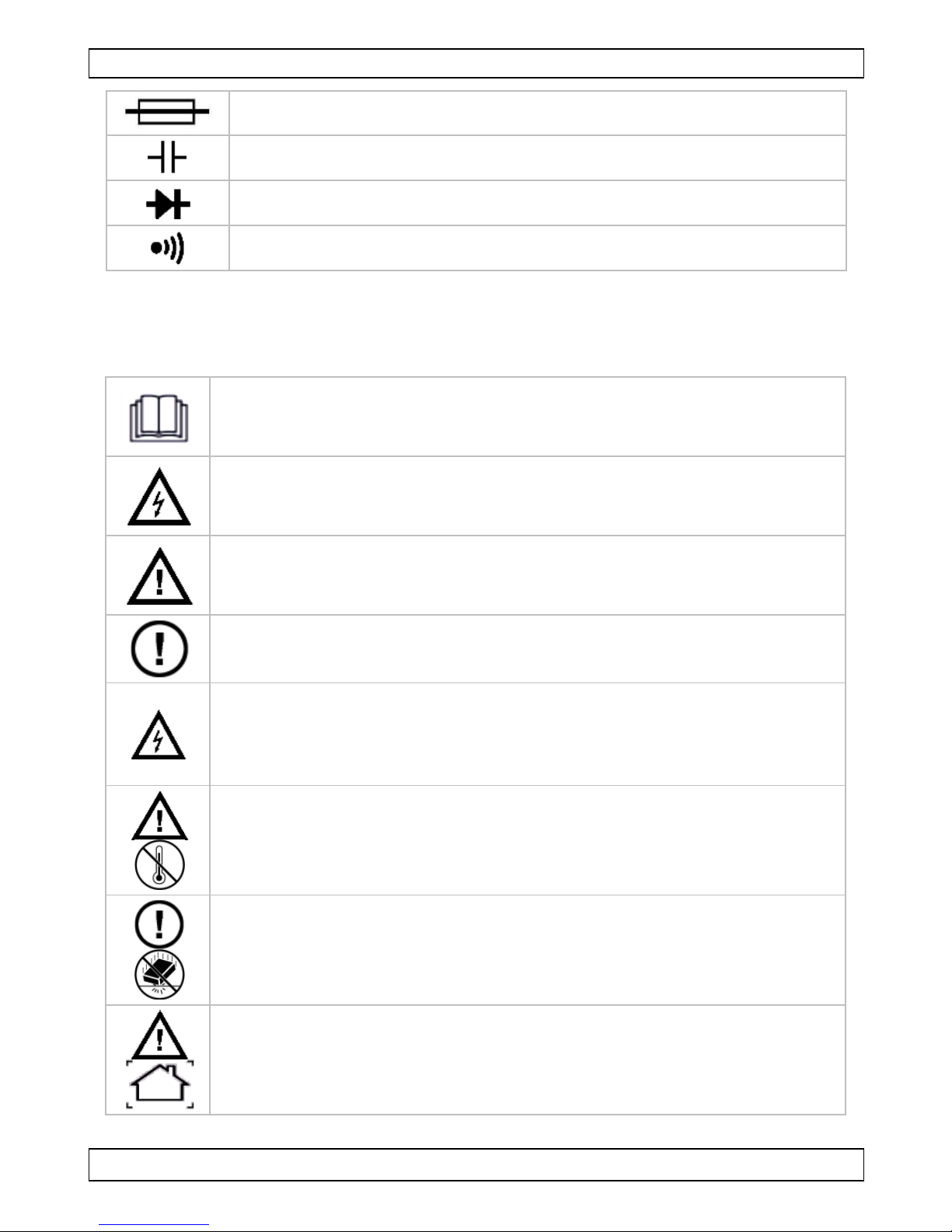

Fuse

Capacitor

Diode

Continuity

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages

of this manual.

This symbol indicates: Read instructions

Not reading the instructions and manual can lead to damage,

injury or death.

This symbol indicates: Danger

A hazardous condition or action that may result in injury or

death

This symbol indicates: Risk of danger/damage

Risk of a hazardous condition or action that may result in

damage, injury or death

This symbol indicates: Attention; important information

Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the

test leads prior to opening the housing. To prevent fire hazards,

only use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment

Avoid cold, heat and large temperature fluctuations. When the

unit is moved from a cold to a warm location, leave it switched

off until it has reached room temperature. This to avoid

condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force

when operating.

Pollution degree 2-device. For indoor use only. Keep this device

away from rain, moisture, splashing and dripping liquids. Not for

industrial use. Refer to §8 Pollution degree.

DVM9915

V. 03 –29/11/2017 5 ©Velleman nv

Keep the device away from children and unauthorised users.

Risk of electric shock during operation. Be very careful

when measuring live circuits.

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

This is an installation category CAT IV measuring

instrument. Refer to §7 Overvoltage/installation category.

Read this addendum and the manual thoroughly. Familiarise

yourself with the functions of the device before actually using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not

covered by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorized way will void the warranty. Damage caused by

disregard of certain guidelines in this manual is not covered by

the warranty and the dealer will not accept responsibility for any

ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads

from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse

replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild

detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when

measuring live circuits.

If the equipment is used in a manner not specified by the manufacturer,

the protection provided by the equipment may be impaired.

Never exceed the limit value for protection. This limit value is listed

separately in the specifications for each range of measurement.

Do not touch unused terminals when the meter is linked to a circuit

which is being tested.

DVM9915

V. 03 –29/11/2017 6 ©Velleman nv

Never use the meter with CAT III installations when measuring voltages

that might exceed the safety margin of 600 V above earth ground.

Never use the meter with CAT IV installations when measuring voltages

that might exceed the safety margin of 300 V above earth ground.

Set the range selector at its highest position if the intensity of the

charge to be measured is unknown beforehand.

Disconnect the test leads from the tested circuit before rotating the

range selector in order to change functions.

When carrying out measurements on a TV set or switching power

circuits, always remember that the meter may be damaged by any high

amplitude voltage pulses at test points.

Always be careful when working with voltages above 60 VDC or 30 VAC

rms. Keep your fingers behind the probe barriers at all times during

measurement.

Never perform resistance, diode or continuity measurements on live

circuits. Make sure all capacitors in the circuit are depleted.

6. General Description

This device is a battery-operated, hand-held 3 ½ digital multi-meter for

measuring DC and AC voltages, DC current and resistance. It also offers the

possibility of executing continuity tests and of testing diodes and transistors.

The back light is optional.

Refer to the illustration on page 2 of this manual:

1. Display

3 ¾ digits, 7 segments, LCD: 65 x 36 mm

2. Rotary switch

This switch is used to select functions and desired ranges as well as to

turn the meter on/off.

3. "VmA" jack

Insert the red (positive) test lead in this connector to measure voltage,

resistance and current (except 15 A).

4. "COM" jack

Insert the black (negative) test lead.

5. "15A" jack

Insert the red test lead in this connector in order to measure a max.

current of 15 A.

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient

overvoltage that might occur at the point of test. Transients are short-lived

bursts of energy induced in a system, e.g. caused by lightning strike on a

power line.

DVM9915

V. 03 –29/11/2017 7 ©Velleman nv

The existing categories according EN 61010-1 are:

CAT I

A CAT I-rated meter is suitable for measurements on protected

electronic circuits that are not directly connected to mains power,

e.g. electronics circuits, control signals…

CAT

A CAT II-rated meter is suitable for measurements in CAT I-

environments and mono-phase appliances that are connected to the

mains by means of a plug and circuits in a normal domestic

environment, provided that the circuit is at least 10 m apart from a

CAT III- or 20 m apart from a CAT IV-environment. E.g. household

appliances, portable tools…

CAT

III

A CAT III-rated meter is suitable for measurements in CAT I- and

CAT II-environments, as well as for measurements on (fixed) mono-

or poly-phased appliances which are at least 10 m apart from of a

CAT IV-environment, and for measurements in or on distribution

level equipment (fuse boxes, lighting circuits, electric ovens).

CAT

A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II-

and CAT III-environments as well as on the primary supply level.

Note that for all measurements on equipment for which the supply

cables run outdoors (either overhead or underground) a CAT IV

meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation

category CAT III 600 V and CAT IV 300 V. This implies that certain

restrictions in use apply that are related to voltages and voltage peaks

which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements up to 600 V in

CAT III and up to 300 V in CAT IV

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which

different protective measures are necessary to ensure safety. Harsher

environments require more protection, and the protection against the

pollution which is to be found in a certain environment depends mainly on

the insulation and the enclosure properties. The pollution degree rating of

the DVM indicates in which environment the device may be used.

Pollution

degree 1

No pollution or only dry, nonconductive pollution occurs. The

pollution has no influence. (only to be found in hermetically

sealed enclosures)

DVM9915

V. 03 –29/11/2017 8 ©Velleman nv

Pollution

degree 2

Only nonconductive pollution occurs. Occasionally,

temporary conductivity caused by condensation is to be

expected.(home and office environments fall under this

category)

Pollution

degree 3

Conductive pollution occurs, or dry nonconductive pollution

occurs that becomes conductive due to condensation that is

to be expected.

(industrial environments and environments exposed to

outside air - but not in contact with precipitation)

Pollution

degree 4

The pollution generates persistent conductivity caused by

conductive dust or by rain or snow. (exposed outdoor

environments and environments where high humidity levels

or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1

pollution degree 2. This implies that certain restrictions in use apply that

are related to pollution which can occur within the environment of use. Refer

to the table above.

This device is only suitable for measurements in Pollution

degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II, CAT III and CAT IV

environments (see §7)

Use this meter only in a pollution degree 2 environment (see §8)

Ideal working conditions include:

temperature: 0 °C to 40 °C (32 °F to 104 °F)

relative humidity: max. 80 %

altitude: max. 2000 m (6560 ft)

voltage ........................................................................... 600 V

fuse protection

F0.5 A/600 V, 5 x 20 mm (breaking capacity 1000 A)

F15 A/600 V, 6 x 32 mm (breaking capacity 10 kA)

power supply ................................................... 2 x AA/LR6 (incl.)

display............................................................ LCD, 3999 counts

display dimensions ...................................................65 x 36 mm

over-range ..........................................................................yes

continuity buzzer..................................................................yes

transistor test ....................................................................... no

diode test............................................................................yes

low-battery indication ...........................................................yes

DVM9915

V. 03 –29/11/2017 9 ©Velleman nv

ranging mode ......................................................... auto/manual

data hold ............................................................................yes

backlight.............................................................................yes

auto power-off .....................................................................yes

dimensions................................................... 188 x 102 x 38 mm

weight (with battery) ..................................................... ± 325 g

storage environment

temperature ................................................. -20 °C to 60 °C

humidity ............................................................ < 90 % RH

test lead probe (incl.).............CAT IV 600 V, 15 A; L = 90 cm (incl.)

IP rating ........................................................................... IP20

9.1 DC VOLTAGE

Do not measure circuits that may contain voltages

> 600 V

range

resolution

accuracy

400 mV

0.1 mV

± (0.5 % rdg + 2 digits)

4 V

1 mV

40 V

10 mV

400 V

100 mV

600 V

1 V

± (0.8 % rdg + 2 digits)

Overload protection: 600 V DC or AC rms

Impedance: 10 MΩ, > 100 MΩ on 400 mV range

9.2 AC VOLTAGE

Do not measure circuits that may contain voltages

> 600 V

range

resolution

accuracy

4 V

1 mV

± (0.8 % rdg + 3 digits)

40 V

10 mV

400 V

100 mV

600 V

1 V

± (1.2 % rdg + 3 digits)

Average sensing, calibrated to rms of sine wave

Frequency range: 40-500 Hz

Overload protection: 600 V DC or AC rms

Impedance: 10 MΩ

DVM9915

V. 03 –29/11/2017 10 ©Velleman nv

9.3 DC CURRENT

Do not measure circuits that may contain voltages

> 600 V

range

resolution

accuracy

400 µA

0.1 µA

± (1.2 % rdg + 2 digits)

4000 µA

1 µA

40 mA

10 µA

400 mA

100 µA

4 A

1 mA

± (2.0 % rdg + 3 digits)

15 A

10 mA

Overload protection: F0.5 A/600 V fuse, F15 A/600 V fuse

Continuous testing max. steady-state current of 1 A

9.4 AC CURRENT

Do not measure circuits that may contain voltages

> 600 V

range

resolution

accuracy

400 µA

0.1 µA

± (1.5 % rdg + 3 digits)

4000 µA

1 µA

40 mA

10 µA

400 mA

100 µA

4 A

1 mA

± (2.5 % rdg + 5 digits)

15 A

10 mA

Average sensing, calibrated to rms of sine wave

Frequency range: 40-500 Hz

Overload protection: F0.5 A/600 V fuse, F15 A/600 V fuse

Continuous testing max. steady-state current of 1 A

9.5 RESISTANCE

Do not conduct resistance measurements on live

circuits

range

resolution

accuracy

400 Ω

0.1 Ω

± (1.0 % rdg + 1 digit)

4 kΩ

1 Ω

± (1.0 % rdg + 2 digits)

40 kΩ

10 Ω

400 kΩ

100 Ω

4 MΩ

1 kΩ

40 MΩ

10 kΩ

± (1.5 % rdg + 3 digits)

Overload protection: F0.5 A/600 V fuse

Table of contents

Languages:

Other Velleman Multimeter manuals

Velleman

Velleman DVM3218 User manual

Velleman

Velleman EVM892 User manual

Velleman

Velleman DVM898 User manual

Velleman

Velleman DVM 890L User manual

Velleman

Velleman AVM360 User manual

Velleman

Velleman DVM855 User manual

Velleman

Velleman DVM101 User manual

Velleman

Velleman DVM1500 User manual

Velleman

Velleman DVM1400 User manual

Velleman

Velleman DVM1500 User manual

Velleman

Velleman DVM6243 User manual

Velleman

Velleman DVM4200 User manual

Velleman

Velleman DVM205AM User manual

Velleman

Velleman DVM903 User manual

Velleman

Velleman DVM810 User manual

Velleman

Velleman DVM1190 User manual

Velleman

Velleman DVM040 User manual

Velleman

Velleman DVM890 User manual

Velleman

Velleman DVM1500 User manual

Velleman

Velleman DVM821 User manual

Velleman

Velleman DVM892N User manual

Velleman

Velleman DCM267N User manual

Velleman

Velleman DVM630 User manual

Velleman

Velleman DVM205AM User manual

Popular Multimeter manuals by other brands

Agilent Technologies

Agilent Technologies 34420A user guide

Fluke

Fluke 83 user manual

Hameg

Hameg HM 8012 manual

Mastech

Mastech MY70 Operation manual

Steren

Steren MUL-300 user manual

Somogyi Elektronic

Somogyi Elektronic home SMA 92 instruction manual

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 operating instructions

PeakTech

PeakTech 4000 Procedure of calibration

YOKOGAWA

YOKOGAWA 90050B user manual

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 operating instructions

Fluke

Fluke 8846A Programmer's manual

Tempo Communications

Tempo Communications MM200 instruction manual

Elenco Electronics

Elenco Electronics CM-1555 operating instructions

Mastech

Mastech MS8238C user manual

SDAR

SDAR 830A, 830B, 830D, 830C user manual

RS PRO

RS PRO RS-9519BT instruction manual

BGS technic

BGS technic 8890 instruction manual

Amprobe

Amprobe Hexagon 60 user manual
