veito AERO Service manual
veito
ELECTRIC CARBON INFRARED HEATER
INSTALLATION & INSTRUCTIONS MANUAL
MODEL: AERO
IMPORTANT SAFETY INSTRUCTIONS
Warning! This manual contains important product safety information. Ensure
that you read all provided instructions before installing or using the product.
The manufacturer is not responsible for any damage that may result from
inappropriate use. The heater must be used in a responsible manner any all
warnings and instructions included in this manual must be followed.
GENERAL SAFETY PRECAUTIONS
Use this heater only as described in this manual. Any other use, not
recommended by the manufacturer, may cause re, electric shock and/or
severe personal injury.
Incorrect installation or alterations to the heater, as well as failure to adhere
to the warnings and instructions contained within this manual, may cause
property damage, severe personal injury, or death. Never attempt to alter the
product in any way.
Keep away from the heater when it is in use. Failure to do so could result in
clothing catching re and/or severe personal injury.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children should be supervised to ensure that they do not play with the
appliance.
Children of less than 8 years should be kept away unless continuously
supervised.
Cleaning and user maintenance shall not be made by children without
supervision.
Ensure that all packaging material is kept out of reach of children.
Children and vulnerable people should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns, clothing ignition, or other
serious personal injury.
Do not use or store aerosols or other ammable materials near the heater,
especially while it is in use.
Never operate the heater in an explosive environment such as areas where
petrol or other ammable liquids or vapours are stored.
Clothing or other ammable materials should not be hung from the heater or
placed on or near the heater.
2
EN
This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes and curtains at least 150cm from the front of the heater and
keep them away from the sides and rear of the heater.
Always disconnect the heater from the electricity supply and allow adequate
time (minimum of 30 mins.) for it to cool before adjusting the position or
attempting to work on it.
Do not insert or allow ngers or foreign objects to enter any ventilation or
exhaust opening of the heater as it may cause re, electric shock, or damage to
the heater.
Never touch the heater with wet hands at any time. Do not touch any part of the
heater during operation.
Do not paint any surface of the heater.
Do not cover the heater.
INSTALLATION PRECAUTIONS
Installation must be carried out by a qualied and licenced person only.
After unpacking, make sure the appliance shows no signs of visible damage or
tampering. If the appliance appears damaged, contact the place of purchase for
assistance.
This heater must only be used on a 220-240V AC single phase electricity
supply.
Remove packaging and any transit protection before installation.
The installer is to ensure that the requirements of the local authority, local
electrical installation code, municipal building codes, and any other relevant
statutory regulations are carried out.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of re, electric shock, and injury to persons,
including the following:
Do not run the power cord under carpeting. Do not cover with throw rugs,
runners, etc. Arrange the cord away from all trafc areas and where people will
not trip over it.
Keep the cable away from sharp edges during handling and installation.
Heaters have hot and arcing or sparking parts inside. Do not install this product
in areas where gasoline, paint, or ammable liquids are used or stored.
Do not allow the supply cord to sit or hang in front of the heater while in
use and keep it away from the body of the heater which will get hot during
operation.
3
EN
Do not use or install the heater in bathrooms, laundry areas, or similar indoor
locations. Never place the heater near a bathtub or other water container. Do
not place switches or controls within reach of a person in a bathtub, shower, or
swimming pool.
Do not locate the heater immediately above or below a xed socket outlet or
connection box. This is because the heat radiated from the appliance may
damage the electricity outlet or plug.
This heater must be grounded. Connect to properly grounded outlets only.
Ensure both plug and socket is clean and free from dust when using.
To disconnect the heater from the power supply, grip the plug and pull from the
power socket. Never pull by the cord.
Do not touch the plug with wet or moist hands.
Do not use an extension cord with this heater.
Install the heater using the stainless steel brackets provided. Do not use other
brackets for this purpose.
Do not remove this Installation & Service Manual or the provided spanners
from the site of installation. Ensure that the manual is stored safely for future
reference.
MAINTENANCE PRECAUTIONS
Repair or service must be carried out by a qualied and licenced person only.
If the appliance has not been used, or will not be used for a long period of time,
disconnect the power supply.
Ensure that the heater is serviced and inspected by a qualied electrician on an
annual basis.
Do not attempt to clean or service the heater until it has been switched off, the
power has been disconnected, and the heater has cooled to room temperature.
Regularly check the heater for damage. Do not use the heater if the heating
element is cracked or broken. If damage to the appliance is suspected,
discontinue use immediately and contact the supplier or qualied person to
repair.
Regularly inspect the power cord and plug for wear or damage and do not
operate the heater with a damaged cord, plug or loose socket or after the heater
malfunctions, has been dropped or damaged in any manner.
If the supply cord is damaged, it must be replaced by the manufacturer, it’s
service agent or similarly qualied persons in order to avoid a hazard.
4
EN
INTRODUCTION
PRODUCT FEATURES

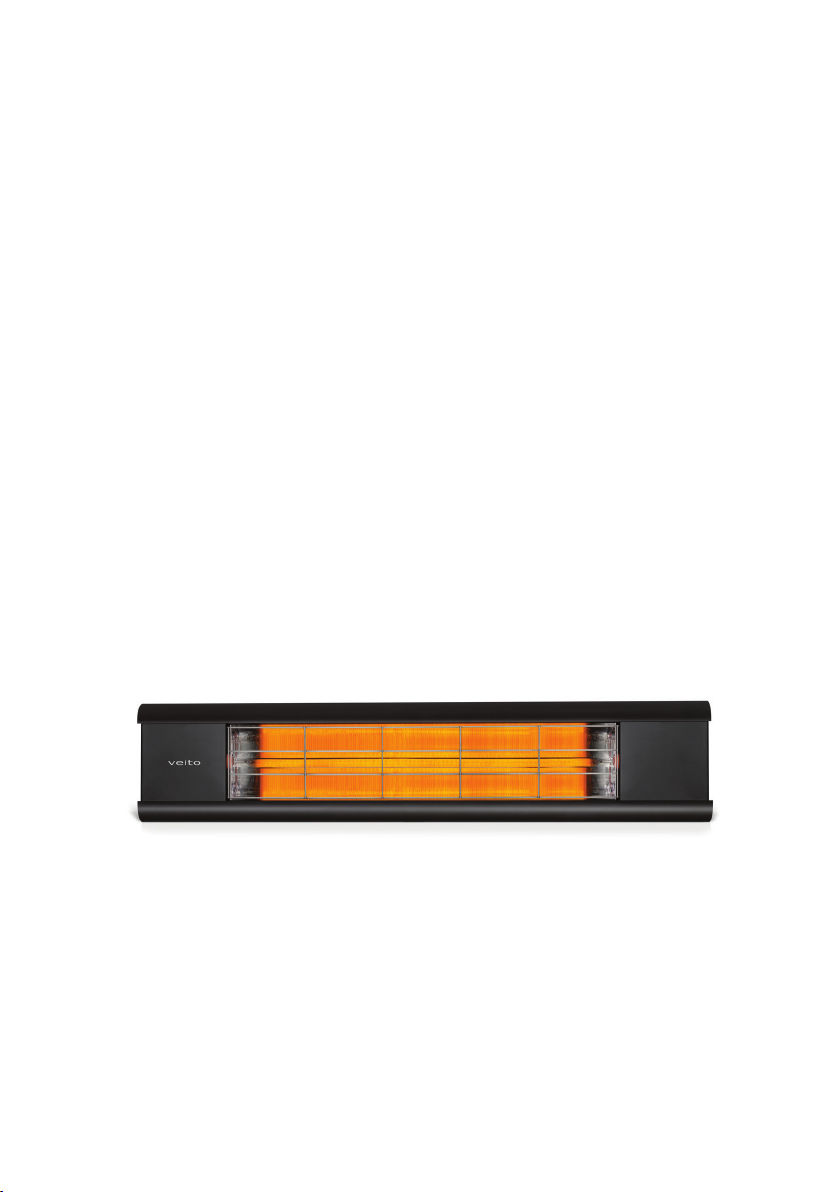

The AERO carbon infrared heater is engineered as a robust outdoor heater.
Every component in the AERO heater is optimized for performance. That
includes the veito carbon infrared tube producing mid-wave infrared heat. The
AERO heater has weatherproof design, which means you can use it for patios,
terraces, smoking areas, conservatories, restaurants, hotels, garages,
workshops, factories, warehouses and many more.
PRODUCT SPECIFICATIONS
MODEL AERO
VOLTAGE 220 - 240V
POWER 2500W
IP RATING IP44
WEIGHT 3KG
5
EN
18cm
12,5cm
5,5cm
85cm
INSTALLATION
Installation must be carried out by a licensed and authorised person only.
Never attempt to carry out an installation while the electrical power is switched
on.
Remove all protective plastic from the heater before installation.
Ensure that you refer to the installation precautions under IMPORTANT SAFETY
INSTRUCTIONS before starting to mount the heater.
Only connect the appliance to a power supply that conforms to the
specication stated on rating plate.
For installation use only the supplied accessories or original accessories
approved by the manufacturer.
This heater must be installed according to the minimum installation clearances
shown in the diagrams.
A minimum safety distance of 150cm should always be left in front of the
appliance.
This heater must be mounted at a minimum of 180cm above the oor.
The heater should always have a minimum clearance of 50cm from a ceiling
and adjacent walls.
Mark and drill the mounting holes on the wall. Attach the mounting bracket to
the wall.
Bring the heater up to mounting bracket. Insert M6 bolts in the slots on the
bracket. Lock into position with M6 nuts.
Rotate the heater to require angle and lock into position with the bolt and nut
on the wall bracket.
Do not position the heater on the wall at an angle of less than 45°.
Do not place articles on or against this appliance.
6
EN
MINIMUM
50cm
180cm
MINIMUM HEIGHT
FROM FLOOR
MINIMUM
45° ANGLE
7
CEILING
FLOOR
The heating surface must never
be directed toward the ceiling
WALL
MINIMUM
50cm
INCORRECT INSTALLATION
EN
The supply cable must be at the lower end of the heater if the heater is installed
at an angle or vertically.
WIRING DIAGRAM
220-240V AC
50/60 Hz
L
N
G
HEATING ELEMENT
8
CEILING
CEILING
INCORRECT INSTALLATION
CORRECT INSTALLATION
EN
OPERATION
Plug it in to turn the heater on.
CLEANING AND MAINTENANCE
Always disconnect the heater from the electricity supply and allow adequate
time (minimum of 30 mins.) for it to cool before adjusting the position or
attempting to work on it.
If the heater has collected dust or dirt inside the unit or around the heating
element, have the unit cleaned by a qualied service agent. Do not operate the
heater in this condition.
The only maintenance required is cleaning of the external surfaces of the
heater.
Do not use powerful abrasive or solvent cleaning uids when cleaning the
heater. Use a damp cloth to wipe the outside of the heater.
If removed from its mounting position when not in use, store the heater
carefully in a safe, dry, childproof location.
Do not touch the heating element with bare ngers, as residue from your hand
could affect the life of the lamp. If it is accidentally touched, remove the nger
marks with a soft cloth moistened with methylated spirit or alcohol.
Do not attempt to repair or adjust any electrical or mechanical functions on this
heater.
The heater contains no user serviceable parts. Check for damage to the
appliance regularly. If damage to the appliance is suspected, discontinue use
immediately and contact the supplier or qualied person to repair.
PRODUCT DISPOSAL
For the product sold within the European Community. At the end
of the electrical products useful life it should not be disposed of
household waste. please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice in your country.
9
EN
CARBON INFRAROT HEIZSTRAHLER
INSTALLATIONS- & BENUTZERHANDBUCH
MODELL: AERO
Table of contents
Languages:
Other veito Heater manuals
veito
veito CH2500 RW User manual
veito
veito CH2500 TW User manual
veito
veito Blade User manual
veito
veito CH1800 RE User manual
veito
veito BLADE S Service manual
veito
veito CH1200 LT User manual
veito
veito CH1200 LT User manual
veito
veito BLADE Series User manual
veito
veito AERO S User manual
veito
veito CH1800 RE User manual
Popular Heater manuals by other brands
oventrop
oventrop Regucor Series quick start guide
Blaze King
Blaze King CLARITY CL2118.IPI.1 Operation & installation manual
ELMEKO
ELMEKO ML 150 Installation and operating manual
BN Thermic
BN Thermic 830T instructions
KING
KING K Series Installation, operation & maintenance instructions
Empire Comfort Systems
Empire Comfort Systems RH-50-5 Installation instructions and owner's manual
Empire Heating Systems
Empire Heating Systems WCC65 Installation and owner's instructions
Wetekom
Wetekom 92 86 43 Original instructions
Desa
Desa SPC170-F owner's manual
Watlow
Watlow Watrod Electric Tubular Heaters Specifications
Haverland
Haverland ECO-DRY GPS Series Instruction & installation manual
Stelpro
Stelpro ASILVC2060 Series user guide
