VDO ELECTRONIC SPEEDOMETER 1323 User manual

By its modular design and custom-tailored front

panel, the electronic speedometer 1323 can be inte-

grated harmoniously into present and future cockpit

systems.

The electronic speedometer 1323 provides the

required display of the speed either Stand alone or in

combination with the radio-format tachograph MTCO

or DTCO.

Used stand alone the electronic speedometer 1323

is directly connected to the speed sensor. In combi-

nation with the tachograph the K-Line or the CAN-

interface are used.

The microprocessor and modern stepper motor

technology form the basis for the precise speed indi-

cation and odometer. The accurate data recording

and indication meet the stringent requirements of

national and EU-wide regulations.

Features

• Indication of total distance travelled in the 7-digit

LC display with 100 meter digit

• Speed pointer set to the legally required tolerance

• Optional display of daily kilometres and time with

setting knob

• Custom-tailored design for pointers, dial and front

frame as an option

• Outputs for v-signal, 4 imp/m, driving and stop

signal for stand alone version

• Communication with tachograph via K-Line or CAN

Application

• Vehicles subject to tachograph regulations with

seperate indication and recording

• Vehicles not subject to tachograph regulation

• Replace KTCO in combination with MTCO or DTCO

www.vdo.com

Electronic Speedometer

1323

Technical Information

Measuring range 125 km/h (standard)

Operating temperature - 25 ... + 70° C

Operating voltage 12 or 24 V

Power consumption typ. 6 mA at 24 V 8 mA CAN version

(Standby)

Pulse range 2 400 - 25 000 Imp/km

no pulse range CAN version

Inputs Hall sensor, inductive sensor, instrument

interface K-Line or CAN

Outputs 2 x v-pulse, 4 Imp/m, driving/stop signal

(stand alone version)

Accuracy Speed pointer set to the legally required tolerance

EMV/EMC RL 95/94/EG ISO 7637

Casing Acrylonitrile-butatiene-Styrene (ABS)

Weight approx. 470 g

Standard mounting position according to DIN 16257 between + 20 ° and + 80 °

Mounting Dimensions

(in mm):

Available options

Trip indicator, time, custom-

tailored front frame design,

function control LED and

T symbol in connection with

tachograph measuring range:

• to customer requirements,

from 80 km/h - 180 km/h

• 125 km/h + 80 mph;

160 km/h + 100 mph

• 100, 140, 180 km/h

(in connections with MTCO

and DTCO)

VDO – A Trademark of the Continental Corporation09/2008 | A2C59512778 | We reserve the right to make changes in availability as well as technical changes without prior notice.

Continental Trading GmbH | Heinrich-Hertz-Strasse 45 | 78052 Villingen-Schwenningen | Germany

E-mail: [email protected] | www.vdo.com

Electronic Speedometer

1323

Table of contents

Other VDO Automobile Electronic manuals

VDO

VDO VIEWLINE 85 MM - 6-10 User manual

VDO

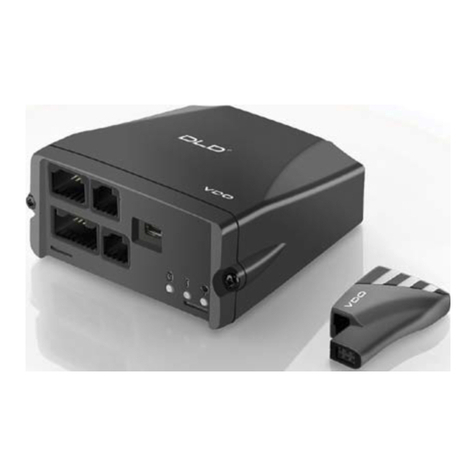

VDO DLD WIDE RANGE User manual

VDO

VDO DIGITAL TACHOGRAPHS - Instruction Manual

VDO

VDO PITOT-TUBE SPEEDOMETER SET User manual

VDO

VDO MI 2050 Manual

VDO

VDO DTCO 1381 REL. 1.3 - User manual

VDO

VDO TIS WEB User manual

VDO

VDO SENDER UNIT 2159-20 User manual

VDO

VDO QUARTZ CLOCK User manual

VDO

VDO VIEWLINE 85 MM - MOUNTING 11-09 User manual

VDO

VDO roadlog Programming manual

VDO

VDO RESSURE GAUGE User manual

VDO

VDO DTCO 1381 REL 1.3U - User manual

VDO

VDO VIEWLINE 110 MM - MOUNTING 11-09 User manual

VDO

VDO SENDER UNIT 2159-0 User manual

VDO

VDO MODULAR TACHOGRAPH MTCO 1324 User manual

VDO

VDO 2910002025200 User manual

VDO

VDO PYROMETER User manual

VDO

VDO RUDDER ANGLE INDICATOR User manual

VDO

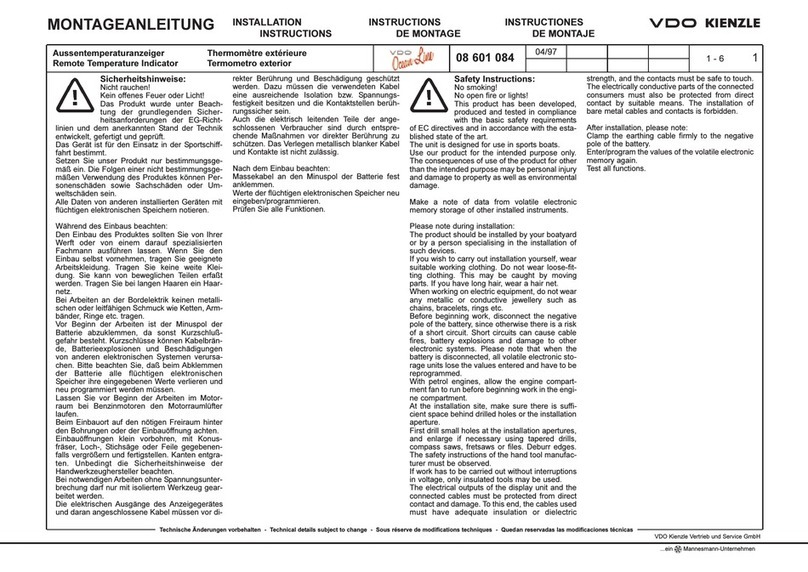

VDO REMOTE TEMPERATURE INDICATOR User manual
