Vax TBTSV1B1 User manual

TBTSV1B1

LET’S GET STARTED.

HIGH PERFORMANCE

CORDLESS VACUUM

Arrow

20V

Let’s talk safety

Basic

safety

precautions

This vacuum cleaner is intended for household use only

and NOT for commercial or industrial use.

• Only use the vacuum cleaner indoors and keep the area

you’re cleaning well lit.

• Keep ngers, hair and loose clothing away from moving parts

and openings whilst using the vacuum cleaner.

• Only Vax recommended tools and accessories should be used

with this vacuum cleaner.

Don’ts

• Don’t charge the vacuum cleaner outdoors, or leave the charger

connected to the mains when not in use.

• Don’t use the vacuum cleaner with the charger plugged into

the mains supply and connected to the vacuum cleaner.

• Don’t use this vacuum cleaner if it has been dropped, damaged,

immersed in water or left outdoors.

• Don’t handle the charger plug or use the vacuum cleaner

with wet hands.

• Don’t run over the charger cord or use the vacuum cleaner if the

charger cord or plug is damaged. Please contact our Customer

Care Line on: 0330 026 8455.

Do’s

• Always make sure the lter and dirt container are tted

correctly before using your vacuum cleaner.

• Always turn o and unplug the vacuum cleaner from the

charger before carrying out any maintenance.

• Turn o all controls on the vacuum cleaner before

disconnecting or connecting the charger.

• Take extra care when cleaning on the stairs.

• Always protect the charger cord from heated surfaces

or when near open ames.

• This vacuum cleaner can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the vacuum cleaner in a safe way and

understand the hazards involved. Children should not play with the vacuum

cleaner. Cleaning and user maintenance should not be made by children

without supervision.

• Don’t use the charger cord as a handle, pull the charger cord around corners

or sharp edges or close a door over the charger cord. Don’t unplug charger

by pulling on the charger cord.

• Don’t attempt to remove blockages with sharp objects as this may cause

damage to your vacuum cleaner.

• Don’t use the vacuum cleaner with incorrect voltage as this may result in

damage or injury to the user. The correct voltage is listed on the ratings label.

• Don’t use this vacuum cleaner to vacuum up liquids.

• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning

items or use in an area where there may be harmful uids (chlorine, bleach,

and ammonia drain cleaner).

• Use only CE approved 13amp extension cords, non-approved extension cords

may overheat. Care should be taken to arrange the extension cord as it can

be a trip hazard.

• Always carry the vacuum cleaner by the carry handle.

• Store your vacuum cleaner in a cool, dry area.

Please keep instructions for further use.

Thank you for buying this Cordless vacuum.

Taking care of your carpets and hard oors

This user guide will help you get the most out of your machine.

Maintaining your carpets and hard oors will ensure they keep their appearance for longer

and Vax will help you take good care of them.

Taking care of your cordless vacuum

Also inside this guide are instructions on maintaining your new machine, so that it’s ready

when you are to tackle your carpets and hard oors.

Let us know what you think @VaxUK

Taking care of you

We’re here if you need us. Instead of taking me back

to the shop, simply visit our online support:

vax.co.uk/support

Still need to get in touch?

Our UK based Customer Care Team are here to support you - for help with assembly,

operational/performance problems or buying and tting new accessories. Whether you wish to chat,

use Facebook, Twitter or call, you can nd all our contact details at vax.co.uk/contactus

This user guide can be found online at: vax.co.uk/support

Contents

Arrow 20V

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let’s talk technical

Accessories

Notes

What to do if it goes wrong

Getting in touch

Included with

your machine

Battery

Charger

Wall Clip

Getting to know your machine

Name Arrow 20V

Battery voltage See product rating label

Run time 35 minutes*

Charge time 4 hours

Weight 2.56 kg

Dust bin capacity 0.6l

Technical Specication

Subject to technical change without notice. Images are illustrative only. * Tested in low speed mode on hardoor.

Pre-motor lter

1-7-138168

Accessories & Consumables

To purchase consumables and

accessories, please visit vax.co.uk

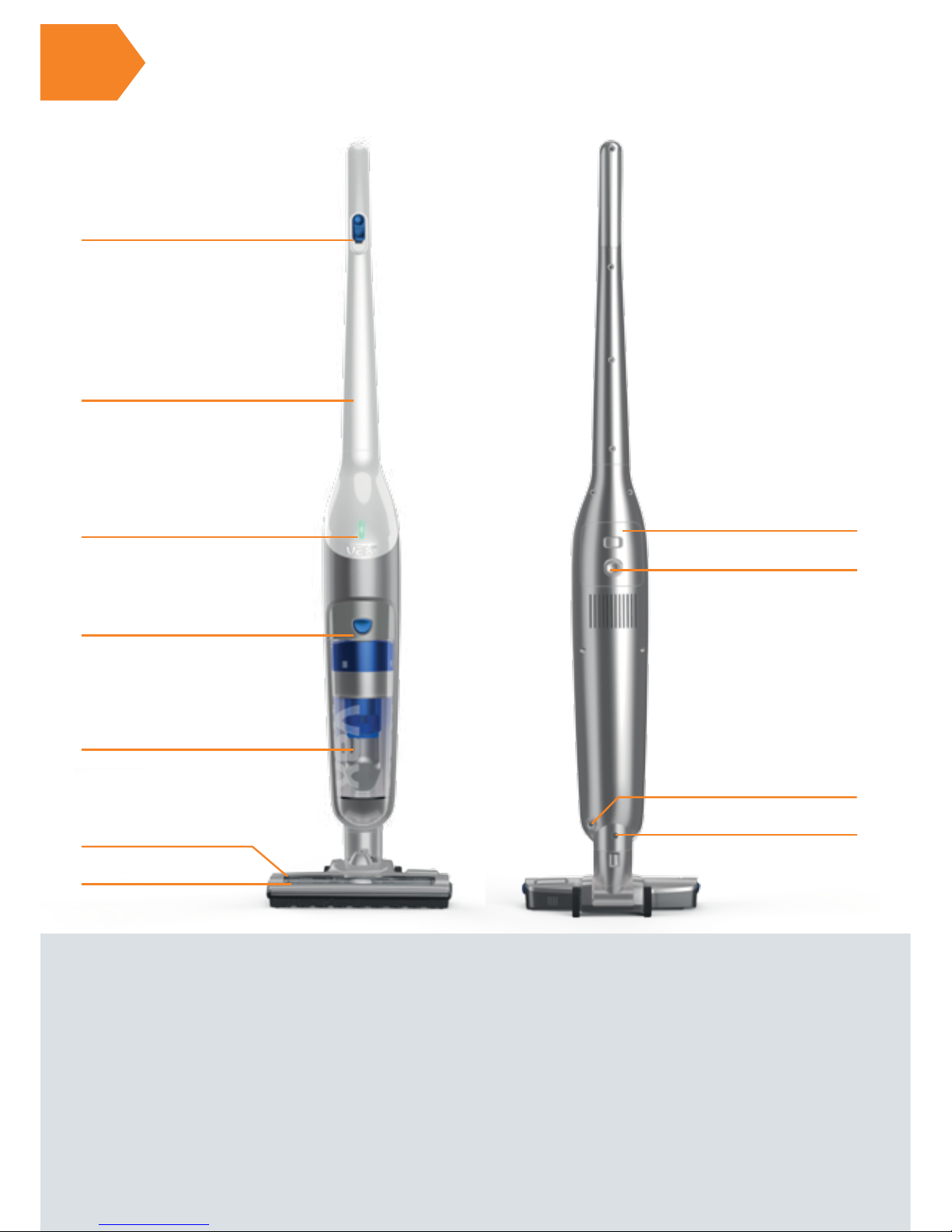

On/o and suction control switch

Handle

Dirt container release button

Dirt container

LED indicator charge light Battery cover

Battery cover release button

Machine charging port

Floorhead release button

Floorhead

Brushbar

Getting started

Assembling your cordless vacuum cleaner

Lift the handle in a hinge like manner and line up with

the main body. Make sure the cable attached to both the

handle and main body is inside the main body and does

not become trapped. Push the handle down into the

main body until it clicks securely into place.

Fix the wall clip to your wall using the screw and wall plug provided. During storage

and charging, secure your vacuum cleaner handle into the wall clip.

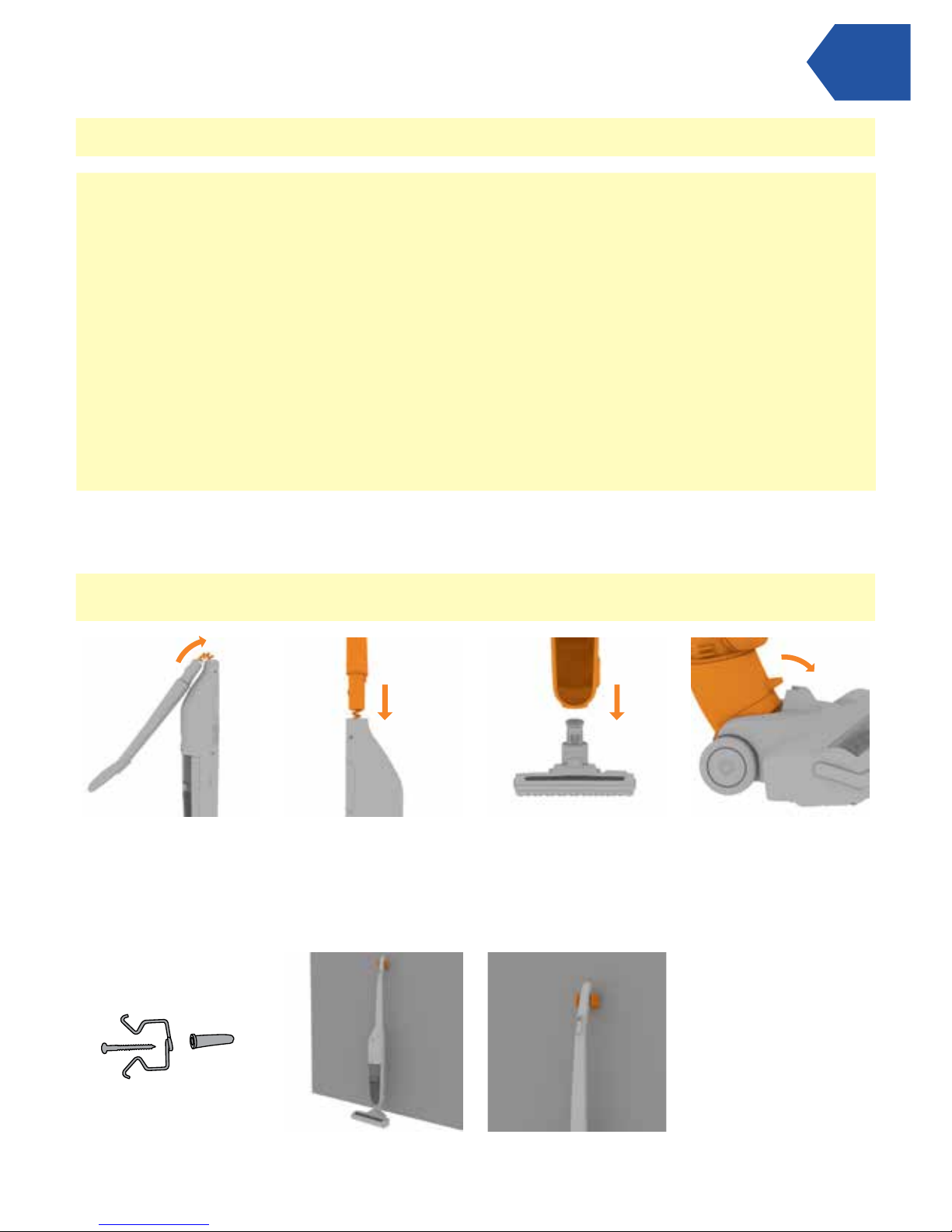

Line up the oorhead

and main body. Push

the main body down

onto the oorhead to

secure into place.

Push the main body

forward to lock the

oorhead into place.

PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

Before you begin

CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the charger or removing and

emptying the dirt container.

IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does

overheat the thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o.

Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to cool

for approximately 1 hour (if you have cleaned the lter please wait 24 hours for the lter to fully dry before putting

back into the machine).

For best cleaning results, lters require cleaning every 4-6 uses or as needed depending upon use. (Refer to ‘Taking

care of your machine’ – Cleaning the lter).

If the vacuum cleaner is blocked, switch o before removing the blockage.

CAUTION: This vacuum cleaner has a constantly rotating brushbar. Never leave the vacuum cleaner in one spot for

an extended period of time as this may damage the oor surface.

CAUTION: Take extra care when assembling the handle. Make sure the cable is correctly inserted inside the main

body and does not become trapped between the main body and handle.

Getting started

Installing the battery

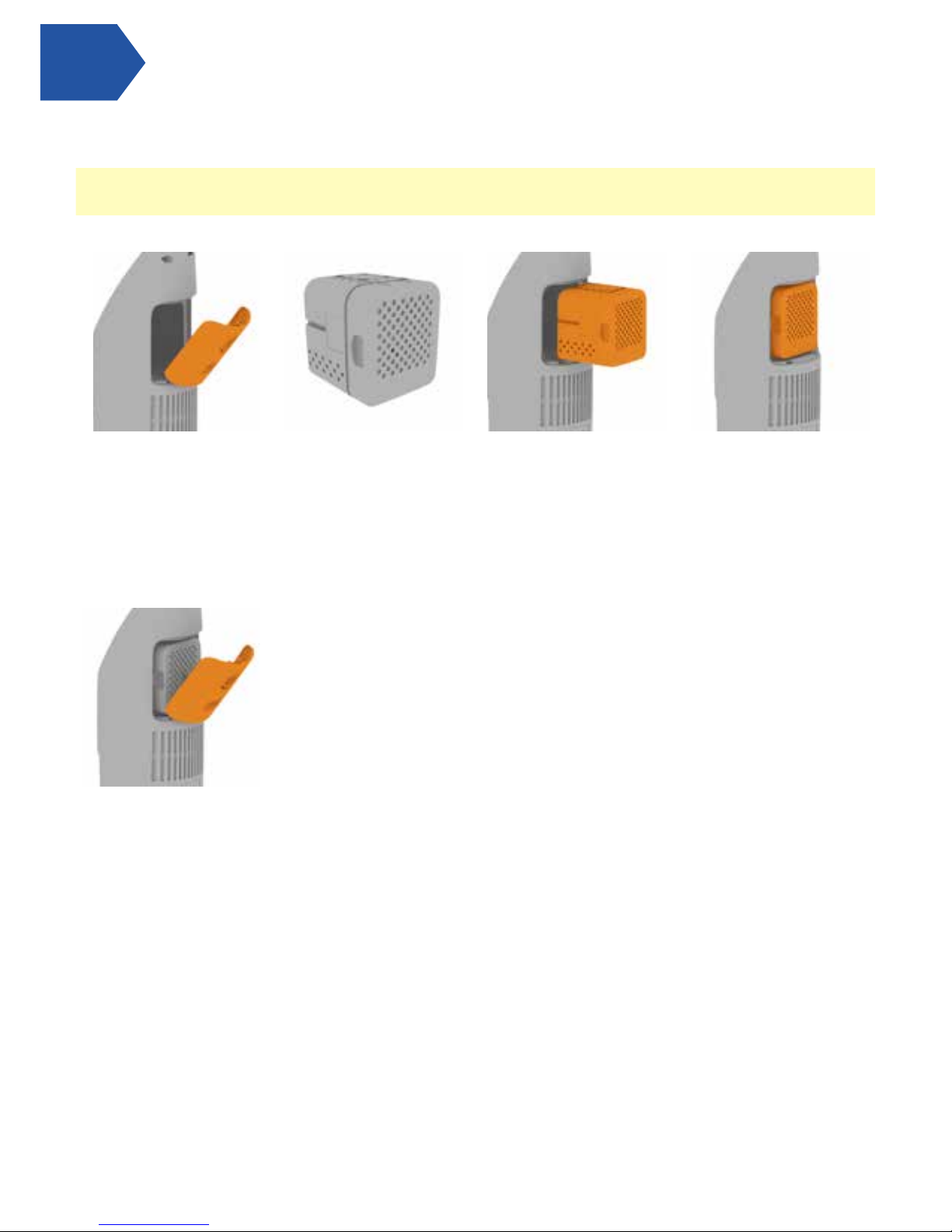

Squeeze the battery cover

release button and pull

to remove the battery

cover located on the

back of the machine.

Line up the battery cover

and clip into place.

The battery connector

should be positioned at

the bottom of the battery

when installing.

Line up the battery with

battery compartment.

Push the battery into the

battery compartment until

secured into place.

CAUTION: The battery remains permanently installed inside the cordless vacuum once correctly tted. There is no

need to remove it for charging.

Plug the charger into the

charging port located on

the back of the machine,

towards the bottom. Plug

charger into mains.

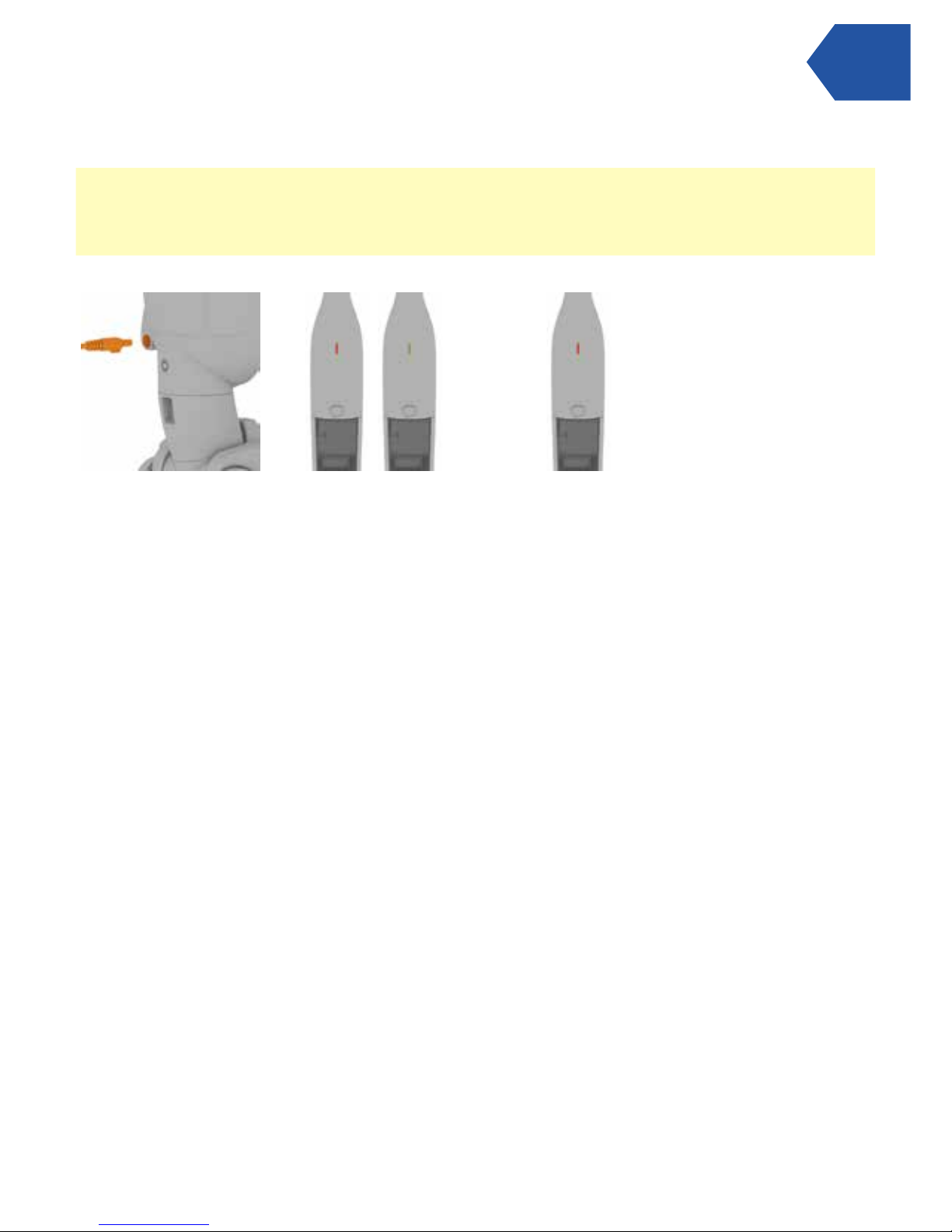

The LED indicator charge

light will illuminate red

when charging. Once fully

charged the LED indicator

charge light will illuminate

green.

When the vacuum needs

recharging the LED

indicator charge light will

illuminate red and ash

on/o, the machine will

then cut out.

Charging your cordless vacuum cleaner

Getting started

IMPORTANT: Always unplug the charger from the mains and machine charging port before carrying out any

maintenance or troubleshooting checks. Never use the machine with the charger attached and plugged into the mains.

NOTE: The initial charge is 4 hours, charging will be required before rst use.

Using your machine

Using the vacuum cleaner

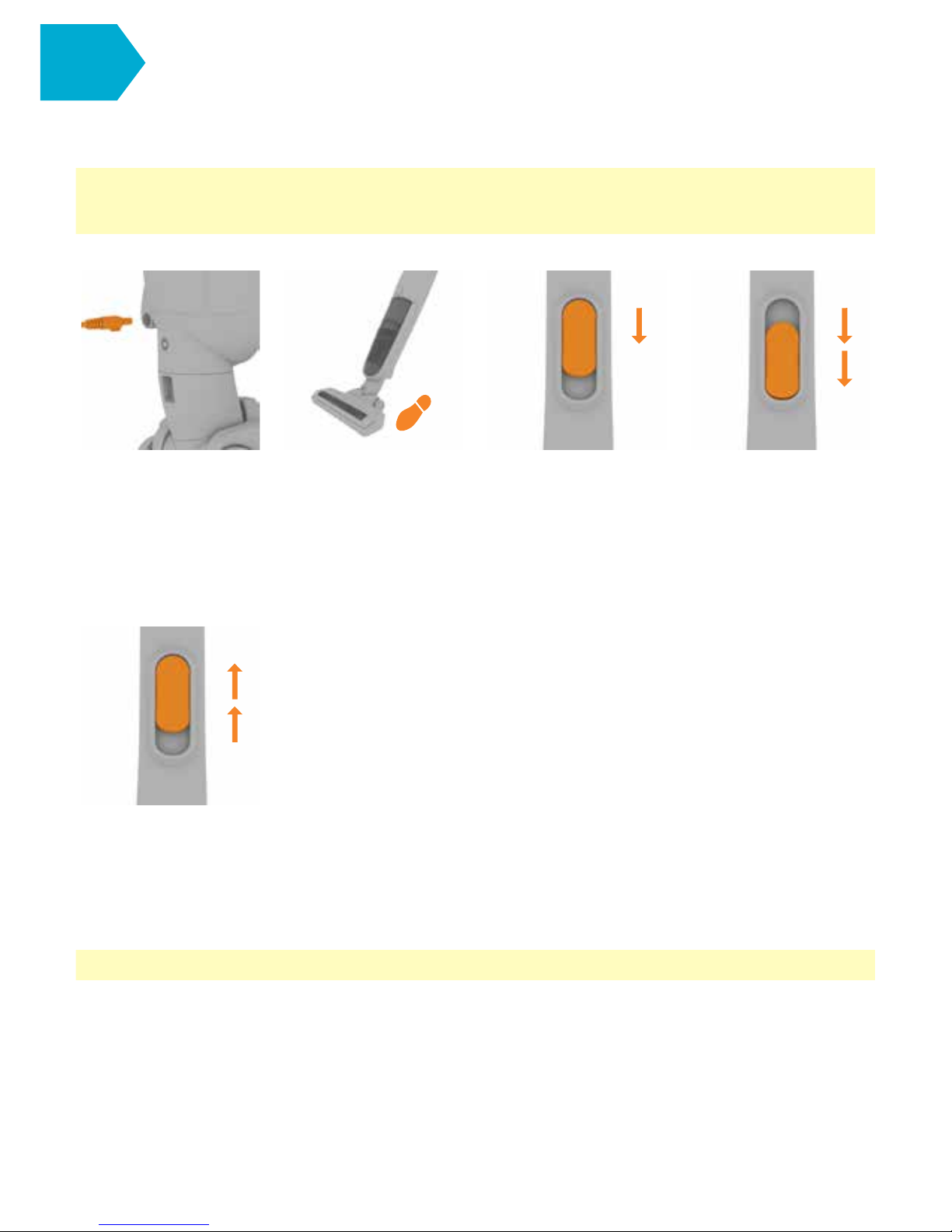

Unplug the charger from

the mains and from the

machine charging port.

Slide the on/o suction

control switch all the way

back to switch the power

and LED light ‘O’.

Place foot on the

oorhead and pull

the handle backwards

to recline.

Slide the on/o suction

control switch forward

once for low suction.

The LED indicator charge

light will illuminate green,

indicating the power is on

and the brushbar will spin.

Slide the on/o suction

control switch forward

again for max suction.

CAUTION: The brushbar will constantly rotate. Never leave the vacuum cleaner in one spot for an extended period

of time as this may damage the oor surface. Vax cannot be held responsible for damage to the oor surface if the

customer fails to take notice of this recommendation.

NOTE: The brushbar will continue to rotate when the vacuum cleaner is switched on and in the upright position.
