Vantec NexStar NST-D100FBSU User manual

www.vantec.com.tw

Model:NST-D100FBSU

SATA to eSATA/USB2.0/FireWire

All Registered Trademarks Belong To Their Respected Companies.

User’s Manual / 使用手冊

2.5/3.5吋雙用高速傳輸硬碟外接座

傳輸方塊

■

Content

........................................................................................................................... 1

1.Introduction

.............................................................................................................

2.System Requirements

........................................................................................

3.Specifications/Features............................................................................. 4

4.Installation

.................................................................................................................

5.Removal

...................................................................................................................... 8

6.Driver Installation

............................................................................................... 10

Windows 2000/XP/VISTA

.................................................................................. 10

Mac OS 10.2 or later

............................................................................................ 10

7. Warranty

.................................................................................................................. 11

傳輸方塊2.5/3.5吋雙用高速傳輸硬碟外接座

■

目錄 ................................................................................................................................. 2

1.產品敘述 .................................................................................................................. 12

2.系統需求 .................................................................................................................. 12

3.產品特色/規格 ...................................................................................................... 13

4.產品裝置說明 ........................................................................................................ 14

5.移除硬碟 .................................................................................................................. 17

6.驅動程式安裝 ........................................................................................................ 19

Windows 2000/XP/VISTA

............................................................................................. 19

Mac OS 10.2

含以上 ...................................................................................................... 19

7.產品保固 .................................................................................................................. 20

1.Introduct

■

1.Introduction

Microsoft Windows 2000/XP/Vista or Mac OS 10.2 & greater .

USB port, internal SATA port, eSATA port, FireWire 400(1394a) port, or FireWire 800 (1394b) port .

For USB 2.0 speeds, the system must support USB 2.0 specifications .

For SATA speeds, the system must support SATA specifications.

For FireWire 800(1394b) speeds, the system must support 1394b specifications.

For FireWire 400(1394a) speeds, the system must support 1394a specifications.

The Vantec NexStar® Hard Drive Dock is a complete and easy way to add or swap hard drives to your

computer. It gives you the flexibility of connecting any SATA I/II hard drive to your computer via USB

2.0 / FireWire / eSATA connection without opening up your computer case or installing into an

enclosure. Simply just insert any 2.5” or 3.5” SATA I/II hard drive into the NexStar® Hard Drive Dock and

you are ready to transfer, copy, or backup files. Quick and easy, the Vantec NexStar® Hard Drive Dock is

the perfect solution to access your hard drive in seconds.

System Requirements

3.Specifications/Features

Package Includes

：

Specifications

：

■

Device Support

：

SATA I/II Hard Drive

■

Device Size

：

2.5

”

or 3.5

”

■

Internal Interface

：

SATA

■

External Interface

：

USB 2.0,eSATA & FireWire

800/400

■

Material

：

Plastic

■

Dimension

：

136 x 83 x 87mm

■

HDD Capacity

：

Up to 2TB*

■

Power Supply

：

Dual 5V/12V 2A

Features

：

■

NexStar Hard Drive Dock

USB Cable

eSATA Cable

1394b Cable

1394b to 1394a Converter Cable

SATA to eSATA Bracket

Power Adapter

Power Cable

User’s Manual

Install and Access Your Hard Drive in Seconds

Simple to Use Design; No Need to Add Enclosure or

Open Case

Eject Button for Easy Removal of Hard Drive

Supports 2.5"/3.5" SATA I/II Hard Drive Up to 2.0 TB*

Add Storage to Any System with USB, eSATA, or FireWire

Plug & Play; No Drivers or Software Required

Attractive Blue LED Power & HDD Activity Light

Transfer Rates Up to 480Mbps w/USB 2.0

(12Mbps w/USB1.1)

Transfer Rates Up to 3Gbps w/eSATA

Transfer Rates Up to 400Mbps w/FireWire 400 (1394a)

Transfer Rates Up to 800Mbps w/FireWire 800 (1394b)

*For the most updated Storage capacity, please

check our website: www.vantecusa.com

4.Installation

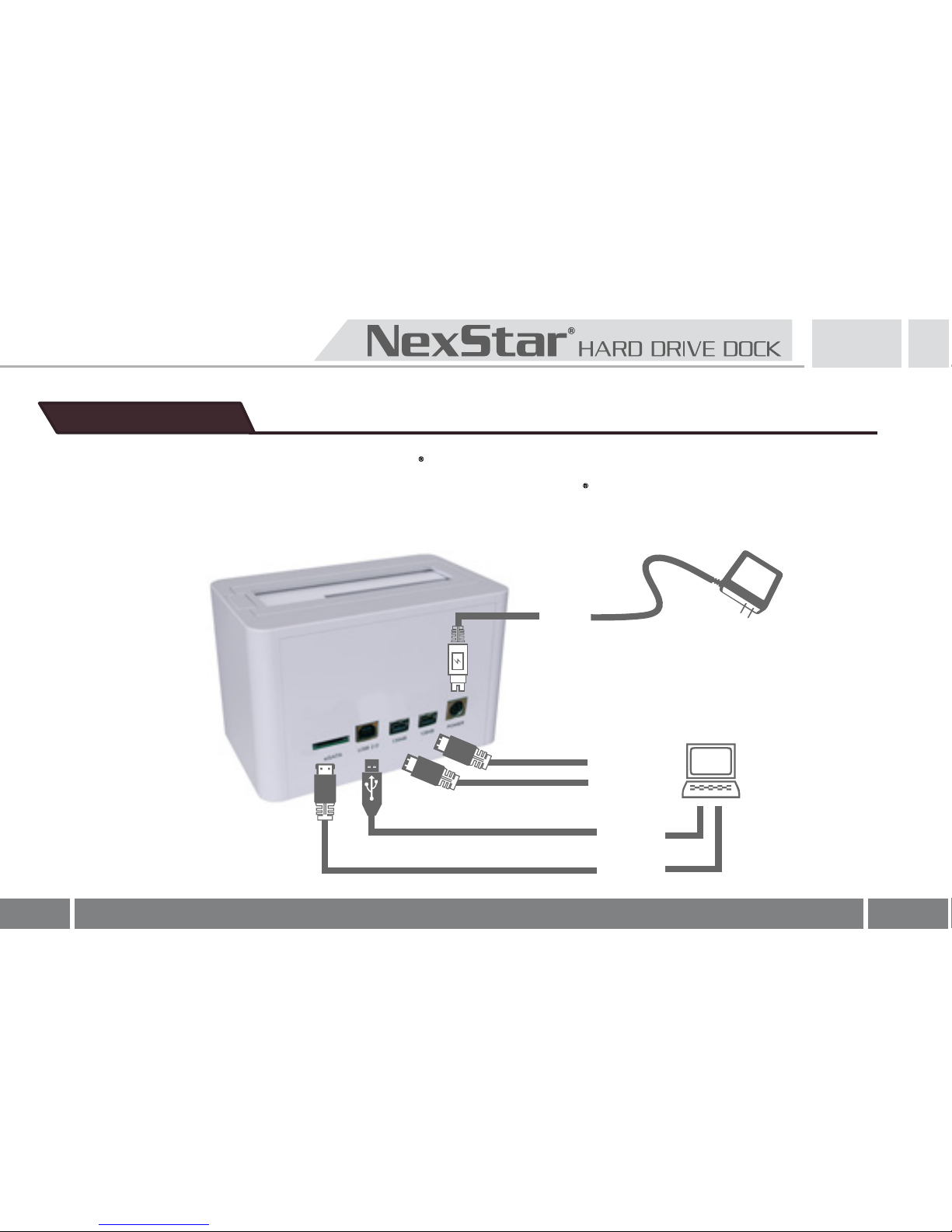

1. Connect the power adapter to the NexStar Hard Drive Dock.

2. Connect either the USB, eSATA or FireWire Cable to the NexStar Hard Drive Dock and

attach the other end to your computer.

Power

Cable

USB 2.0

Cable

Firewire

Cable

SATA

IEEE

1394B

IEEE

1394B

eSATA

Cable

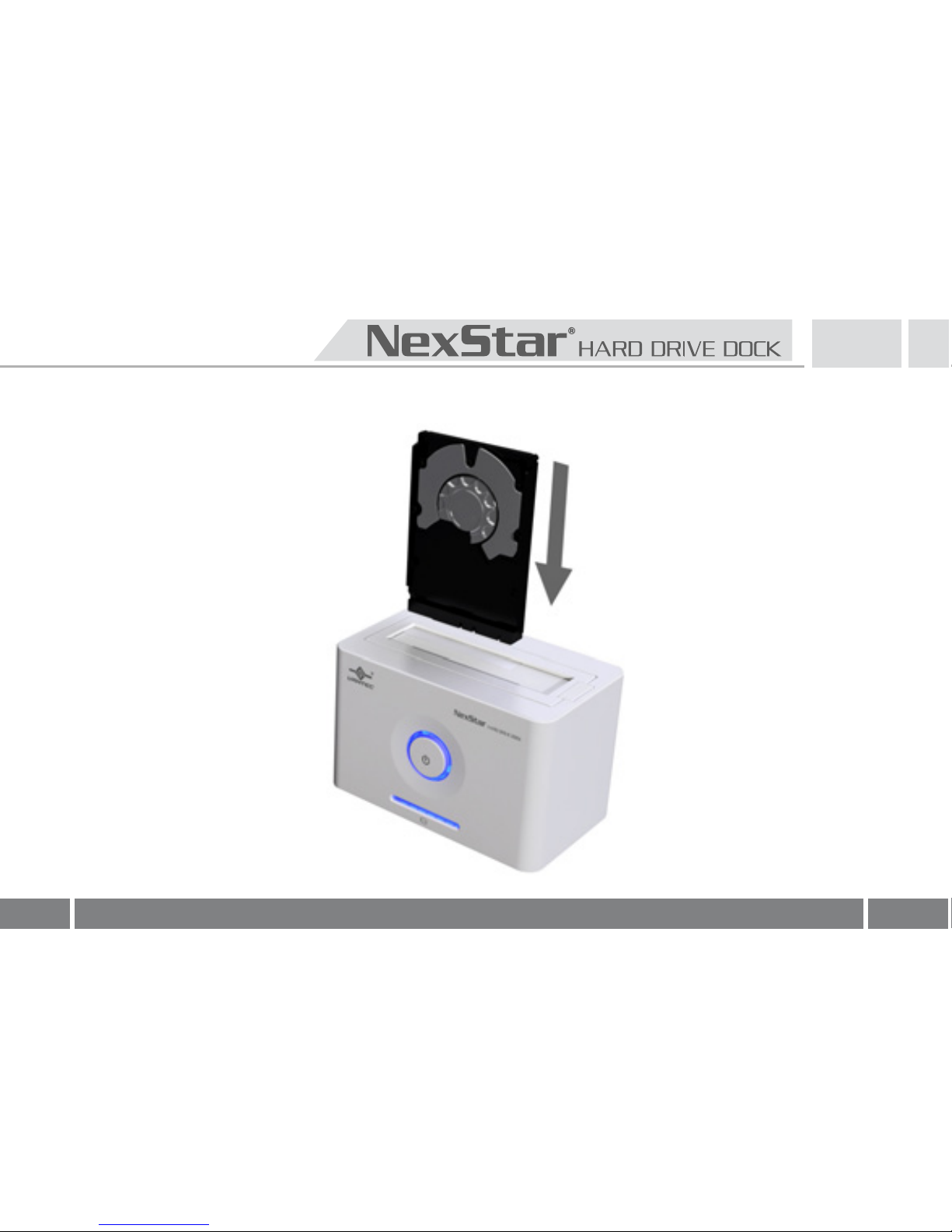

3. Insert 2.5” or 3.5” SATA HDD into the slot.

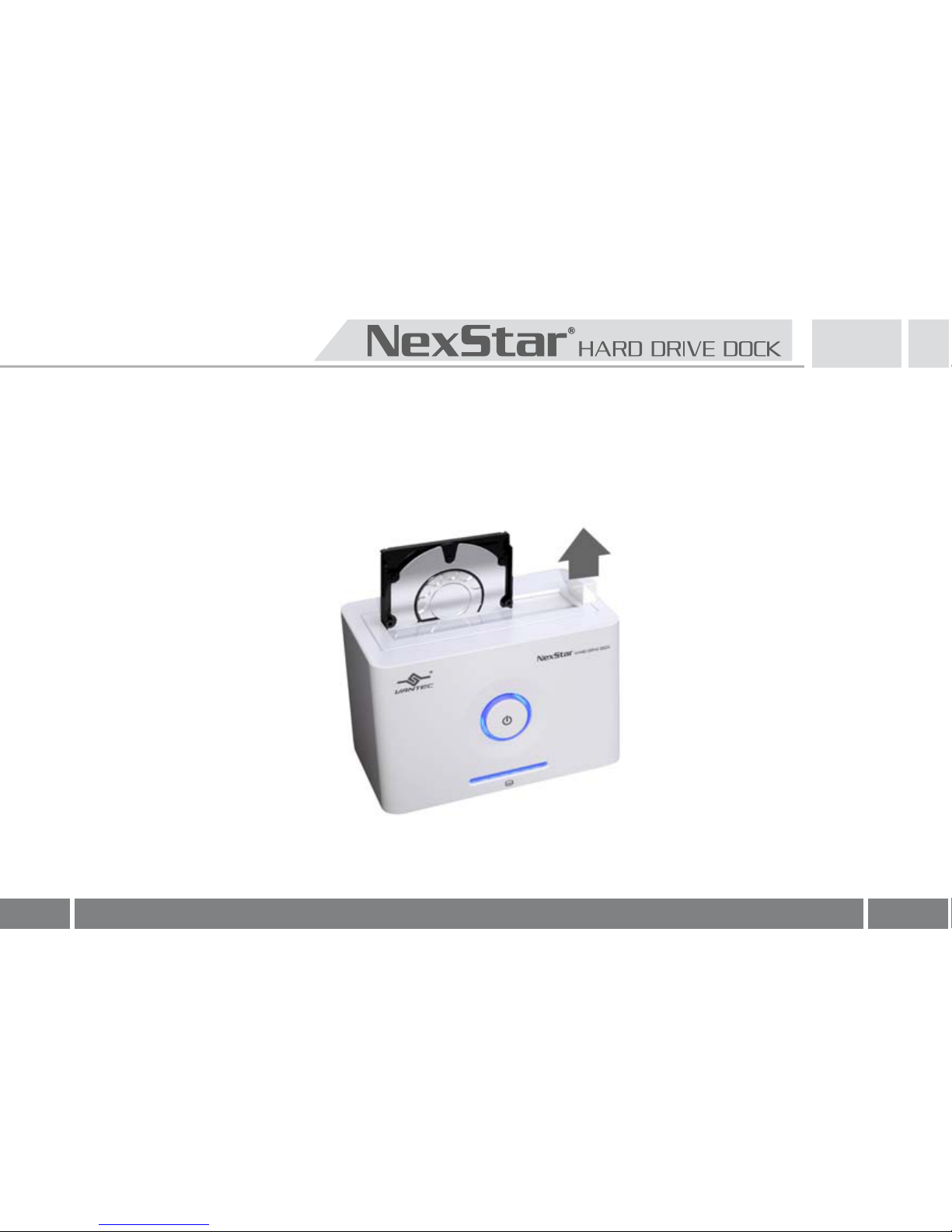

3-1. When the eject button is upright, the NexStar Hard Drive Dock is ready for use.

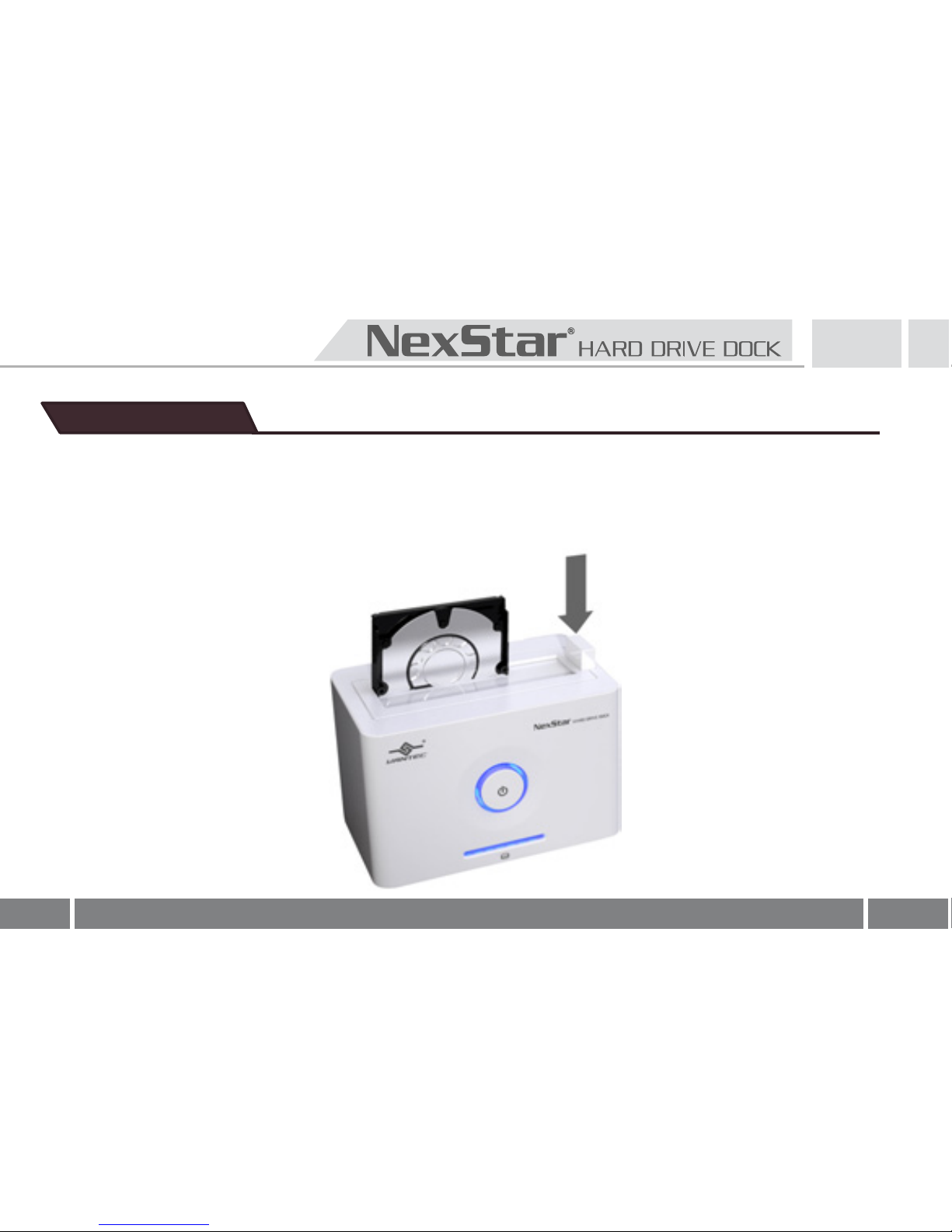

5.Removal

1. Remove the HDD safely from your computer system.

2. Push down the button to eject the HDD.

(Stabilize the HDD with your hand).

Warning, please push power button & turn off unit before removing the hard drive!

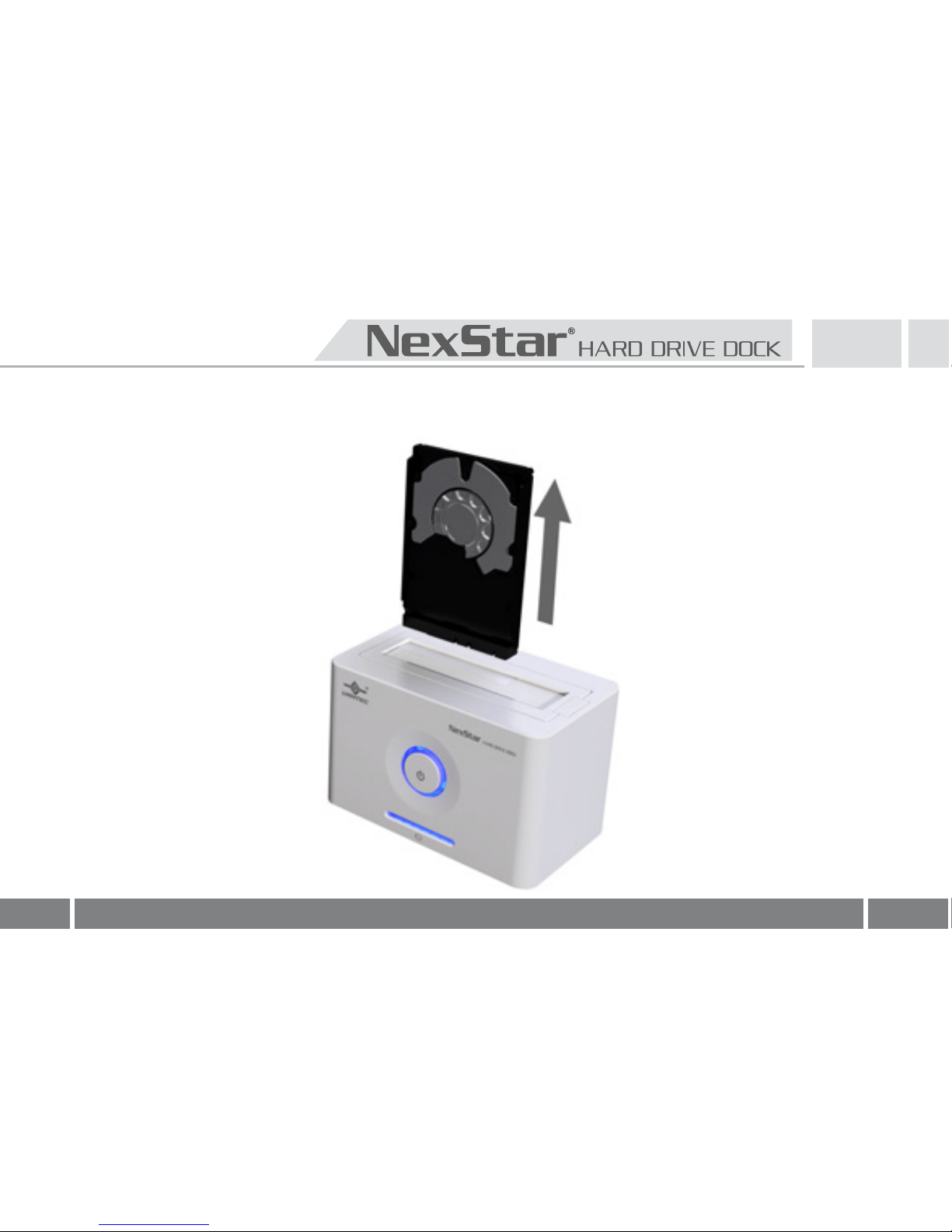

3. Remove the HDD from the Hard Drive Dock.
