Valor 736TN User manual

CAUTION

Duetohightemperatures, theapplianceshould Keep area infront of bottom grill clear to pre-

belocatedoutoftraffic andawayfromfurniture vent obstruction of air flow to appliance for

and draperies. combustion.

Children and adults should be alerted to the

hazardsofhighsurfacetemperaturesandshould

stay away to avoid burns or clothing ignition.

Young children shouldbecarefully supervised

when they are in the same room as the appli-

ance.

Clothing or other flammable material should

not be placedon or nearthe appliance.

The glass andfront frame must beput back in

place prior to operating the appliance if they

have been removedfor servicing or cleaning.

Thisapplianceshouldbeinstalledandrepaired

by a qualified service person.

The appliance should beinspected before use

,-.and at least annually by a professionalservice

Serson. More frequent cleaning may be re-

quired due to excessive lint from carpeting,

bedding material, etc.

isimperative that con-

trol compartments, burnersand circulating air

passageways of the appliance be kept

clean.

Keep curtains, clothing, furniture and other

flammable materials at least 36ins. (900mm)

from the front andtop of the appliance.

Keeptheapplianceareawellclearandfreefrom

combustiblematerials,gasolineandotherflam-

mable vapors and liquids.

Neverattempttoburnpaperoranyothermaterial

inthe appliance.

This appliancerequires asource offresh air in

order to vent properly. The venting system

should be checked periodically.

Recenttrends in home improvement and new

tighter construction techniques have contrib-

uted to problems with venting.

you suspect

that your appliance isnot venting properly, do

not operate and seek expert advice.

Do not usethis appliance ifany part has been

underwater. linmediately call a qualified serv-

ice technician to inspect the appliance and to

replaceany part of the control system andany

gas control which has been underwater.

NOTE

any changesare madetothe roomconstruc-

tion in the vicinity of the appliance

after installation (e.g. additional mantle etc.),

make sure that such chahges conform to the

installation requirements inthis manual.

Whenequippedwiththeoptionalcirculatingfan

kit (Part #710CFK) or power vent kit (Part

#720PVC), the appliance must be installedand

electrically grounded inaccordance with local

codesor, intheabsenceoflocalcodes, withthe

latest edition of the Canadian Electrical

Code, CSA C22-1.

This heater must be properly connected to a

venting system. Operation of this

heater when not connected to a properly

installed and maintained venting system can

result in carbon monoxide

(CO)

poisoning

and possible death.

On first lighting your new appliance there may be a slight odor and the appearance of a slight amount

vapor. This

isnormal with newappliances

Itis not harmful andWill disappear within a short time.

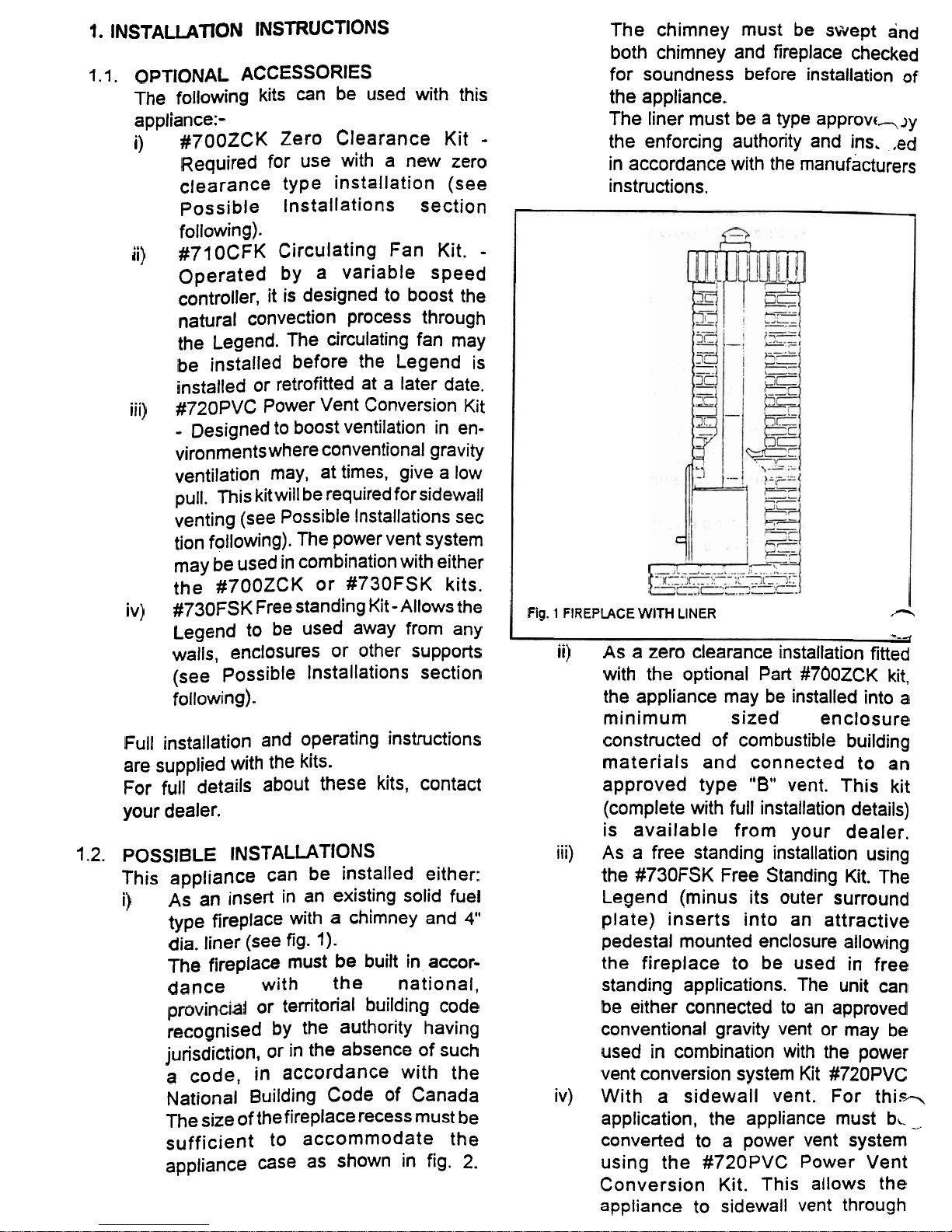

INSTALLATION INSTRUCTlONS The chimney must be swept and

both chimney and fireplace checked

1.1.

OPTIONAL

ACCESSORlES for soundness before installation of

The following kits can be used with this the appliance.

appliance:- The liner must be a type approvc-JY

i) #700ZCK Zero Clearance Kit

the enforcing authority and ins.

,ed

Required for use with a new zero in accordancewith the manufacturers

clearance type installation (see instructions.

possible lnstallations section

following).

ii) #710CFK Circulating Fan Kit.

Operated by a variable speed

controller, it is designed to boost the

natural convection process through

the Legend. The circulating fan may

be installed before the Legend is

installed or retrofittedat a later date.

iii) #720pVC Power Vent Conversion Kit

Designedto boostventilation in en-

vironmentswhereconventionalgravity

ventilation may, at times, give a low

pull. Thiskitwillberequiredforsidewall

venting(see Possiblelnstallationssec

tionfollowing).The powerventsystem

maybeusedincombinationwitheither

the #700ZCK or #730FSK kits.

iv) #730~SKFreestandingKit

Allowsthe

Legend to be used away from any

Fig.

FIREPLACE

LINER

walls, enclosures or other supports ii) As a zero clearance installation fitted

(see Possible Installations section with the optional Part #700ZCK kit,

following). the appliance may be installedinto a

minimum sized enclosure

FUI~

installation and operating instructions constructed of combustible building

are suppliedwith the kits. materials and connected to an

For full details about these kits, contact approved type

"8"

vent. This kit

your dealer. (complete with full installation details)

is available from your dealer.

1.2.

POSSIBLE INSTALLATIONS iii) As a free standing installation using

This appliance can be installed either: the #730FSK Free Standing Kit. The

an insert in an existing solid fuel Legend (minus its outer surround

type fireplace with a chimney and

plate) inserts into an attractive

dia. liner (see

fig.

1).

pedestal mounted enclosure allowing

The fireplace must be built in accor- the fireplace to be used in free

dance with the national, standing applications. The unit can

or territorial building code be either connected to an approved

recognised by the authority having conventional gravity vent or may be

jurisdiction, or in the absence of such used in combination with the power

a code,

accordance with the vent conversionsystem Kit #720PVC

National Building Code of Canada iv) With a sidewall vent. For thi.s-,

Thesizeofthefireplacerecessmustbe application, the appliance must bc

sufficient to accommodate the converted to a power vent system

appliance case as shown in fig.

using the #720PVC Power Vent

Conversion Kit. This allows the

appliance to sidewall

vent

through

any approved 4" dia. vent to a

remote fanlhood up to 75 feet from

the appliance,

All installations must conform with local

codes or, in the absence of local codes

with the current CANICGA1-6149

InstallationCode. Onlyqualified (licensedor

trained) personnel should install the

appliance.

1.3.

SUPPLY

GAS

Model 736TN is for use only with Natural

Gas. The natural gas supply pressure at

the appliance inlet connection should be

not less than 5"w.c. and not more than

10.5"w.c.

Model 736TP is for use only with Propane

Gas. The propane supply pressure at the

appliance inlet connection should be not

less than 1l"w.c. and not more than

4"w.c.

The supply connection to both appliances

is 318" NPT.

1.3.1.

Gas

Feed Line

The supply gas feed line should enter

the appliance through one of the

openings in the appliance case.

Openingsareprovidedatthebackand

right side. (see fig. 4). See section 4

for g'as supply connection details.

Top

gr~lle

ouller

MIN

Side

Clearance

Lett

and

right

s~des

Vent

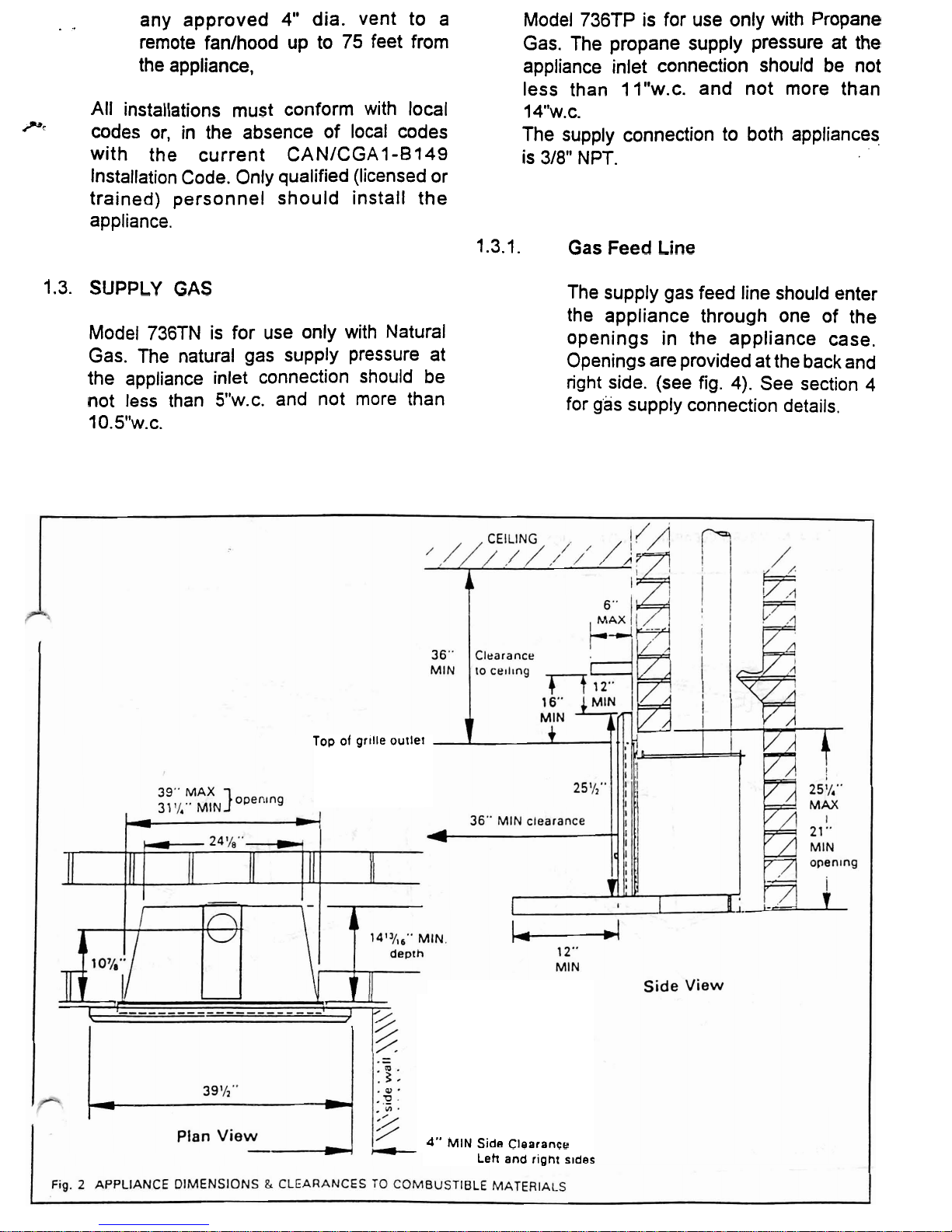

Fig.

NEWZERO CLEARANCE INSTALLATION

Gas tine Elbow Connector

Fig.

OPENINGS IN CASE

Electric Cord Access

for

#71

OCFK Fan Kit Air Circulationopening for

#7OOZCK Zero Clearance Kit

Keepcovered if #700ZCK not used

1.4.

CLEARANCES TO

COMBUSTlBLE

CONSTRUCTIONS

The minimum clearances from any

r--

combustible constructions at the front of

the appliance are shown in fig.

These

front clearances apply for all installations

whether in solid fuel fireplace, new zero

clearance construction or free standing.

If, it is intended to fit the appliance in a

combustible recess, the Zero Clearance

Kit #700ZCK (available from your dealer)

must be usedas shown infig.3.

1.5.

FLOOR

The floor in the fireplace recess must be

sufficiently flat and level to support the

appliance satisfactorily. Some fireplace

constructions have

well in the floor at

the back which may need to be filled in.

Do not place the appliance on carpeting,

vinyl or other soft-surfaced floor coverings.

Install only on hard surfaced materials.

We recommen'd that a hard surfaced

hearth area be maintained at least

12"

-3

front of the fireplace for both aesthetic and

maintenance purposes. This may be

finished in brick, ceramic tile, marble etc.

Raising the hearth slightly will help to

minimise dust and lint accumulation

under

the unit.

If the appliance is installed directly on any

combustible material other than wood

flooring, the applianceshall be installed on

metal or wood panel extending the full

lance.

width anddepthof the app"

1.6.

APPLIANCE PACK CONTENTS

The pack contains:-

Appliance fitted with front unit.

3 Ceramic Logs.

Pair ceramic firebox side walls.

Ceramic firebox backwall.

Outer surround side channels.

Outersurroundtop channel.

Bag of screws, nuts and washers

for outer surroundfixing.

1 Supplylineelbow connector.

Take care when removing the contents

from the packaging to prevent damage.

Check that all the contents are inthe pack

and are undamaged. e

INSTALLING IN EXISTING FlREPLACE

2.1

PRE-INSTALLATION PREPARATION

2.1.1. Closing Large Fireplace Openings

This appliance

suitable for fire-

place openings from 21" to 25 1/4"

high and

114"

to 39" wide. For

infilling larger fireplace openings .the

fireplace opening may be reduced

or the outer surround plate extended

provided non-combustible materials

are used.

2.1.2. Remove Inner Front Unit.

Unhook the inner front unit and lift

clear (see

fig.

5).

Put

the unit in a

safe place.

Fig.

INNER

FRONT

UNIT

REMOVAL

2.1.3.

Remove Window and Logs (see

Fig.

2.1.3.1. Detach the window unit by removing

the two knurled screws situated at

the bottomcomers of the unit.

Knurled

screws

Fig.

WINDOW

REMOVAL

2.1

3.2.

Lift

the

window unit up and forwards

to unhook the top. Put the window in

asafe place.

2.1.3.3. Take the ceramic logs out of the

firebox and store in

safe place.

2.1.4. Remove Front Frame

Detachthe front frame by unscrewing

two screws each side. The lower

screws are accessible when the

bottom grill is opened (see fig.

7).

Fig.

FRONT

UNIT

REMOVAL

2.1.5.

Remove the Vent Connection Unit

Detach the vent connection unit from

the top of the appliance case by

removingthe screw at front and lifting

the unit clear (see fig.

8).

Fig.

VENT

CONNECTOR

REMOVAL

2.1.6.

Check Ignition Electrode Spark

Pilot ignition is by a spark

~roducedwhen the control knob

If there is

spark,. check

that the wiring is secure.

Replace parts if necessary (see

fig.

2.2

iNSTALL

THE

APPLIANCE

2.2.1.

Connect the Chimney Liner

Connect the collar on the vent

connector unit to the

diameter

chimney liner.

2.2.2. Insert the Fire Unit

Slide the fire unit into the firepla'cg

making sure that the vent connection

unit is above the appliance case.

Leave the case front a few inches

clear of the fireplace front to allow

you to fix the vent connector to the

top of the case.

Fig.

VENT

CONNECTION

UNlT

AlTACHMENT

is pushed in and turned counter-

2.2.3.

Attach the Vent Connector

clockwise to the 'IGN' position. Check Swing the vent connector backwards

that two consecutive sparks are and locate its rear edge in the slot at

produced at the pilot burner.

top rear of the appliance case. Fix

the front of the vent connector plate

to the appliance case top using the

screw previously removed (see

fig. 10).

?<-.2.4.

Fit

Outer Surround

2.2.4.1.

Assemble the two outer surround

sides to the top cross piece using

the four nuts, screws and washers

provided(seefig. 11).

Fig.

OUTER

SURROUND

ASSEMBLY

INSTALLING OPTIONAL ACCESSORIES

3.1.

ZERO

CLEARANCE INSTALLATION

WITH KIT

700ZCK

(SUPPLIED

SEPERATELY)

Accessory Kit

#700ZCK

allows the

appliance

be installedwith a

diameter

type "B-1" metal vent recessed into a wall

or partition or in a chase (see fig. 3)

The maximum horizontal vent pipe length

8ft

and minimum vertical pipe length of

8ft.

For full details please contact your

dealer.

Prepare the appliance and install in

position inaccordancewith the instructions

suppliedwith the kit.

#'I1

OCFK

CIRCULATING

FAN

KIT

If this fan is to be installedat the same time

as the appliance, itwill be most convenient

to fit it at this stage (i.e. before the gas

supply is connected).

Full

installation instructions are supplied

with the fan kit. In order to install this unit,

the appliance burner module will have to

beremoved. Details of the removalmethod

are described in the servicing section at

the backof this manual.

2.4.2.

Place the assembled outer surround

in positionagainst the heater. Secure

to the heater front flanges with

screws through the two brackets on

the top cross piece and through two

holes on the inner flanges of each of

the surround sides (see fig.

12)

-.....

.......

. .

...

F-

.12

OUTER

SURROUND

AllACHMENT

2.2.4.3

Push the appliance fully home

against the front

face

of the fireplace.

Make sure that no sags or dips occur

inthe liner.

CONNECT

THE

GAS'SUPPLY

4.1. Openings for the gas supply line are

provided at the back and right side (see

figure 4). The appliance is supplied with a

platecoveringthebackopening.Theopening

at the rightside is uncoveredas supplied. If

the supply line isto enterthrough the back,

removetheplateandrefittothesideopening.

Notethattheopeningsattherightandleft

sides which are supplied covered with

metalplatesare notforsupplypipeentry.

Theseopeningsshouldonlybeuncovered

when the #7OOZCK zero clearance kit is

used.

318"

NPT

elbow connector is supplied for

connecting the supply line to the appliance

inlet pipe.

Use only new black iron or steel pipes or

copper tubing if acceptable. Unions in gas

lines shouldbe of groundjoint type.

4.2. To allow clear access for connecting the

elbowto the appliance inletpipedisconnect

the thermostat shaft as follows:-

4.2.1. Removeth$"R"clip securingtheshaft

collartothethermostatspindle(Figure

13a).

4.2.2. Slidethe collar up the shaft to free it

from the thermostat spindle (Figure

13b). Holdontothe collar. Don't let

fall intothe appliance.

could be

difficult to retrieve1

4.2.3. Swing the lower shaft forward and

removethe collar (Figure 13c). Keep

the collar safe.

4.2.4. Swingthe lowershaftbackandpark it

inthe slot openinginthe rightside of

the appliance case (Figure 13d).

4.3.

The gas supply line must be sized and

installed to provide a supply of gas

sufficient to meet the maximum demand of

the appliance without undue loss of

pressure. Sealants used must be resistant

to the action of all gas constituents

includingL.P. gas.

Sealants should be applied lightly to male

threads to ensure excess sealant does not

enter gas lines.

The supply line should include a manual

shut-off valve and union inthe lineto allow

the appliance to be disconnected for

servicing.

A plugged

118"

NPT tapping must be

installed in the line. The tapping must be

accessible for test gauge connection and

be immediately upstream of the gas supply

connectionto the appliance.

All piping and connections must be tested

for leaks after installation or servicing.

All leaks must be corrected immediately.

When testingfor leaks:-

a) Make sure that the appliance control

knobis at the OFFposition.

(b) Openthe manualshut-offvalve.

.+=--

detergent or soap solution to alljoints

Bubblesforming indicate

gas leak.

NEVER USE

OPEN FLAMETO

CHECK FOR LEAKS.

(d)

Correctany leak detectedimmedia-

tely.

4.4.

Reconnect the thermostat control shafi as

follows:-

4.4.1.

Turnthethermostatcontrolwheelfully

counterclockwisetothelowestsetting

(position

1).

Turnthethermostatspindle

fully

counterclockwise.Seefigure

15.

Fig.

15.

4.4.2.

Releasethelowershaftfromitsparked

position. Replace the collar over the

endoftheshaftwiththe

"D"

holeatthe

bottom.

4.4.3.

Swing the shaft and collar over the

thermostat spindle.

Rotatethe collar so that the

lines

up with that in the spindle and allow

thecollartodropfullyoverthethermo-

stat spindle.

4.4.4.

Refitthe

clip

The collarwill have

to beraiseslightlyto aligntheholes. If

not raised, the clip may go below the

endof the shaft. Checkthat the collar

rotates when the thermostat control

wheel isturned.

Fig.

GAS

LINE

CONNECTION

TEST

TAPPING POINT

This manual suits for next models

Table of contents

Other Valor Indoor Fireplace manuals

Valor

Valor 1200EAN Operating instructions

Valor

Valor BR417 VA User manual

Valor

Valor HORIZON 534JN User manual

Valor

Valor LIMOUSIN BR627 User manual

Valor

Valor G3 739I User manual

Valor

Valor 1600IN Operating instructions

Valor

Valor Ultimate Turbochim BR517S Assembly instructions

Valor

Valor 738BVN Installation instructions

Valor

Valor Horizon 534JLN Operating instructions

Valor

Valor 1500INO (NG) Operating instructions

Valor

Valor G3 Classic Operating instructions

Valor

Valor ALPHA 647 User manual

Valor

Valor HORIZON 535 Installation and operation manual

Valor

Valor 738KN Operating instructions

Valor

Valor 1440 User manual

Valor

Valor Horizon 673EDN User manual

Valor

Valor LEGEND G3 738JN Operating instructions

Valor

Valor MADRONA MF28JN Operating instructions

Valor

Valor Ultimate Assembly instructions

Valor

Valor 534AN Installation instructions

Valor

Valor Bauhaus 32-032-60 User manual

Valor

Valor 641 User manual

Valor

Valor Retrofire RF24XBN Installation instructions

Valor

Valor 1200EAN (NG) Installation instructions

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
