Vaisala PTB210 SERIES User manual
USER'S GUIDE
Digital Barometers with Analog Output
PTB210 Series
M210670EN-B
PUBLISHED BY
Vaisala Oyj Phone (int.): +358 9 8949 1
P.O. Box 26 Fax: +358 9 8949 2227
FIN-00421 Helsinki
Finland
Visit our Internet pages at http://www.vaisala.com/
© Vaisala 2006
No part of this manual may be reproduced in any form or by any means, electronic or
mechanical (including photocopying), nor may its contents be communicated to a third
party without prior written permission of the copyright holder.
The contents are subject to change without prior notice.
Please observe that this manual does not create any legally binding obligations for
Vaisala towards the customer or end user. All legally binding commitments and
agreements are included exclusively in the applicable supply contract or Conditions of
Sale.
_________________________________________________________________________________
VAISALA_________________________________________________________________________ 1
Table of Contents
CHAPTER 1
GENERAL INFORMATION............................................................................ 3
Safety......................................................................................... 3
Feedback............................................................................... 3
Recycling .................................................................................. 4
Trademarks ............................................................................... 4
License Agreement .................................................................. 4
Warranty .................................................................................... 5
CHAPTER 2
PRODUCT DESCRIPTION ............................................................................ 7
CHAPTER 3
INSTALLATION.............................................................................................. 9
Mounting ................................................................................... 9
Static Pressure Head .......................................................... 10
Connections............................................................................ 11
CHAPTER 4
CALIBRATION AND ADJUSTMENT........................................................... 13
Wizard Software ..................................................................... 13
Operation............................................................................. 14
CHAPTER 5
TECHNICAL DATA ...................................................................................... 19
Technical Specifications ....................................................... 19
Operating Range................................................................. 19
Accuracy.............................................................................. 19
General................................................................................ 20
Electromagnetic Compatibility............................................. 21
Dimensions in mm (inches) .................................................. 22
User's Guide _______________________________________________________________________
2 ____________________________________________________________________ M210670EN-B
List of Figures
Figure 1 PTB210 and the Standard Accessories .....................................7
Figure 2 The BAROCAP® Pressure Sensor ............................................8
Figure 3 Different Mounting Options of the PTB210.................................9
Figure 4 Recommended Cable Position .................................................10
List of Tables
Table 1 Connections of the PTB210 Barometer with Analog Output ....11
Chapter 1 _________________________________________________________ General Information
VAISALA_________________________________________________________________________ 3
CHAPTER 1
GENERAL INFORMATION
Safety
Throughout the manual, important safety considerations are
highlighted as follows:
WARNING Warning alerts you to a serious hazard. If you do not read and follow
instructions very carefully at this point, there is a risk of injury or
even death.
CAUTION Caution warns you of a potential hazard. If you do not read and
follow instructions carefully at this point, the product could be
damaged or important data could be lost.
NOTE Note highlights important information on using the product.
Feedback
Vaisala Customer Documentation Team welcomes your comments
and suggestions on the quality and usefulness of this publication. If
you find errors or have other suggestions for improvement, please
indicate the chapter, section, and page number. You can send
User's Guide _______________________________________________________________________
4 ____________________________________________________________________ M210670EN-B
Recycling
Recycle all applicable material.
Dispose of batteries and the unit according to statutory regulations.
Do not dispose of with regular household refuse.
Trademarks
BAROCAP®is a registered trademark of Vaisala.
License Agreement
All rights to any software are held by Vaisala or third parties. The
customer is allowed to use the software only to the extent that is
provided by the applicable supply contract or Software License
Agreement.
Chapter 1 _________________________________________________________ General Information
VAISALA_________________________________________________________________________ 5
Warranty
Vaisala hereby represents and warrants all Products
manufactured by Vaisala and sold hereunder to be
free from defects in workmanship or material
during a period of twelve (12) months from the date
of delivery save for products for which a special
warranty is given. If any Product proves however to
be defective in workmanship or material within the
period herein provided Vaisala undertakes to the
exclusion of any other remedy to repair or at its
own option replace the defective Product or part
thereof free of charge and otherwise on the same
conditions as for the original Product or part
without extension to original warranty time.
Defective parts replaced in accordance with this
clause shall be placed at the disposal of Vaisala.
Vaisala also warrants the quality of all repair and
service works performed by its employees to
products sold by it. In case the repair or service
works should appear inadequate or faulty and
should this cause malfunction or nonfunction of the
product to which the service was performed Vaisala
shall at its free option either repair or have repaired
or replace the product in question. The working
hours used by employees of Vaisala for such repair
or replacement shall be free of charge to the client.
This service warranty shall be valid for a period of
six (6) months from the date the service measures
were completed.
This warranty is however subject to following
conditions:
a) A substantiated written claim as to any alleged
defects shall have been received by Vaisala
within thirty (30) days after the defect or fault
became known or occurred, and
b) The allegedly defective Product or part shall,
should Vaisala so require, be sent to the works
of Vaisala or to such other place as Vaisala may
indicate in writing, freight and insurance
prepaid and properly packed and labelled,
unless Vaisala agrees to inspect and repair the
Product or replace it on site.
This warranty does not however apply when the
defect has been caused through
a) normal wear and tear or accident;
b) misuse or other unsuitable or unauthorized use
of the Product or negligence or error in storing,
maintaining or in handling the Product or any
equipment thereof;
c) wrong installation or assembly or failure to
service the Product or otherwise follow
Vaisala's service instructions including any
repairs or installation or assembly or service
made by unauthorized personnel not approved
by Vaisala or replacements with parts not
manufactured or supplied by Vaisala;
d) modifications or changes of the Product as well
as any adding to it without Vaisala's prior
authorization;
e) other factors depending on the Customer or a
third party.
Notwithstanding the aforesaid Vaisala's liability
under this clause shall not apply to any defects
arising out of materials, designs or instructions
provided by the Customer.
This warranty is expressly in lieu of and excludes
all other conditions, warranties and liabilities,
express or implied, whether under law, statute or
otherwise, including without limitation any implied
warranties of merchantability or fitness for a
particular purpose and all other obligations and
liabilities of Vaisala or its representatives with
respect to any defect or deficiency applicable to or
resulting directly or indirectly from the Products
supplied hereunder, which obligations and
liabilities are hereby expressly cancelled and
waived. Vaisala's liability shall under no
circumstances exceed the invoice price of any
Product for which a warranty claim is made, nor
shall Vaisala in any circumstances be liable for lost
profits or other consequential loss whether direct or
indirect or for special damages.
User's Guide _______________________________________________________________________
6 ____________________________________________________________________ M210670EN-B
This page intentionally left blank.
Chapter 2 _________________________________________________________ Product Description
VAISALA_________________________________________________________________________ 7
CHAPTER 2
PRODUCT DESCRIPTION
The PTB210 series digital barometers are designed for various
pressure ranges. The barometers with an analog output are available
with different scalings between 500 ... 1100 hPa for 0 ... 5V or
0 ... 2.5V. The PTB210 series barometers are also available with a
digital output.
The PTB210 series barometers offer an excellent solution for outdoor
installations. They operate in a wide temperature range. The housing
of the barometer electronics provides an IP65 standardized protection
against sprayed water. The rugged corrosion-resistant housing in
combination with the small size facilitates easy installation and a long
lifetime for the barometer.
All the barometers are digitally adjusted and calibrated by using
electronic working standards.
This manual gives the instructions for the use of PTB210 barometers
with the analog output.

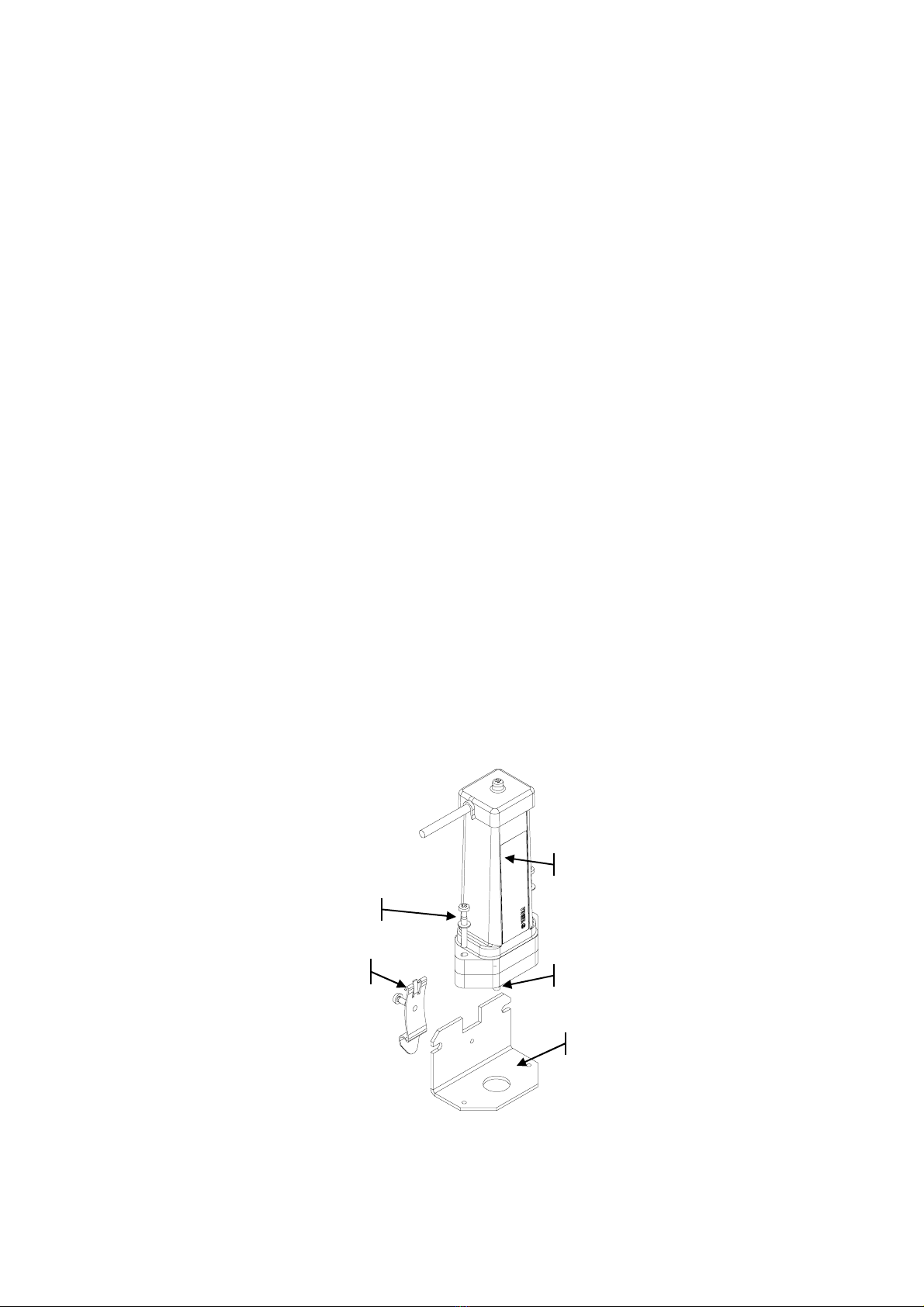

Figure 1 PTB210 and the Standard Accessories
Rail fastening clip
A
ttachment plate
Fixing screw (2 pcs)
PTB210 baromete
r
Pressure fitting
User's Guide _______________________________________________________________________
8 ____________________________________________________________________ M210670EN-B
The PTB210 barometers incorporate the BAROCAP®silicon
capacitive absolute pressure sensor developed by Vaisala. The sensor
features excellent hysteresis and repeatability characteristics and has
an outstanding temperature and long-term stability.

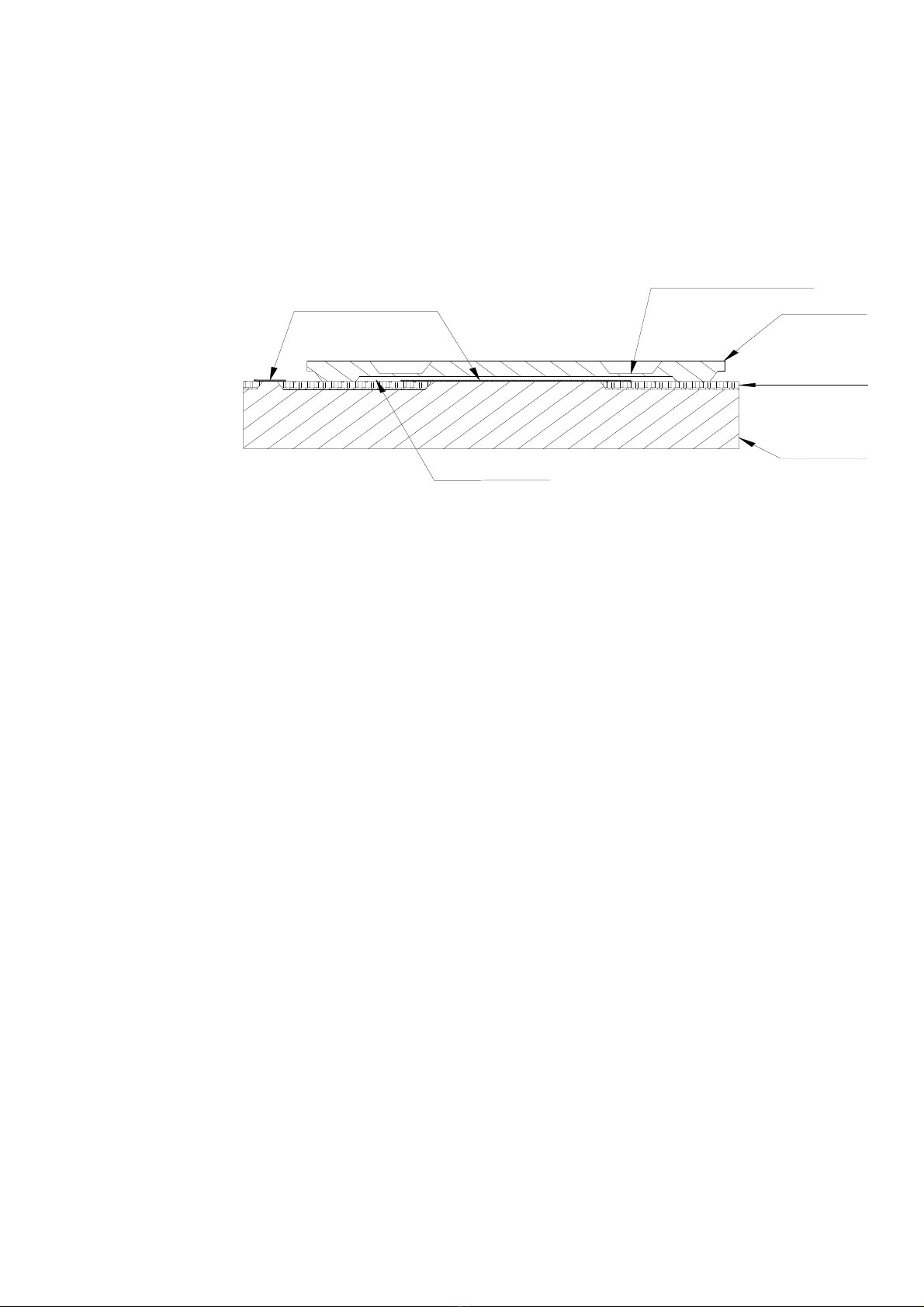

Thin film metallization Silicon
Vacuum gap
Silicon
Glass
Silicon diaphragm
Figure 2 The BAROCAP® Pressure Sensor
The BAROCAP® pressure sensor consists of two layers of single
crystal silicon having a layer of glass between them. The thinner
silicon layer creates an integrated vacuum reference chamber, and
forms a pressure-sensitive silicon diaphragm. The thicker silicon layer
is the rigid base plate of the sensor, and it is clad with a glass
dielectric. Thin film metallization has been deposited to form a
capacitor electrode inside the vacuum reference chamber. The other
electrode is the pressure-sensitive silicon diaphragm.
The coefficients of thermal expansion of silicon and glass materials
used in the BAROCAP® pressure sensor are carefully matched
together to minimize the temperature dependence, and to maximize
the long-term stability. The BAROCAP® pressure sensor is designed
to achieve zero temperature dependence at 1000 hPa, and its long-term
stability has been maximized by thermal ageing at an elevated
temperature.
Other manuals for PTB210 SERIES
2
This manual suits for next models
1
Table of contents
Other Vaisala Test Equipment manuals
Vaisala
Vaisala AMT101 Quick guide
Vaisala
Vaisala HUMICAP HMP4 User manual
Vaisala
Vaisala GMP251 User manual
Vaisala
Vaisala PTB220TS / CASE User manual
Vaisala
Vaisala HMP Series User manual
Vaisala
Vaisala HUMICAP HMP155 User manual
Vaisala
Vaisala PTB210 SERIES User manual
Vaisala
Vaisala PTB330TS User manual
Vaisala
Vaisala HUMICAP HM44 User manual
Vaisala
Vaisala HMK15 User manual
