USX-MOUNT XMS010-L-01 User manual
XMS010-L-01
INSTRUCTION MANUAL
For 13-42" TV
If you have any questions along the way, just give us a call
1-800-460-0956 or message to us. We’re ready to help!
R
USA-B0
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
2
Does your TV
(including accessories)
weigh MORE than
55 lbs. (25 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE) Tape
Measure
CAUTION
Pencil Level Screw
driver
Electric
Drill
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs? CAUTION:
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete ?
3/8 in.
(10 mm)
Socket
Wrench
Stud
Finder
1/8 in.
(3 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Unsure?
Call Customer Service:
1-800-460-0956
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
MAX:200mm/7.87"
(MIN:50mm/1.97")
MAX:200mm/7.87"
(MIN:50mm/1.97")
TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED SIDE VIEW - EXTENDED
3
+5°
-15°
200mm
[7.87in]
200mm
[7.87in]
50mm
[1.97in]
50mm
[1.97in]
213mm
[8.39in]
51mm
[2.01in]
92mm
[3.62in]
189mm
[7.44in]
Ø7mm
[Ø0.28in]
231mm
[9.11in]
231mm
[9.11in]
SIDE VIEW - EXTENDED
+90°
368mm
[14.49in]
66mm
[2.60in]
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Parts and Hardware for STEP 1
4
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
Extended arms
x4
Spacers
TV Screws
x4
x4
x4
x4
x4
x4
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4 x4
x8 x4
x4
M8x45mm
Parts and Hardware for STEP 2
Allen Key
x1
Lag Bolt
x3
Wall Plate Unit
x1
Velcro x3 x4
M6x8mm Bolt
Contact us at telephone 1-800-460-0956 (USA)
or message to us to have these additional pieces
shipped directly to you.
Concrete Wall Anchor
3pcs
1-1 Disassemble Wall Plate Unit into Two Pieces
Wall plate
TV plate
①
5
1-2 Choose Configuration
If your TV VESA size is above 100*100mm, you need to assemble extended arms onto TV plate
using bolts and Alley key per below option 3 - option 6 shown.
① 50X50
② 75X75
③ 100X100
Option 1
Option 3
Option 2
① ①
①①
② ②
②②
③ ③
③③
⑤ 150X150
⑥ 200X200
④ ④
④④
④ 200X100
⑤ ⑤
⑤⑤
⑥ ⑥
⑥⑥
6
7
M8
M6
M4
1-3 Select TV Screws
8
Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-5 Attach the TV Plate
No!
No, choose suitable screws and washers.
VESA≤100X100mm
100X100mm<VESA≤200X200mm
1-4 Need Spacer?
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the wall plate at your desired height and line up the holes with your stud center line. Level
the wall plate and mark the hole locations.
Centre line
Wall plate
9
UP

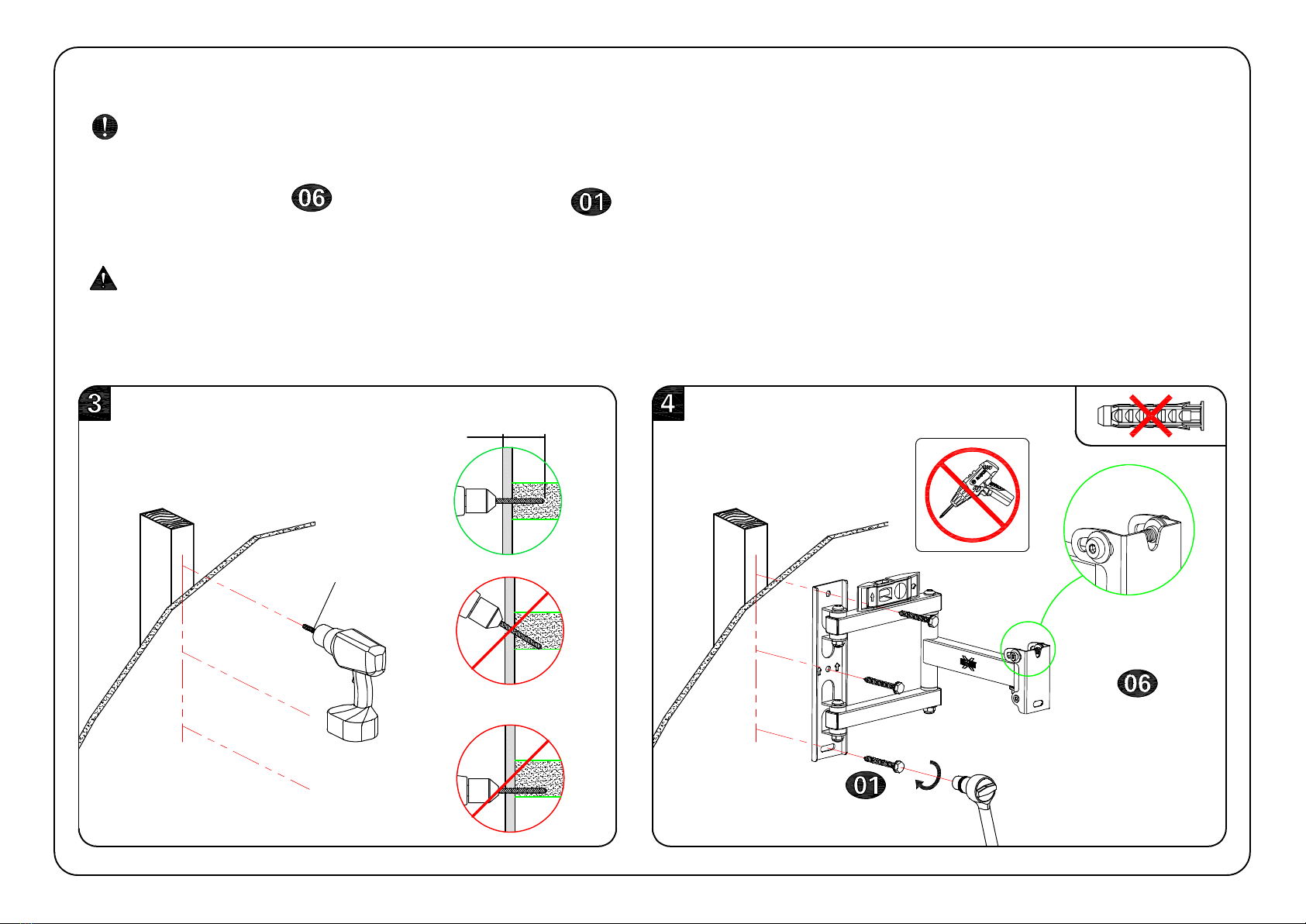

3. Drill pilot holes using a 1/8 in. (3mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.16 in. (55 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using three lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 13
10
1/8"
(3mm)
No!
2.16"(55 mm)
Wall plate
UP
