usi UD-23011 User manual
Page 1 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Trademark Information
BTW is a product of Widcomm Inc.
Windows, Windows 98, Windows NT, Windows Millennium, Windows XP are trademarks of Microsoft
Corporation. Internet Explorer is a product of Microsoft Corporation.
The BLUETOOTH trademarks are owned by Bluetooth SIG and used by USI under license.
T39 handset is a product of Ericsson.
All other trade names mentioned in this document or the other documentation provided with Bluetooth
USB Dongle are trademarkes or registered trademarks of their respective holders.
Page 2 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Table of Contents
Item Page
System Requirement 3
Bluetooth Software Install step by Step 3 -9
Start Connection Over The Bluetooth Airwaves – File Transfer 10-13
Connecting Over The Bluetooth Airwaves – Security 14 - 15
Start Connection Over The Bluetooth Airwaves – Dial Up Networking Profile 16 - 18
Page 3 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
System Requirements
BTW runs under:
- Windows 98 (Second edition)
- Millennium (Windows 98 ME)
- Windows 2000
-Windows XP
During the installation, you need a CD-ROM driver for access to the bundle software.
Note: This Getting Started is a simple guide , for more Users Guide please see the ‘BTW Users
Guide.pdf’ in BTW CD.
Or you can click the Help Topics in the Help Menu of the Tool Bar.
Bluetooth Software Install step by step
Step 1 Insert the Widcomm BTW CD into the PC’s CDROM drive. Installation proceeds automatically.
Since Windows NT does not support USB, the installation of the CD should be done on
systems with Windows ’98 or Windows 2000.
Step 2 An InstallShield box appears to inform you the installation Wizard is being set up. Please wait.
Page 4 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Figure 2. Welcome Window
Note: These images were captured from a
Windows 2000 system. Your images may
look slightly different.
Step 3 A Welcome To The Installation Wizard
window appears as shown in Figure 2.
SelectNext to continue the installation
process.
Figure 3. License Agreement Window
Step 4 The license agreement window appears as
shown in Figure 3. If you accept, mark the “I
accept the terms in the license agreement”
option and click on Next. The installation will
proceed. If you do not accept the conditions of
the agreement, the installation process will
terminate.
Page 5 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Figure 4. Device Information Window
Step 5 A Device Information window opens as shown
in
Figure 4. Enter a device name and choose a
device type. These options will not affect the
functionality. The device information is used to
inform the master device what kinds of other
devices are within range to connect to so the
user can identify which device is the one they
need to connect to if there is more than one
device within range. Select the Next Button.
Figure 5. Destination Folder Window
Step 6 A Destination Folder window appears as shown
in Figure 5, which states the default location and
gives you the opportunity to choose an
alternative folder. When the location is
acceptable, select Next.
Page 6 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle

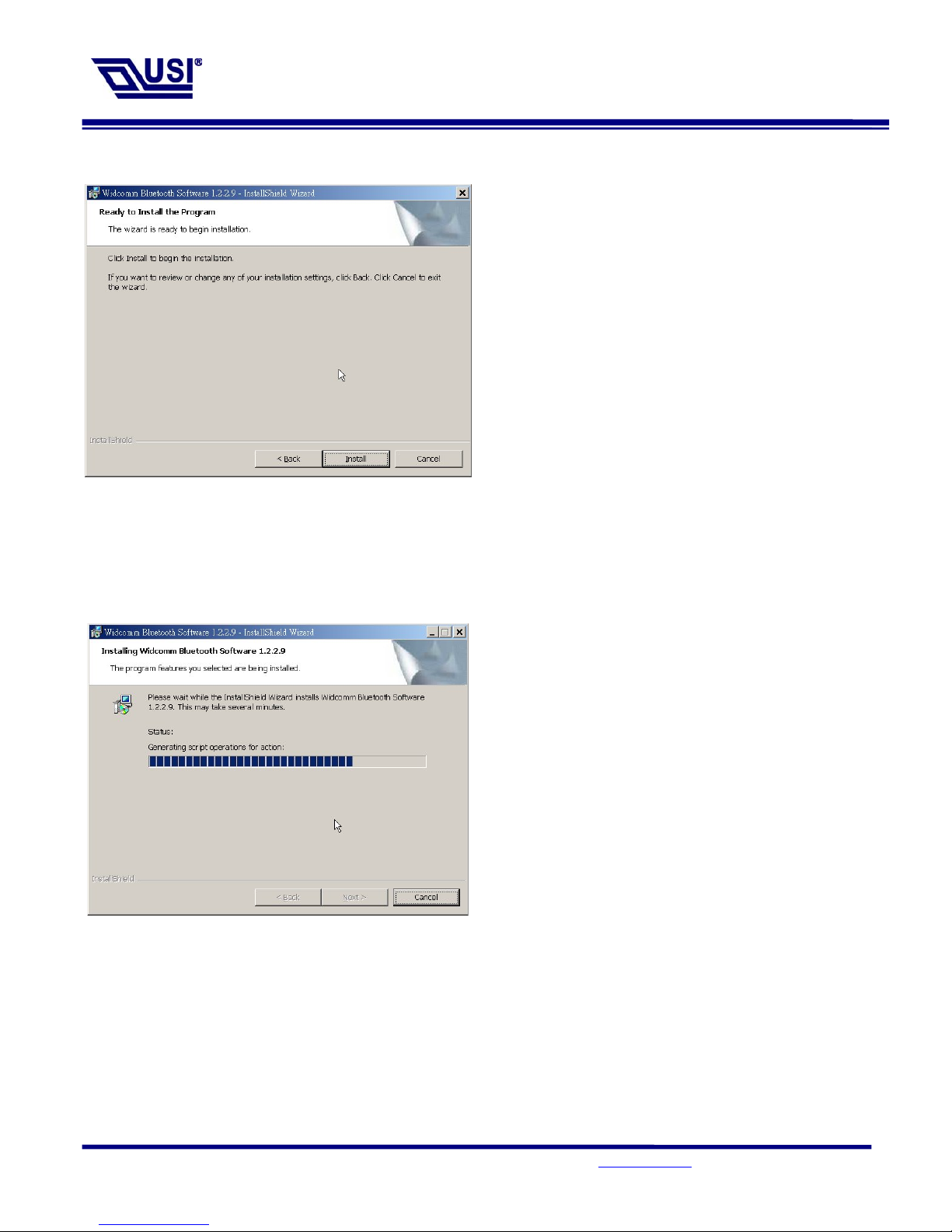

Figure 6. Ready to Install Window
Step 7 A Ready to Install Program window appears as
shown in Figure 6. Select Install when you are
ready to proceed.
Figure 7. Installing Window
Step 8 An Installing Widcomm Status window appears.
Please be patient, this may take up to 5 minutes.
Step 9 A notification window appears asking you to
restart your system. Select Yes to proceed.
Page 7 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Figure 8. Install Complete Window
Step 10 You will be informed when the installation is
complete.SelectFinish. Follow the
instructions thereafter. You may be asked to
restart the computer after the installation
completes. In that case click OK and restart
the computer.
Step 11 A Bluetooth Neighborhood logo has appeared on your desktop and a small Bluetooth icon has
appeared on your icon tray (lower right-hand side of the screen).
Page 8 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Figure 9. Device Manager Window
Step 12 Plug the Bluetooth USB Dangle into you
usb port ,The OS will install the usb Driver
auto.
And you can check it in the My computer -
> Device Manager.
You may now remove the Widcomm CD from
your CD drive.
Step 13 Let’s configure your devices. On your icon tray (lower right-hand side of the screen), right click on
the small Bluetooth Neighborhood icon on your icon tray.
Figure 10. Bluetooth Configuration Window -
General Tab
Step 14 A pull down window appears with two words,
Security (which we will discuss later) and
Configuration. Choose Configuration.
Step 15 A Bluetooth Configuration window appears as
shown in Figure 10. In this document, there are
three tabs-of-interest: General, Information
Exchange, and Hardware. Select the General
tab.
Step 16 Type in a name for your device and choose
either Laptop or Desktop. The security
option’s default is medium; leave that as it is
fornow.SelectOK.
Page 9 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Figure 11. Bluetooth Configuration Window –
Information Exchange Tab
Step 17 Now choose the Information Exchange tab
as shown in Figure 11. The My Shared
Directory window allows you to determine
where you would like to locate files you want
to share with other devices. The default is
called File Transfer. My Inbox Directory is the
dialogue window that allows you to determine
where you wish to put incoming files.
Configure the many choices on this tab now
or leave them at the default settings and then
selectOK.
Figure 12. Bluetooth Configuration Window -
Hardware Tab
Step 18 Now choose the Hardware tab. Once you
have established a connection, you will see
the BD Address and other interesting
information about the device.
Page 10 135, Lane 351, Taiping Road, Sec . 1, Nan-Tou , Taiwan; (049)2325876; www.usi.com.tw Rev 1.29_30Aug02
Getting Started
With the Bluetooth Software BTW 1.2.29 and Bluetooth USB Dongle
Start Connecting Over The Bluetooth Airwaves – File Transfer
Step 1 Double click on the Bluetooth Neighborhood icon located on your desktop. A Bluetooth Neighborhood
window appears as shown in Figure 13. Double click on the Entire Bluetooth… icon. This will
perform an inquiry and search for other nearby devices.
Figure 13. Bluetooth Neighborhood Window
Figure 14. Found Configured Device
Note: Because of over-the-air interference and
if you have a lot of devices in the
evaluation area, then you might have to
clickonSearch for Devices a few times .
Step 2 Then, Double click on the Search For Devices
icon. It will find your other bluetooth device
as shown in Figure 14. If you have other
Bluetooth devices in the area, they will be
located and appear on your screen as
Unknown. Only the devices that you have
configured will have a name.
Double click here
