PA690 Rugged Handheld Computer

- PA690 -

Quick Reference Guide

400853G Version 1.1

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

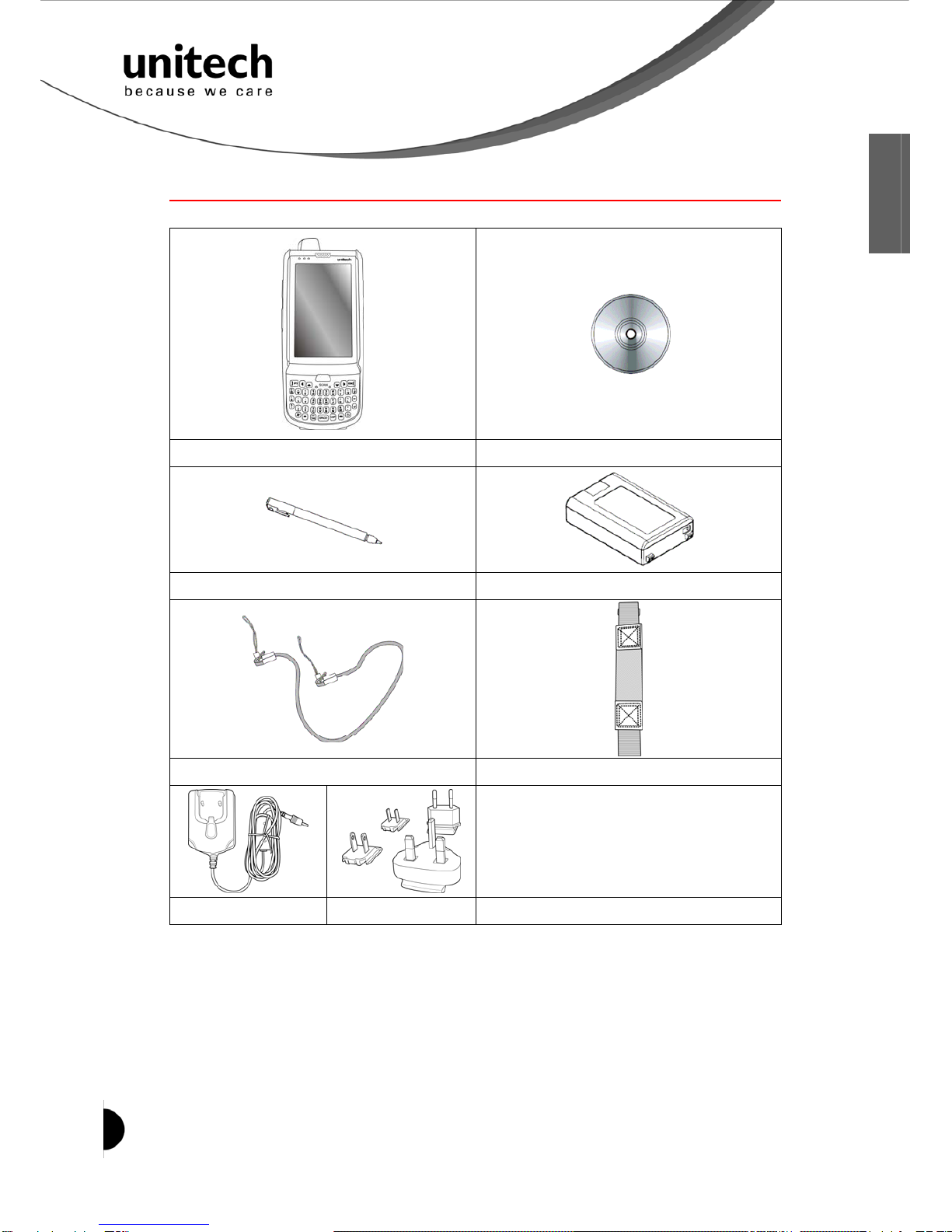

PA690 Product Introduction & Accessory Kit

PA690 Terminal Manual CD

Stylus Battery

Elastic Stylus String Hand Strap

Power Adaptor Plugs

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

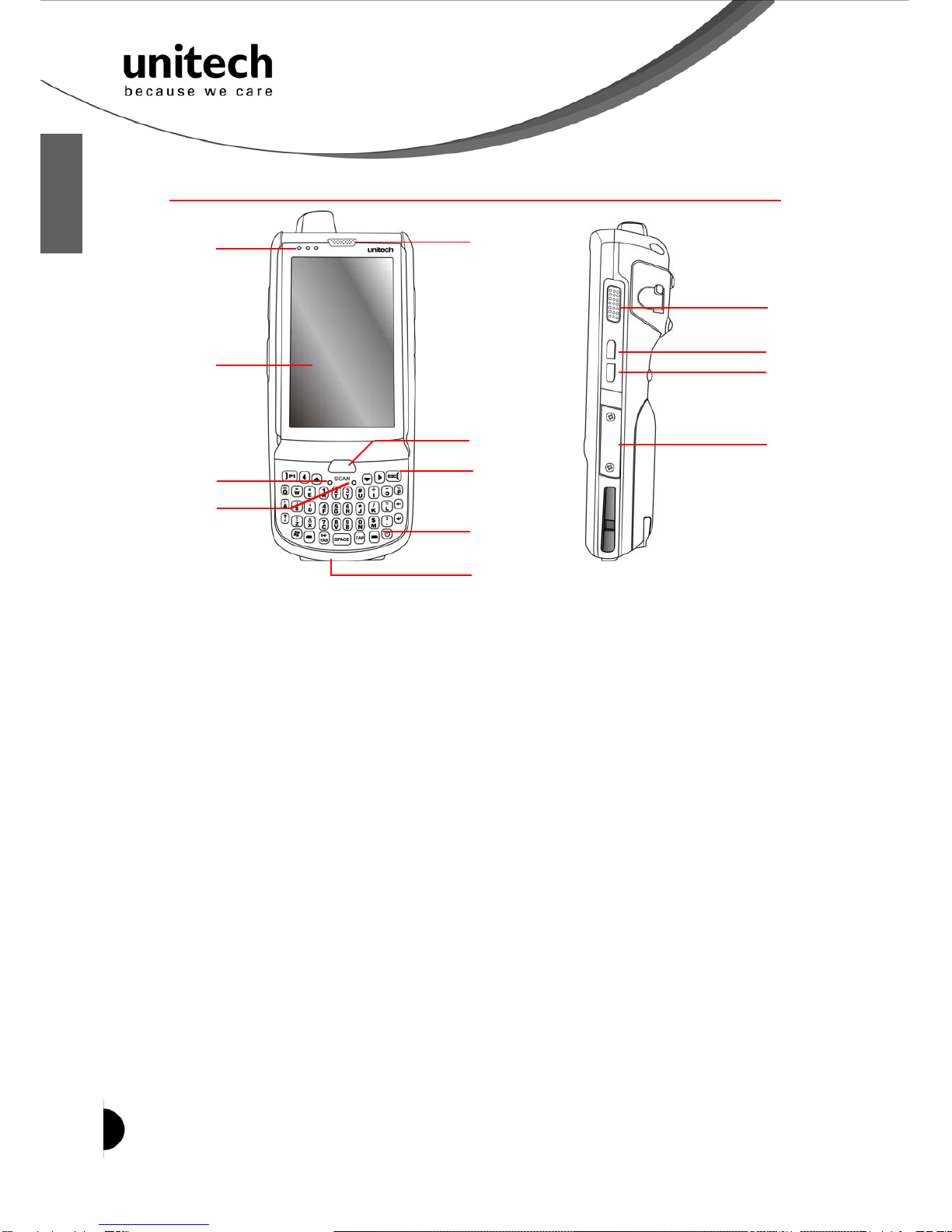

PA690 Front and Right View

1 LED indicators 7 Power button

2 LCD touch screen 8 Universal connector

3A Microphone

3B Reset button 9 Scanner trigger button

4 Receiver 10 Mute / vibration button

5 Scan button 11 Camera button

6 Keypad 12 Memory card slot

Turning ON the PA690 for the First Time

After you have initially charged your device for about 16 hours, the device is

ready to be used. You can now start up your device. You can then calibrate

the display, learn some basic stylus usage, and set up the system time zone,

date and time.

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

Power-On Button

Turn ON your device by pressing the power button on the front panel.

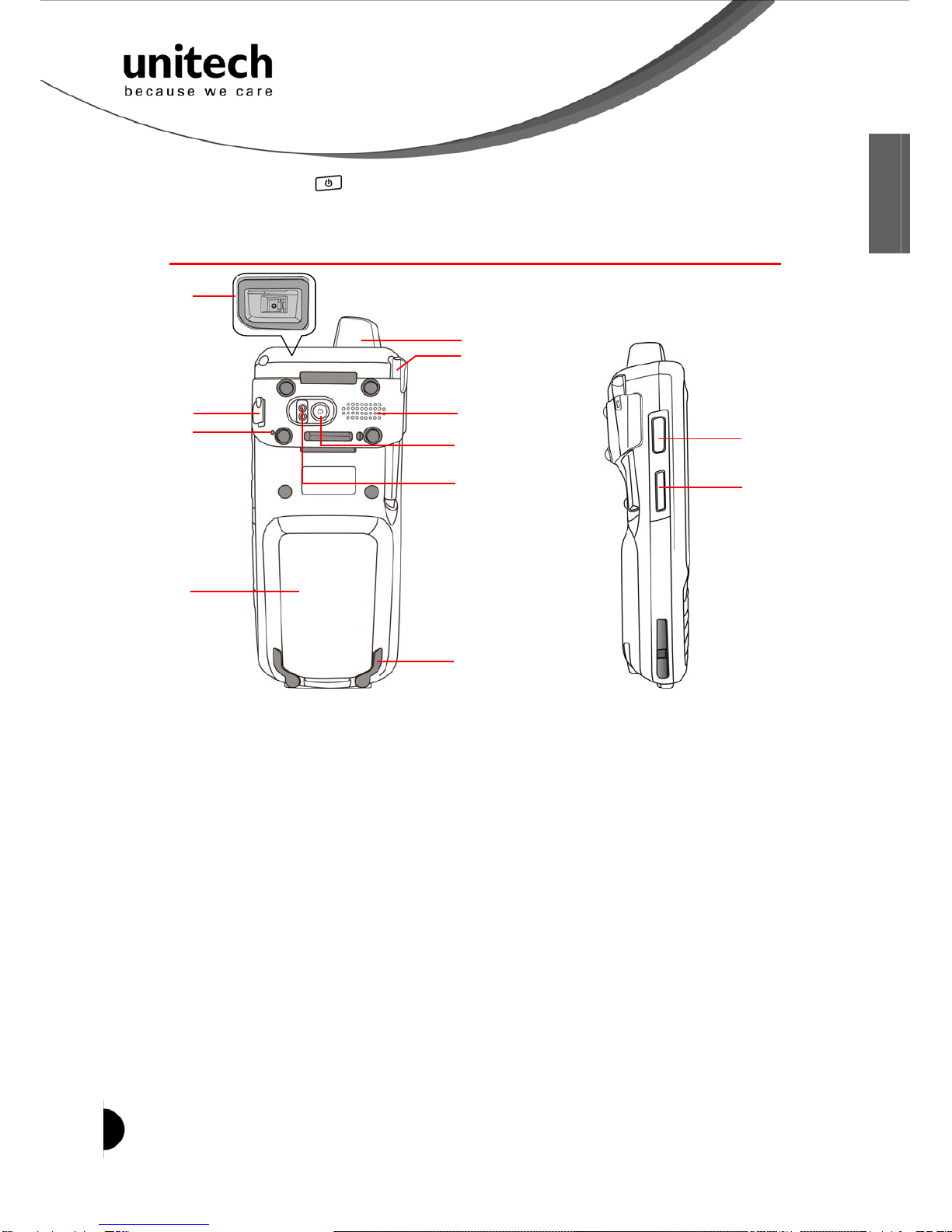

PA690 Rear and Left View

1 Barcode scanner window 7 Speaker

2 Headphone jack 8 5M/AF camera

3 Microphone 9 LED flash light

4 Battery compartment 10 Battery compartment tab

5 Antenna 11 Scanner trigger button

6 Stylus 12 Volume up/down

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

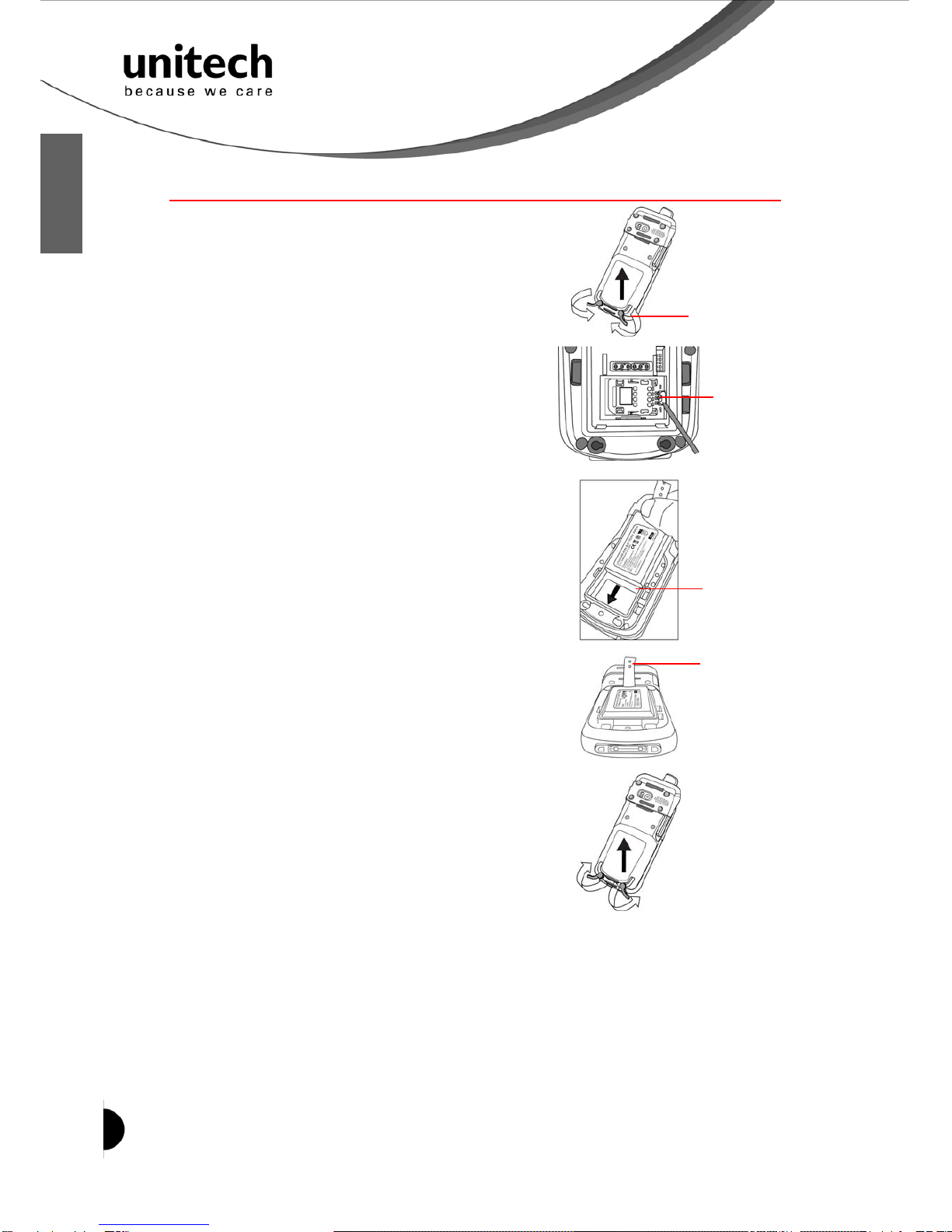

Installing the Battery

1. Open the battery compartment

cover by sliding the tabs on both

sides in the direction of the arrows

shown and lift the cover up.

2. Push up the backup battery switch

to the “ON position by using a

stylus to turn on the backup

battery.

3. Slide and position the battery

pack, making sure the battery

contacts are aligned with the

contacts in the compartment.

4. Use your thumb to snap the

battery in place.

5. Replace the battery compartment

cover by pushing down on the

tabs and sliding them back into

place as shown.

NOTE: Make sure the battery compartment cover is securely closed, or you

may be unable to turn ON the terminal.

Battery

Compartment

Tab

Backup

Battery

Switch

Battery

Compartment

Contacts

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

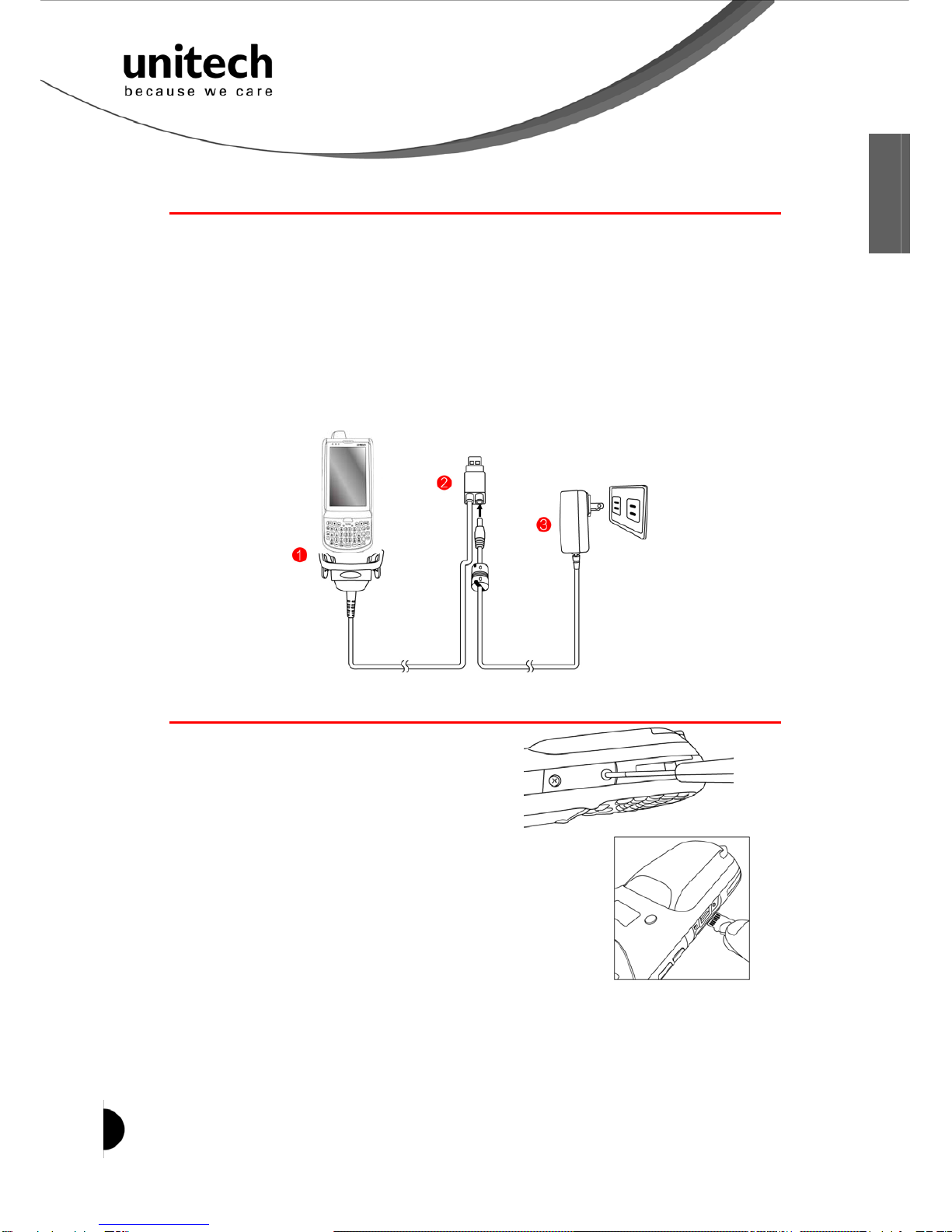

Charging the Battery

CAUTION: Turn ON the backup battery switch before charging the battery.

Data you entered may not be properly stored until the built-in

backup battery has been adequately charged.

1. Press and hold the release button on both sides of the USB charging

cable and connect it to the PA690 (1).

2. Plug the AC adapter cable into the power jack of the USB charging cable

(2).

3. Plug the AC adapter cord into an electrical outlet (3).

Using the MicroSD memory card

1. Remove the two screws on the

MicroSD slot shield and remove

the shield.

2. Insert the MicroSD card with the notched corner

as shown.

3. Push the card into the slot until you feel the

MicroSD card click into place.

4. Screw the MicroSD compartment cover back

into place.

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

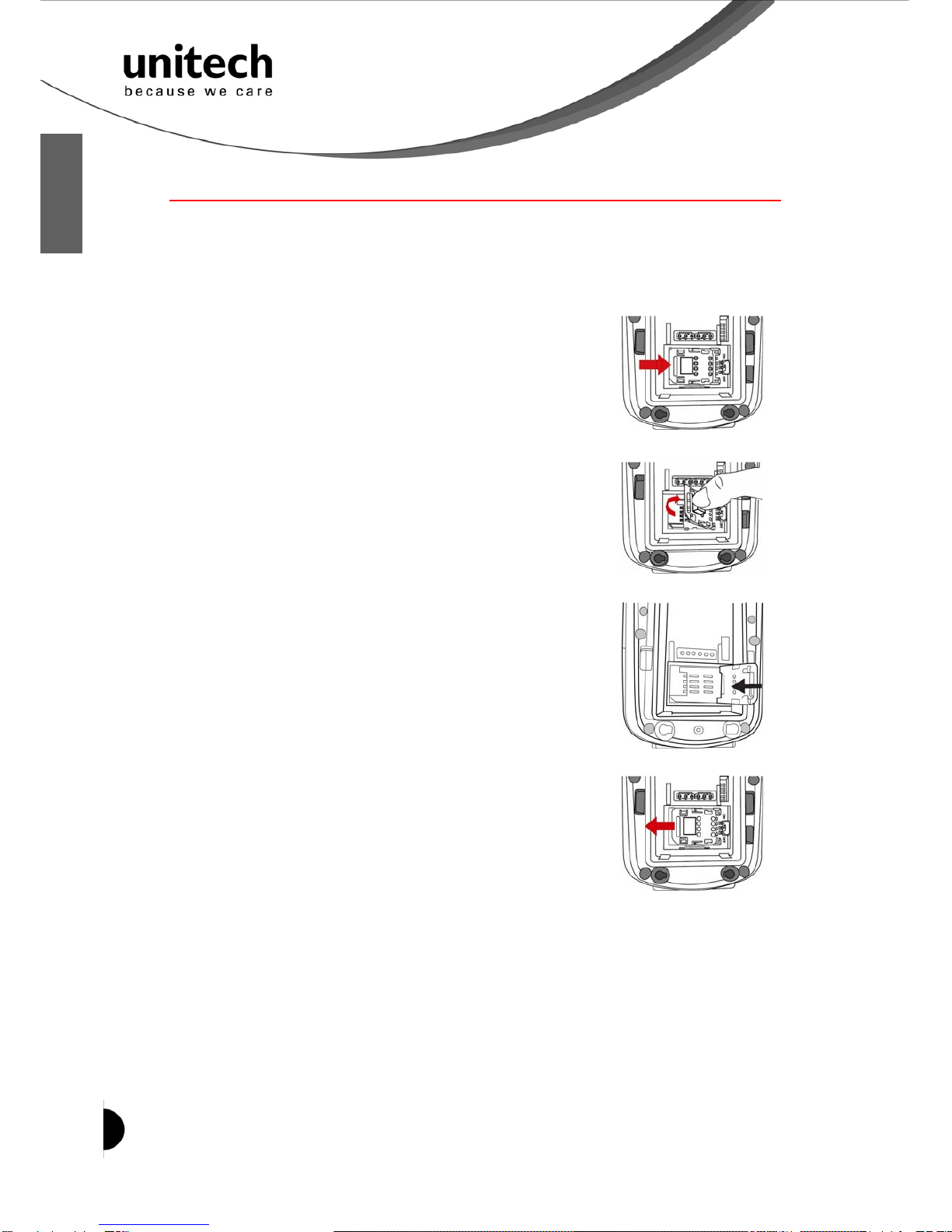

Using the SIM card

The PA690 has a slot for a GPRS SIM card inside the battery compartment.

CAUTION: Before installing the SIM card, please backup your data to

prevent data loss because of a low backup battery.

1. Remove the battery compartment cover and the main battery.

2. Slide the cover of the SIM card slot to the right to

release the latch.

3. Pull open the cover with thumb.

4. Insert the SIM card into the cover with the notched

corner up, and the contact side of the SIM card

faces down.

5. Close the cover over the slot, and then slide the

cover to the left to lock the SIM card.

6. Put the battery back into the battery compartment and replace the

battery compartment cover.

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

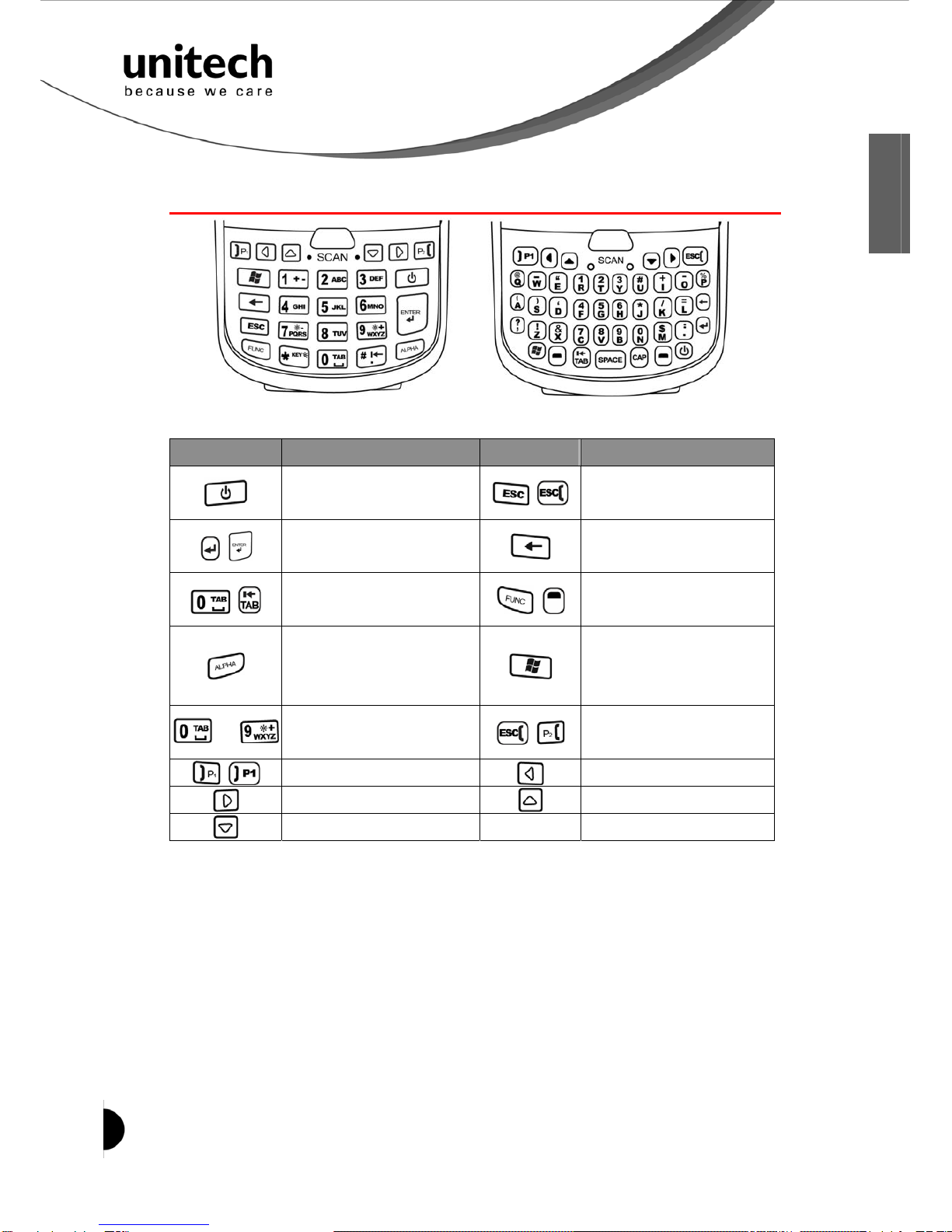

Keypads and Function Buttons

Numeric Keypad Qwerty Keypad

Key Description Key Description

Power key Escape key

Enter key Backspace key

Tab key Function key

Alpha key, toggle

between numeric and

alphabetic entry modes Windows key

~ Alphanumeric keys Hang-off key

Answer key Left cursor key

Right cursor key Up cursor key

Down cursor key

When the PA690 turns on, the numeric mode is on by default. When you

toggle to alpha mode, the CAPS mode is off by default. Use the Alpha key to

toggle to CAPS.

Unitech electronics co., ltd.

5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

Tel: + 886 2 89121122

Fax: +886 2 89121810

website: www.ute.com

English Deutsch Español Français

中文(简体) 中文(繁體) 日本語 영어

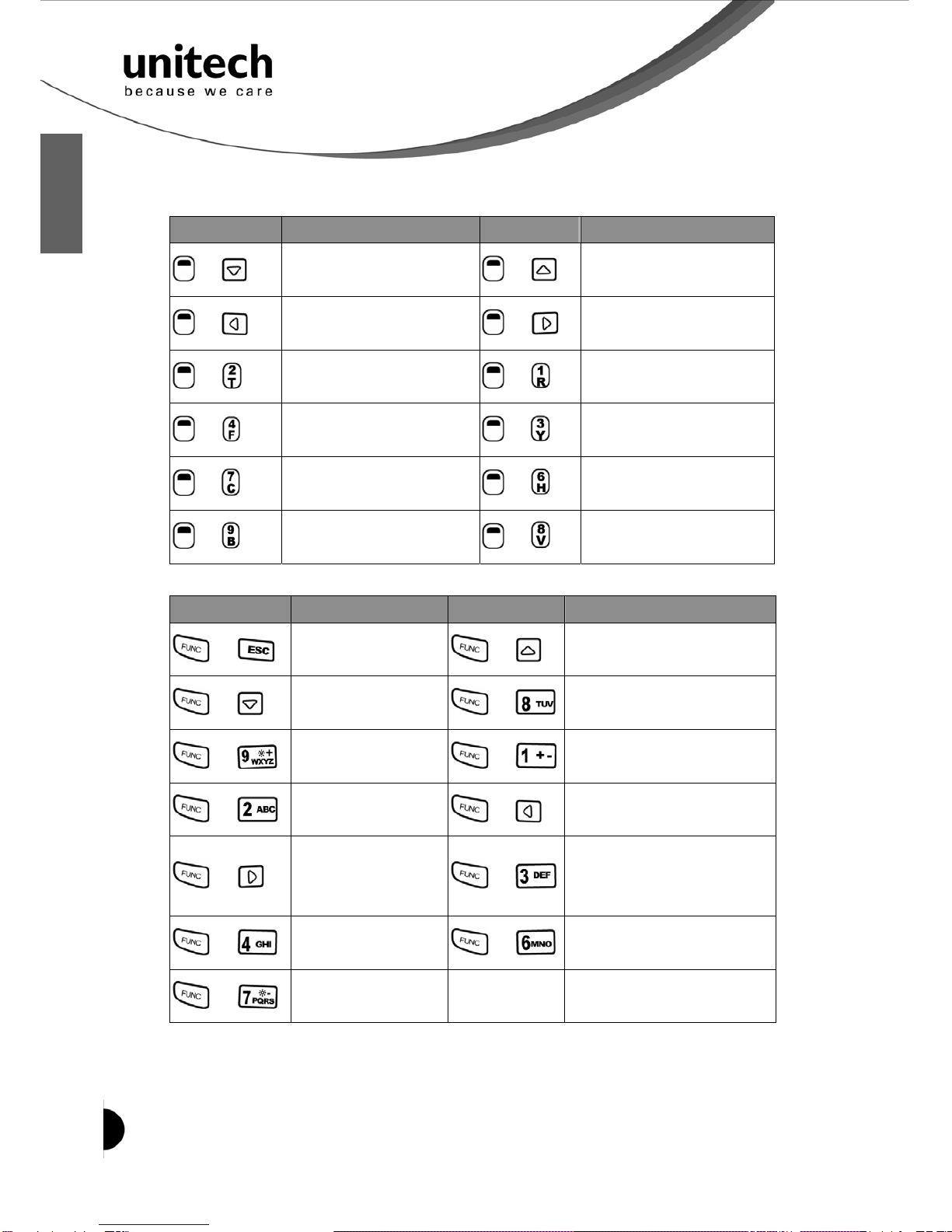

Using Function keys

For Qwerty Keypad

Key Description Key Description

+ Keypad backlight

toggling + Screen backlight

toggling

+Decrease screen

backlight brightness + Increase screen

backlight brightness

+ Softkey 2 + Softkey 1

+ END TALK + TALK

+ Scanner setting + Task manager execution

+ Device information + Power management

For Numeric Keypad

Key Description Key Description

+ Calibration + Screen backlight toggling

+ Keypad backlight

toggling + Power management

+ Device information + Softkey 1

+ Softkey 2 + Decrease screen backlight

brightness

Increase screen

backlight

brightness + TALK

+ END TALK + Task manager execution

+ Scanner setting
