Rocket Prism 5AC GPS Antenna Gigabit PoE (24V, 1A) with

Mounting Bracket

Power Cord

Package Contents

Installation Requirements

The GPS Antenna needs to have clear line of sight to the sky for proper GPS operation.

Shielded Category 5 (or above) cabling with drain wire should be used for all wired

Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

For more details, visit

ui.com/toughcable

Surge protection should be used for all outdoor installations. We recommend that you

use two Ethernet Surge Protectors, model ETH-SP, one near the RocketPrism and the

other at the entry point to the building. The ETH-SP will absorb power surges and safely

discharge them into the ground.

RP-5AC-Gen2 Quick Start Guide

* Shown without the antenna.

Hardware Overview

RP-5AC-Gen2 Quick Start Guide

RP-SMA



Antenna Connectors

GPS



Antenna Connector

LEDs

Reset Button

LAN

Used to attach RF cables (not included).

Used to attach the GPS Antenna.

Signal

In airOS®, you can modify the wireless signal strength threshold values for each

LED on the Wireless tab under Signal LED Thresholds. Each LED will light when the

wireless signal strength is equal to or greater than the LED’s threshold value. The default

values are shown below:

GPS

The GPS LED will light steady blue when the GPS signal strength is suﬃcient. This

requires a minimum of three satellite connections.

LAN

The LAN LED will light steady blue when an active Ethernet connection is made to

the LAN port and ash when there is activity.

Power

The Power LED will light blue when the device is connected to a power source.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is already powered on. Alternatively, the device may be reset remotely

via a Reset button located on the bottom of the Gigabit PoE adapter.

RP-5AC-Gen2 Quick Start Guide

The Gigabit Ethernet port is used to connect the power and should be connected to the

LAN and DHCP server.

Hardware Installation

The Rocket is designed to mount directly onto a Ubiquiti airMAX RocketDish™ antenna for

Point-to-Point use or an airMAX Sector antenna for Point-to-MultiPoint use.

1.

2.

3.

RP-5AC-Gen2 Quick Start Guide

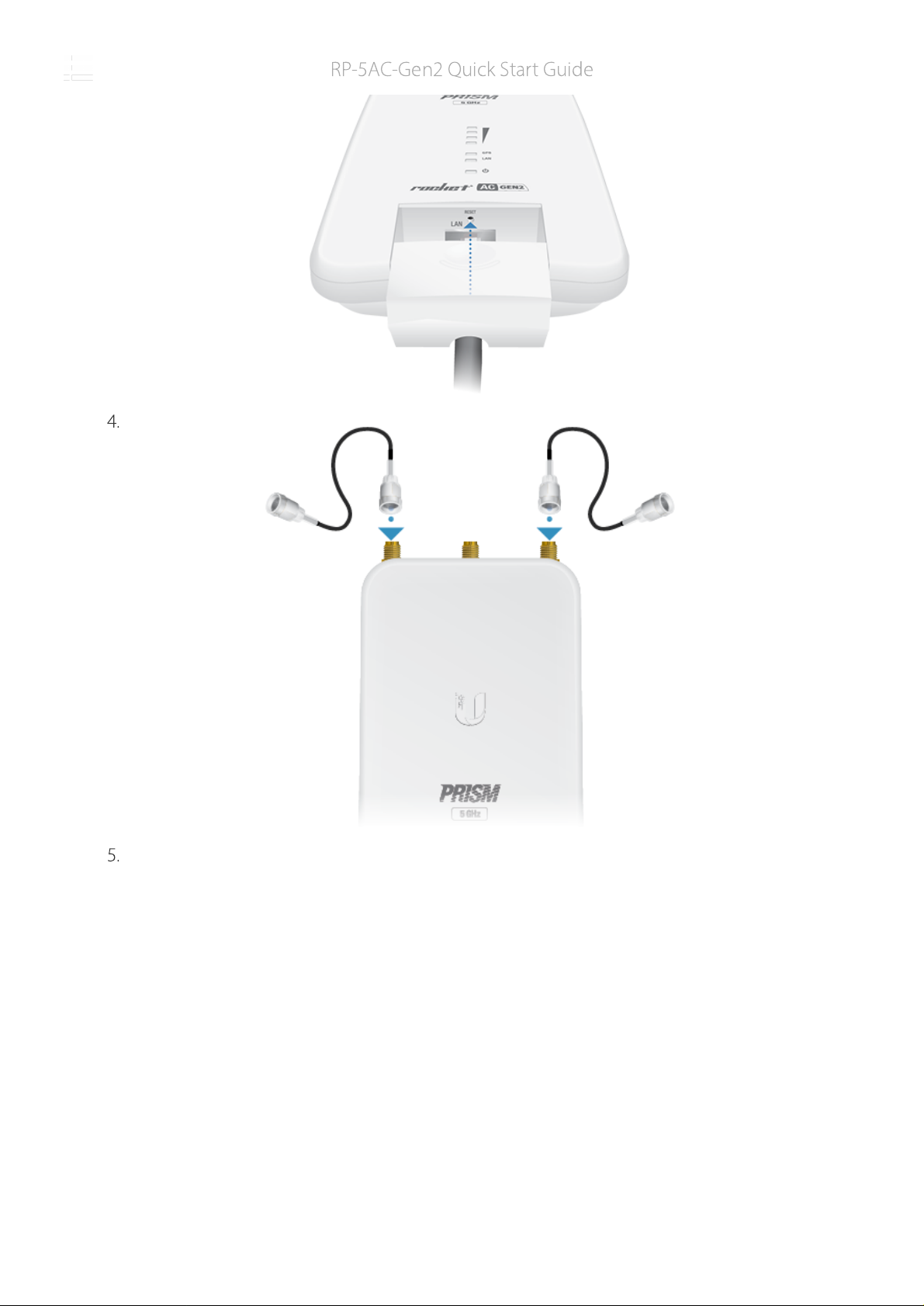

4.

5.



RP-5AC-Gen2 Quick Start Guide

OR

RP-5AC-Gen2 Quick Start Guide

6.



OR

RP-5AC-Gen2 Quick Start Guide

7.



OR

8.



RP-5AC-Gen2 Quick Start Guide

OR

9.



RP-5AC-Gen2 Quick Start Guide

OR

RP-5AC-Gen2 Quick Start Guide
