Ubiquiti Rocket M2 Titanium RM2-Ti User manual
Carrier Class
airMAX™BaseStation
Models: RM2-Ti, RM5-Ti
Introduction
Thank you for purchasing the Ubiquiti Networks™Rocket™M
Titanium. This Quick Start Guide is designed to guide you
through installation and show how to access the airOS™
Configuration Interface. This guide also includes the warranty
terms and is for use with the RocketM2 Titanium, model
RM2-Ti, and RocketM5 Titanium, model RM5-Ti.

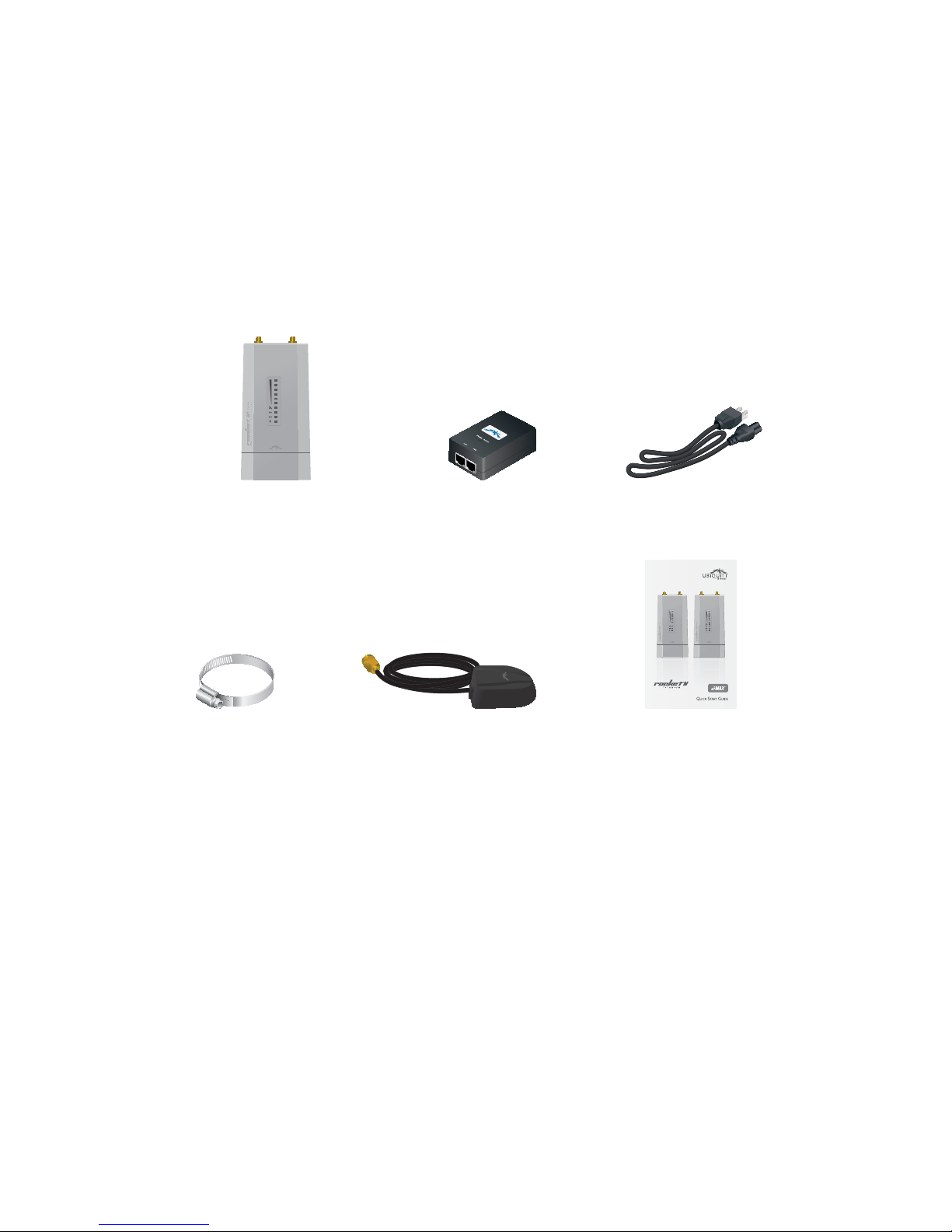

Package Contents
RocketM Titanium Gigabit PoE Adapter
(48V, 0.5A)
Power Cord
Carrier Class
airMAX™BaseStation
Models: RM2-Ti, RM5-Ti
Metal Strap GPS Patch Antenna (RM5-Ti only) Quick Start Guide
Installation Requirements
• GPS antenna (RM5-Ti only) must have a clear line of sight
to the sky.
• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
www.ubnt.com/toughcable
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable is
designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
Hardware Overview
LED Panel
RP-SMA Connections
to Antenna
Port Cover
Main Ethernet Port
(10/100/1000 Mbps)
GPS SMA Connector
(RM5-Ti only)
Reset
Button
Secondary Ethernet Port
(10/100 Mbps)
LED Panel
Signal In airOS, you can modify the wireless
signal strength threshold values for each LED on
the Advanced tab under Signal LED Thresholds,
or you can configure the LEDs to display the GPS
connection quality instead (RM5-Ti only). The
default values are shown below:
LED will light green when the wireless
signal strength is above -65 dBm.
LED will light green when the wireless
signal strength is above -71 dBm.
LED will light green when the wireless
signal strength is above -77 dBm.
LED will light green when the wireless
signal strength is above -82 dBm.
LED will light green when the wireless
signal strength is above -88 dBm.
LED will light green when the wireless
signal strength is above -94 dBm.
GPS (RM5-Ti only) The GPS LED indicates
airSync™activity. Requires three or more satellite
connections.
Secondary Ethernet The secondary Ethernet
LED will light steady green when an active
Ethernet connection is made to the Secondary
Ethernet port and flash when there is activity.
Main Ethernet The main Ethernet LED will
light steady green when an active Ethernet
connection is made to the Main Ethernet port and
flash when there is activity.
Power The Power LED will light green when the
device is connected to a power source.
Hardware Installation
The RocketM Titanium is designed to mount directly onto
Ubiquiti airMAX™RocketDish™or Titanium Sector antennas.
Itcan also be mounted directly on a pole.
1. Press the release buttons on the sides of the Port Cover and
slide it off.
Port Cover
2. Connect an Ethernet cable to the Main Ethernet port.
3. (RM5-Ti only) Connect the GPS Patch Antenna to the GPS
SMA Connector.
4. Replace the Port Cover.
5. Connect the RF cables to the RP-SMA Connectors located on
top of the RocketM Titanium.
6. Attach the RocketM Titanium to an antenna. Align the
mounting tabs on the back of the RocketM Titanium
with the mounting bracket on the antenna. Slide the
RocketM Titanium down until it locks into place. (If you
are mounting the RocketM Titanium on a pole, refer to the
Pole-Mounting section.)
Mounting on a Dish Antenna Mounting on a Sector Antenna
7. Attach the RF cables from the RocketM Titanium to the
connectors on the antenna.
Connecting to a Dish Antenna Connecting to a Sector Antenna
8. Attach the Protective Shroud.
a. Align the arrow on the
top of the shroud with
the short hash mark on
the Dish Antenna.
b. Rotate the shroud
clockwise until it aligns
with the long hash mark
to lock it into place.
a. Slide the shroud down
over the Rocket until it
locks into place on the
Sector Antenna.
9. (RM5-Ti only) Place the magnetic GPS Patch Antenna on the
upper pole-mounting bracket.
Placement on a Dish Antenna Placement on a Sector Antenna
Pole-Mounting
To mount the RocketM Titanium on a pole, use the included
Metal Strap and perform the following steps:
1. Open the Metal Strap by turning the screw
counter-clockwise. You can loosen it by hand or use a
flathead screwdriver.
2. Straighten out the end of the Metal Strap and slide it
through the back of the RocketM Titanium.
3. Wrap the Metal Strap around the pole. To tighten the strap,
turn the screw clockwise using a flathead screwdriver.
