Ubiquiti NanoStation5 User manual

www.ubnt.com

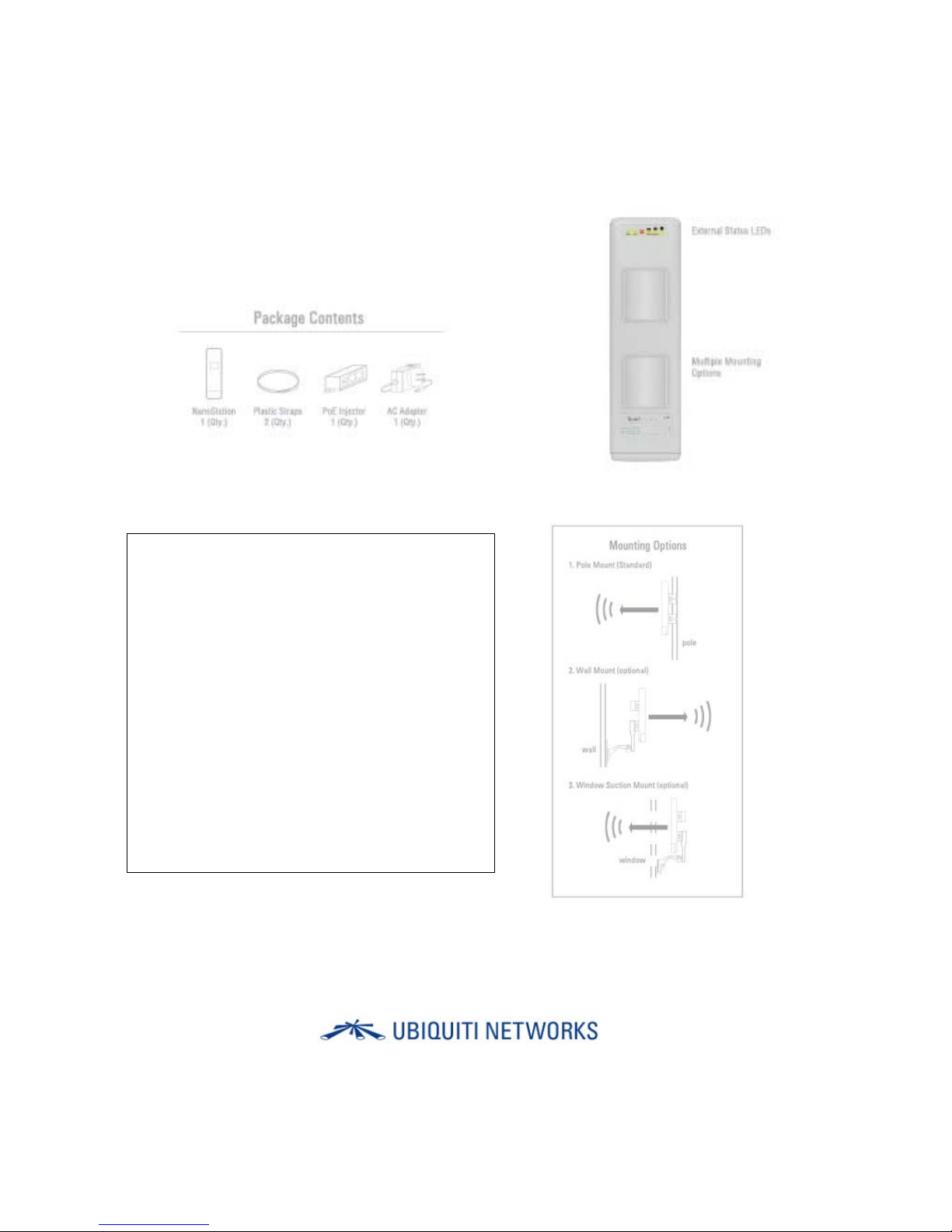

NanoStation5

User Guide

USER INSTRUCTIONS

1. Launch web browser and type 192.168.1.20 to access NanoStation

2. Enter "UBNT" for both username and password

www.ubnt.com

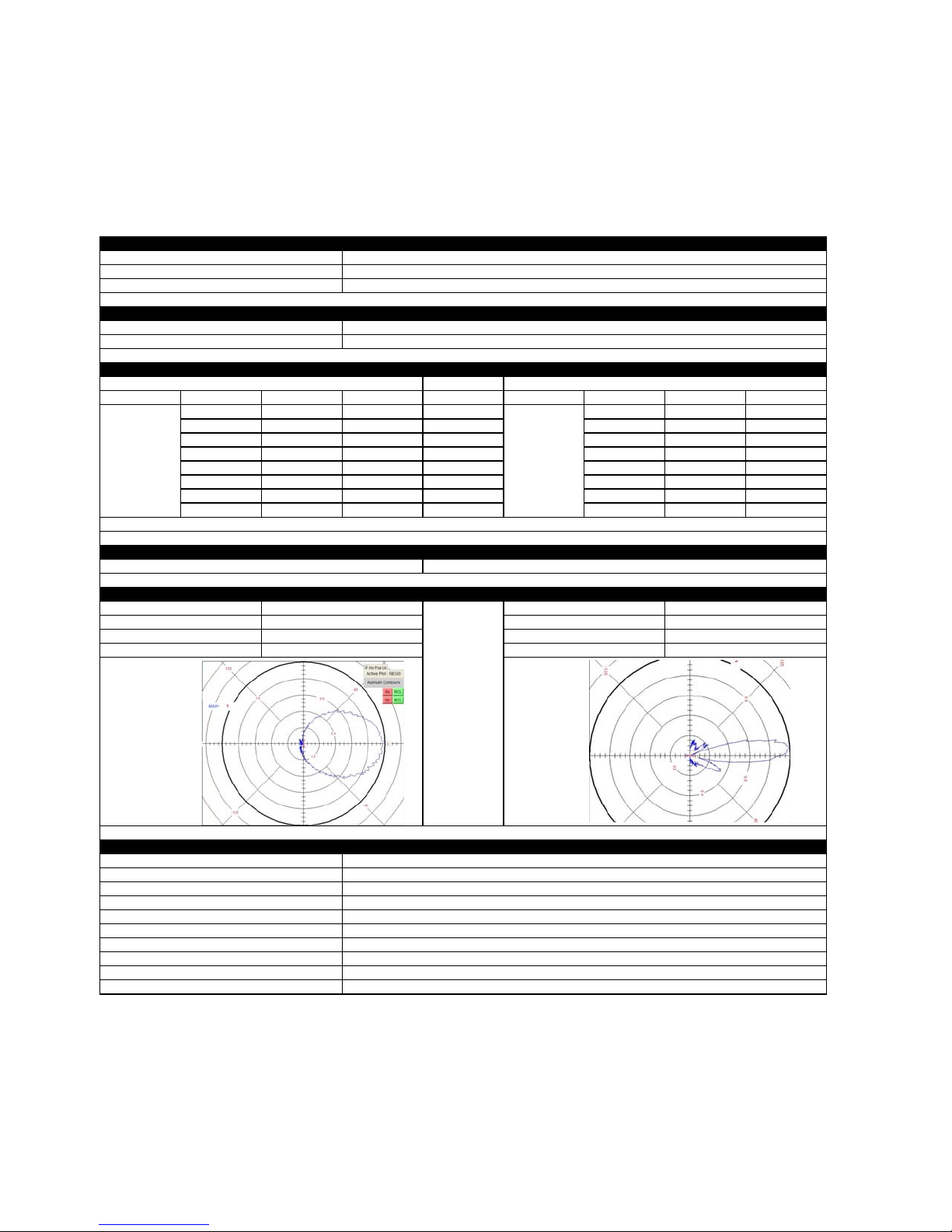

TECHNICAL SPECIFICATIONS

DataRate Avg.Power Tolerance DataRate Sensitivity Tolerance

6Mbps 24 dBm +/-1.5dB 6Mbps -94 dBm +/-1.5dB

9Mbps 24 dBm +/-1.5dB 9Mbps -93 dBm +/-1.5dB

12Mbps 24 dBm +/-1.5dB 12Mbps -91 dBm +/-1.5dB

18Mbps 24 dBm +/-1.5dB 18Mbps -90 dBm +/-1.5dB

24Mbps 26 dBm +/-1.5dB 24Mbps -86 dBm +/-1.5dB

36Mbps 22 dBm +/-1.5dB 36Mbps -83 dBm +/-1.5dB

48Mbps 21 dBm +/-1.5dB 48Mbps -77 dBm +/-1.5dB

54Mbps 19 dBm +/-1.5dB 54Mbps -74 dBm +/-1.5dB

802.11a OFDM

RANGE PERFORMANCE

TX SPECIFICATIONS

RX SPECIFICATIONS

ANTENNA

Outdoor (BaseStation Antenna Dependent):

Over 10km

Wireless Modular Approvals

FCC Part 15.247, IC RS210, CE

RADIO OPERATING FREQUENCY 5.475-5.825GHz

SYSTEM INFORMATION

Processor Specs

Atheros AR2313 SOC, MIPS 4KC, 180MHz

Memory Information

16MB SDRAM, 4MB Flash

Networking Interface

10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

Gain

14dBi

RoHS Compliance

YES

REGULATORY / COMPLIANCE INFORMATION

Multi-Polarized

VSWR

1.4:1

Polarization Selection

Software Controlled

Front to Back Ratio

30dB+

Polarization

3dB Beamwidth Azimuth

55 degrees

3dB Beamwidth Elevation

18 degrees

12V, 1A (12 Watts). Supply and injector included

Operating Temperature

-20C to +70C

Operating Humidity

5 to 95% Condensing

Shock and Vibration

Power Supply

Azimuth

Elevation

PHYSICAL / ELECTRICAL / ENVIRONMENTAL

Enclosure Size

26.4 cm x 8 cm x 3cm

Weight

0.4kg

ETSI300-019-1.4

Enclosure Characteristics

Outdoor UV Stabalized Plastic

Mounting Kit

Pole Mounting Kit included

Power Method

Passive Power over Ethernet (pairs 4,5+; 7,8 return)

Max Power Consumption

5 Watts

www.ubnt.com

NOTE: This equipment has been tested and found

to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to pro-vide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications. Operation

of this equipment in a residential area is likely to

cause harmful interference in which case the user

will be required to correct the interference at his

own expense.

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user’s authority to operate the equipment.

ADDITIONAL INFORMATION AND COMPLIANCE

This is a Point-to-Point CPE Wireless Device.
