Ubiquiti LiteBeam LBE-5AC-LR User manual

LBE-5AC-LR Quick Start Guide

Package content

power horn

M4 SEM screws (qty: 8) Metal strips (qty: 3)M8 SEM screws (quantity: 4)

Mounting bracket

Panel reflector central

Gigabit PoE (24 V, 0.3A) con

power receiver

Side Reflector Panels (Qty: 2)

Power cord

Spinning panels (qty.: 2)

Machine Translated by Google

Mounting bracket

We recommend that you protect your networks from harmful outdoor environments

and electrostatic discharge phenomena with Ubiquiti's Industrial Grade Shielded

Ethernet Cable. For more information, visit ui.com/toughcable

Application Examples

installation requirements

LBE-5AC-LR Quick Start Guide

Phillips screwdriver

Category 5 (or higher) shielded cabling with a drain wire must be used for all

Ethernet connections and must be connected to the AC ground of the PoE.

Surge protection must be used on all outdoor installations. We recommend

that you use two surge protectors, model ETH-SP, one near the LiteBeam

and the other at the entry point of the building. The ETH-SP will absorb surge

voltages and safely discharge them to the ground.

13mm wrench

7mm socket wrench or screwdriver

Machine Translated by Google

The exterior mounted LiteBeam AC without the reflector installed provides exterior

to interior coverage only via the 3 dBi powered horn.

Outdoor mounted LiteBeam AC with reflector installed provides directional outdoor

coverage LBE-5AC-LR Quick Start Guide (gain dependent on reflector).

hardware description

Machine Translated by Google

LBE-5AC-LR Quick Start Guide

To restore factory defaults, press and hold the reset button for more than 10

seconds while LiteBeam AC is powered on. You can also remotely reset the

device using the reset button on the bottom of the Gigabit PoE adapter.

The LED indicator will turn solid blue when the device is connected to an

Ethernet network and will blink if there is activity.

Puerto Ethernet

Power LEDs

Supports 10/100/1000 connections and passive PoE. This port must be

connected to the LAN and the DHCP server.

The LED will light blue when the device is connected to a power source.

reset button

LED the Ethernet

Machine Translated by Google

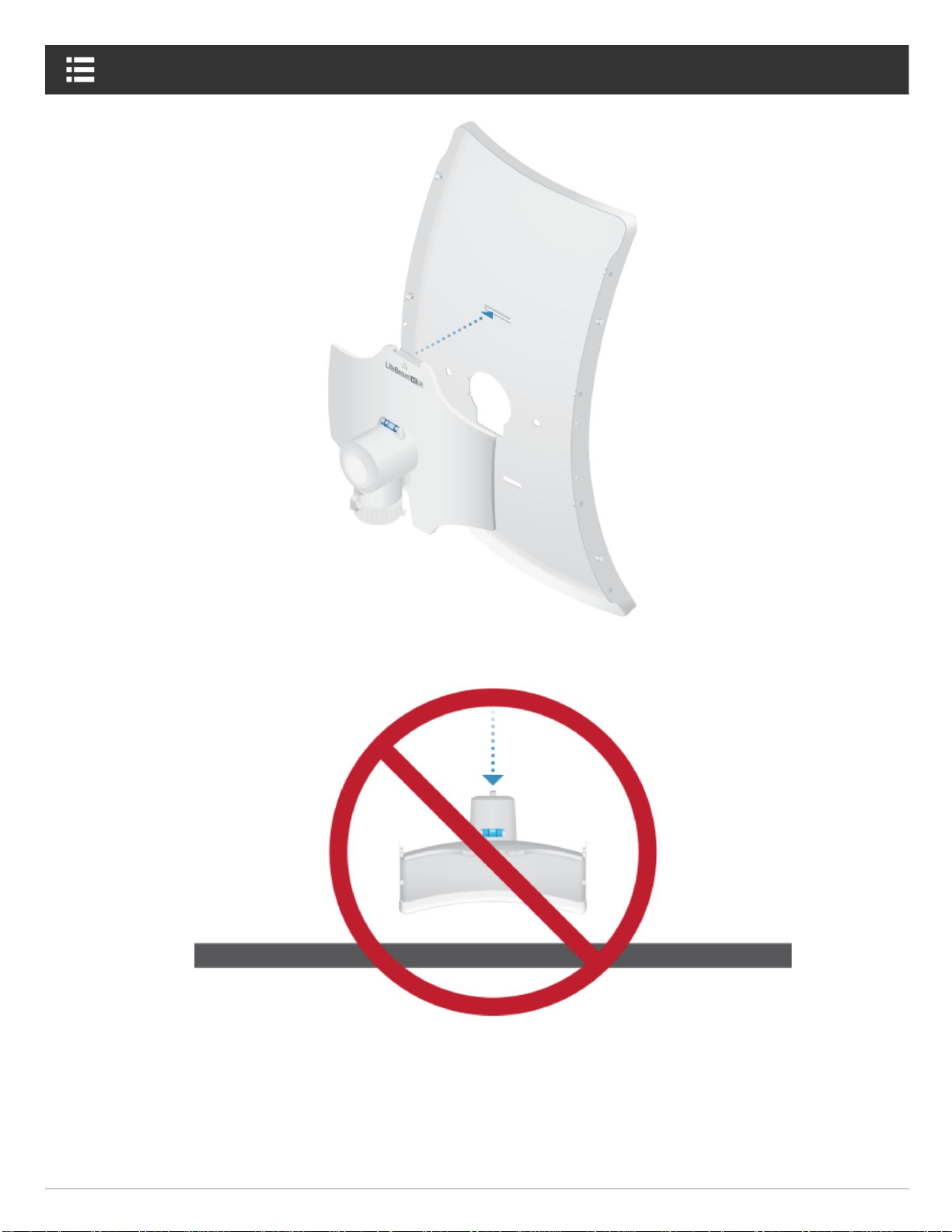

hardware installation

LBE-5AC-LR Quick Start Guide

1.

2.

Machine Translated by Google

LBE-5AC-LR Quick Start Guide

Machine Translated by Google

4.

3. LBE-5AC-LR Quick Start Guide

Machine Translated by Google

LBE-5AC-LR Quick Start Guide

6.

5.

Machine Translated by Google

LBE-5AC-LR Quick Start Guide

7.

8.

Machine Translated by Google

LBE-5AC-LR Quick Start Guide

9.

Machine Translated by Google
